'76 KZ900 (ZRX1200R) Build 18 Jun 2013 14:35 #592888

  • NakedFun
  • NakedFun's Avatar Topic Author
  • Offline
  • User
  • Posts: 1095
  • Thank you received: 99

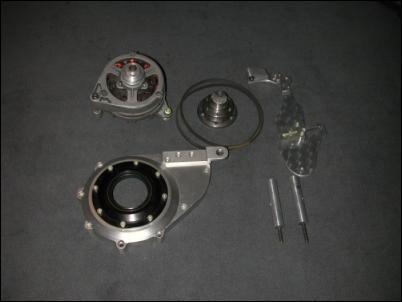

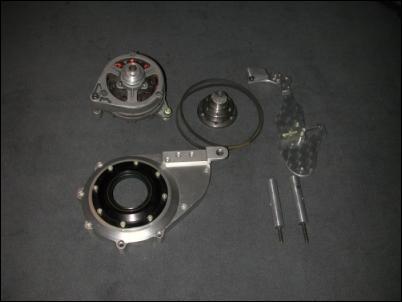

So on Saturday while waiting for a potential buyer for our RV, I got to spend some hours working on the KZ. First off, I fitted the cover and belt drive for mock up.




Then fitted a little bling....



Then rough cut the center out oof my Harley Cush Drive.



Then using my brother's new lathe, turned it and trued it in prep for my collar and sprocket.



Then turned my attention to putting on and fitting all the D&G Chassis motor mount stuff. Started with the front mounts.



Then the rear chromemoly mount. Which eliminated the old mounts which had the battery box brace tabs. So I jigged the battery box in place and cut the brace down to a minimum and welded it into the new motor mount once in position. then cut down the old long bolt and rethreaded it.



Then decided I ddin't like how my current location for the rear brake master resivior got mounted, so I decided to move it to behind the side cover. Made a new bracket and welded the bracket to the battery box. Came out nice I think.




Finished up by adding my last brace to the exhuast hanger mount.



Then used my bro's lathe again to make some special bushings and my alternator stand off as can be seen on the RH side of the pic.



Well, that is all I got done, not much. It will be a couple of weeks before I can do more as I will be out of town on vacation. Hopefully my wheel will be back and I can get that fitted up!

Cory
2008 Kawasaki Concours 14
1999 Kawasaki ZRX1100
1976 Kawasaki KZ900

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 18 Jun 2013 15:35 #592892

  • 79MKII
  • 79MKII's Avatar
  • Offline
  • User
  • Love Them Kaws!
  • Posts: 2494
  • Thank you received: 43
Wow, that guy must have been really late! :lol:

Looking great!
The Kaw List:
Current: 79 KZ1000 A3 MKII, 78 KZ1000 A2, 78 KZ1000 Z1-R, 78 KZ650 SR, 80 KE175
Former: 03 KLX400SR, 99 ZRX1000, 82 KZ750 LTD, 80 KZ1000 A4 MKII, 80 KZ1000 LTD, 78 KZ1000 A2, 74 H-2 750 Triple, 78 KL250

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 18 Jun 2013 15:46 #592893

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1254
  • Thank you received: 525
Looking at your remote alternator, I was reminded that there are some shots of a cool setup like that in the documentary "Z1: The Movie".

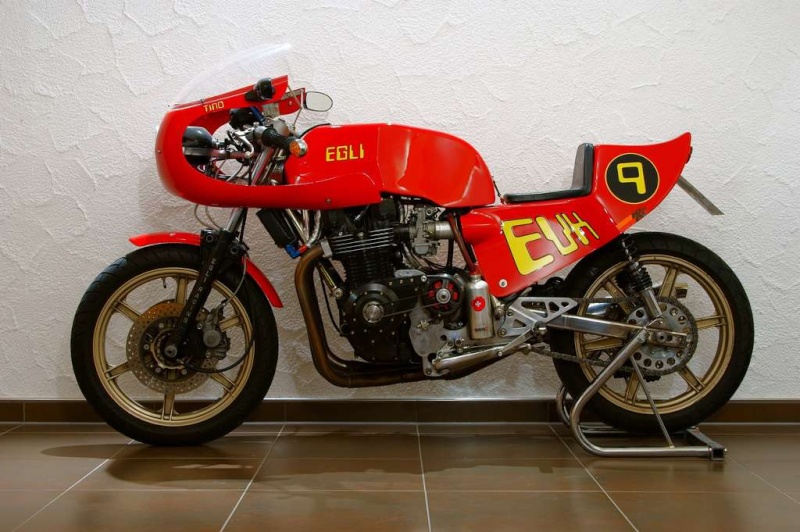

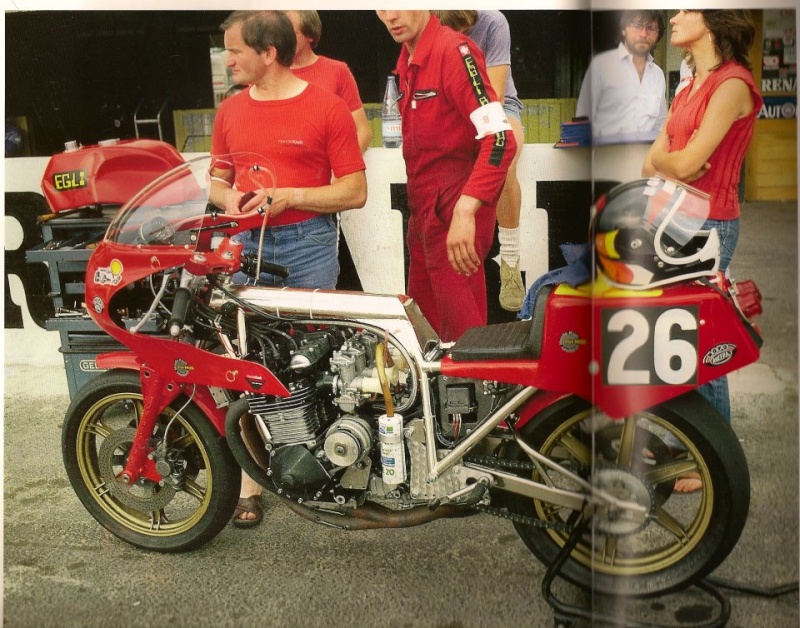

I believe the bikes with this setup are all Egli built bikes. I can't find any pictures that exactly match what I remember seeing, but here are some examples of Egli remote alternators.









Maybe someone who actually remembers where they put their copy of the DVD can take some screen shots...
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by DOHC.

'76 KZ900 (ZRX1200R) Build 18 Jun 2013 16:12 #592903

  • NakedFun
  • NakedFun's Avatar Topic Author
  • Offline
  • User
  • Posts: 1095
  • Thank you received: 99
Cool pics! So far all the belt drives I have seen are one off's and most don't keep the electric starter operable. I wanted to keep the starter in tact. Did have to order a different belt as one was really too long and one was too short for where so want the alternator.

Cory
2008 Kawasaki Concours 14
1999 Kawasaki ZRX1100
1976 Kawasaki KZ900

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 18 Jun 2013 16:33 #592905

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1254
  • Thank you received: 525

NakedFun wrote: I wanted to keep the starter intact.


I think I could live without the electric start, but I haven't actually tried. Those stupid batteries are always on the edge of dead anyway, so I frequently end up pop starting the bike.

I've been wondering if it would be possible to fit the alternator from a ZX11 or possibly the similar Suzuki Katana units down into the recess for the KZ1000 starter motor.

These alternators looks to be a bit larger in diameter than the starter, but might be close enough? They are smaller than an automotive unit anyway.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 18 Jun 2013 16:55 #592908

  • NakedFun
  • NakedFun's Avatar Topic Author
  • Offline
  • User
  • Posts: 1095
  • Thank you received: 99
I think finding a way to drive them with gears would be the most difficult challenge of using them in place of the starter. My kick start is deleted as it would not work with my pegs from Les.

As far as alternator size, this is a permanent magnet alternator with built in regulator so it is a simple 2 wire hookup and self regulating 40 amps come out... Also has the option for a failure light with a third wire. Much cleaner, reliable charging system IMHO. I am building my own electrical system since I really enjoy designing and fabricating that stuff.

Cory
2008 Kawasaki Concours 14
1999 Kawasaki ZRX1100
1976 Kawasaki KZ900

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 18 Jun 2013 22:43 #592980

  • Hollywoodmx
  • Hollywoodmx's Avatar
  • Offline
  • User
  • Posts: 562
  • Thank you received: 16

79MKII wrote: Wow, that guy must have been really late! :lol:

Looking great!


AHhaha! :lol:

Hey Naked are you putting a cover on it? It looks like the belt is right where your lower part of your leg will be. With the SC cover of my bike it's dangerous for the same reason, it was rubbing on my jeans even when I was trying to avoid it..
- 82 GPz1100injection
- 77 Kz1075 Supercharged
- 81 Yamaha TR-1
- 81 Yamaha xv920
Calgary

Please Log in or Create an account to join the conversation.

Last edit: by Hollywoodmx.

'76 KZ900 (ZRX1200R) Build 19 Jun 2013 00:27 #592994

  • NakedFun
  • NakedFun's Avatar Topic Author
  • Offline
  • User
  • Posts: 1095
  • Thank you received: 99
Kind of a guard.... Lol

Cory
2008 Kawasaki Concours 14
1999 Kawasaki ZRX1100
1976 Kawasaki KZ900

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 30 Jun 2013 00:32 #594404

  • NakedFun
  • NakedFun's Avatar Topic Author
  • Offline
  • User
  • Posts: 1095
  • Thank you received: 99
Buchanan's sent my reworked wheel back... Getting closer....



Cory
2008 Kawasaki Concours 14
1999 Kawasaki ZRX1100
1976 Kawasaki KZ900

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 02 Jul 2013 11:28 #594704

  • 531blackbanshee
  • 531blackbanshee's Avatar
  • Offline
  • Vendor
  • Posts: 7447
  • Thank you received: 797
sweet!


leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 24 Jul 2013 11:40 #598053

  • NakedFun
  • NakedFun's Avatar Topic Author
  • Offline
  • User
  • Posts: 1095
  • Thank you received: 99
Quickie Update... Almost finished the belt drive alternator. May machine an additional brace for the main pivot bolt and FINALLY got the right belt. Machined up a custom turnbuckle for setting tension.





No onto the wheels... Since I ended up trying a different hub, now I need to machine .385" off the hub to get the cushdrive into alignment and need a big lathe for that swing....ugh! May have to disassemble and the reassemble the rear wheel... what a PITA!

Cory
2008 Kawasaki Concours 14
1999 Kawasaki ZRX1100
1976 Kawasaki KZ900

Please Log in or Create an account to join the conversation.

'76 KZ900 (ZRX1200R) Build 24 Jul 2013 15:11 #598084

  • StreetfighterKz
  • StreetfighterKz's Avatar
  • Offline
  • User
  • Posts: 1510
  • Thank you received: 117
Cory,

Your project looks great! I like the innovation you're putting into it.

Now, I just need to hop back over to my 900 project since you've given me some inspriration. I've drug it out way too long...

Later, Doug
1978 z1000 Streetfighter
1976 z900 Stripfighter (work in progress)
1983 Gpz750 Resto-Mod
1989 Vmax
