Here's where I'm at presently.
* Got the manual and familiarized myself with the components and locations.
* Have the fairing and plastic all off.
* Recharged the battery.
* Found a cobbled up mess of home mechanic wiring and some after market relays and switches...
:pinch: Hmmm, go figure. So corrected to OEM diagrams.

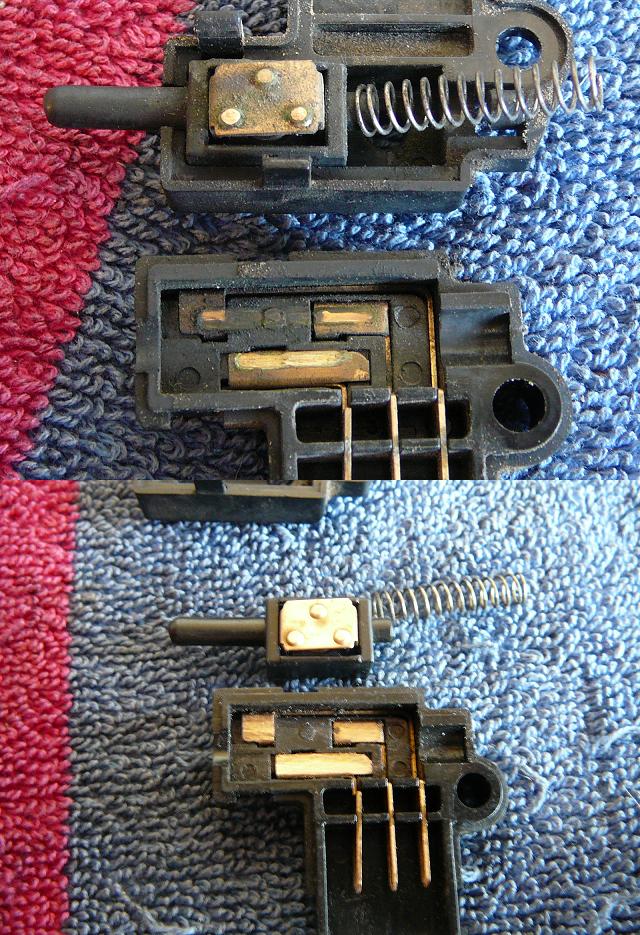

* I found the starter bypass switches (infamous clutch perch) dirty/oxidized, so I took them apart to clean.
* During starter button press, High pitch whine as if free running and clunk sound from the starter motor.
* Replaced starter motor with spare provided. No more whine.
She now turns over but I still get an occasional clunk, thoughts are starter clutch.... Damn, have to split the cases if that's the problem...
Same time, not going to do anything to that level quite yet.
Next step is completely go through the electrical troubleshooting and repair section first. Want to make sure all relays are working, that I have spark, the fuel pump is receiving it's control voltage and passing fuel, the CDI isn't blown etc....
Since she does turn over, if I can get her enough to start then go from there.
There you go, that's about it for now...
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- badrhino
- Offline
- User
- Posts: 554
- Thank you received: 6
1980 KZ1000 with a 1982 KZ1000J motor with 1100 pistons and heads, Vance & Hines, 29MM Smooth Bores, Work in Progress
Franken Z!
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Topic Author
- Offline
- User
- Posts: 6224
- Thank you received: 225

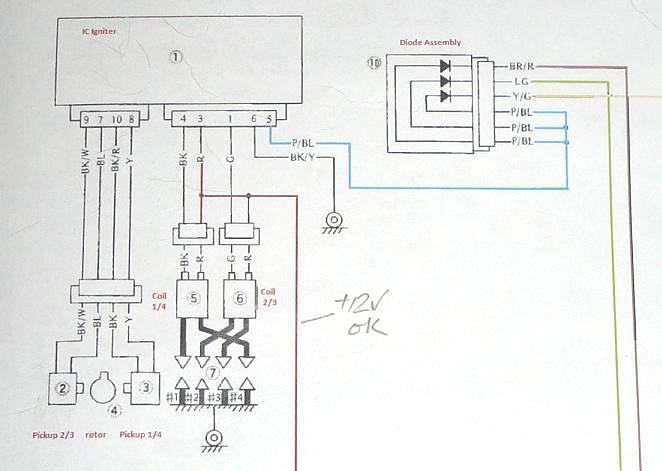

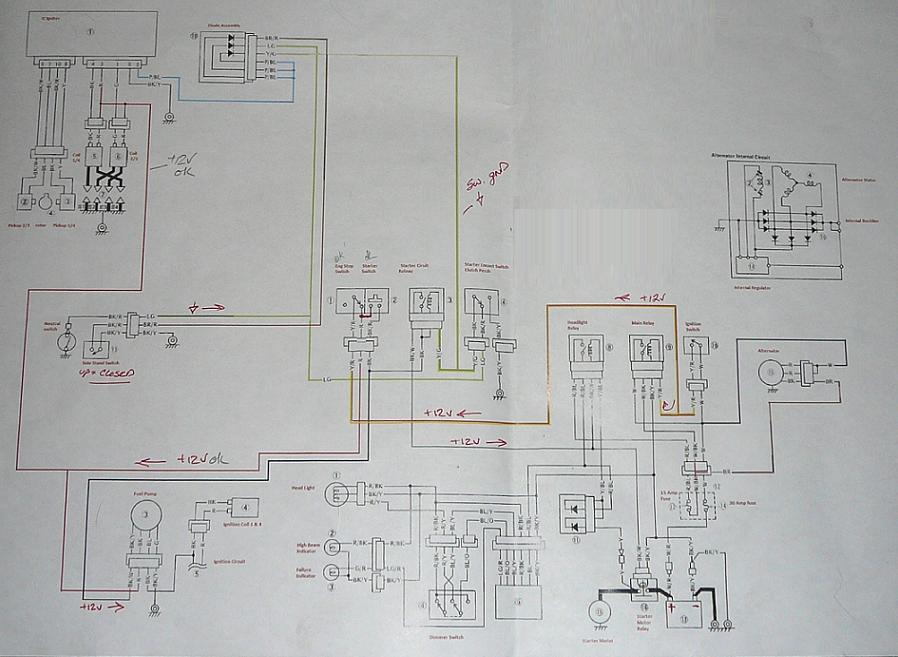

First thing first, Re-drew a wiring diagram that was easier to freaking read...
Well as expected due to shit home mechanic wiring and for the fact that PO had to replace the generator (internal rec/reg), starter, wiring harness.... the IC igniter was susceptible to damage.
I don't have spark to the coils->sparkies.

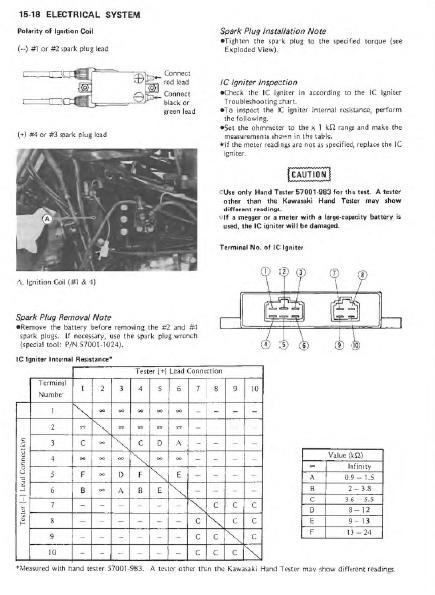

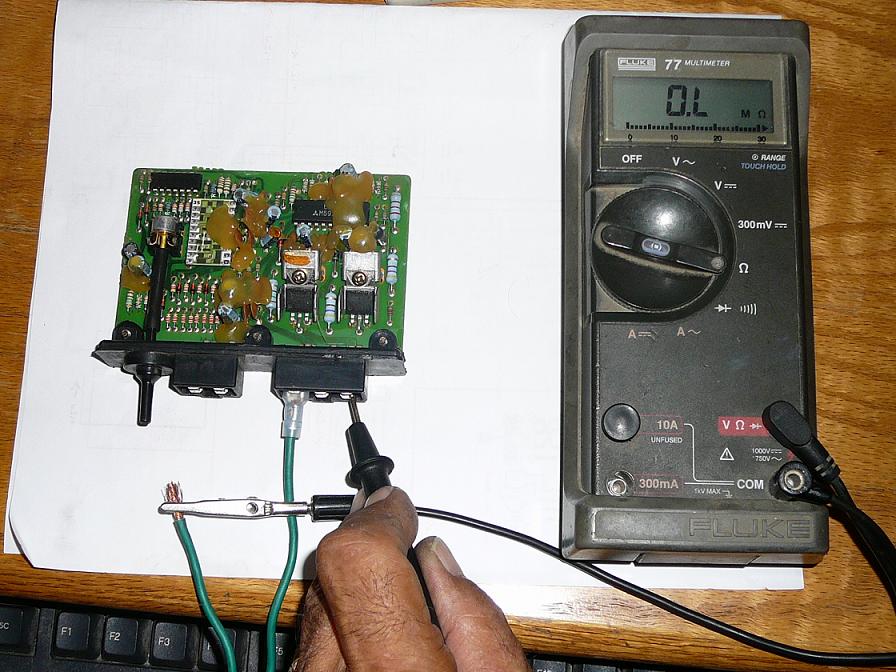

The manual provides a nice chart for OHM testing pin to pin... On several measurements I obtained, no doubt the IC Igniter is crap.... New OEM costs... $450... :pinch: :pinch: :pinch:
Ok, screw that.... Let's open up the IC igniter and see what we have shall we...
WTF do I have to lose...

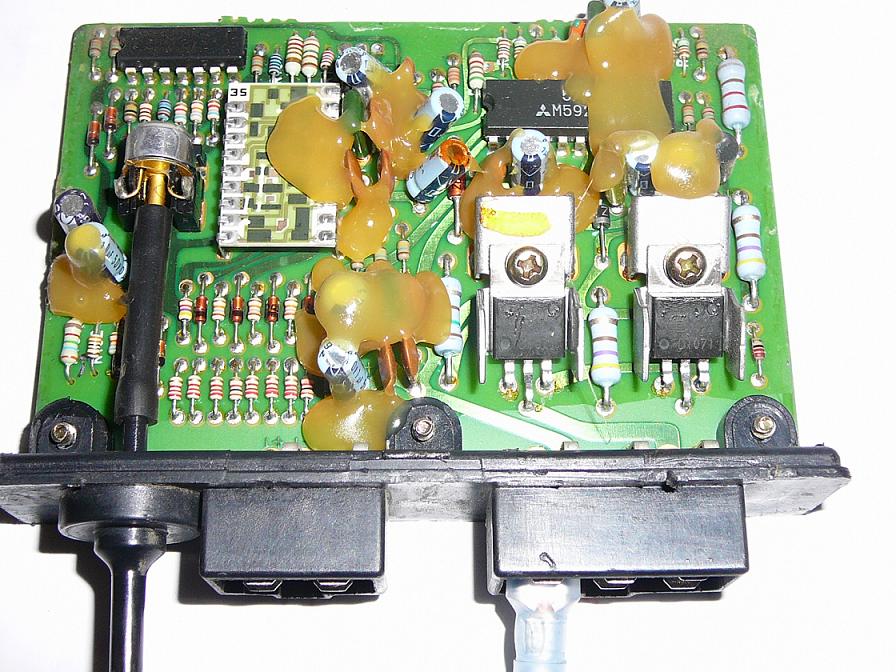

Ahhhhhhhhhhhhhh based on the pin inputs that measured out of spec, follow them to these 2ea 2SD1071
High Voltage Amplifiers.... Ah soooooooooooooo....

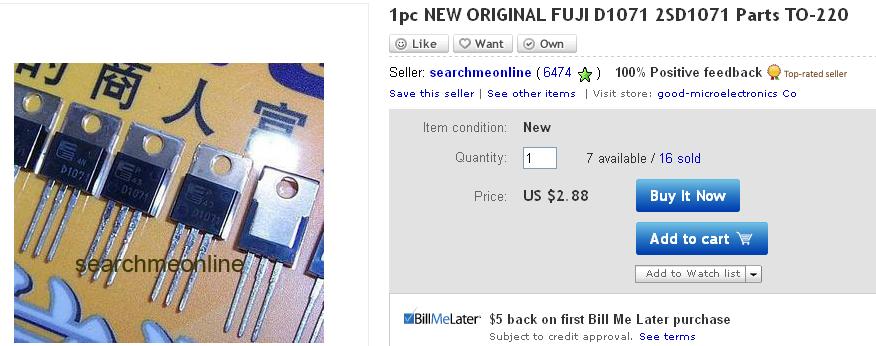

Ok, hard to find onto e-bay....
I'll order 4 each and have some spares since these are so hard to find!
I'll keep you posted after the replacements. Hopefully a $450 costs will turn into a $10 repair!
