New guy in Phoenix

  • huntersdad14
  • huntersdad14's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thanks: 1

Re: New guy in Phoenix

27 Dec 2015 05:37
#704505
Does that clutch perch control the engine getting spark? I tested and I'm getting good spark.
Jeremy

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23236
  • Thanks: 2832

Re: New guy in Phoenix

27 Dec 2015 05:59
#704509
It's supposed to keep the engine from turning over. Same with the kick stand switch. Most bypass both of them.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • huntersdad14
  • huntersdad14's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thanks: 1

Re: New guy in Phoenix

27 Dec 2015 06:08
#704511
Oh OK. She turns over pretty well just doesn't fire. Gonna go grab some starting fluid in a but and try that
Jeremy

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23236
  • Thanks: 2832

Re: New guy in Phoenix

27 Dec 2015 06:20
#704514
Pics of your plugs? Valve adjustments done? They are the most neglected of all. When the bike starts running SHTTY, the bike gets sold. Also if the leads from the timing are reversed, it will have spark but not at the right time.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • huntersdad14
  • huntersdad14's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thanks: 1

Re: New guy in Phoenix

27 Dec 2015 06:30
#704515
Plugs are brand new,like fresh out if the box. Know I have spark but if it's not firing at the right time I know the engine won't run but wouldn't it be trying? When I turn it over it doesn't even try
Jeremy

Please Log in or Create an account to join the conversation.

  • huntersdad14
  • huntersdad14's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thanks: 1

Re: New guy in Phoenix

27 Dec 2015 06:42
#704516
Actually just went in the garage and hit the starter button and it backfired?
Jeremy

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15343
  • Thanks: 2829

Re: New guy in Phoenix

27 Dec 2015 06:47
#704517
Are you positive you have the spark plugs wires attached to the correct plugs? I've seen some folks get them mixed up. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

  • kaw-a-holic
  • kaw-a-holic's Avatar
  • Offline
  • User
  • Posts: 1808
  • Thanks: 249

Re: New guy in Phoenix

27 Dec 2015 07:00 - 27 Dec 2015 07:05
#704519
If you look at OMRs wiring diagram you can see that 1&4 coil is the black wire were 2&3 are fed by the green wire. Both should have a red wire. Make sure these connections are clean and well connected. Trace your spark plug wires to make sure they are correct. 1&4 can go to either, As well as 2&3.

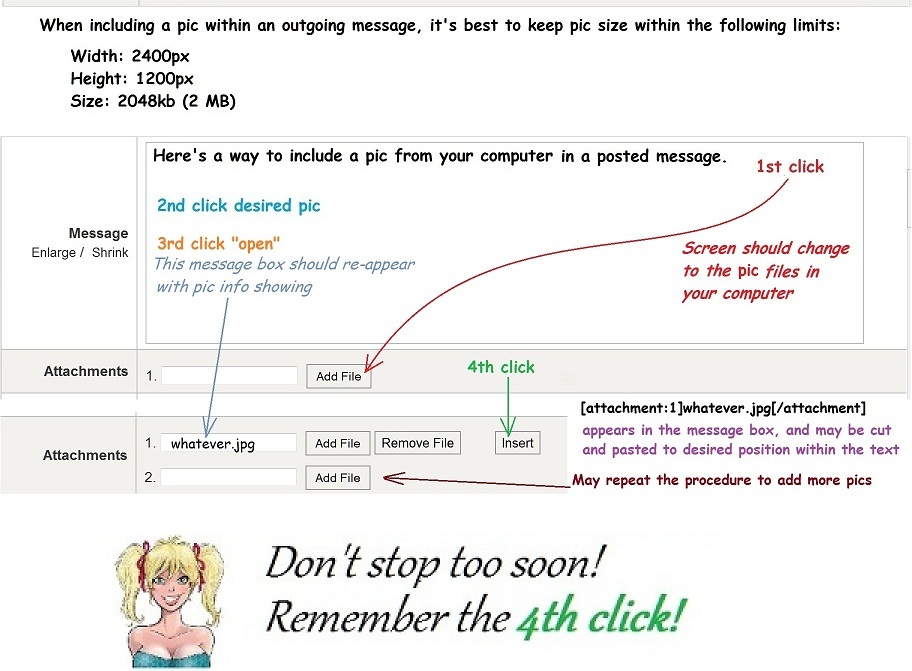

FYI for loading pics see below

Jon
1977 KZ1000a1
Mesa, AZ
Phoenix Fighter Project

Attachments:

Last edit: 27 Dec 2015 07:05 by kaw-a-holic.

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23236
  • Thanks: 2832

Re: New guy in Phoenix

27 Dec 2015 07:04
#704520
If it backfired the wires are switched.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • huntersdad14
  • huntersdad14's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thanks: 1

Re: New guy in Phoenix

27 Dec 2015 07:25
#704525
The coil on the left side is hooked up to 1 and 4 and the coil on the right side goes to 2 and 3.I'll go check the wires coming from the ignition. The previous owner put the dyna could and ignition on and he did tell me he didn't know how to set the time. I downloaded the install instructions for the ignition.
Jeremy

Please Log in or Create an account to join the conversation.

  • huntersdad14
  • huntersdad14's Avatar Topic Author
  • Offline
  • User
  • Posts: 42
  • Thanks: 1

Re: New guy in Phoenix

27 Dec 2015 07:32
#704527
For shits I sprayed some starting fluid in the box and nothing. No backfire and didn't try to start so will check the wiring
Jeremy

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • 10 22 2014
  • Posts: 23236
  • Thanks: 2832

Re: New guy in Phoenix

27 Dec 2015 12:01
#704559
It's usually something stupid. I have the Dyna S, it's easy to hook up and works great.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.
