Kray-Z wrote: I am thinking about the dynamics of the running engine and how things like cam journal clearances, cam deflection, imperfections in cam grinding, and adjacent valves can affect valve clearances and timing and such. In that respect, if you are tuning an engine to exact "blueprint" specification, then you would want to use a degree wheel, dial indicator, and piston stop and set the valve lash so the individual cam lobes are centered on the base circle exactly as the valve stem sees it in the running engine, with the cams in their journals and loaded form adjacent valves exactly as the....

Never mind...I'll just point the lobes directly away from the followers and it should work just fine, every time.

Ha ha. Think of it this way: positioning the valves properly is LESS WORK and faster.

I've said it before, I was taught to set the valves with them facing opposite directions. Setting the valves this way has a effect on the cam timing. Before I would just turn the crank so each lobe was pointing away, set all of them on one side then go to the other. That was in 78.
Steve

Nessism wrote:

loudhvx wrote: Well, that's sort of the question... whether or not to follow the instructions explicitly or just point the cams away from the valves. I've done both, and there is a slight difference, but usually not enough to make a huge difference as long as you are not trying to hit the very top limit of the clearance range (which is a bad idea anyway). The base circle is pretty big, but depending on position, other valves are compressed or not, and that will affect how much the camshaft is deflected, which will affect the measurement.

Following the manual means being at TDC , at least in the 550 manual. If we assume there is no camshaft deflection (either by bending or moving within the bearing), and we assume the base circle is perfectly round (measuring it shows slight imperfections) then the Clymer's instruction will be the same as the FSM. In practice, the results are not exactly the same. The cmashaft does deflect a tiny bit, and the base circles are not perfectly round.

In my experience the camshaft DOES deflect in the journal clearance when the adjacent valve is not on the base circle. I always make sure both side by side valves are on the base circle so the cam lobes are not pushing up on the cam. My only comment relates to not having to follow a strict TDC approach.

Exhaust valves:
Aim #1 exhaust lobe forward at the gasket surface and then adjust both #1 & #2 exhaust valves. Then repeat with #4 facing forward.

Intake valves:
Aim #1 intake lobe straight up, Doing this will put both #1 & #2 on the base circle so you can check them. Then repeat with #4 facing straight up.

very simple

Ok, but, just to be clear, the manual, if followed explicitly, actually has you measure clearances while the adjacent lobe is actually pressing on the valve (and deflecting the camshaft). This means, the manual's method always takes the slop out of the journal, with the cam deflecting away from the valve.

Always measuring at one of the two TDC marks will give better consistency since the cam will always be deflected the same amount when re-measuring the same valve multiple times.

loudhvx wrote: Ok, but, just to be clear, the manual, if followed explicitly, actually has you measure clearances while the adjacent lobe is actually pressing on the valve (and deflecting the camshaft). This means, the manual's method always takes the slop out of the journal, with the cam deflecting away from the valve.

Sorry, but I believe you are incorrect. The FSM specified method puts both adjacent valves on the base circle at the same time, thus you set the cam position and then check the clearance on two valves at the same time. This could not be done if the adjacent lobe was depressing the valve.

I may have misunderstood, so forgive if that's the case; but forthe KZ650 if you follow the FMS you don't check the clearances of adjacent valves. You check 1&3 and then after repositioning the cam you check 2&4, etc. Ed

I believe I'm mistaken on the Kawasaki FSM adjustment method too.

With the #1 or #4 exhaust lobe pointing forward that puts both adjacent valves on the base circle, however the FSM doesn't specify checking the adjacent valves at the same time. Not sure why though.

The manual has you measure 1 and 3 exhaust at the same time, when at the 2-3 T mark. That can only be done when the #2 exhaust lobe points backward, not forward. #2 will still be pressing on the valve in that position. #1 lobe will be upward and #3 lobe will be forward.

It says to measure "#1 and #3, or #2 and #4". I interpret that to mean you are to measure the pair 1 and 3, or the pair 2 and 4. And not any other combination at that particular crank position. As in, not "1 and 2", and not "3 and 4".

It also has you measure 2 and 4 exhaust at the same time, when at the 2-3 T mark. That can only be done when the #3 lobe is pointing backward and pressing.

When I say "pressing", I mean lightly pressing. The main part of the lobe is not on the valve, but the opening or closing ramp is on the valve. It is enough to take the slop out of the bearing. Incidentally, the other non-measurable valve, in this case #4, is pointing downward, but not directly on the valve. It may be pressing harder than #2, but still not at full force.

The intake is done similarly.

The whole point is to get the slop out of the bearings and measure at a precisely repeatable position. That eliminates a lot of variables.

In this animation, the long pause is when 1 is at TDC, and is under fire. That is followed by short pauses at TDC for 2, 4 and 3...in the normal firing order. (yes, I have a little time invested in this discussion , as I'm sure others do as well)
If the animation doesn't clearly show 1 2 4 3 regularly, it might help to open the image link in a new browser window. Slow computers might not show the animation smoothly.


I see Ed (650ed) has the instructions posted for the 650.
Here's the 550.

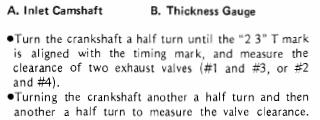

Exhaust instructions

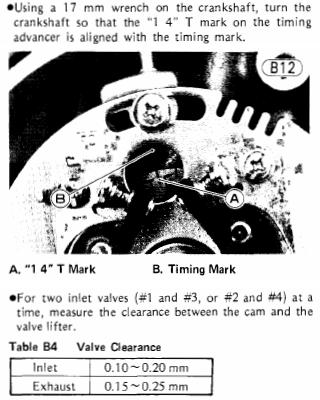

Intake instructions


I would recommend this as a sticky post, but it shouldn't be necessary if we just read the text of the FSM, and follow it exactly. It seems I've read that advice somewhere around here once or twice.

650ed or Nessism Ed: I don't have a 650 FSM, can you explain something:

I see they are referring to an EX mark on the exhaust cam sprocket and a "T" mark on the intake sprocket.

When the exhaust "EX" mark is aligned with the valve cover deck, which pistons are at TDC?
I think it's 2 and 3, but that would make the timing marks different between 550 and 650.

When the intake "T" mark is aligned with the valve cover deck, which pistons are at TDC?
I think it's 1 and 4.

On the 550, when the ex mark on the exhaust sprocket is aligned with the deck, 1 and 4 are at TDC.

I'm not sure of the answer, but below are links to the FSM's for 2 different year KZ650's. The info on measuring valve clearances in the 1st manual begins on page 15; in the 2nd manual it begins on page 2-5. Ed

docs.google.com/file/d/0B0LxNUBYfNL8ZTQ2...dh/view?pref=2&pli=1

jarlef.no/Kawasaki/PDF/Z650/Files/KZ650-1981manual.pdf

Thanks Ed.
I downloaded the first manual, but I couldn't find explicit info on the EX mark aligning with 2-3 at TDC.

I couldn't find really good photos either.

Can anyone confirm the EX mark is about 90 degrees away from the T mark on a KZ650 exhaust cam sprocket?

That would make the clearance measuring procedure the same, effectively, for 550's and 650's, even though the markings actually conflict. What I mean is, both bikes have their valve clearances measured with their cams in the same relative positions, relative to what valves are being measured, even though the actual stamped markings will be different.

If a 550 is done following the 550 manual, the procedure is the same as measuring a 650 with a 650 manual. But don't mix manuals and bikes, because then it would be wrong.

I found some additional info that should help.

Take a look at pages 48 & 49 of the first manual. They mention setting pistons 1 & 4 to TDC by aligning the timing advancer "T" mark on the 1,4 side to the timing mark. Then they mention that "T" mark on the exhaust camshaft sprocket should point to the front and be aligned with the cylinder head surface. They then go on to state that the inlet cam should be positioned so the "T" mark on it's sprocket should point to the rear and be aligned with the cylinder head surface. Ed

That animation is way cool.

The way I've always adjusted the valves ...

Position 1: Adjust #1 & #2 Exhaust
Position 4: Adjust #3 & #4 Exhaust

Position 2: Adjust #1 & #2 Intake
Position 3: Adjust #3 & #4 Intake

This way has both adjacent valves on the base circle. I like this method because the cam isn't skewed in the journal clearance. I learned this by working on Suzuki GS's. My KZ FSM shows the cam lob pointing forward when looking at the shim chart so I assumed it was same. Apparently i was wrong about that detail. I'm sticking with the method detailed above though since it's easy to remember.
