You might be able to take a bit off the swingarm and a bit off the inside of the frame. Dont know how safe that would be though.
Another thing to watch out for, is, even if you get it fitting ,look out for clearence between the swingarm(right behind the pivot tube) and the frame downtubes ( around where the passenger footrest brackets are). The arm needs room to move up and down with the travel of the shock.
I had to whack my footrest brackets off and things are still a bit tight. Im waiting for the shocks (ordered a few days ago) to measure the travel and see if I have to grind a bit off the sides of the swingarm. I hope not!

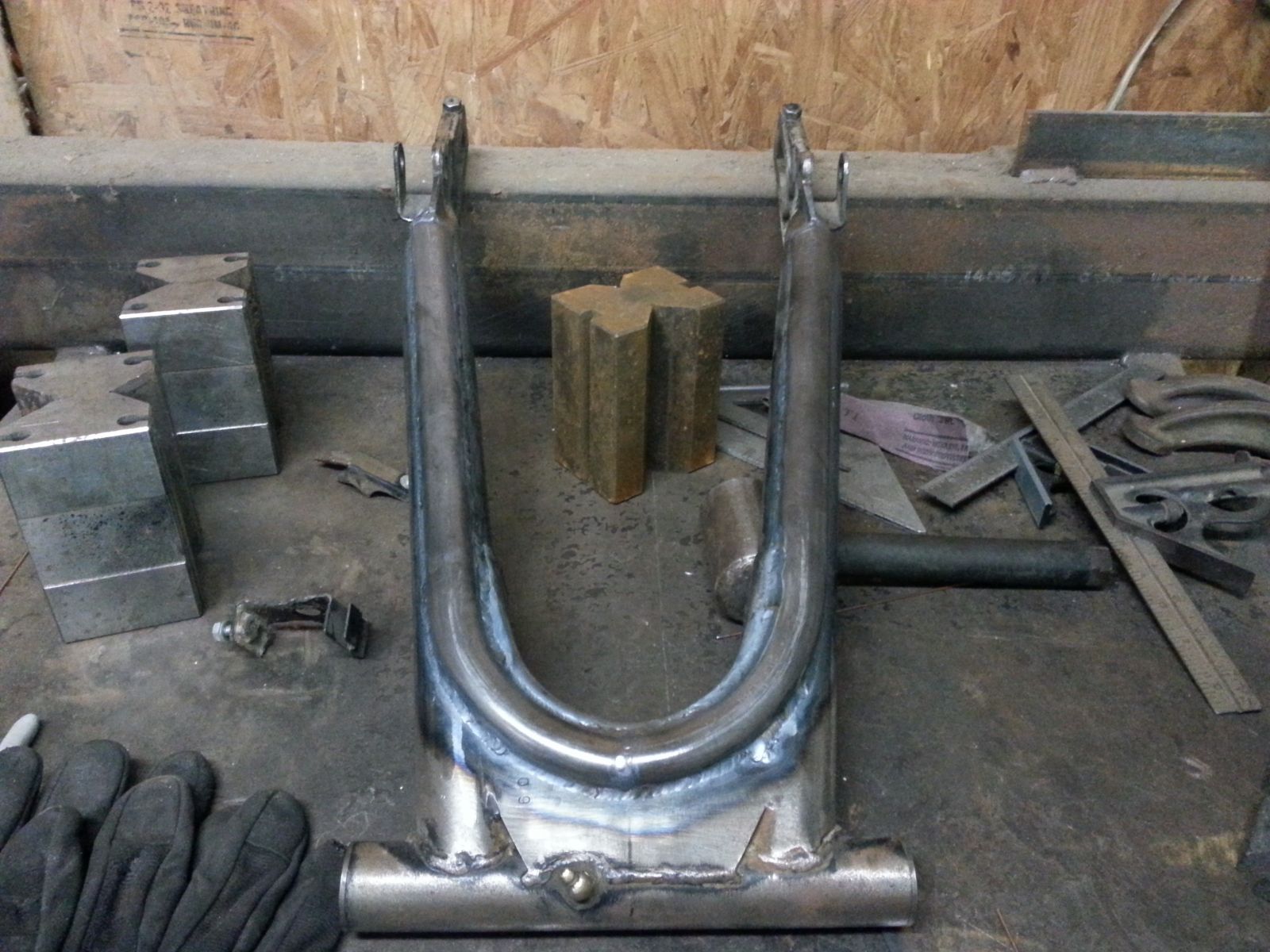

For the rest , your build is looking good. Nice clean welding.

P.S. Might be wrong but looking at the measurement on the second photo,You should be measuring twixt the inside of the round sticky out bits. Not the frame tube. You could be looking at more than 20mm difference.
An,uther thought. I remember a thread recently when someone cut the cross brace (under the swingarm pivot),forced the frame open with a car jack and rewelded it.

many thanks for that Davido!! I have literally just got back from purchasing a complete rear end, swingarm with wheel which was still in situe and had the caliper which was still bled and the footrest with hanger all still attached. I also got the rear shock just incase I go mono and a set of 6 pot front calipers - very much a bargain.

Looks like I'm going to have to mill away around 14mm off the swingarm at the pivot and have some reducers made up to take the narrower KZ pivot bolt, bearings shouldn't be too much of an issue?

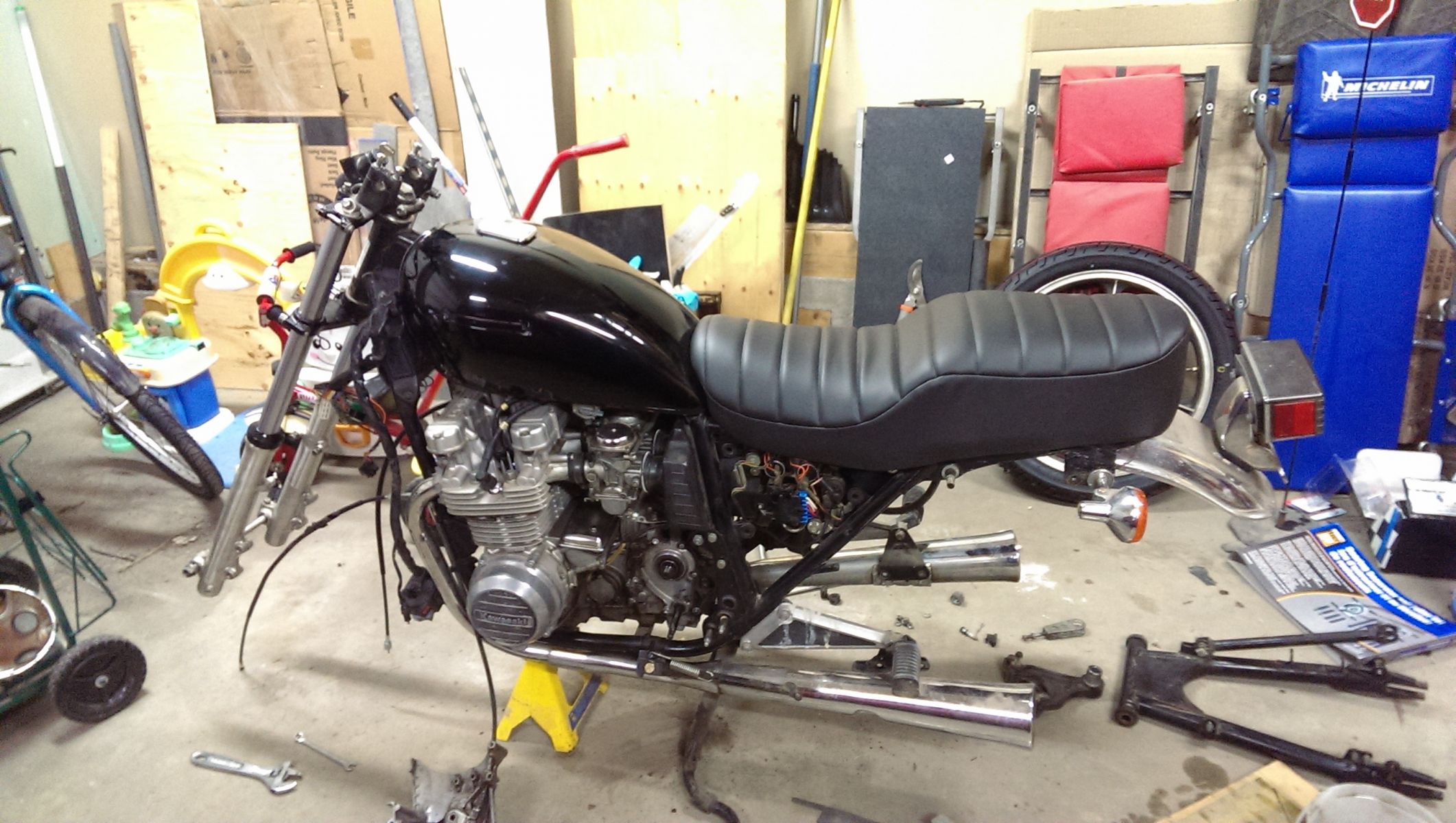

Pic attched of the 750 so far.

I did a ZX9R front end swap on my project 1000 which worked out great but I really got stuck with the back end. I got this advice regarding swingarms,from Leon;

97-03 gsxr 600 (no upper brace)
92 gsxr 1100 (no upper or lower brace)
those should install much like the gs arm.

these will take some modification but have been used on kz's in the past (and present)
99-07 busa needs upper brace removed(possibly lower brace added)
03-04 zx6/636 needs the pivot machined narrower
01-05 fz1 needs the pivot machined narrower

these will all need shock brackets added for dual shocks if thats what you want.
i'm sure there are others but these have all been used on kz's in the past.
what you have to watch is that the pivot doesn't get to wide to where it can't be machined down to narrow it.
hth,
leon

This was a great help to me and I settled on a GSX600R swingarm with a Bandit 600 wheel with a 160 tyre. Worked out just peachy.
Welcome to the site and good luck with your build.

P.S. Pictures are always nice

A quick intro before I ask the question(s).

My name's mark and I'm from the UK - I recently bought an almost finished KZ750E project from a friend that was planning on building a cafe racer, he had already fitted a GPZ900 swingarm and was using CBR600 wheels. I took the project on and wanted to go another route and this brings me to the question, I have adapted the yokes (trees) to take ZX7R forks and wheels but I need to know if the rear of the ZX7R will fit? I have read on here that it is possible to get the rear in to a KZ1000 frame but I'm unsure if the frames are different between the 750 and the 1000?

Any help will be greatly appreciated as I'm purchasing a complete rear end later today or tomorrow and I don't want to buy if it will cost extra $ as I am already on a budget with this build.

Thanks again

I built a bike out of some old Kaw parts and want to get the speedometer to work. These are the build parts I used for the bike.

***PARTS LIST***
1978 KZ1000 frame
1976 Z1 motor
1976 bodywork and controls
1980 1000C triple trees
1982 1000P forks, front and rear wheel
1982 GS1100 swingarm

I know I will need the longer C or P speedometer cable, but since the drive is from a 1982 1000P and the dash is from a 1976 KZ900 I'm not sure what cable I need. Will a J model speedo cable hook up to a KZ speedometer?

Welcome aboard!

Here are some tips that you may find helpful:

Many newbies and not so newbies run into or issues with their bikes which could be easily avoided with a little preparation or information. Here are a couple recommendations that I hope you will find useful.

Before riding your KZ you should take a little time to become familiar with it. Simple things like checking the oil, tire pressures, etc. are explained in the Kawasaki Owner's Manual. If you bike didn't come with one (they normally are in a little holder on the bottom of the seat) you can usually find one on eBay - be sure to get one for your exact year/model.


MANUAL

You really should consider buying the Kawasaki Factory Service Manual for your bike. The factory service manual provides instructions on the various maintenance procedures and schedules for your bike, procedures for diagnosing problems, proper torque values for the various fasteners (VERY IMPORTANT), and insight into how each system on your bike works even if you are not repairing that system. Studying the manual before you attempt performing service on your bike will impart an understanding of the system you are working on which will increase the odds of success.

The manuals usually are readily available for most models on eBay and other sources; but be sure to get one that has your specific year and model in it as there are differences between the various KZ650 models. I do not recommend Clymers, Haynes, or other aftermarket manuals as I have seen instances where they provide inaccurate advice. You may decide to use those to supplement the factory manual, but in my opinion they are not a suitable substitute. If you have trouble finding one for your model ask us to help.


TOOLS

WARNING! Do not even try to use Phillips screwdrivers on the Kawasaki cross head screws. Despite their appearance they are not Phillips screws. They are Japanese Industrial Standard (JIS) screws. The tips of Phillips screwdrivers are too long & pointed to allow the 4 blades of the screwdriver to properly engage the screws, so when you apply force the screw head slots will deform and look like crap. The fact is that Phillips screws were deliberately designed to have the screwdriver bit "cam out." This was done to prevent production line assembly from over-tightening, stripping, or breaking the screws. JIS screws do not have this problem. A proper fitting JIS bit can tighten a JIS screw to and beyond the torque spec without camming out. Here's the good news - you can easily modify standard Phillips screwdriver tips to fit the JIS screws.

I have ground down the tips of DeWalt #2 and DeWalt #3 Phillips to make them fit JIS screws. The large crosshead screws on the cases take modified #3 bits (or genuine #3 JIS bits). To modify the DeWalt bits you need to grind the very tip a little, then test fit, then grind a little more and test fit, etc. until the bit no longer "rocks" back and forth in the screwhead. Picture 1 below shows how a DeWalt #3 bit fits the case screws of my KZ650 after being ground properly. The #2 DeWalt bits can be modified the same way to fit smaller JIS screws. Pictures 2 and 3 below shows DeWalt #2 and #3 modified bits.

I did find a place that sells authentic JIS bits. They don't list the #3 bit, but if you contact them they can provide the #3 JIS bits even though they are not listed on the website. These folks were very easy to work with, and the authentic bits do work great. Here's their site:

www.rjrcooltools.com/shop_item_detail.cfm?subcat_ID=89

Pictures 4 & 5 below show a comparison between my home made modified bits with the authentic JIS bits.

PICTURE 1

PICTURE 2

PICTURE 3

PICTURE 4

PICTURE 5

Before reaching for that wrench or ratchet consider the following. The bolts are steel, but your engine and front forks are aluminum. The bolts are much tougher than the aluminum and if over tightened will strip the aluminum threads. Although these can be repaired, preventing damage by applying proper torque will save you grief, time, and money. Tightening fasteners properly requires torque wrenches. Various vendors, including Snap-on, CDI, Sears, etc., market torque wrenches. The two most popular types are the bar type and micrometer type. Either will work, but the micrometer type is a bit easier to use, especially if you are tightening several fasteners with the same torque - such as cylinder head covers. You will need a torque wrench calibrated in INCH POUNDS for many of the bolts. You will also need a torque wrench calibrated in FOOT POUNDS for the larger bolts. Don't try to use the foot pounds wrench on the smaller bolts as it will not be sensitive enough at low torque settings to provide accurate torque. There are many fasteners that require low torque. These include such things as 6mm oil pan bolts, cylinder head cover bolts, etc. for which the torque in 61-78 inch pounds. These low torque bolts require a wrench that is accurate at low settings and this wrench should be graduated in inch pounds. In addition, there are numerous high torque fasteners such as the front axle nuts (51 - 65 foot pounds) or swing arm pivot shaft nuts (58 - 87 foot pounds). These require a wrench that is accurate at higher settings; this wrench should be graduated in foot pounds. Using the proper torque wrenches to correctly tighten fasteners will help prevent damage and contribute to a safe bike. The Kawasaki Service Manual will list the various torque specs for the bolts. I suggest you get the manual before buying the torque wrenches so you can decide which wrenches best meet the torque specs.

Consider buying a can of Kroil penetrating oil and use it to soak stubborn fasteners for a couple days before trying to loosen them. Remember, the original screws and bolts were installed on your bike when Jimmy Carter was President, so many of them may be hard to remove. Kroil can be bought online, at guns shows, and at some other venues.


MOTOR OIL
The ingredients in oils have changed over the years. For example, today's Castrol GTX oil (and pretty much all other AUTOMOBILE oil) is not the same as it was in the 1980's. Back then it worked great in KZ bikes. But, things have changed. Early AUTOMOBILE oils contained zinc phosphorus compounds (ZDDP) to protect engine components from metal to metal contact. This was good for engines, but it was found to be destructive to catalytic converters. Consequently, in AUTOMOBILE oils ZDDP was virtually eliminated and replaced with different chemistry generically referred to as "Friction Modifiers." These work fine and offer good protection for normal AUTOMOBILE engines. However, today's AUTOMOBILE oil "Friction Modifiers" are destructive to wet clutches. KZ bikes (and many other brands) have wet clutches. As a result of these oil chemistry changes a distinction needed to be made between those oils which are suitable for wet clutches and those which are not. That distinction was documented by the Japanese Engine Oil Standards Implementation Panel (JASO). JASO developed a number of different oil specifications for different applications. The specifications that apply to 4 stroke motorcycles fall under the "4T Specifications." Within the 4T specifications the JASO MA class oils are specifically formulated for 4 stroke motorcycles with wet clutches.

There are synthetic, semi-synthetic, and non-synthetic oils that meet the JASO-MA standard and any of them will work ok. However, using oils that are not designated as meeting the JASO-MA standard is destructive to KZ clutches.

Good luck with your bike. Ed

Nice job sir.

Last photo..

It was really a fantastic day. Its the first time the KZ has been out in public, and there were so many compliments, and a few really good constructive suggestions. I am very happy I went.

There were a few guys that really liked the bike, Mike, Tim and Anthony. Plus the steampunk bike builder whose name I cannot recall.

I won an award, so does that make me a bone-ified bike builder now?

Here are a couple photo's..

The blue and yellow Gixxer was another project I helped

with.
