530 drive chain?? 16 Jan 2021 13:01 #841819

  • Rick H.
  • Rick H.'s Avatar
  • Offline
  • User
  • Posts: 789
  • Thank you received: 188
I am a simple man who enjoys simple things. I could have gone to a 530 chain when I did my KZ-1000 overhaul, but the sprockets were new and I thought to heck with it, stay with 630. The added bonus was not having to mess around with all those crazy calculations and end up with something I didn't like. Besides, 630 chain on a bike looks way cooler and is OEM! And as a point of interest, I went with a clip style master link and after 2,000 some miles haven't had a single problem with it, but I don't do 8,000 RPM hole shots either. Somehow I doubt the engine knows if it has 630 or 530 chain on it the way I ride.

Rick H.
Rick H.

1977 Kawasaki KZ-1000A1

Please Log in or Create an account to join the conversation.

Last edit: by Rick H..

530 drive chain?? 17 Jan 2021 00:24 #841853

  • z1kzonly
  • z1kzonly's Avatar
  • Offline
  • User
  • Sustaining Member
  • Posts: 2722
  • Thank you received: 380

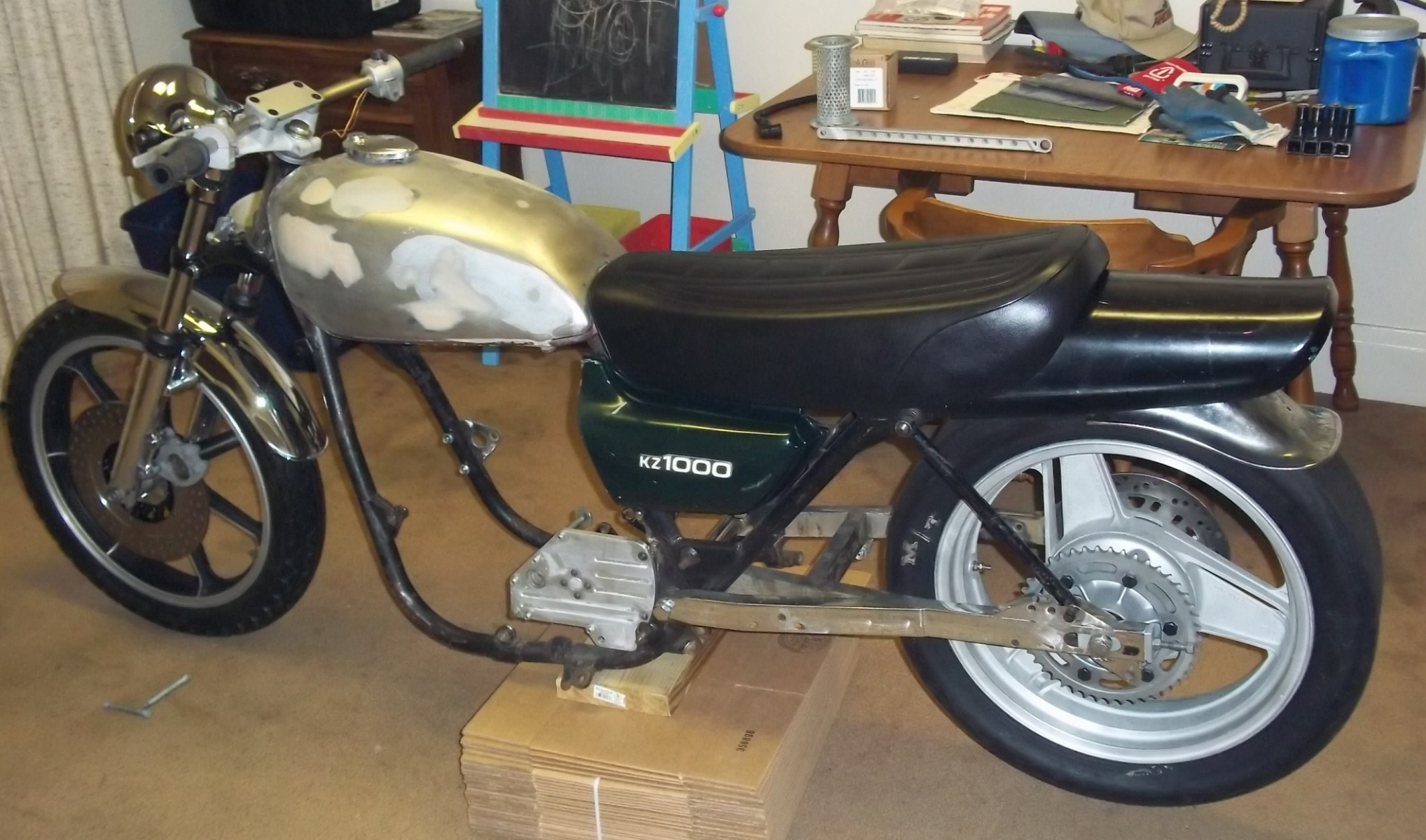

They have quality 530 chain today with super high tensile strength. Some of the Pro Stock drag bikes use it! Of course EK or Tsubuki is up there. I built one over 9 yrs ago. when I was still in the City house. I wish the Hot Rod on the table was 530! Could have snuck a 160 maybe 180 rear tire instead of the 150 rear. I'll find those pics too. That was an "Irish Will" old member plate he made and sold. 2010.
That was a middle of a rake job too. I found pics I forgot I had. Thats the race car 1/2 built too.
Livin in "CheektaVegas, NY
Still have a Kaw! 76 KZ900 Pro-Street.
Went thru 25 of these in 40 yrs.

And The Old Girl, Harley 75 FLH Electra Glide,
Old faithful! Points ign. Bendix Orig. carb.
Starts everytime!

Attachments:

Please Log in or Create an account to join the conversation.

530 drive chain?? 14 Jul 2021 06:46 #851729

  • Claude.
  • Claude.'s Avatar Topic Author
  • Offline
  • User
  • Posts: 135
  • Thank you received: 6
As a second topic about this 530/630 discussion, I'm trying to find the sprocket "type" (or pattern) in JT nomenclature.
I looked at Z1 Enterprises website (pretty awful to search on their website...) and what I found so far is written below. The missing pattern I would like to know if for a 1000J 530 front.

1983 KZ750L         630     ***      530
FRONT                JTF518  ***   JTF513
REAR                  JTR501  ***   JTR488

1982 KZ1000J       630     ***    530
FRONT               JTF522  ***   JTF???
REAR                 JTR501  ***   JTR488
2017 Versys 1000
2007 Yamaha MT01
1981 KZ1000 LTD
1981 KZ1000 CSR
1982 GPZ1100
1982 KZ1000J2
1983 KZ1000J3
1983 KZ750L
1984 KZ750L

Please Log in or Create an account to join the conversation.

530 drive chain?? 14 Jul 2021 07:31 #851731

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 2193
  • Thank you received: 876
There are a few 530 front sprockets with various offsets that fit the 1000J Z-12 spline.
JTF517, JTF527, JTF528 etc.
These are all mostly newer Kawasaki fitments, ZZR etc.


The following user(s) said Thank You: Claude.

Please Log in or Create an account to join the conversation.

530 drive chain?? 14 Jul 2021 07:51 #851732

  • Claude.
  • Claude.'s Avatar Topic Author
  • Offline
  • User
  • Posts: 135
  • Thank you received: 6

There are a few 530 front sprockets with various offsets that fit the 1000J Z-12 spline.
JTF517, JTF527, JTF528 etc.
These are all mostly newer Kawasaki fitments, ZZR etc.




I looked at the three numbers you wrote and, indeed, they all fit on the output splines. However, I'm looking for a straight replacement for my 1000J and only the flat JTF517 will fit.
As you wrote, JTF527 and JTF528 are offset and probably not meant to be used on a KZ.
Many thanks for your answer!!
2017 Versys 1000
2007 Yamaha MT01
1981 KZ1000 LTD
1981 KZ1000 CSR
1982 GPZ1100
1982 KZ1000J2
1983 KZ1000J3
1983 KZ750L
1984 KZ750L

Please Log in or Create an account to join the conversation.

530 drive chain?? 14 Jul 2021 08:13 #851736

  • Claude.
  • Claude.'s Avatar Topic Author
  • Offline
  • User
  • Posts: 135
  • Thank you received: 6
If it can help anyone, here's a picture I just made with the information above.
Added information: JTF517 front sprocket needs two shims (1x 2 mm and 1x 4 mm) for correct alignment.
2017 Versys 1000
2007 Yamaha MT01
1981 KZ1000 LTD
1981 KZ1000 CSR
1982 GPZ1100
1982 KZ1000J2
1983 KZ1000J3
1983 KZ750L
1984 KZ750L

Please Log in or Create an account to join the conversation.

Last edit: by Claude..

530 drive chain?? 20 Jul 2021 16:32 #852154

  • rixtrix
  • rixtrix's Avatar
  • Offline
  • User
  • Ride on !
  • Posts: 45
  • Thank you received: 5
Not sure if this will help or not but I used sprockets from Z1 Enterprises on a 630-530 conversion on my 82 GPZ1100 (J motor).
Front :SS635 Series 18 tooth - Item # AD635-18
Rear : JTR488 Series 45 tooth - Item # BAJTR488-45

Both were bolt-on and required no shimming.
1982 GPz1100
The following user(s) said Thank You: Claude.

Please Log in or Create an account to join the conversation.

530 drive chain?? 21 Jul 2021 19:13 #852244

  • Claude.
  • Claude.'s Avatar Topic Author
  • Offline
  • User
  • Posts: 135
  • Thank you received: 6

Not sure if this will help or not but I used sprockets from Z1 Enterprises on a 630-530 conversion on my 82 GPZ1100 (J motor).
Front :SS635 Series 18 tooth - Item # AD635-18
Rear : JTR488 Series 45 tooth - Item # BAJTR488-45

Both were bolt-on and required no shimming.

It helps for sure! Glad to know there’s an answer for a 530 front sprocket on J motor; many thanks!!!
2017 Versys 1000
2007 Yamaha MT01
1981 KZ1000 LTD
1981 KZ1000 CSR
1982 GPZ1100
1982 KZ1000J2
1983 KZ1000J3
1983 KZ750L
1984 KZ750L

Please Log in or Create an account to join the conversation.

530 drive chain?? 22 Jul 2021 15:06 #852291

  • rixtrix
  • rixtrix's Avatar
  • Offline
  • User
  • Ride on !
  • Posts: 45
  • Thank you received: 5
Glad to offer assistance !
1982 GPz1100
