- Posts: 497
- Thank you received: 62
Front fork trim
- Grumpy Ole Artist
- Topic Author
- Offline
- User
- Eschew Obfuscation!
Less
More
11 May 2015 10:55 #671545
by Grumpy Ole Artist
1978 KZ650 B2
Former rides...1976 CB360T, 1985 Shadow 700, 1985 GPZ750Turbo
Front fork trim was created by Grumpy Ole Artist
No eBay APP ID and/or Cert ID defined in Kunena configurationHey all!! I am a little tired of looking at naked front brake splitter....Never had a cover ON mine...This seller claims that this part is for a 78..can anyone confirm? If so, how does it mount?
1978 KZ650 B2
Former rides...1976 CB360T, 1985 Shadow 700, 1985 GPZ750Turbo
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15343
- Thank you received: 2829
11 May 2015 11:07 #671548
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Front fork trim
He's wrong; no 1978 model had a fork cover. The fork covers did not appear on KZ650 models until 1980. The 1980 KZ650-E1 (LTD) and the 1980 KZ650-F1 had them; then the 1981 KZ650-H1 (CSR) got them. I believe all the post 1980 models got them. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Grumpy Ole Artist
- Topic Author
- Offline
- User
- Eschew Obfuscation!
Less
More
- Posts: 497
- Thank you received: 62
11 May 2015 11:26 #671551
by Grumpy Ole Artist
1978 KZ650 B2
Former rides...1976 CB360T, 1985 Shadow 700, 1985 GPZ750Turbo
Replied by Grumpy Ole Artist on topic Front fork trim
Thanx Ed, I suspected that if ANYONE here knew definitively, it would be you, LOL! (soooo, if a guy WERE to say, deviate from stock just a little bit, what do the mounting bolts thread into?)
1978 KZ650 B2
Former rides...1976 CB360T, 1985 Shadow 700, 1985 GPZ750Turbo
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
Less
More
- Posts: 15343
- Thank you received: 2829
11 May 2015 11:43 - 11 May 2015 11:44 #671554
by 650ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Replied by 650ed on topic Front fork trim
I'm not sure, but apparently the 1980 KZ650-F1 and E1 use a bracket that the cover attaches to. The bracket may attach to the splitter? (see 1st image below).
The 1981 KZ650-H1 uses a little different bracket setup (see 2nd image). Ed
The 1981 KZ650-H1 uses a little different bracket setup (see 2nd image). Ed
Attachment 00003a-28.jpg not found
Attachment 00003c-7.jpg not found
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
Last edit: 11 May 2015 11:44 by 650ed.
The following user(s) said Thank You: Grumpy Ole Artist
Please Log in or Create an account to join the conversation.
- floivanus
- Offline
- User
Less
More
- Posts: 1055
- Thank you received: 116
11 May 2015 11:44 #671556
by floivanus
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew
Replied by floivanus on topic Front fork trim
Theres an adapter plate that bolts to the splitter and the cover bolts to that, this one's from a 1000 ltd
Attachment image-9.jpg not found
my bikes; 80kz1000(project), 77 gl1000, 74 h2 (project)
Past; 78 kz1000, 83 kz550
Andrew
Attachments:
The following user(s) said Thank You: 650ed, Grumpy Ole Artist
Please Log in or Create an account to join the conversation.
- davido
- Offline
- User
Less
More
- Posts: 1582
- Thank you received: 291
11 May 2015 13:08 #671565
by davido
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)
Replied by davido on topic Front fork trim
Yup,my CSR has the same.
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)
Please Log in or Create an account to join the conversation.
- KowalskiCW
- Offline
- User
Less
More
- Posts: 65
- Thank you received: 3
12 May 2015 10:07 #671769
by KowalskiCW
Replied by KowalskiCW on topic Front fork trim
Hey Grumpy I have an 80 LTD and that diagram is exactly how mine is. I actually just modified my stock one from the one you found on fleabay to a chrome one I bought at a swap meet. I can ship you mine for shipping cost if you want. I unfortunately modified the stock bracket so you'd still have to figure that part out. Let me know
Please Log in or Create an account to join the conversation.
- davido
- Offline
- User
Less
More
- Posts: 1582
- Thank you received: 291
12 May 2015 11:08 #671779
by davido
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)
Replied by davido on topic Front fork trim

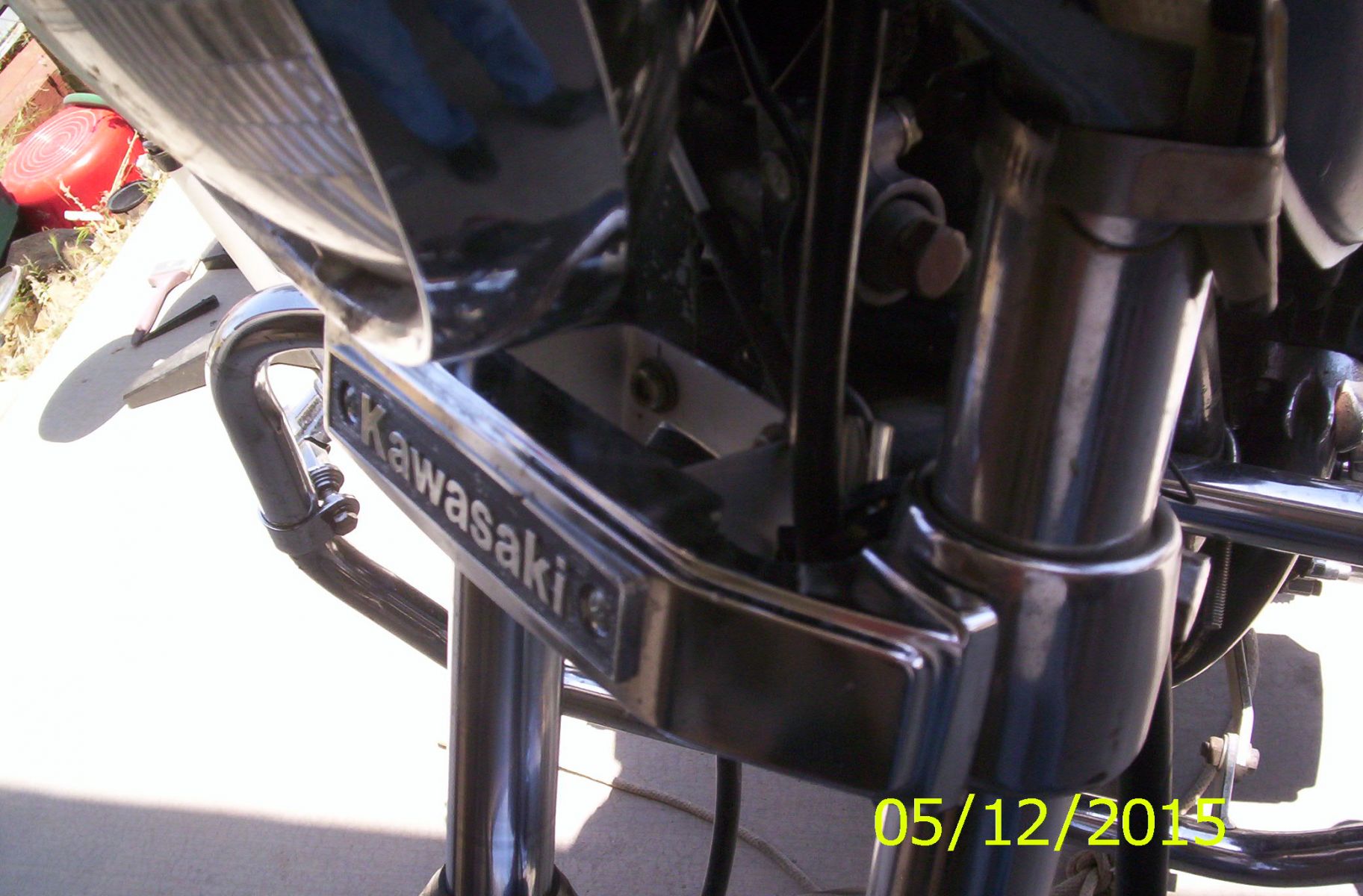

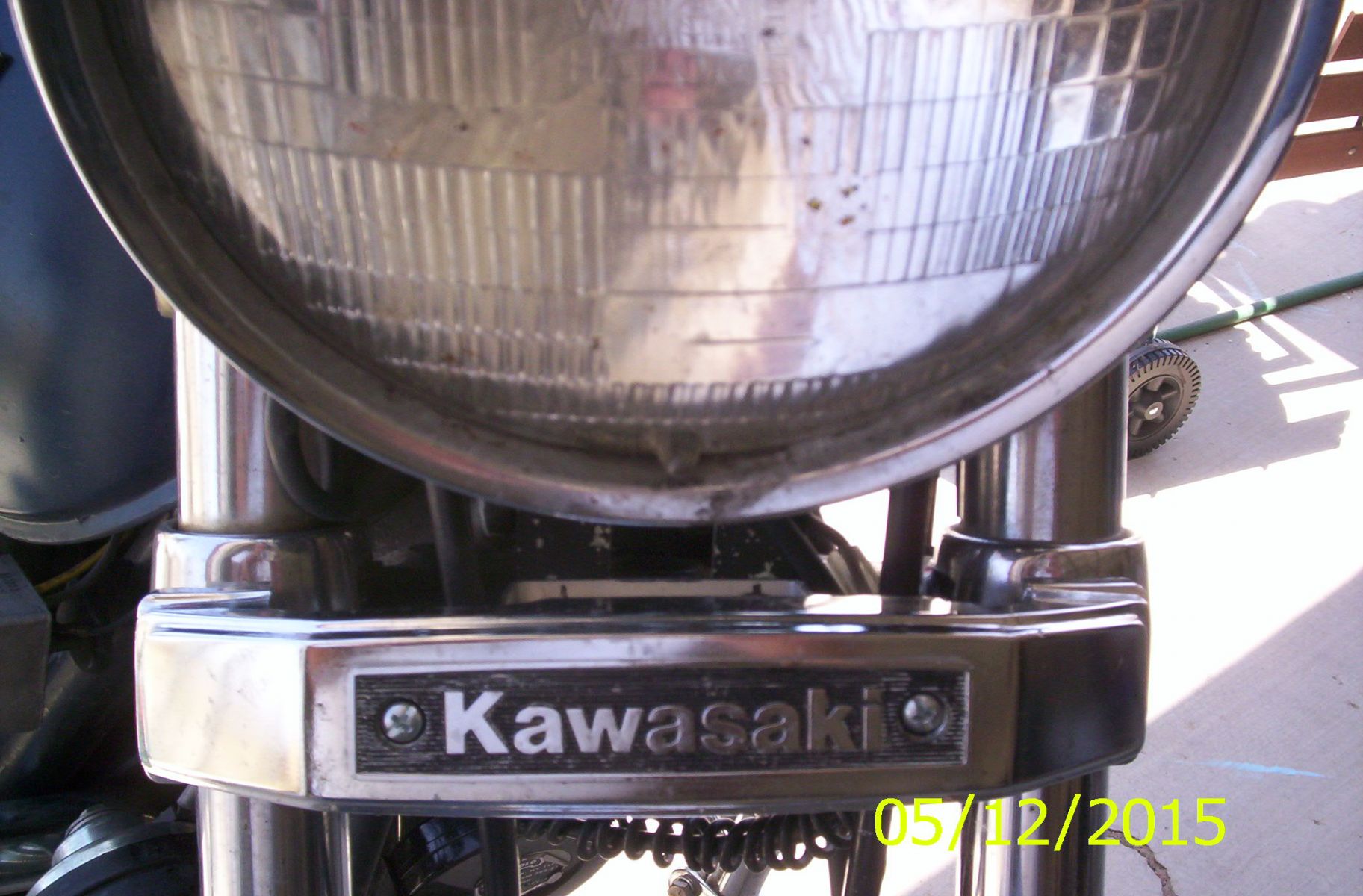

Heres what I have on my CSR1000,which shows you how it all goes together.Unfortunately the bracket is not available
though the kwak sign is.
www.cmsnl.com/kawasaki-1982-kz1000-m2-cs...t/66911.html#results

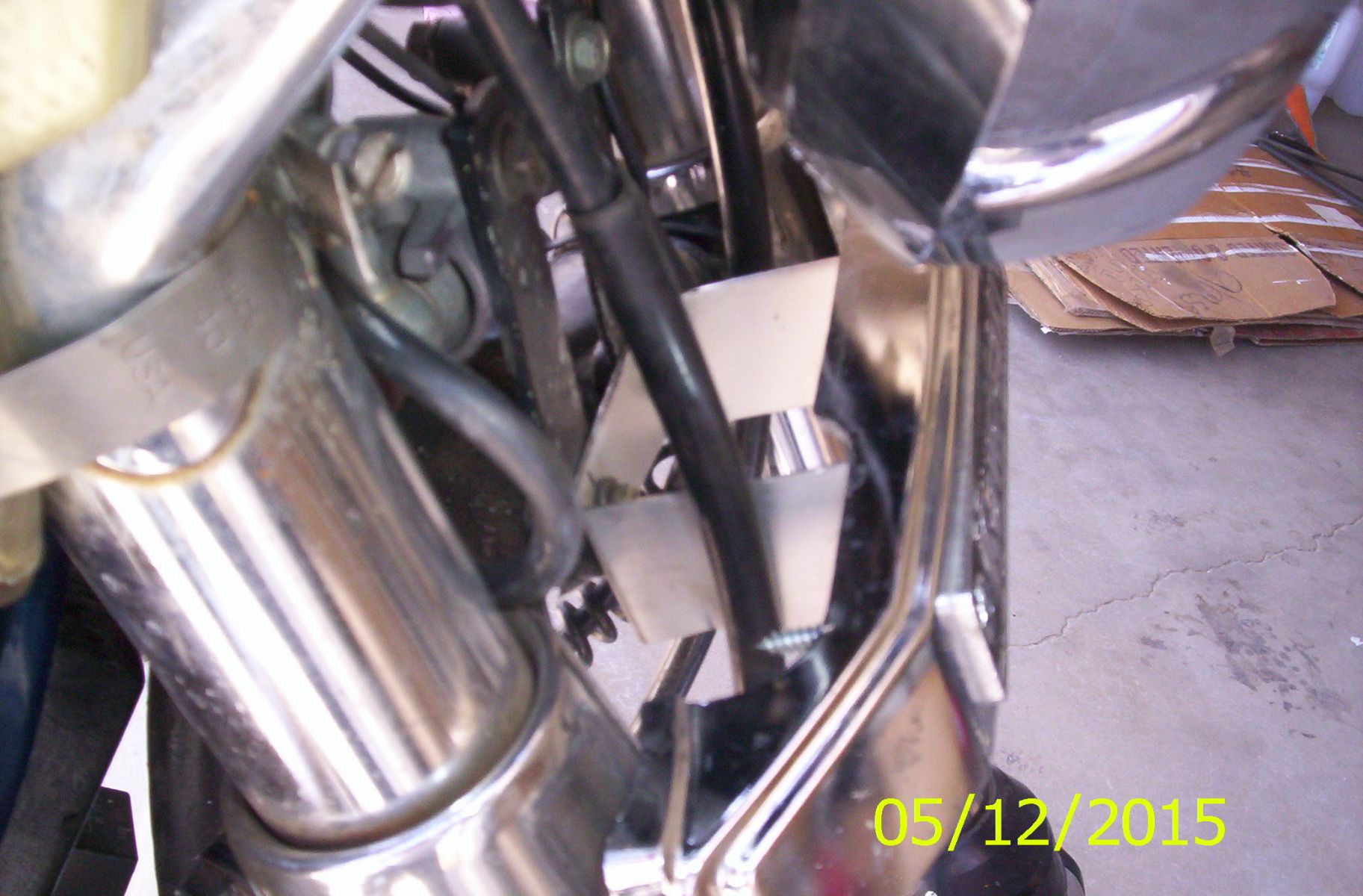

The whole thing bolts on to the lower yoke(triple tree) using the same holes as the splitter (longer bolts)
If thats any good to you.
good luck
though the kwak sign is.
www.cmsnl.com/kawasaki-1982-kz1000-m2-cs...t/66911.html#results
The whole thing bolts on to the lower yoke(triple tree) using the same holes as the splitter (longer bolts)
If thats any good to you.
good luck
www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 23028
- Thank you received: 2758
12 May 2015 13:52 #671805
by SWest
Replied by SWest on topic Front fork trim
I bought one for Bossie. I too was tired of looking at the naked area under my head light. I made a bracket out of sheet aluminum and attached it to the bolts holding my splitter.
Steve
Steve
Please Log in or Create an account to join the conversation.
- Grumpy Ole Artist
- Topic Author
- Offline
- User
- Eschew Obfuscation!
Less
More
- Posts: 497
- Thank you received: 62
13 May 2015 07:16 #671917
by Grumpy Ole Artist
1978 KZ650 B2
Former rides...1976 CB360T, 1985 Shadow 700, 1985 GPZ750Turbo
Replied by Grumpy Ole Artist on topic Front fork trim
Hey Kowalski, that would be cool! Where are you located? US ?
any idea of shipping costs to 45331?
any idea of shipping costs to 45331?
1978 KZ650 B2
Former rides...1976 CB360T, 1985 Shadow 700, 1985 GPZ750Turbo
Please Log in or Create an account to join the conversation.
- KowalskiCW
- Offline
- User
Less
More
- Posts: 65
- Thank you received: 3
14 May 2015 10:08 #672078
by KowalskiCW
Replied by KowalskiCW on topic Front fork trim
PM sent!
Please Log in or Create an account to join the conversation.
