How to mount clip-ons? ('76 KZ400)

TOPIC:

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 16:39 #897913

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7240
  • Thank you received: 2076
The length of the bars does not matter. The pin has to be located so that the throttle does not hang off the end,and so that no bar sticks out past the end of the throttle.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 16:40 #897914

  • ThatYeti
  • ThatYeti's Avatar Topic Author
  • Offline
  • User
  • Posts: 93
  • Thank you received: 10
Also I'm sure you're right about putting it in a vice, but it's literally the last thing left and I probably should have done it first, though I think getting the clutch on first is the only way to assemble everything. So I'll figure out how to locate it as best as possible tomorrow and use a punch to center it then be really careful cause I don't think I can manage getting it all back off again without braking anything or losing anything.
'76 KZ400

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 16:41 #897915

  • ThatYeti
  • ThatYeti's Avatar Topic Author
  • Offline
  • User
  • Posts: 93
  • Thank you received: 10
Hmmm good point, hadn't done the spatial math but that makes sense. Will be sure to account for that when I give it a go tomorrow. Thanks
'76 KZ400

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 16:42 #897916

  • ThatYeti
  • ThatYeti's Avatar Topic Author
  • Offline
  • User
  • Posts: 93
  • Thank you received: 10
Also am I definitely supposed to have an opening and closing cable? Any idea what might've happened to the one I'm not seeing?
'76 KZ400

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 16:44 #897917

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7240
  • Thank you received: 2076
If you remove the clutch lever and disconnect the wires from the switchgear, you can remove the handlebars without taking anything else off that side.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 16:49 #897919

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7240
  • Thank you received: 2076

Also am I definitely supposed to have an opening and closing cable? Any idea what might've happened to the one I'm not seeing?
Somebody was probably too cheap to buy a new on and figured it was irrelevant. Many previous owners are idiots.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: ThatYeti

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 16:55 #897920

  • ThatYeti
  • ThatYeti's Avatar Topic Author
  • Offline
  • User
  • Posts: 93
  • Thank you received: 10
Good chance I suppose but where should it have been?
'76 KZ400

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 18:38 #897924

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7240
  • Thank you received: 2076
The two cables should be routed side by side from the throttle to the carbs. There should be some pictures in the service manual.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: ThatYeti

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 18:53 #897925

  • ThatYeti
  • ThatYeti's Avatar Topic Author
  • Offline
  • User
  • Posts: 93
  • Thank you received: 10

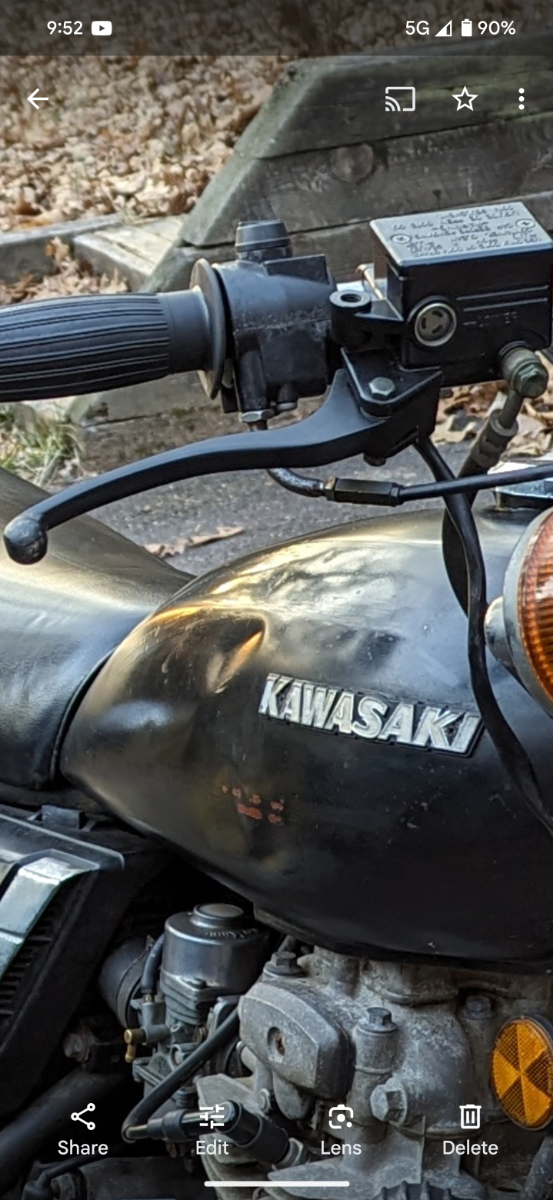

Thanks, looked it up in the manual posted and what's shown is different from what I had prior to taking it apart, see pic below as it's only got one cable going to it instead of two like the manual shows (also makes tank look much worse than it is)
'76 KZ400
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by ThatYeti.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 19:23 #897929

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Member
  • Posts: 7240
  • Thank you received: 2076
The closing cable would screw into the threaded boss just behind the cable in the picture.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: ThatYeti

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 20 Apr 2024 19:30 #897930

  • ThatYeti
  • ThatYeti's Avatar Topic Author
  • Offline
  • User
  • Posts: 93
  • Thank you received: 10
Got it, so I definitely don't have one and never have (long as I've had the bike anyway) but the throttle always snapped back into place even without it. So any idea which slot I should be using?
'76 KZ400

Please Log in or Create an account to join the conversation.

How to mount clip-ons? ('76 KZ400) 21 Apr 2024 01:55 #897933

  • !Seymore
  • !Seymore's Avatar
  • Offline
  • User
  • Ride on...
  • Posts: 448
  • Thank you received: 63

Thanks, looked it up in the manual posted and what's shown is different from what I had prior to taking it apart, see pic below as it's only got one cable going to it instead of two like the manual shows (also makes tank look much worse than it is)
WOW, it looks like that bike has been down hard... and this is probably why one of the cables is GONE??! ...or your 400 only needs one cable and this throttle grip is from a 2 cable system? (just speculating)

The 2 cable system is push/pull, there are also 2 points on the carbs where both come together. It's a redundant (sorta) system... pull the tank and  check the carbs?

Got the FSM yet? Check the fuel system...


C.
79' KZ650-D2 [fsm] (Max)
83' KZ750-F1 LTD [clymers] (Kay)
82' KZ1100-D1 Specter (another project)
78' KZ650-B2a (J&H, A Project)
91' KZ1000-P (P = parts)
The following user(s) said Thank You: ThatYeti
