rear master cylinder
23 Feb 2022 14:57
does anyone know where i can buy a new rear master cylinder for a 1977 kz650b i am trying to get the piston out . it is stuck .. if i do get it out i am not sure if the bore will be pitted so i was trying to locate a new master cylinder
1980 KZ1000 G w/carbs..
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7527
- Thanks: 2886
Re: rear master cylinder
23 Feb 2022 16:51
You can buy a generic master off ebay for cheap. After that it's typically not overly difficult to rig up a bracket of some sort to mount it to your frame.
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0
www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know
1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread
Please Log in or Create an account to join the conversation.
- Injected
- Offline
- User
- Posts: 1148
- Thanks: 631
Re: rear master cylinder
23 Feb 2022 17:15 - 23 Feb 2022 17:16Are you sure you have a 77 KZ650 B model?rlcarter post=862834does anyone know where i can buy a new rear master cylinder for a 1977 kz650b i am trying to get the piston out . it is stuck .. if i do get it out i am not sure if the bore will be pitted so i was trying to locate a new master cylinder
All the B models came with wire wheels and rear drum brakes. Maybe somebody retro fitted a whole new wheel/hub/brake on the back of it? The two popular mods were either a KZ1000 rear disk hub or a KZ750 Twin rear disk hub.
The C models came with rear disk brakes - Getting rebuild kits for those 14mm masters is near impossible. The size of the bore is usually cast on the body somewhere (1/2 or 14) Finding a NOS 14mm unit for a 650 is also a very rare occurrence.
If your not doing a restoration I agree with Nessism on finding a modern rear master as a substitute.
1978 KZ650B2 w 1197cc Z1 engine
1977 KZ650B1 w 750cc Spectre engine
1979 KZ650C3 w 831cc Hot Rod engine
1978 KZ650C2 w 762cc DFI project
1977 KZ650C1 stock restoration project
1978 KZ650B2 modified project
1978 KZ650B2 Injected Drag 831cc
1980 Z1 Custom Frame Drag 1327cc
1981 Z50R Honda tow bike
1977 KZ650B1 w 750cc Spectre engine
1979 KZ650C3 w 831cc Hot Rod engine
1978 KZ650C2 w 762cc DFI project
1977 KZ650C1 stock restoration project
1978 KZ650B2 modified project
1978 KZ650B2 Injected Drag 831cc
1980 Z1 Custom Frame Drag 1327cc
1981 Z50R Honda tow bike
Last edit: 23 Feb 2022 17:16 by Injected.
Please Log in or Create an account to join the conversation.
- hardrockminer
- Offline
- Sustaining Member
- Posts: 2991
- Thanks: 1090
Re: rear master cylinder
23 Feb 2022 17:18 - 23 Feb 2022 17:21
The D model came with a rear disc brake. Manufacturing started in the summer of 77 but they are actually 78 model year. Maybe this bike is a 78 650 SR.
I would check ebay for a MC off a 78 or 79 650 SR.
I would check ebay for a MC off a 78 or 79 650 SR.
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.
Last edit: 23 Feb 2022 17:21 by hardrockminer.
Please Log in or Create an account to join the conversation.
- rlcarter
- Topic Author
- Offline
- User
- Posts: 82
- Thanks: 5
Re: rear master cylinder
23 Feb 2022 19:01
sorry my bad it is a C model .. i found a used master on ebay for $ 200 sounds high to me especially if i cant find a rebuild kit for it. might have to look for a modern one to fit
1980 KZ1000 G w/carbs..
Please Log in or Create an account to join the conversation.
- Mikaw
- Offline
- Sustaining Member
- Posts: 4837
- Thanks: 1851
Re: rear master cylinder
23 Feb 2022 19:49
I have freed up some really suck pistons. Gentle heat and soak cycles. Getting the first ever so small movement is key. Once it moves just start gently working it. Patients is your friend…
1976 KZ 900 A4
kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- TexasKZ
- Offline
- Platinum Member
- Posts: 7686
- Thanks: 2320
Re: rear master cylinder
23 Feb 2022 20:04
I wonder if the parts for a front 14mm master would work? I am assuming the rear master in question is 14.
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
www.kzrider.com/11-projects/620336-anoth...uild-thread?start=24
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
- Posts: 4428
- Thanks: 2584
Re: rear master cylinder
24 Feb 2022 00:47
If you have access to a compressor you can usually blow the pistons out from the outlet port (put a cable tie around it or you may never find the piston
) this is much less destructive than any mechanical efforts. If you get it out there are small honers available on EBay etc you can use to clean up the bore (they aren't expensive)
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Please Log in or Create an account to join the conversation.
- rlcarter
- Topic Author
- Offline
- User
- Posts: 82
- Thanks: 5
Re: rear master cylinder
24 Feb 2022 03:31
i tried air yesterday no luck going to soak and heat a little today then try air again
1980 KZ1000 G w/carbs..
Please Log in or Create an account to join the conversation.
- Wookie58
- Offline
- Moderator
- Posts: 4428
- Thanks: 2584
Re: rear master cylinder
24 Feb 2022 09:07 - 24 Feb 2022 09:11
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Last edit: 24 Feb 2022 09:11 by Wookie58.
Please Log in or Create an account to join the conversation.
- rlcarter
- Topic Author
- Offline
- User
- Posts: 82
- Thanks: 5
Re: rear master cylinder
24 Feb 2022 09:50

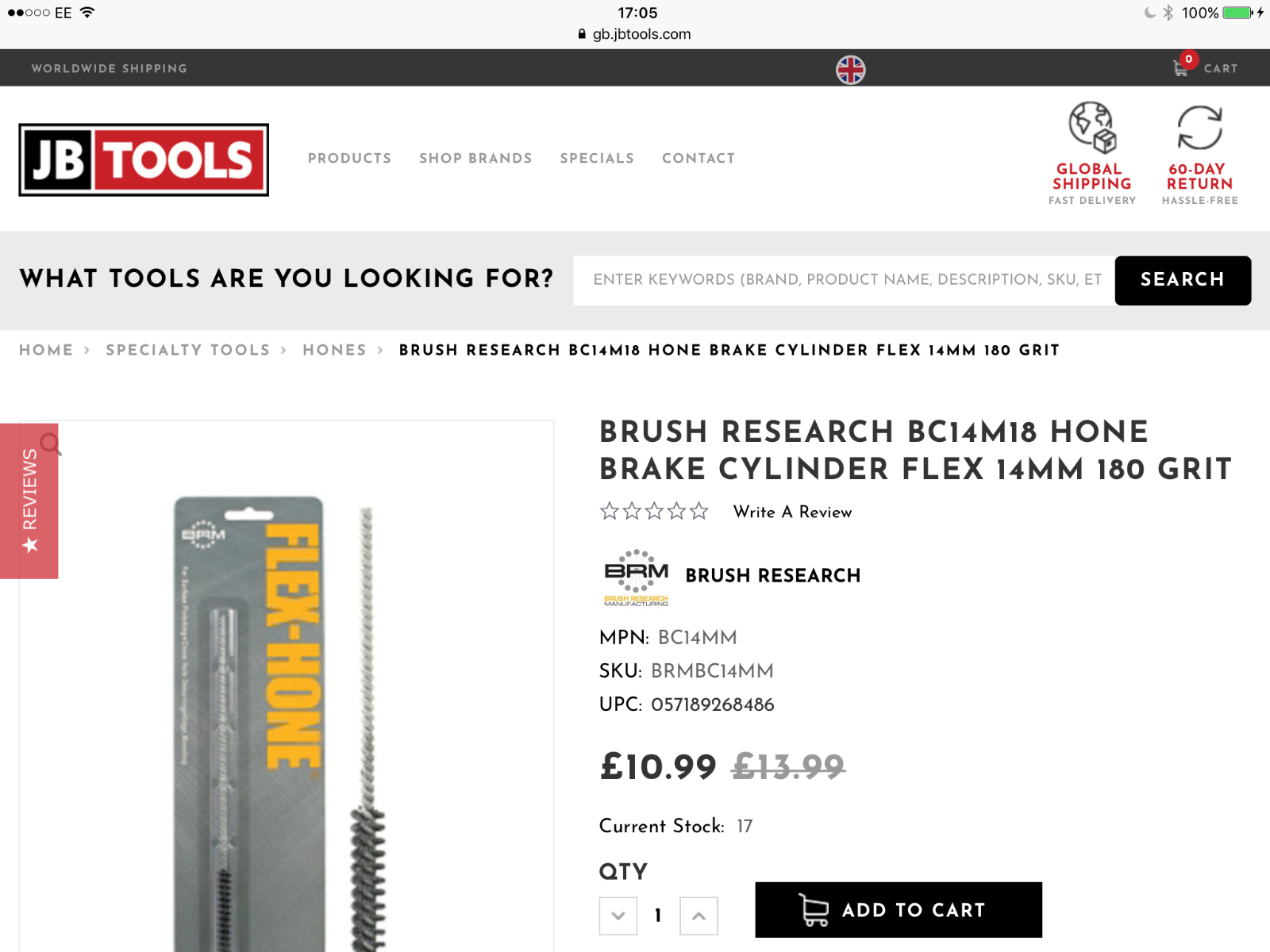

thanks for the brush idea. still working on getting the piston out.. boiled it soaked in penetrating oil put the air to it. no luck i wonder if i could heat it up with a torch? it may be aluminum.. not sure that would be a good idea..
1980 KZ1000 G w/carbs..
Please Log in or Create an account to join the conversation.
- DOHC
- Away
- Sustaining Member
- Those Doe-Hawks really go!
- Posts: 1244
- Thanks: 556
Re: rear master cylinder
24 Feb 2022 14:10 - 24 Feb 2022 14:10
If you manage to get the piston out, and you want to try to keep the stock master cylinder, here are some options.
You could get the MC repaired or sleeved by these folks:
www.applehydraulicsonline.com/collection...rake-master-cylinder
The OE kawasaki piston in not available, but the primary seal cup is here on ebay.
ebay.com/itm/OEM-Kawasaki-Primary-Cup-Master-Cylinder-H1-500-H2-750-Z1-900-KZ-43019-001-/393651356079
The secondary seal that is on the piston might be similar to the one used on the front master cylinder, even if the piston rod itself is different. Once you get the old one out and measure it, the folks at Brakecrafters might be able to help you find a substitute part. They have been very helpful to many folks here.
www.brakecrafters.com/
Many of the master cylinder parts on the 78-80 KZ650 and KZ1000 were similar, but with two bore diameters based on application. The rear MC for the KZ650C looks the same in the drawings as the KZ1000 rear MC, but it may be a different bore diameter.
You could get the MC repaired or sleeved by these folks:
www.applehydraulicsonline.com/collection...rake-master-cylinder
The OE kawasaki piston in not available, but the primary seal cup is here on ebay.
ebay.com/itm/OEM-Kawasaki-Primary-Cup-Master-Cylinder-H1-500-H2-750-Z1-900-KZ-43019-001-/393651356079
The secondary seal that is on the piston might be similar to the one used on the front master cylinder, even if the piston rod itself is different. Once you get the old one out and measure it, the folks at Brakecrafters might be able to help you find a substitute part. They have been very helpful to many folks here.
www.brakecrafters.com/
Many of the master cylinder parts on the 78-80 KZ650 and KZ1000 were similar, but with two bore diameters based on application. The rear MC for the KZ650C looks the same in the drawings as the KZ1000 rear MC, but it may be a different bore diameter.
'78 Z1-R in blue
, '78 Z1-R in black,
'78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
My dad's '74 Z1
'00 ZRX1100
Last edit: 24 Feb 2022 14:10 by DOHC.
Please Log in or Create an account to join the conversation.
