TOPIC: KZ 750 twin newbie question

KZ 750 twin newbie question 01 Aug 2020 11:11 #832019

  • eddkz750
  • eddkz750's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 3
  • Thank you received: 0
Hi, I am having a LOT of trouble getting the front lower engine mount bolt to break free. I have the nut off, but cannot get the bolt to move. I was going to use a torch to heat up either the frame mounts or the engine itself. this is my question. should I heat the frame or the engine?

Any guidance would be appreciated.

Thanks and glad I found kzrider,com

Ed

Please Log in or Create an account to join the conversation.

KZ 750 twin newbie question 01 Aug 2020 15:26 #832045

  • krazee1
  • krazee1's Avatar
  • Offline
  • Member
  • Member
  • Posts: 99
  • Thank you received: 46
Do you have the remaining engine mount fasteners loose? If so you should be able to wiggle the engine a bit and relieve the bind on the bolt you're trying to remove.

Mike
Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1A (disassembled)
1976 KZ900B LTD (SOLD!) it's in GOOD Hands!
1978 KZ1000 LTD
1976 KZ900B LTD pile O parts!
The following user(s) said Thank You: eddkz750

Please Log in or Create an account to join the conversation.

Last edit: by krazee1.

KZ 750 twin newbie question 02 Aug 2020 12:23 #832110

  • DoctoRot
  • DoctoRot's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Oh, the usual... I bowl, I drive around...
  • Posts: 2168
  • Thank you received: 424
Use a drift to tap it out, if it still won’t ‘budge hit the cases with some heat. Lots of penetrating oil won’t hurt either.
-Vic
_________________________________
'78 kz1000 LTD long term project

'80 kz750G project
The following user(s) said Thank You: eddkz750

Please Log in or Create an account to join the conversation.

Last edit: by DoctoRot.

KZ 750 twin newbie question 02 Aug 2020 13:09 #832113

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 15120
  • Thank you received: 2722

eddkz750 wrote: Hi, I am having a LOT of trouble getting the front lower engine mount bolt to break free. I have the nut off, but cannot get the bolt to move. I was going to use a torch to heat up either the frame mounts or the engine itself. this is my question. should I heat the frame or the engine?

Any guidance would be appreciated.

Thanks and glad I found kzrider,com


Ed

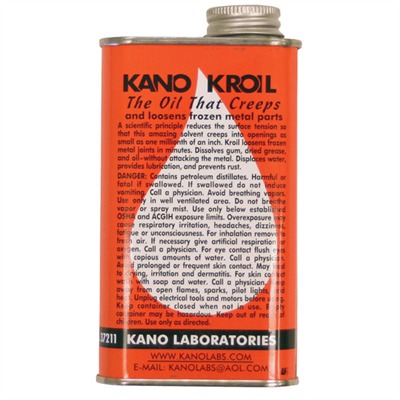

Soak it with Kroil for a couple days and it should move without too much difficulty. Ed

1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:
The following user(s) said Thank You: eddkz750

Please Log in or Create an account to join the conversation.

Last edit: by 650ed.

KZ 750 twin newbie question 03 Aug 2020 06:47 #832140

  • eddkz750
  • eddkz750's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 3
  • Thank you received: 0
I tried a brass punch and it still would not budge

Please Log in or Create an account to join the conversation.

KZ 750 twin newbie question 03 Aug 2020 06:50 #832141

  • eddkz750
  • eddkz750's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 3
  • Thank you received: 0
Thank you all for your replies, I have tried a brass punch (still did not move). I will try removing all other bolts and moving the engine to free it up (one day this week).

Please Log in or Create an account to join the conversation.

KZ 750 twin newbie question 03 Aug 2020 07:35 #832142

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 7140
  • Thank you received: 1318
Instead of removing all of the other bolts, maybe try just loosening them.
Is the engine blocked or is its full weight still on the frame?

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

KZ 750 twin newbie question 03 Aug 2020 18:44 #832180

  • krazee1
  • krazee1's Avatar
  • Offline
  • Member
  • Member
  • Posts: 99
  • Thank you received: 46

martin_csr wrote: Instead of removing all of the other bolts, maybe try just loosening them.
Is the engine blocked or is its full weight still on the frame?


Good thought! ( see first reply)

Mike
Former M.E. at Kawasaki Motors Manufacturing, Lincoln, NE
1966 W1 (the Z1 of 1966-50H.P. and 100mph!)
1974 Z1A (disassembled)
1976 KZ900B LTD (SOLD!) it's in GOOD Hands!
1978 KZ1000 LTD
1976 KZ900B LTD pile O parts!

Please Log in or Create an account to join the conversation.

KZ 750 twin newbie question Today 06:44 #832544

  • usa forever
  • usa forever's Avatar
  • Offline
  • Member
  • Member
  • Posts: 23
  • Thank you received: 6
Seafoam deep creep is an excellent oil to use. I usually let that set for a day or two soak it up again and hit it with a heat gun or a hair dryer we can't do much damage with that and it will create a little wiggle then you can work it back and forth quarter-turn at a time hopefully

Please Log in or Create an account to join the conversation.
