TOPIC: Drum brakes for drum heads

Drum brakes for drum heads 14 Apr 2019 17:08 #802129

  • Trackerkz650sr
  • Trackerkz650sr's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • Posts: 43
  • Thank you received: 1
Question

I degraded from disc to drum on my 78 sr
Basically im wondering if someone with a drum brake foot pedal could show me how theyre linkage sets up?

Im going to modify my "disc" pedal to actuate the drum


Now i do have it mocked up and working
However my main question is
Can the arm on the drum be pushed and or pulled to achieve proper braking?

How i have it set up now is what i beleive backwords from most drum set ups ive seen
My rod pushes towards the rear of the bike to acctuate the brake

It does stop like this. Just want to make sure im not asking for a mechanical failure

Which way does your stock kz drum operate
Rod pushing forward or rod pushing towards the rear?


Thanks yall

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 14 Apr 2019 17:22 #802132

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 2020
  • Thank you received: 946
The drum brake leveler has to be pulled.

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 14 Apr 2019 17:23 #802133

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9754
  • Thank you received: 1173
The normal way is to pull. Pushing with a skinny rod is going to fail miserably. It will just bend.

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 14 Apr 2019 17:37 #802139

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 2020
  • Thank you received: 946

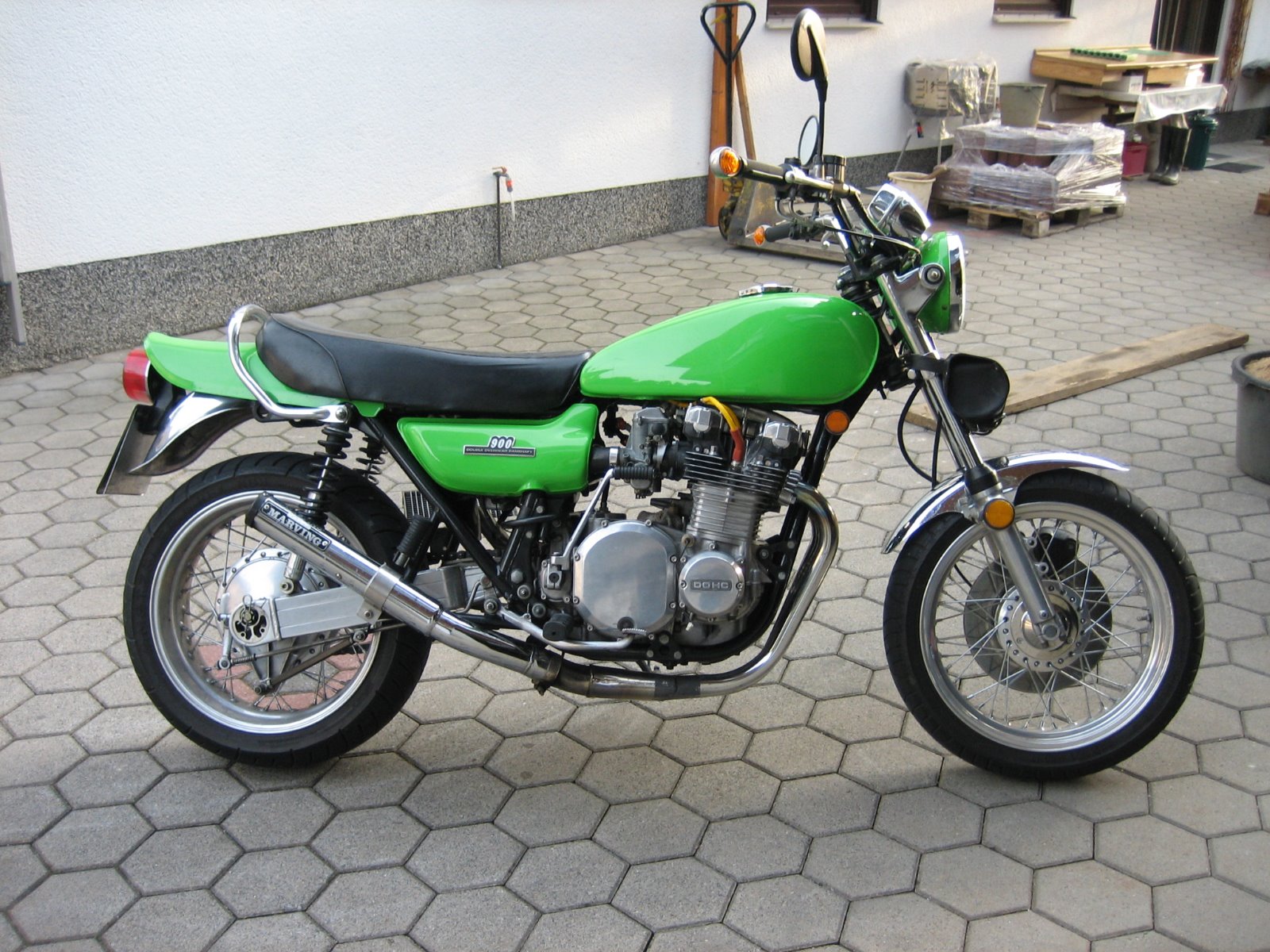

I do the drum to disk way on my Project bike.

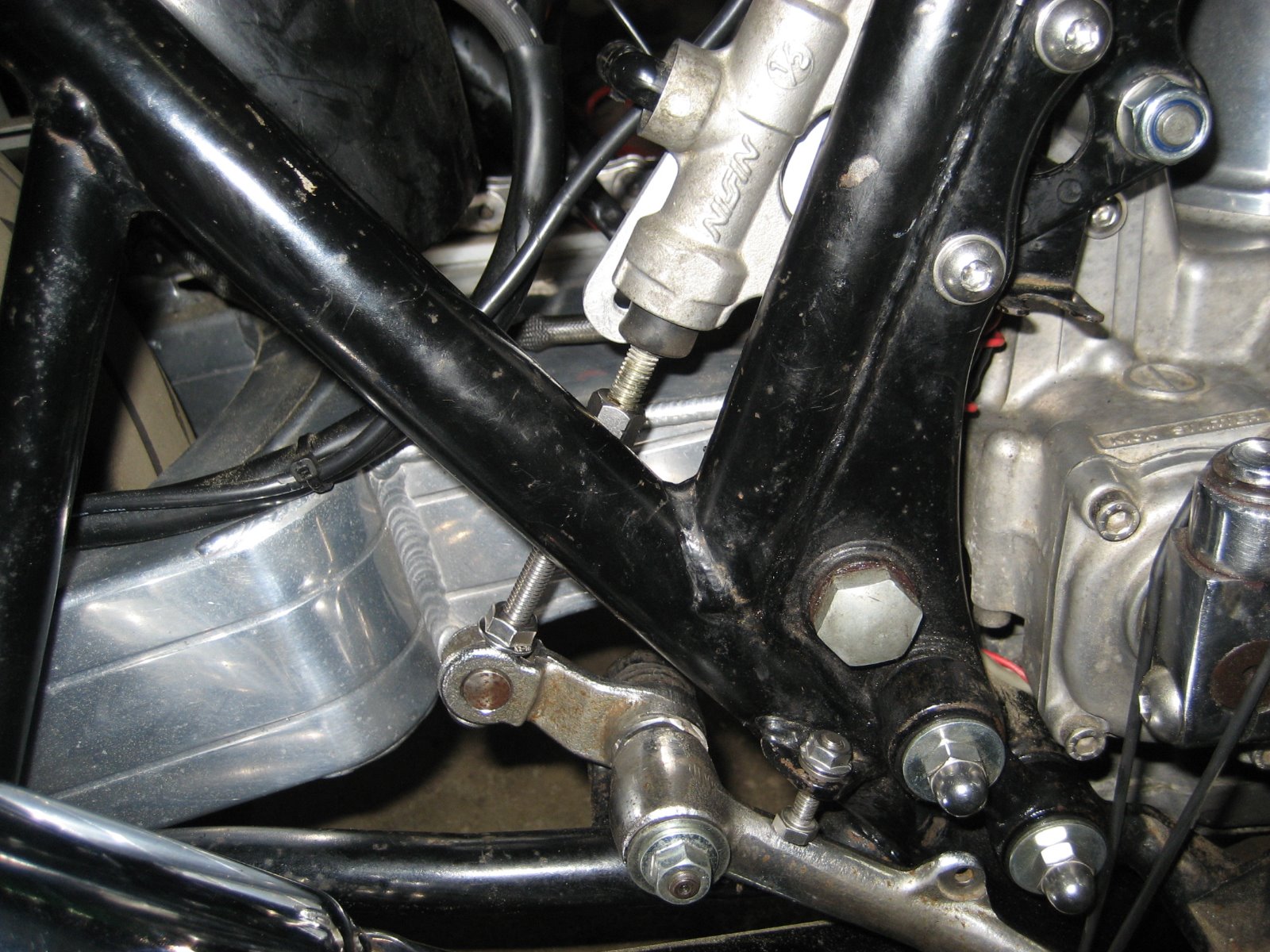

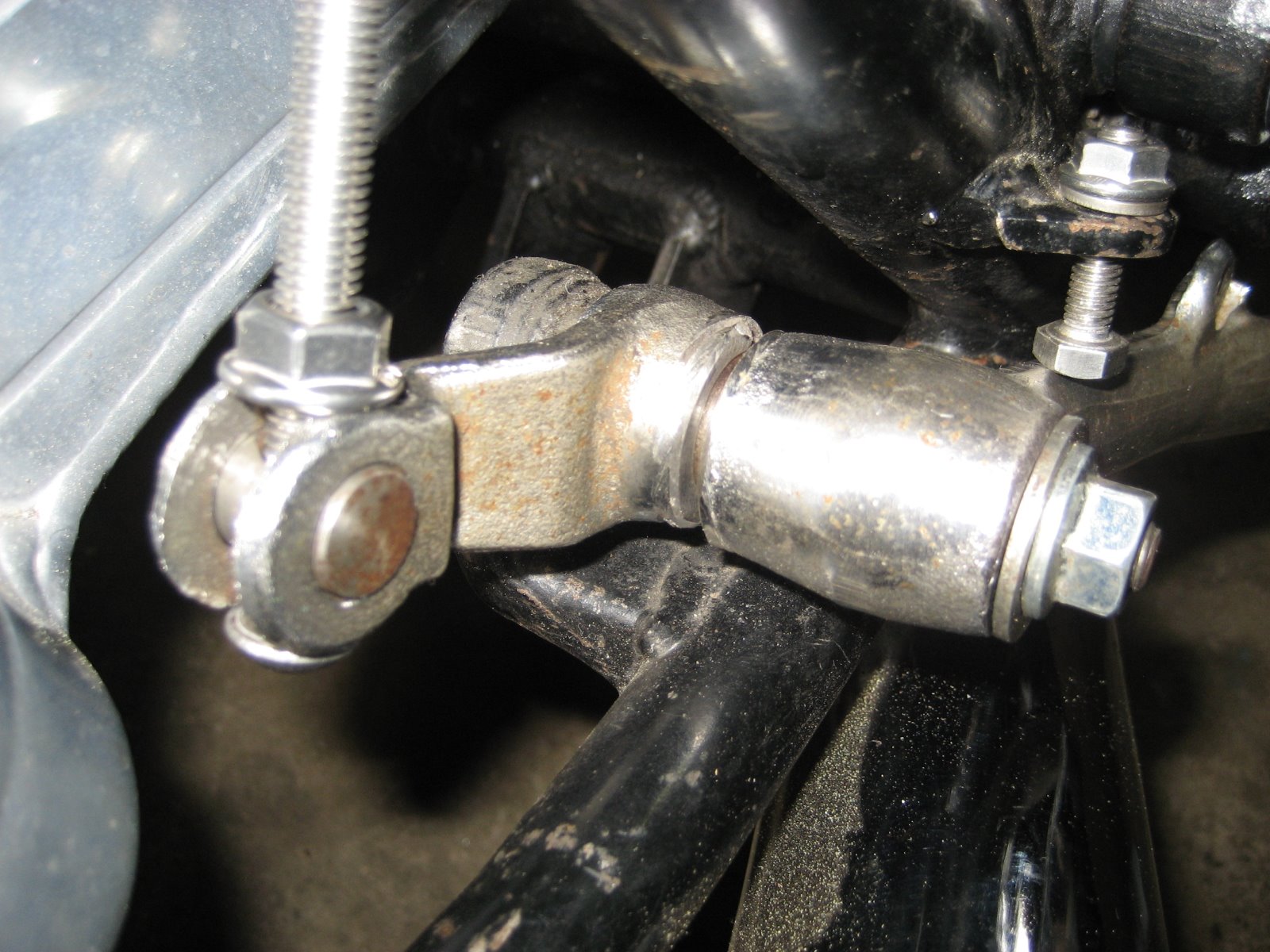

Have to cut, adjust and weld the drum pull rod levler angle of the foot brake levler for the rear disk MC.
Here some pics:


Attachments:
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 14 Apr 2019 19:39 #802151

  • Trackerkz650sr
  • Trackerkz650sr's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • Posts: 43
  • Thank you received: 1
Appriciate the pics no doubt but i am going from disc to drum

Im interested in seeing stock drum set up linkage pictures

Also the rod i chose was much thicker than stock and i made barrels

It hasnt bent or flexed but i mainly dont want to go against the grain from a engineering stand point and end up locking my wheel up

As always Appriciate the responses none the less

Basically if i flip my pedal "barrel rod holder shaft" to the up position
Which allows the pedal to operate the brake rod in the natural "pull" position
It hits the swingarm


So im guessing the drum brake pedal and shaft has a different set up? Shorter in height maybe

Hope im making sense

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 14 Apr 2019 20:46 #802153

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18685
  • Thank you received: 1753
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 15 Apr 2019 03:40 #802157

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 2020
  • Thank you received: 946

Trackerkz650sr wrote:
Basically if i flip my pedal "barrel rod holder shaft" to the up position
Which allows the pedal to operate the brake rod in the natural "pull" position
It hits the swingarm


Any pics of your rear brake Setup would be helpfull.

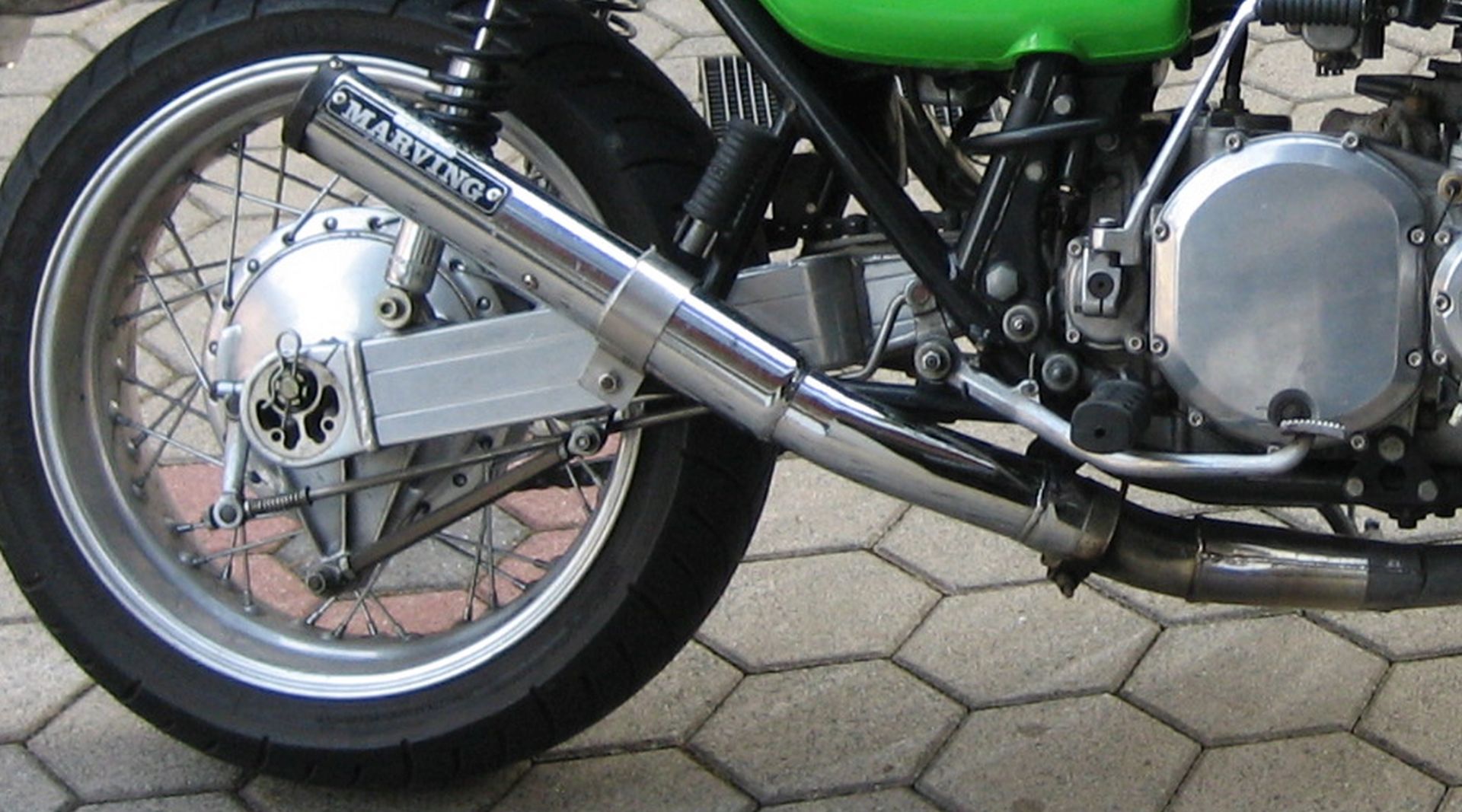

Here is my rear drum brake leveler Setup before i converted into disk brake.
It´s the same stock brake leveler before i have to modify the angle.


Attachments:

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 15 Apr 2019 05:49 #802162

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 6362
  • Thank you received: 1043
The brake pedal is attached to a brake pedal shaft. I would install the brake pedal shaft, spring & other stuff from a 650B. As previously noted in your other drum brake topic, the 650B & SR have the same brake pedal, and from comparing their frames on EB, it looks like the pedal is attached in the same location, so it seems like a stock type conversion would be possible. for safety.



....
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

Drum brakes for drum heads 15 Apr 2019 09:33 #802177

  • baldy110
  • baldy110's Avatar
  • Offline
  • Member
  • Member
  • Posts: 2035
  • Thank you received: 387
Scriocco, why did you swap to disc? It's been my experience a drum rear brake actually is a more effective brake than a disc.

Please Log in or Create an account to join the conversation.

Last edit: by baldy110.

Drum brakes for drum heads 15 Apr 2019 11:00 #802186

  • Trackerkz650sr
  • Trackerkz650sr's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • Posts: 43
  • Thank you received: 1
I choose the drum for the proper look and feel for my build

If anyone has pics of theyre drum set up
Im interested in seeing where the rod attatches to the pedal shaft

Thats where im having confusion
To actuate the brake in a pull motion
The barrel that the rod goes into (pedal side)would need to be in the up position

When in the up position it hits the swingarm

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 15 Apr 2019 18:01 #802205

  • Trackerkz650sr
  • Trackerkz650sr's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • Posts: 43
  • Thank you received: 1
Here is a picture of my current set up.
Hope the pics are clear enough

U can see my brake shaft "circle barrel holder" is in the down position

It order for it to pull on the rod proper it would need to move upward
But when it moves upword to achieve the proper motion . the brake shaft (which the brake rod slides through the end of)
Hits the swingarm
Attachments:

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 15 Apr 2019 20:21 #802212

  • TexasKZ
  • TexasKZ's Avatar
  • Offline
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 4084
  • Thank you received: 828
Here is the stock drum pedal. Looks like the brake pedal shaft (9) can be rotated.

www.partzilla.com/catalog/kawasaki/motor...1/stands-brake-pedal
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

Last edit: by TexasKZ.

Drum brakes for drum heads 16 Apr 2019 05:48 #802226

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 6362
  • Thank you received: 1043
What swing arm is it? And what rear wheel & brake panel assy?
It might help to mention exactly all the drum related parts that have been installed. including wheel spacers.


....
The following user(s) said Thank You: loudhvx

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

Drum brakes for drum heads 17 Apr 2019 10:24 #802291

  • Trackerkz650sr
  • Trackerkz650sr's Avatar Topic Author
  • Offline
  • Banned
  • Banned
  • Posts: 43
  • Thank you received: 1
Martin no need to overcomplicate

Its a stock b drum swingarm
The pedal and pedal shaft are stock to the bike which is a sr (rear disc)


If anyone has pics of theyre stock drum pedal set up. That would be the most helpful

Please Log in or Create an account to join the conversation.

Drum brakes for drum heads 17 Apr 2019 10:39 #802292

  • H1Vindicator
  • H1Vindicator's Avatar
  • Offline
  • Member
  • Member
  • Posts: 521
  • Thank you received: 11
There are a million 650 pics on the internet. do a search. that conversion is rarely done, so almost nobody can say if it can be done w SR parts. if it's not working, get the drum parts.
The following user(s) said Thank You: loudhvx, SWest

Please Log in or Create an account to join the conversation.

Last edit: by H1Vindicator.
