zx9 to kz front end conversion

04 Mar 2016 12:29
#713811
thought i would post some pics of a front end conversion i finished up last night.























leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!

billybiltit.blogspot.com/

www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work

kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0

Attachments:

Please Log in or Create an account to join the conversation.

  • 531blackbanshee
  • 531blackbanshee's Avatar Topic Author
  • Offline
  • Vendor
  • Posts: 7447
  • Thanks: 797

Re: zx9 to kz front end conversion

04 Mar 2016 12:38 - 04 Mar 2016 12:40
#713812

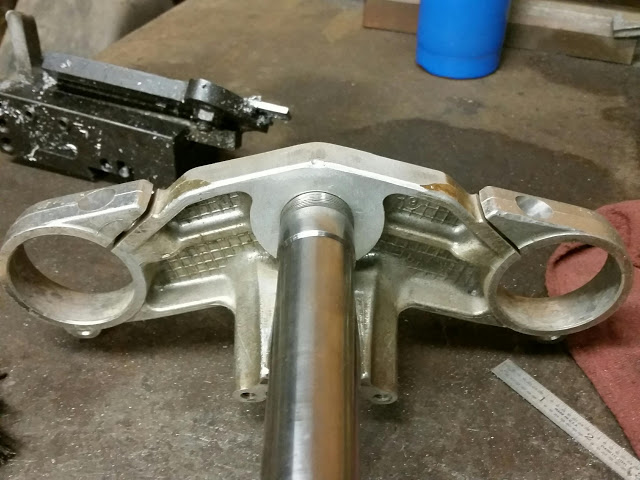

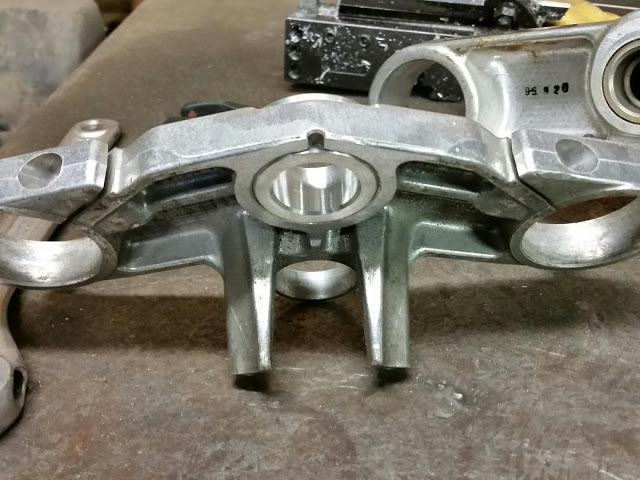

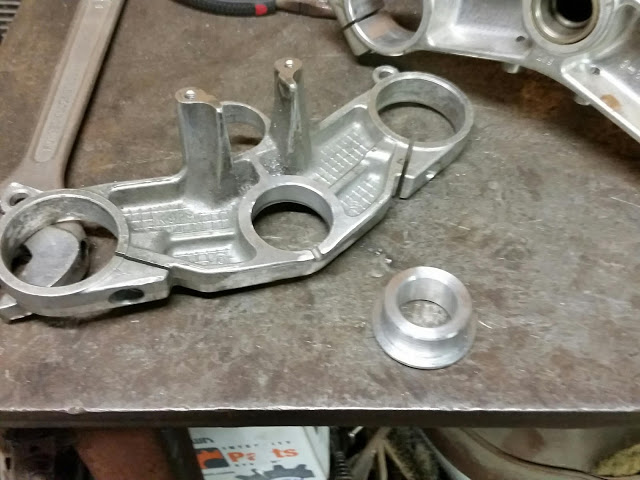

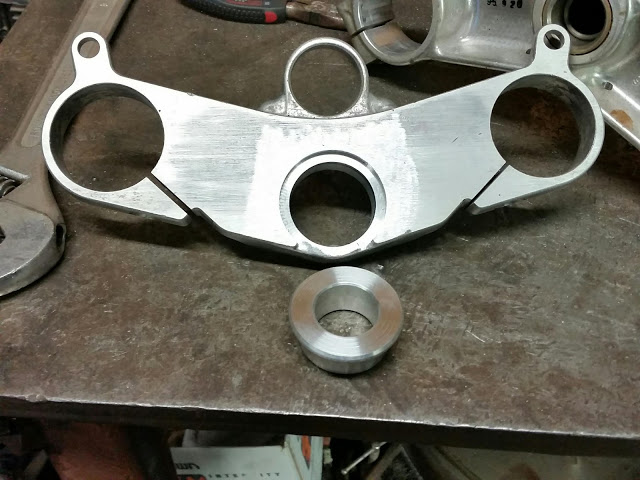

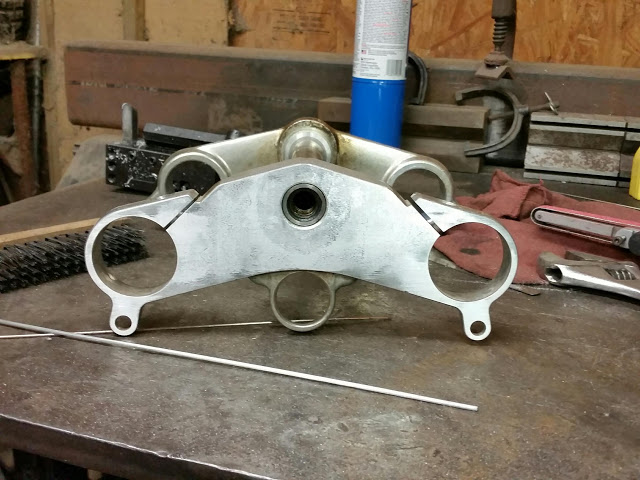

as you can see with the zx9 upper triple it is possible to mill the chunk of aluminum off the bottom of the upper triple and then machine and weld a new piece of aluminum in.which gains you 3/4 of an inch of leg length.

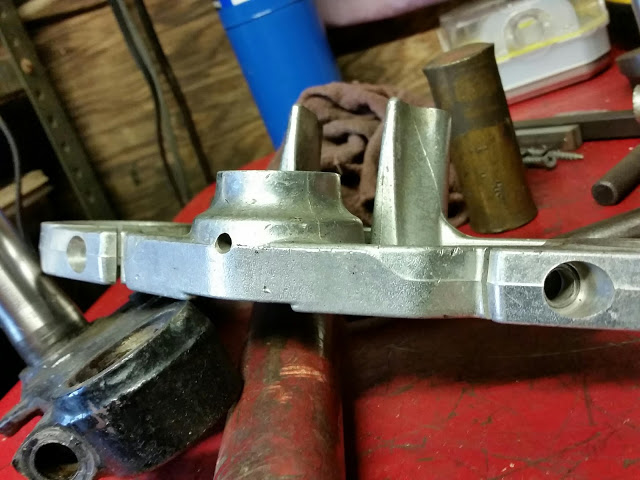

the zx9 stem gets sawed off and milled flat.

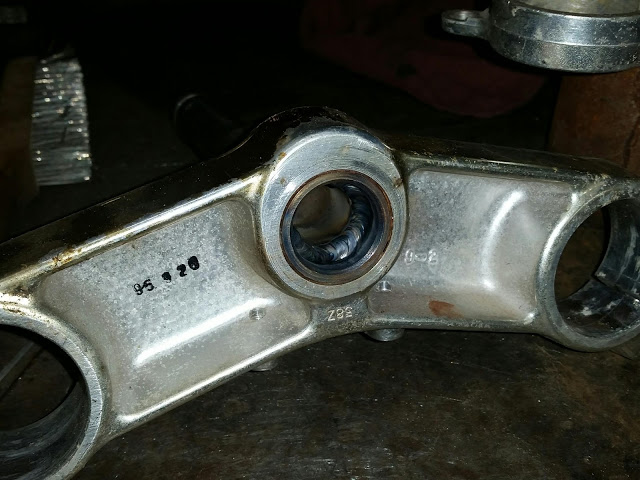

then the kz stem that has been removed from the kz triple can be pressed into the zx9 remnant to act as the bushing,

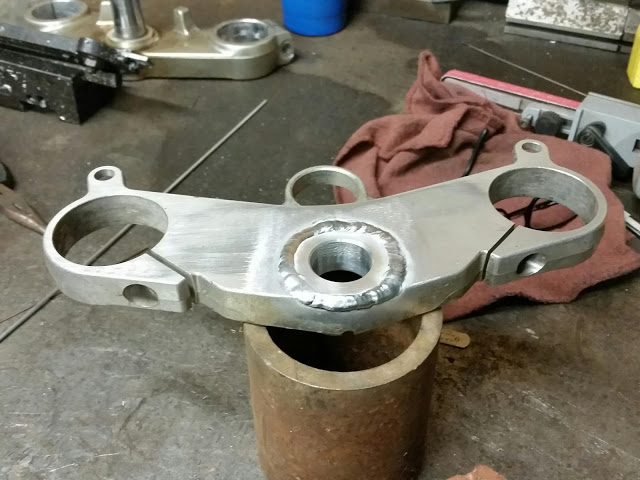

then simply reach inside and tig weld the two together.
now it can't come out up or down :whistle: :evil: !!!
