Oil cooler mount

  • david-b
  • Topic Author
  • Offline
  • User
  • I am THAT guy
More
15 Aug 2013 21:26 #601611 by david-b
Oil cooler mount was created by david-b
Hey all;
My oil cooler right now is being held in place from the PO with zip ties and wondering how this is actually supposed to connect. There's no place to mount this thing 2, so is there a bracket missing?

Attachment IMG_20130815_191724_542.jpg not found



Attachment IMG_20130815_191713_151.jpg not found



Any ideas? Thanks!
/Dave

2013 Chevy Sonic LT 1.4L Turbo
1982 Kawasaki KZ750-H3 LTD
1975 Monte Carlo 400sbc
Attachments:

Please Log in or Create an account to join the conversation.

More
15 Aug 2013 21:31 - 15 Aug 2013 21:33 #601612 by SLEEPER650
Replied by SLEEPER650 on topic Oil cooler mount
Make a small bracket to bolt it to and then bolt it to those two hole from the horn
78 650sr my baby
78 650sr waiting for rebuild
82 kz1100
Last edit: 15 Aug 2013 21:33 by SLEEPER650.
The following user(s) said Thank You: wireman

Please Log in or Create an account to join the conversation.

  • david-b
  • Topic Author
  • Offline
  • User
  • I am THAT guy
More
16 Aug 2013 10:34 #601673 by david-b
Replied by david-b on topic Oil cooler mount
Will probably end up doing that. And since I don't have any horns, will make sure there's space for those when I buy some.
Thanks
/Dave

2013 Chevy Sonic LT 1.4L Turbo
1982 Kawasaki KZ750-H3 LTD
1975 Monte Carlo 400sbc

Please Log in or Create an account to join the conversation.

More
16 Aug 2013 11:36 #601681 by koolaid_kid
Replied by koolaid_kid on topic Oil cooler mount
See the dark rings around each of the mounting holes? There used to be a rubber isolation ring there so the cooler is not hard mounted to the frame. Since you will be fabricating a mounting bracket, you may wish to incorporate this feature into the mount.
1983 GPz 750
810 Wiseco, Kerker, K&N, DynoJet S3, Accel, Progressive, etc.

Please Log in or Create an account to join the conversation.

More
16 Aug 2013 12:40 #601691 by baldy110
Replied by baldy110 on topic Oil cooler mount
The frame you have was not made for that oil cooler. It looks like you have a GPz750 engine but that is not a Gpz750 frame.

Please Log in or Create an account to join the conversation.

More
17 Aug 2013 23:13 #601917 by rixtrix
Replied by rixtrix on topic Oil cooler mount
My 1100 has mounts built into the frame-looks like you'll have to fabricate something but shouldn't be too difficult looking at the photos.
1982 GPz1100

Please Log in or Create an account to join the conversation.

  • david-b
  • Topic Author
  • Offline
  • User
  • I am THAT guy
More
18 Aug 2013 00:32 #601933 by david-b
Replied by david-b on topic Oil cooler mount
Really it seems easy enough to do so not too concerned about it. Just weird that there is no bracket there. Probably start working on something tomorrow. Need horns now. Found the wires going to them, all just cut and taped.

baldy: to the best of my knowledge, everything (frame/motor) is how it was originally purchased.
/Dave

2013 Chevy Sonic LT 1.4L Turbo
1982 Kawasaki KZ750-H3 LTD
1975 Monte Carlo 400sbc

Please Log in or Create an account to join the conversation.

More
18 Aug 2013 01:14 #601946 by koolaid_kid
Replied by koolaid_kid on topic Oil cooler mount
If you can wait a couple of days, I will post the pics of my 83, which should be similar.
The cooler certainly looks like mine, perhaps the mount is as well.
1983 GPz 750
810 Wiseco, Kerker, K&N, DynoJet S3, Accel, Progressive, etc.

Please Log in or Create an account to join the conversation.

More
18 Aug 2013 11:09 #601981 by Old Man Rock
Replied by Old Man Rock on topic Oil cooler mount
Couple options....

1) Tap a couple holes in the lower neck area to align with top cooler mount holes.
2) Tac weld a couple bolts on lower neck area to align with top cooler mount holes.
3) As mentioned, use side reflector holes for mounting a fabbed mounting bracket.

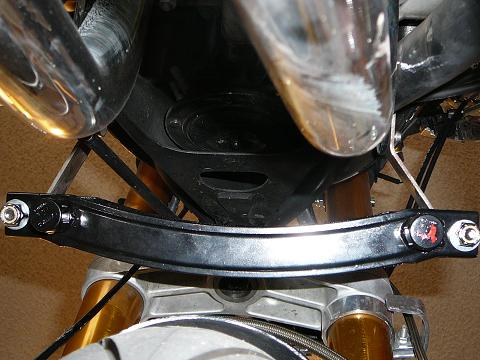

Earls cooler had side mounts, so fabbed side brackets & used side reflector threaded holes for securing each side to cooler.....

if it helps/provides some ideas....



1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter

Phoenix, Az
Attachments:

Please Log in or Create an account to join the conversation.

More
18 Aug 2013 11:42 #601985 by Powerstroke_fan
Replied by Powerstroke_fan on topic Oil cooler mount
I know yours is a 750 but heres how i did my 1000.

Attachment IMG_0792.JPG not found


I drilled two holes in the side plates on the frame and bent two long bolts to allign with the cooler than secured them with two nuts.


Attachment IMG_0793.JPG not found


Then i drilled two holes in the front plate and made a flat bracket that bolted up to the mounting tabs on the cooler, then bolted it to the frame.
1980 kz1000B4 LTD- 1327cc 9-1 comp
Ported J model head
Psp-3x cams
RS 36s
Welded MK11 crank
Back-cut MK11 trans
MTC 2 stage lock up
Stretched 4-6 over running Hayabusa rear rim with 190 rear tire
Complete frame brace kit installed
And Much Much more- SOLD

2014- ZX14R all stock for now
Attachments:

Please Log in or Create an account to join the conversation.

More
18 Aug 2013 19:16 #602044 by baldy110
Replied by baldy110 on topic Oil cooler mount
Here is an 82 GPz750 cooler mounted to my 78 KZ650 frame.

[IMG

[IMG

[IMG

Please Log in or Create an account to join the conversation.

  • david-b
  • Topic Author
  • Offline
  • User
  • I am THAT guy
More
18 Aug 2013 19:46 #602046 by david-b
Replied by david-b on topic Oil cooler mount
All good ideas and everything looks great. I'll play around with it (didn't have a chance to today) this week and post back my results.

Thanks!
/Dave

2013 Chevy Sonic LT 1.4L Turbo
1982 Kawasaki KZ750-H3 LTD
1975 Monte Carlo 400sbc

Please Log in or Create an account to join the conversation.
