How to de-pin a Kawasaki 4 pin connector
- mrmach5
-
Topic Author
- Offline
- User
-
Registered
- Posts: 71
- Thanks: 7
How to de-pin a Kawasaki 4 pin connector
01 Jun 2025 08:43
Looking for advice on how to remove the male pins on a 4 pin Kawasaki connector . I have several of those connector tools but can't seem to break the code. Perhaps a special tool thats not in my collection , or maybe I'm just not holding my mouth in the right spot.
Any insight is appreciated.

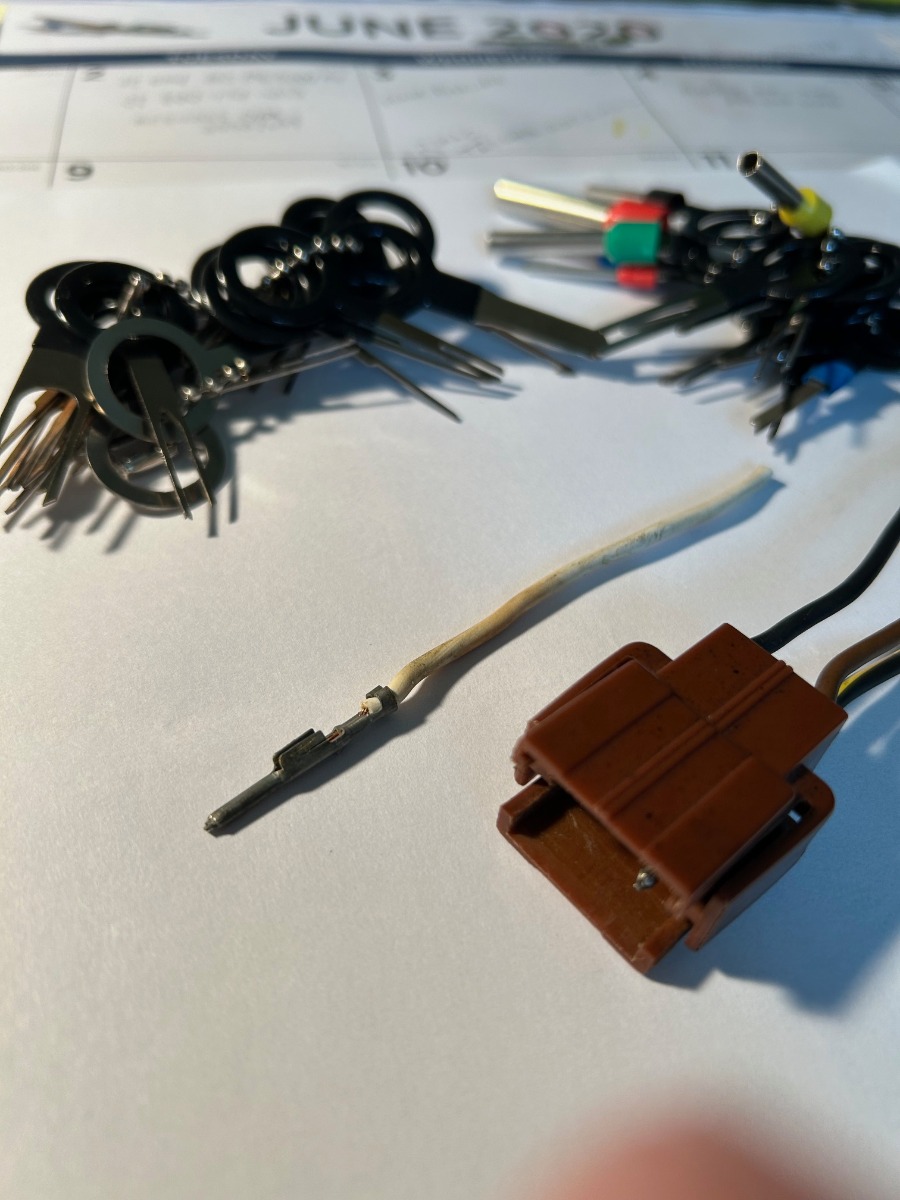

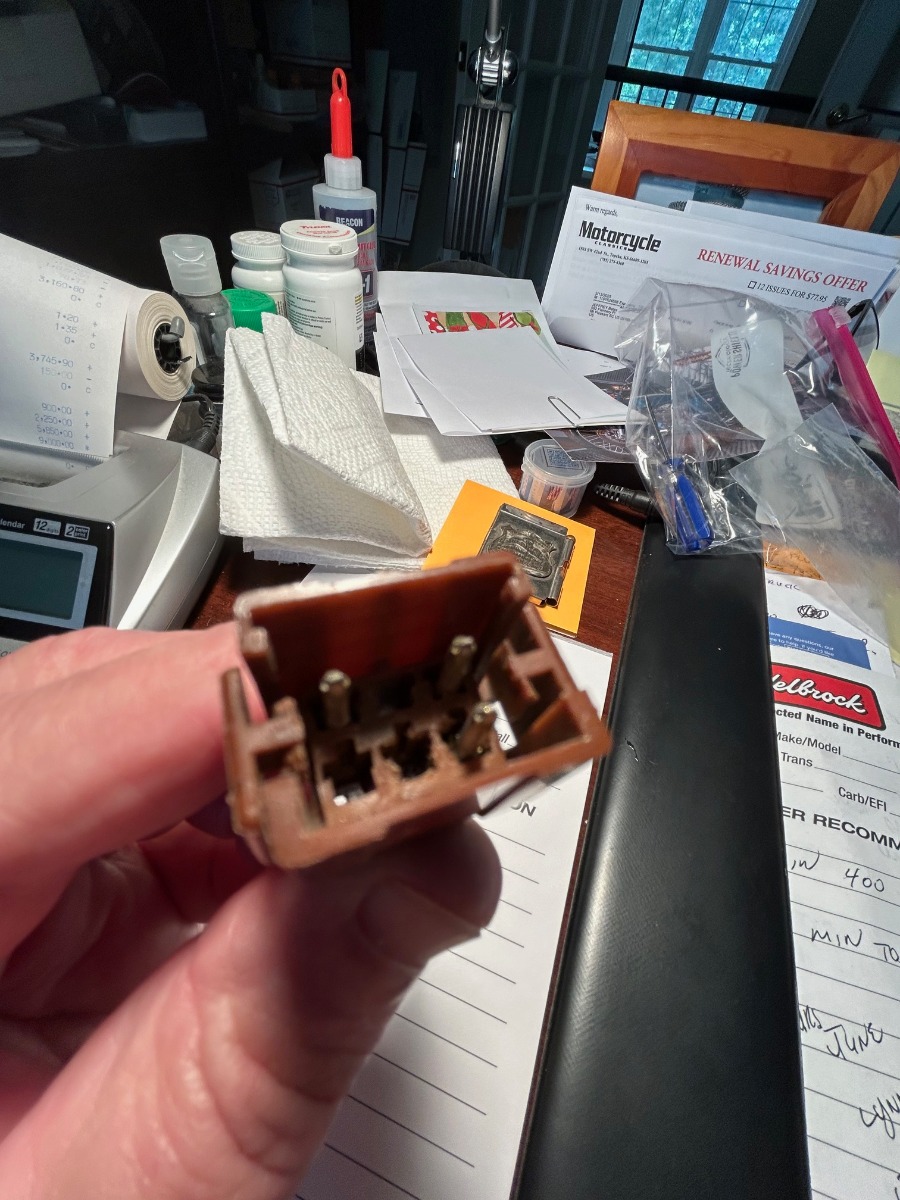

photos of the connector and one of the pins attached
Any insight is appreciated.
photos of the connector and one of the pins attached
Please Log in or Create an account to join the conversation.
- asphalt900
-
- Offline
- User
-
Registered
- Posts: 1102
- Thanks: 643
Re: How to de-pin a Kawasaki 4 pin connector
01 Jun 2025 11:47

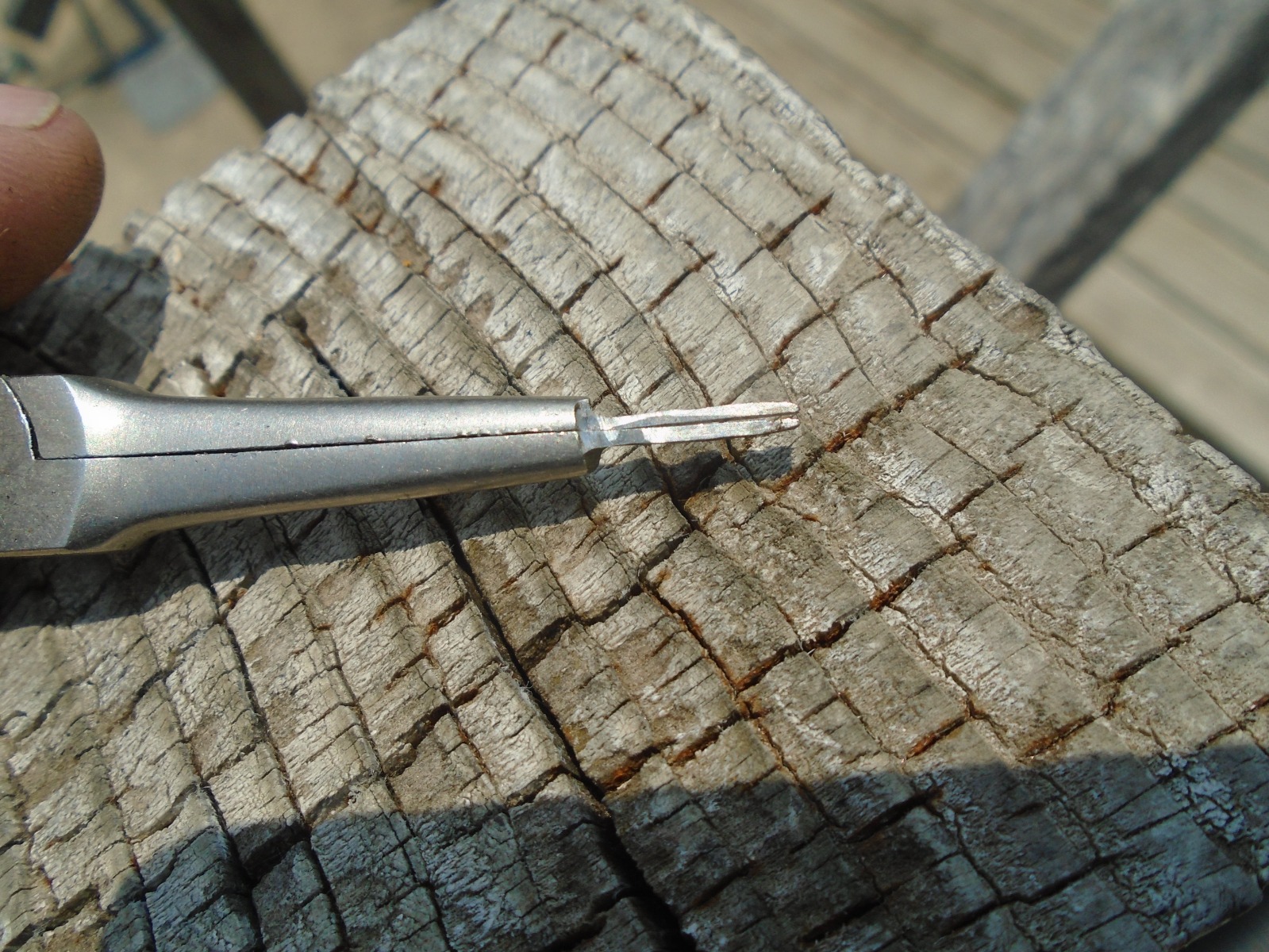

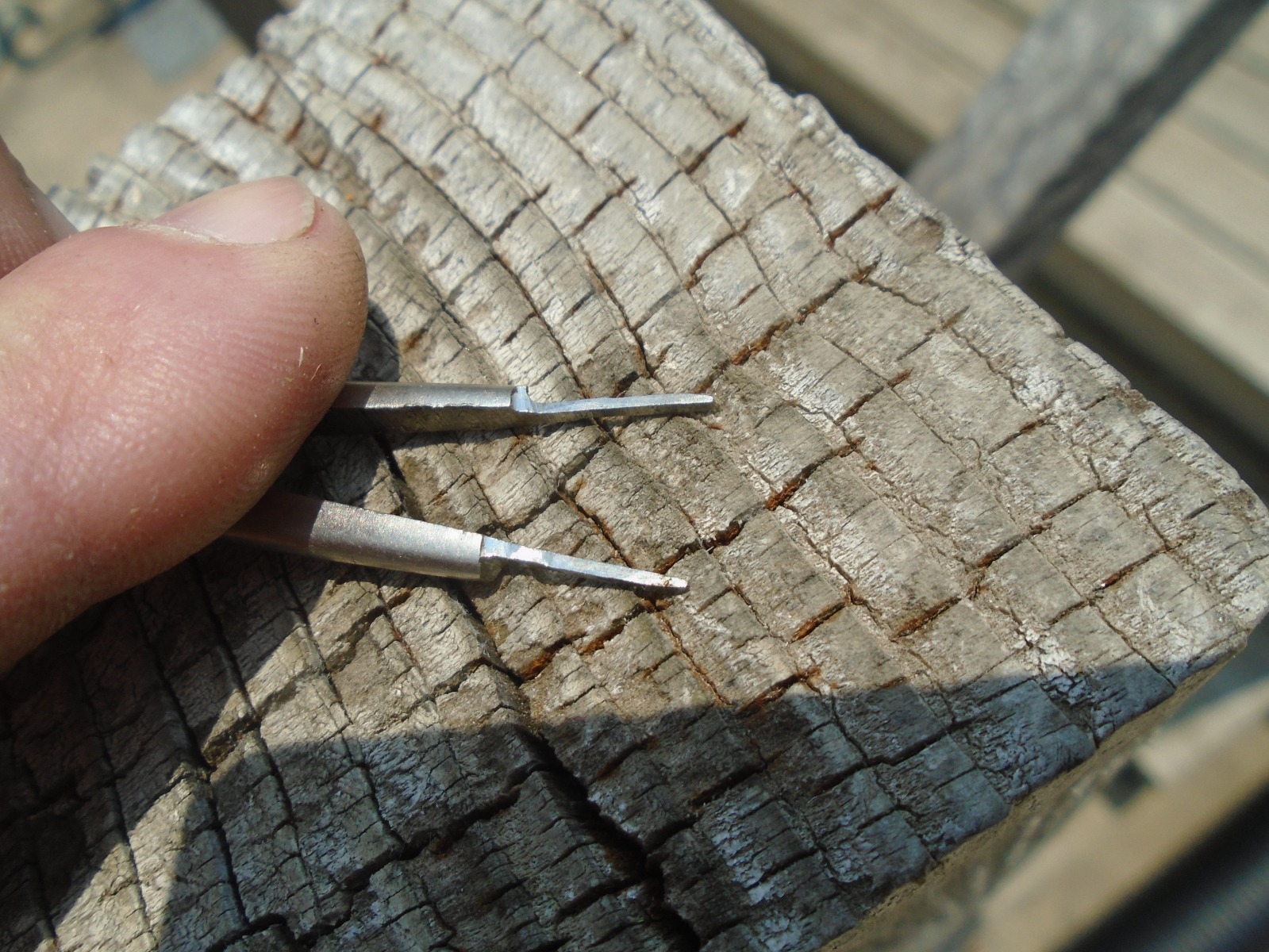

This might seem unorthodox and goofy but made a tool out of an old Craftsman long needle nose. I take apart quite a few of those connector blocks, all the colors, ha. This tool i've had for well over a decade and takes me about 5sec to remove each male spade without damaging the plastic connector. Noteworthy and a Cautionary. Jamming wrong crap down the side between male and plastic you can distort the square portion of the plastic that keeps the male terminal in place. Resulting in re-assembly "thinking" it's seated till you plug it into the other side. The male will push out and you will have to manually push the wire/terminal back into place. I also run a utility blade down the seam where it's rounded, look close you'll see it. By doing this you "slightly expand the diameter of the male portion for better connectivity on those "tinned brass" terminals.
Please Log in or Create an account to join the conversation.
- asphalt900
-
- Offline
- User
-
Registered
- Posts: 1102
- Thanks: 643
Re: How to de-pin a Kawasaki 4 pin connector
01 Jun 2025 12:09

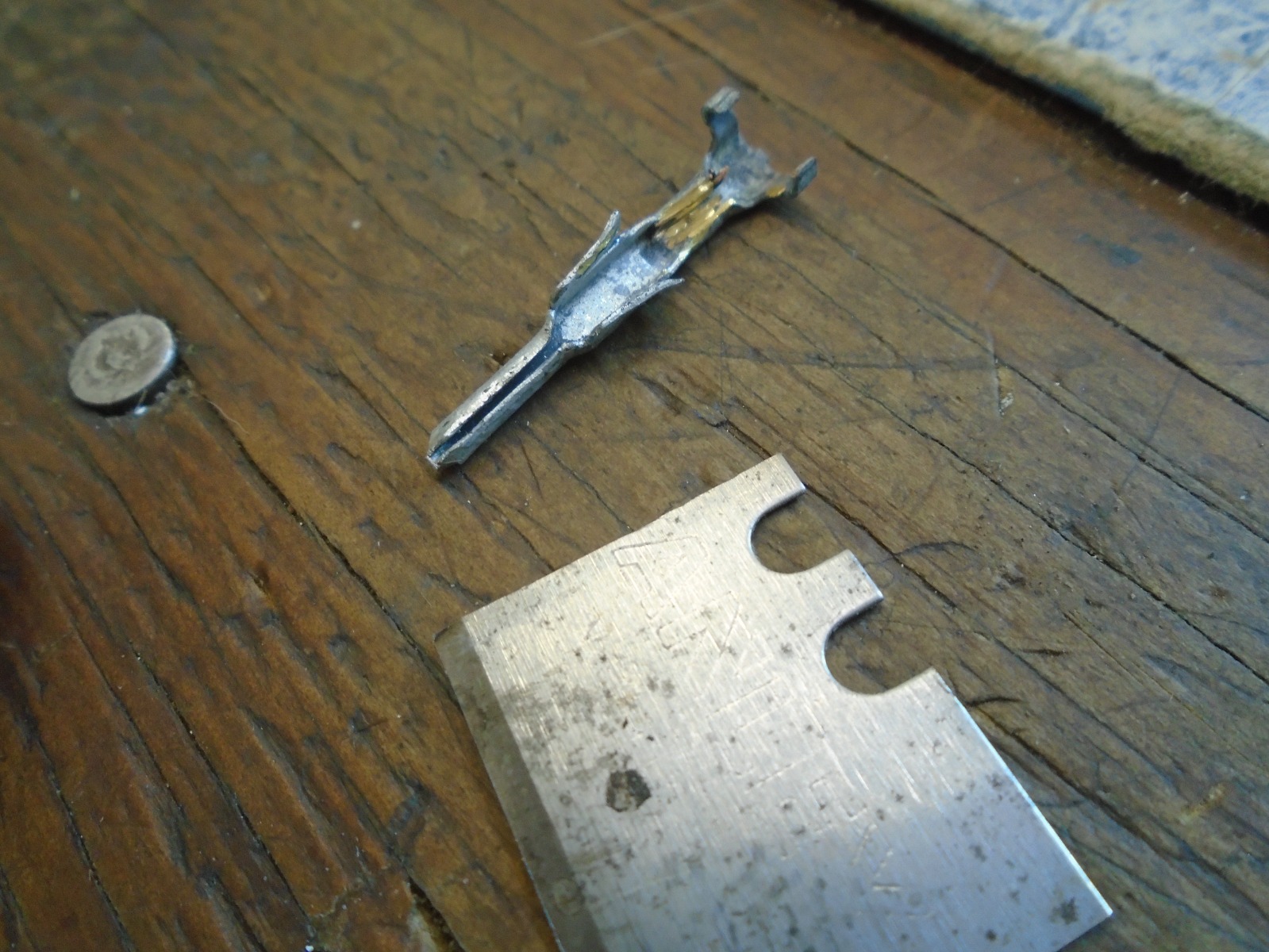

A few pics to help you grasp what i was talking about. Curbs the dreaded "voltage drop" between male and female connectors. There's a joke hanging there in human terms but won't elaborate.

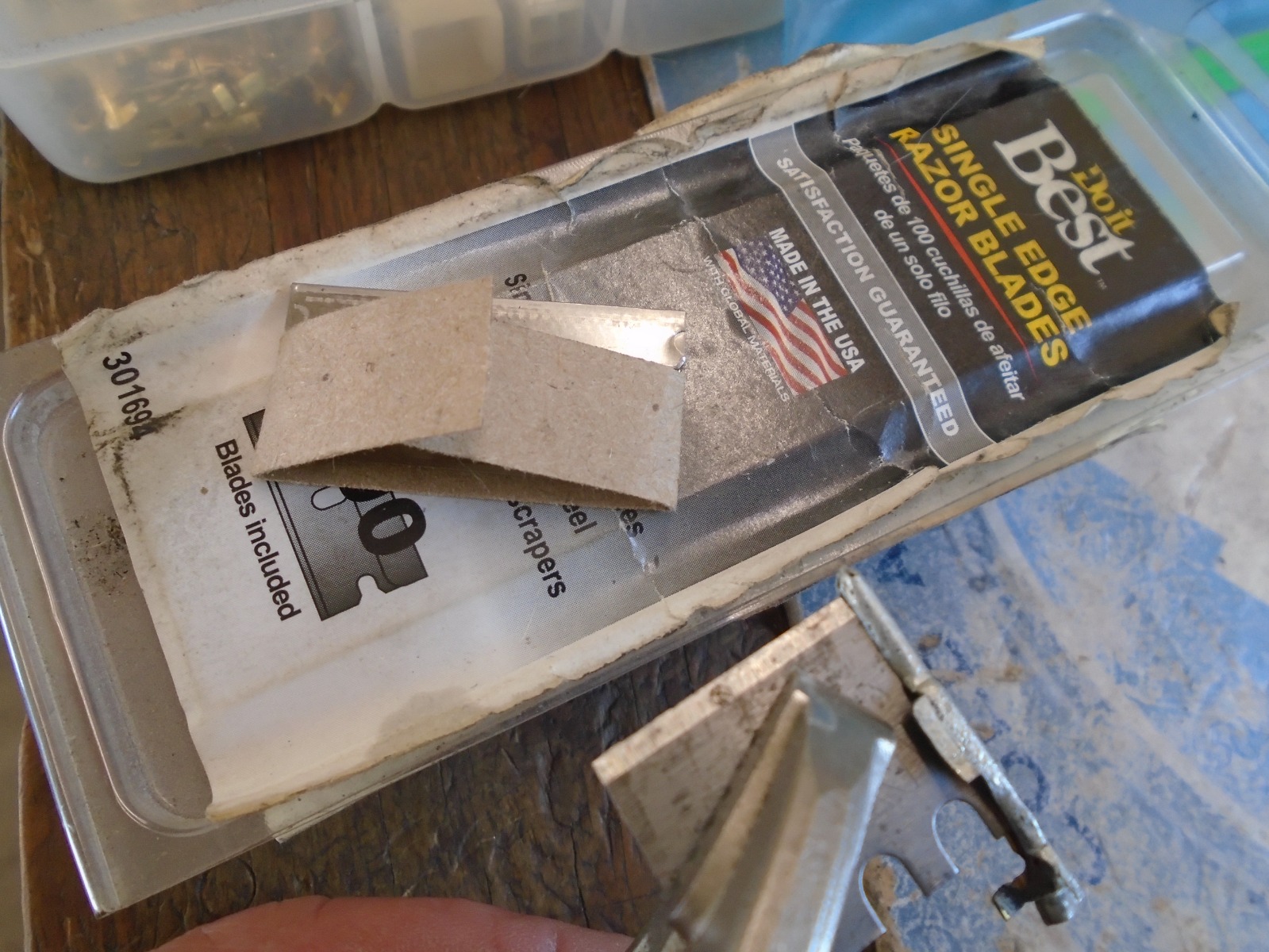

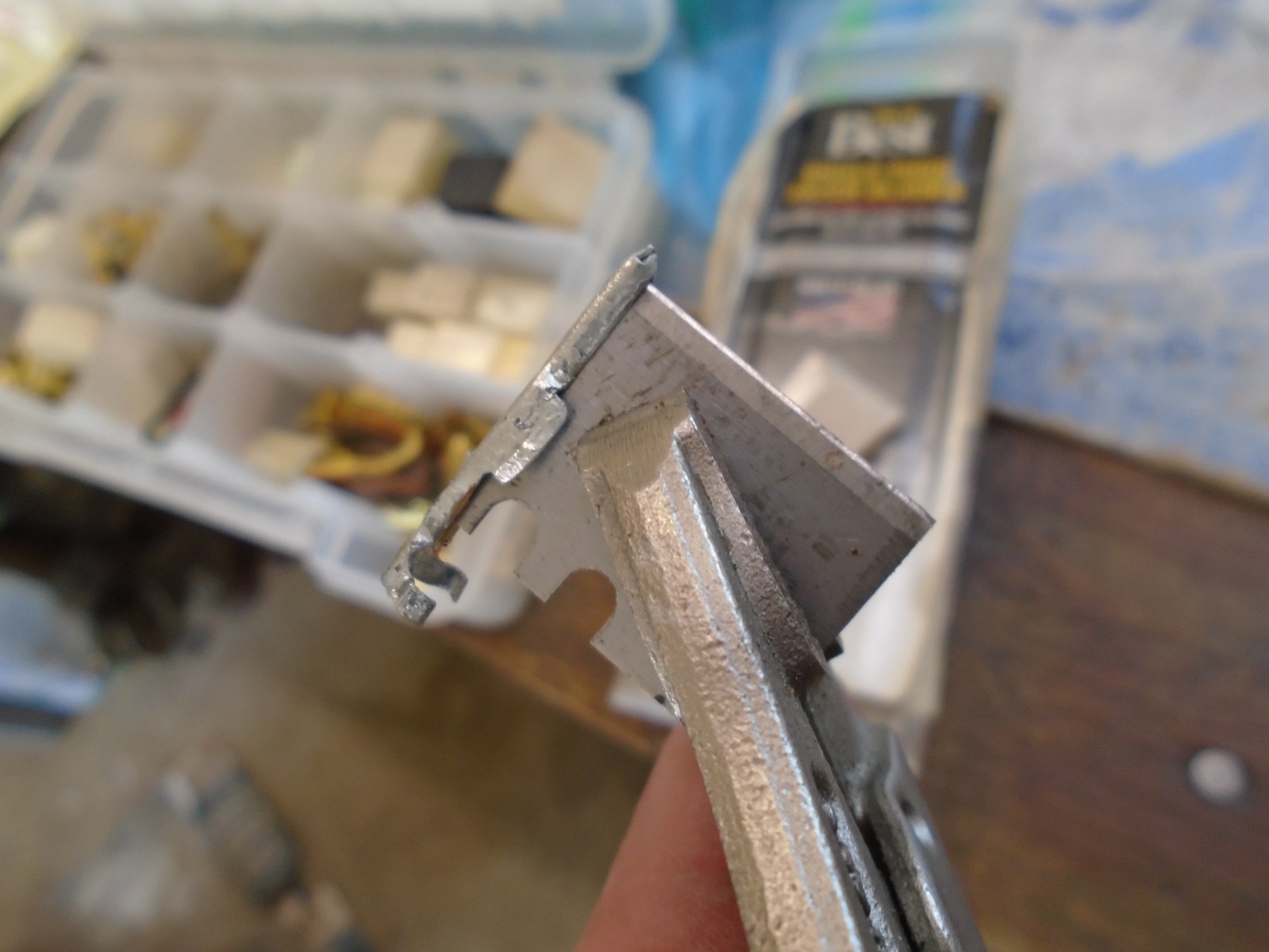

The blade is just a cut in half with a dremel cheap razor blade. There's Your Chicken Dinner, ha.
The following user(s) said Thank You: MFP-Joe, SWest, Wookie58, kimchella
Please Log in or Create an account to join the conversation.
- SWest
-
- Offline
- Sustaining Member
-
Registered
- 10 22 2014
- Posts: 23379
- Thanks: 2901
Re: How to de-pin a Kawasaki 4 pin connector
01 Jun 2025 13:24 - 01 Jun 2025 13:25
I use a small paperclip flattened at the end. It bends down the tiny tang allowing it to be pulled out easily. If it won't slide out you have to try again. Force is your enemy. I bought some extra connectors but they aren't copper plated like the OEM ones. 🙄
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Last edit: 01 Jun 2025 13:25 by SWest. Reason: sp
The following user(s) said Thank You: kimchella
Please Log in or Create an account to join the conversation.
- gd4now
-
- Offline
- User
-
Registered
- Denco where did you go?
- Posts: 1527
- Thanks: 560
Re: How to de-pin a Kawasaki 4 pin connector
01 Jun 2025 14:40
In the past I have made tool(s) from cotter pins. Just need to file/grind it to needed size
1977 KZ650 B1
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
Pods and Denco header
OLD KAW OWNERS SMILE ALOT
The following user(s) said Thank You: kimchella
Please Log in or Create an account to join the conversation.
- mrmach5
-
Topic Author
- Offline
- User
-
Registered
- Posts: 71
- Thanks: 7
Re: How to de-pin a Kawasaki 4 pin connector
02 Jun 2025 06:49
So is it the two side wings on the terminal or the little tang on the bottom that actually holds it in the connector? Do you approach with the tool from the back or front?
Please Log in or Create an account to join the conversation.
- Wookie58
-
- Offline
- Moderator
-
Registered
- Posts: 5021
- Thanks: 3058
Re: How to de-pin a Kawasaki 4 pin connector
02 Jun 2025 07:00 - 02 Jun 2025 07:45The "tang" from the front (don't forget to bend it back up before re-inserting the pin) make sure you push the terminal fully in from the back when bending the tangSo is it the two side wings on the terminal or the little tang on the bottom that actually holds it in the connector? Do you approach with the tool from the back or front?

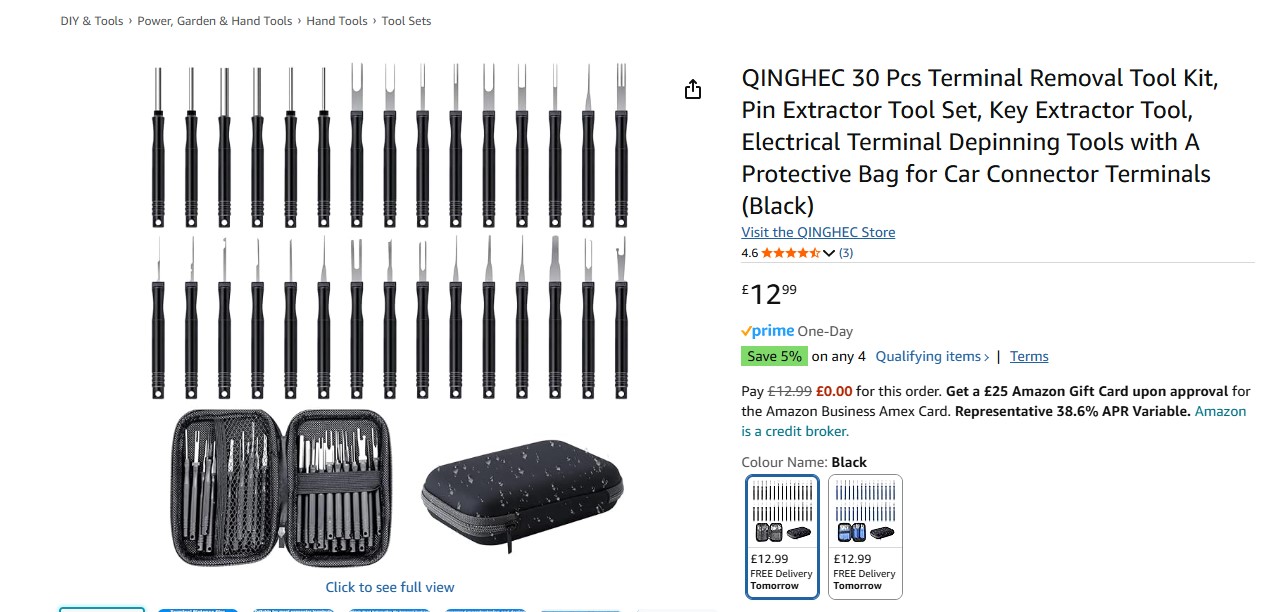

If you don't want to fiddle and make your own tool something like the below should be all you will ever need for this task
EDIT: I can see you have a selection of de-pinning tools, the only thing I would say is the ones "top left" in the set I posted are "tubes" which are intended for releasing round pins
1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
Last edit: 02 Jun 2025 07:45 by Wookie58.
Please Log in or Create an account to join the conversation.
- H1Vindicator
-
- Offline
- User
-
Registered
- Posts: 728
- Thanks: 103
Re: How to de-pin a Kawasaki 4 pin connector
02 Jun 2025 07:38 - 02 Jun 2025 07:39
what motorcycle is the wire harness? are those terminals stock? looks like non-stock bullets were stuffed into a spade type connector. I could be wrong though. the plastic connectors on my motorcycle have spade terminals.
Last edit: 02 Jun 2025 07:39 by H1Vindicator.
Please Log in or Create an account to join the conversation.
- mrmach5
-
Topic Author
- Offline
- User
-
Registered
- Posts: 71
- Thanks: 7
Please Log in or Create an account to join the conversation.
