not charging / fuse #3 blows 13 May 2023 09:00 #884588

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
New:
Battery, Stator, Regulator/Rectifier

still wont take a charge…

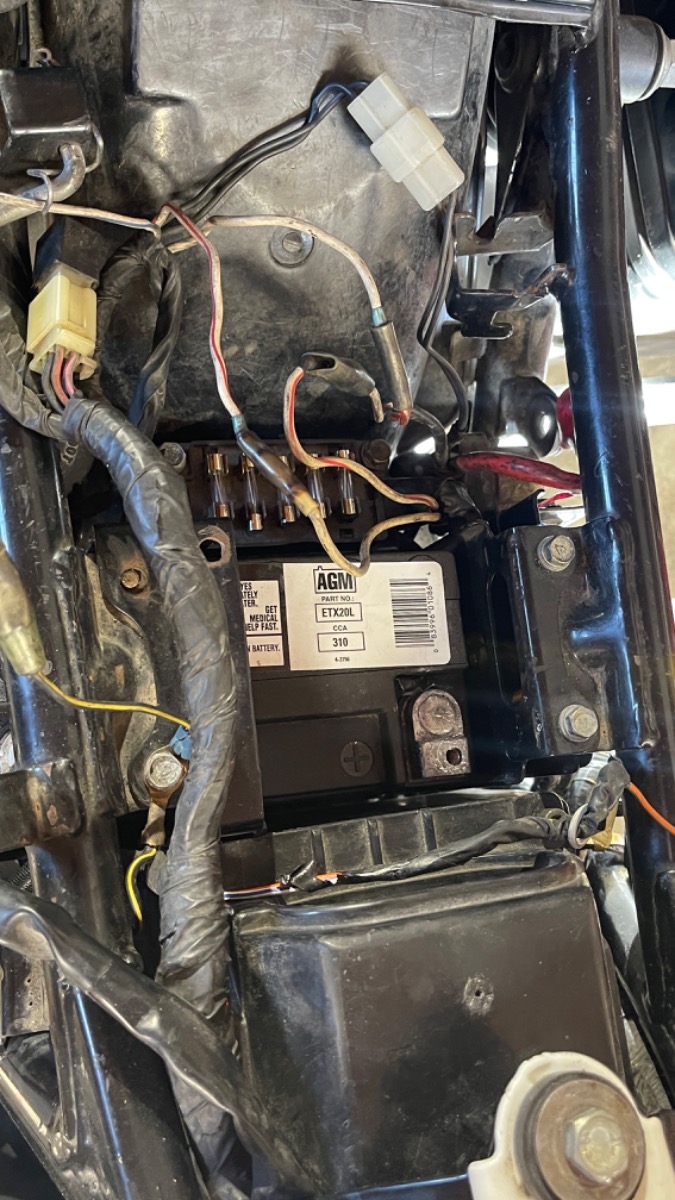

wondering about this… I don’t know for sure where these wires should go. I believe it was hooked up to the positive before, and the green wire was just dangling.
Attachments:

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 13 May 2023 09:36 #884590

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
95KZ1000P

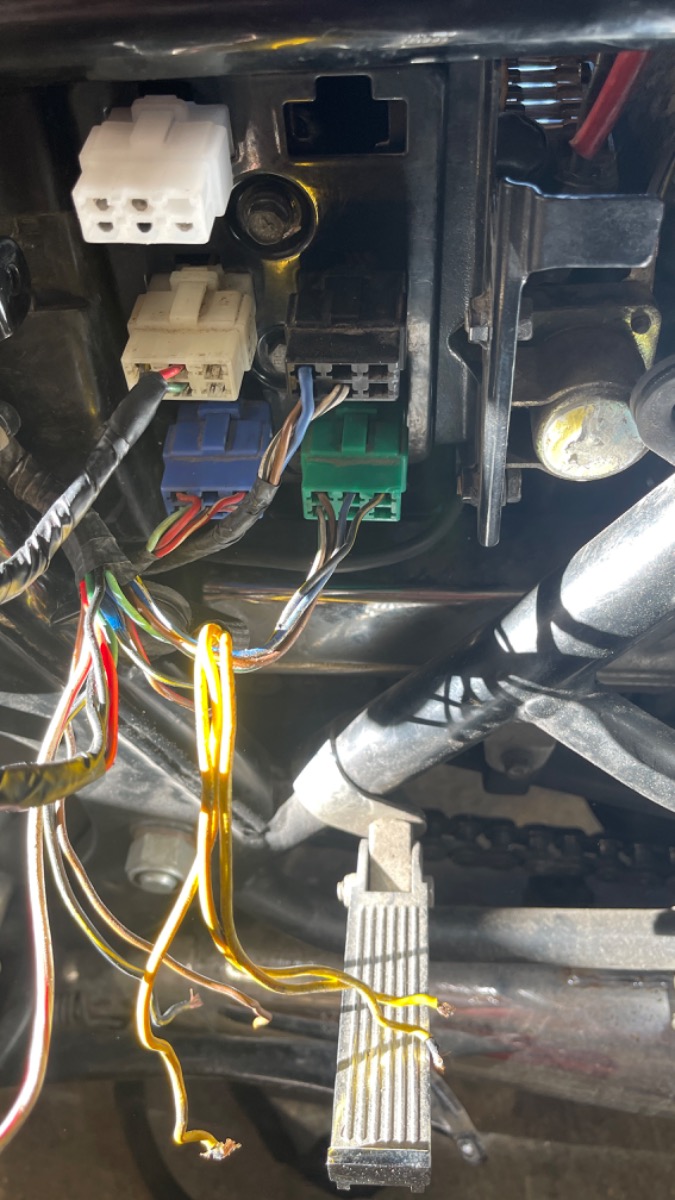

I dont know what the relay is for...

I was told to (from the regulator) run the red to the positive on the battery and the black to the negative on the battery... but i didnt listen..
If I do follow this advise how do I account for the other two wires that the red and black are currently connected to?  will I need to connect those to the battery as well?

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 13 May 2023 09:58 #884594

  • Nessism
  • Nessism's Avatar
  • Away
  • Sustaining Member
  • Posts: 7287
  • Thank you received: 2678
This guide may help.  Sometimes the factory wiring gets overheated and damaged.  Bypassing that can help get the charging system working properly.

 SH775 Install by nessism , on Flickr

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 13 May 2023 12:20 #884601

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
thanks Nessism,

Do you think i need to worry about the relay wiring?  Not sure the black and white wires should be going to the positive or negative terminal...?   also I wonder if the green should be grounded somewhere...

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 13 May 2023 12:23 #884602

  • Wookie58
  • Wookie58's Avatar
  • Online
  • Moderator
  • Posts: 3192
  • Thank you received: 1788

thanks Nessism,

Do you think i need to worry about the relay wiring?  Not sure the black and white wires should be going to the positive or negative terminal...?   also I wonder if the green should be grounded somewhere...
I would suggest that if you don't know what the relay is for "Don't" connect it to anything until you know where the wires are going and what it's purpose is (it may have been for one of the many "cop" extras the bike had)
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 13 May 2023 12:57 #884604

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
one last one for the day I promise ... do you know what fuse 2 is for?   I cant find it in the manual

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 13 May 2023 13:31 #884605

  • Wookie58
  • Wookie58's Avatar
  • Online
  • Moderator
  • Posts: 3192
  • Thank you received: 1788

one last one for the day I promise ... do you know what fuse 2 is for?   I cant find it in the manual
Easiest thing is look what colour wires are going to it and check the wiring diagram
The following user(s) said Thank You: MALCOLMHOULE

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 14 May 2023 04:08 #884621

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2927
  • Thank you received: 1022
Is the relay a Wired George mod that was done by a PO?
I have several restored bikes along with a 2006 Goldwing with a sidecar. My wife has a 2019 Suzuki DR 650 for on and off road.

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 14 May 2023 08:06 #884626

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
i have no idea,… thats what makes this so fun.

i believe the wiring has been subdimodified and based on the carelessness of wire routing and random lengths used im not sure i have a tremendous amount of faith in the prior artist.

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 14 May 2023 08:10 #884628

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
OK, here I go.
From the rectifier:
Three yellows … easy.
Back… I will run to the ground terminal on the battery.
Red I will split and run one to the fuse box and one to the battery.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 14 May 2023 08:14 #884630

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
well, I’ve been at it for about three minutes. And I’ve already had my first mistake.
Correction
Red…I will  split
and run one to the fuse box / from the fuse box to the battery.
the other to the main harness

Please Log in or Create an account to join the conversation.

not charging / fuse #3 blows 14 May 2023 08:15 #884631

  • MALCOLMHOULE
  • MALCOLMHOULE's Avatar Topic Author
  • Offline
  • User
  • Posts: 35
  • Thank you received: 2
Attachments:

Please Log in or Create an account to join the conversation.
