82 kz1100 speedometer and odometer quit working and tach has been jumpy

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
19 Apr 2023 16:58 #883464 by Gdailey2112
daveo - thank you so much, bro!  ...80 gritted the eye conn and mating surfaces for yel/blk ground on coil mount and solved my jumpy tach
wookie - yes i read how to check by spinning front wheel to gain volt reading from odom to speedo and that seems to check out good


1982 KZ1100D1

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
19 Apr 2023 17:28 #883467 by Gdailey2112
wookie - speed sensor is sending pulse starting out at just below 1 volt and voltage raises fine when wheel is spun. i'm stumped unless odometer isn't sending pulse to to speedometer

1982 KZ1100D1

Please Log in or Create an account to join the conversation.

More
20 Apr 2023 03:54 - 20 Apr 2023 03:57 #883473 by Wookie58

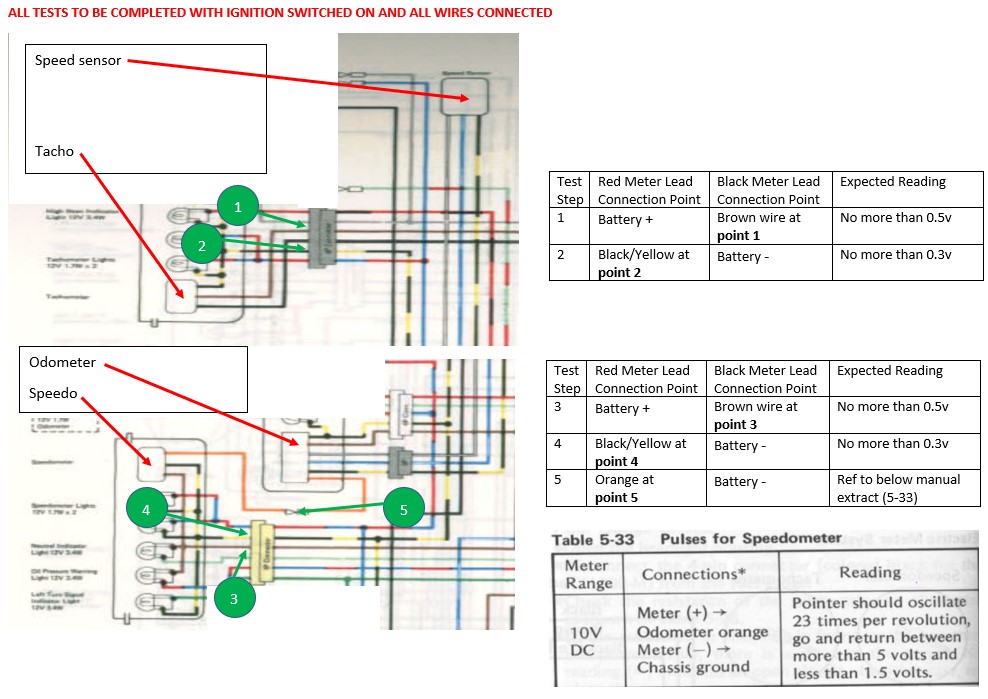

The below should give us a starting point, let me know what you get for each of the 5 test steps   Is your bike fitted with "self cancelling" turn signals, if yes "do they work"?


Last edit: 20 Apr 2023 03:57 by Wookie58.
The following user(s) said Thank You: Mikaw, Gdailey2112

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
20 Apr 2023 18:17 - 20 Apr 2023 18:18 #883505 by Gdailey2112
wookie - thank you for your help and expertise
will run those tests in morning thanks again
yes it has self cancelling signals that don't self cancel

1982 KZ1100D1
Last edit: 20 Apr 2023 18:18 by Gdailey2112.
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
20 Apr 2023 20:22 #883507 by Gdailey2112
i guess i've never known of any easy way to get these old 6 pin connectors in headlamp apart, any tips?
few of the conn's seemed to be like welded as one on one or two sides, pulling does not suffice


1982 KZ1100D1

Please Log in or Create an account to join the conversation.

More
20 Apr 2023 23:39 #883510 by Wookie58

i guess i've never known of any easy way to get these old 6 pin connectors in headlamp apart, any tips?
few of the conn's seemed to be like welded as one on one or two sides, pulling does nothing


Don't forget these tests are done from the back of the plug with it connected

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
21 Apr 2023 08:18 - 21 Apr 2023 08:29 #883529 by Gdailey2112
anyone know of a better way to un-weld the original connectors inside headlamp.
the one i'm pulling on doesn't allow much room on one side to pull from
i do understand the tests to be done connected but still wanna get the two apart

1982 KZ1100D1
Last edit: 21 Apr 2023 08:29 by Gdailey2112.

Please Log in or Create an account to join the conversation.

More
21 Apr 2023 09:17 #883532 by Wookie58

anyone know of a better way to un-weld the original connectors inside headlamp.
the one i'm pulling on doesn't allow much room on one side to pull from
i do understand the tests to be done connected but still wanna get the two apart
You could try soaking them in WD40 (it's corrosion that's holding them) JUST MAKE SURE YOU BLOW OUT THE EXCESS BEFORE PUTTING POWER THROUGH IT
The following user(s) said Thank You: Gdailey2112

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
27 Apr 2023 19:30 #883871 by Gdailey2112
Hey wookie! Sorry bro, I know you'd spent a bit of time helping with this, however, I didn't even get a chance to do any testing yet. My other half seems to always somehow gets in the way with her priorities when its sunny, 70 deg and I'm fiending to go riding LOL

1982 KZ1100D1

Please Log in or Create an account to join the conversation.

More
27 Apr 2023 23:35 #883880 by Wookie58
The following user(s) said Thank You: Gdailey2112

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
28 Apr 2023 12:10 #883911 by Gdailey2112
Appreciate your understanding and all the help you've given. Wookie, you a very valuable asset to this site. Your intellect, knowledge, and experience on electrical is right up there with the best!  Thanx

1982 KZ1100D1
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

  • Gdailey2112
  • Topic Author
  • Offline
  • User
  • 82 KZ1100D1
More
29 Apr 2023 16:19 #883969 by Gdailey2112
The jumpy tach has been solved, the ground blk/yel from 6 pin connector under side cover wasn't connected to anything.

1982 KZ1100D1
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.
