83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 06:13

Brake light, neutral light and horn all stopped working at the same time. Can’t seem to find the cause. Any advise would be greatly appreciated. Thanks in advance

Please Log in or Create an account to join the conversation.

Wookie58
Away
Moderator
Posts: 4482
Thanks: 2626

Re: 83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 07:09

#870536

Where in the world are you Keith, I will look at a wiring diagram later if I get time but it would help to know if it a US or European build spec as the wiring isn't the same

1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Please Log in or Create an account to join the conversation.

Keith23
Topic Author
Offline
User
Posts: 10
Thanks: 1

Re: 83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 07:51

#870541

I’m in Georgia the bike is US. THANKS!

Please Log in or Create an account to join the conversation.

Scirocco
Offline
Premium Member
Never change a running system
Posts: 4290
Thanks: 2137

Re: 83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 08:36

#870547

Check the 20 Amp fuse in the fuse holder.

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Please Log in or Create an account to join the conversation.

Wookie58
Away
Moderator
Posts: 4482
Thanks: 2626

Re: 83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 09:32

#870551

wrote:

Brake light, neutral light and horn all stopped working at the same time. Can’t seem to find the cause. Any advise would be greatly appreciated. Thanks in advance

OK two questions

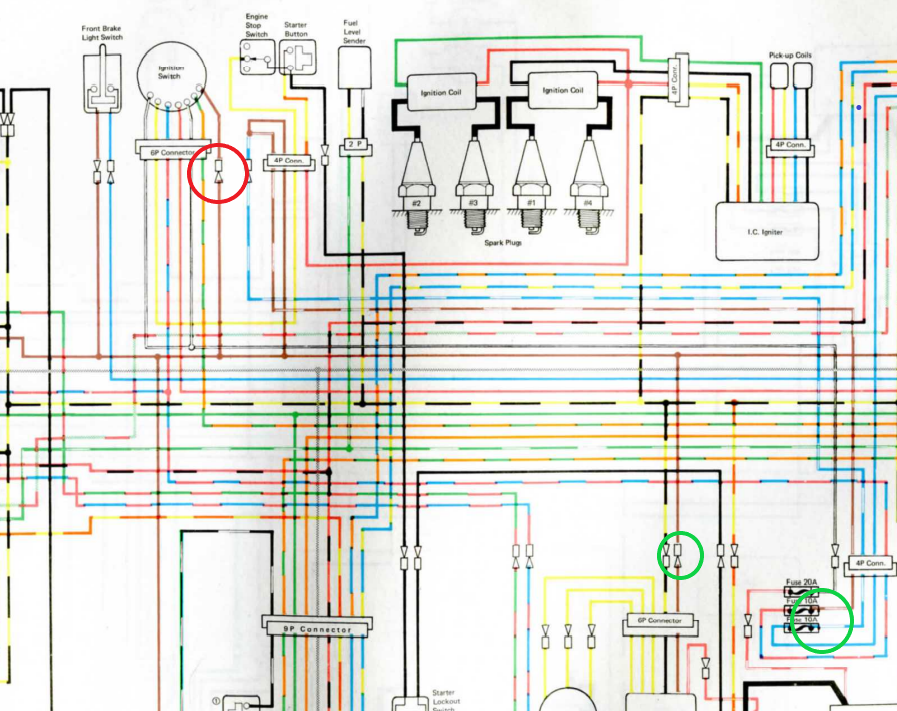

Do you have ignition voltage at the two 10amp fuses (green circle) if yes what is the voltage ?
Do you have ignition voltage at the Brown wire going into the regulator/rectifier (other green circle) if yes what is the voltage ?

If the answer to both the above questions is no check the connector on the standalone brown wire at the ign switch (red circle)

1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

The following user(s) said Thank You: JR

Please Log in or Create an account to join the conversation.

JR
Offline
Sustaining Member
Posts: 2939
Thanks: 453

Re: 83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 10:43 - 18 Jul 2022 10:44

#870557

You will find the bullet connector Wookie58 circled in the headlight bucket. Your bike wiring very similar to mine.

1980 kz750E1, Delkevic exhaust

Last edit: 18 Jul 2022 10:44 by JR.

The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Scirocco
Offline
Premium Member
Never change a running system
Posts: 4290
Thanks: 2137

Re: 83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 15:27 - 18 Jul 2022 15:35

#870574

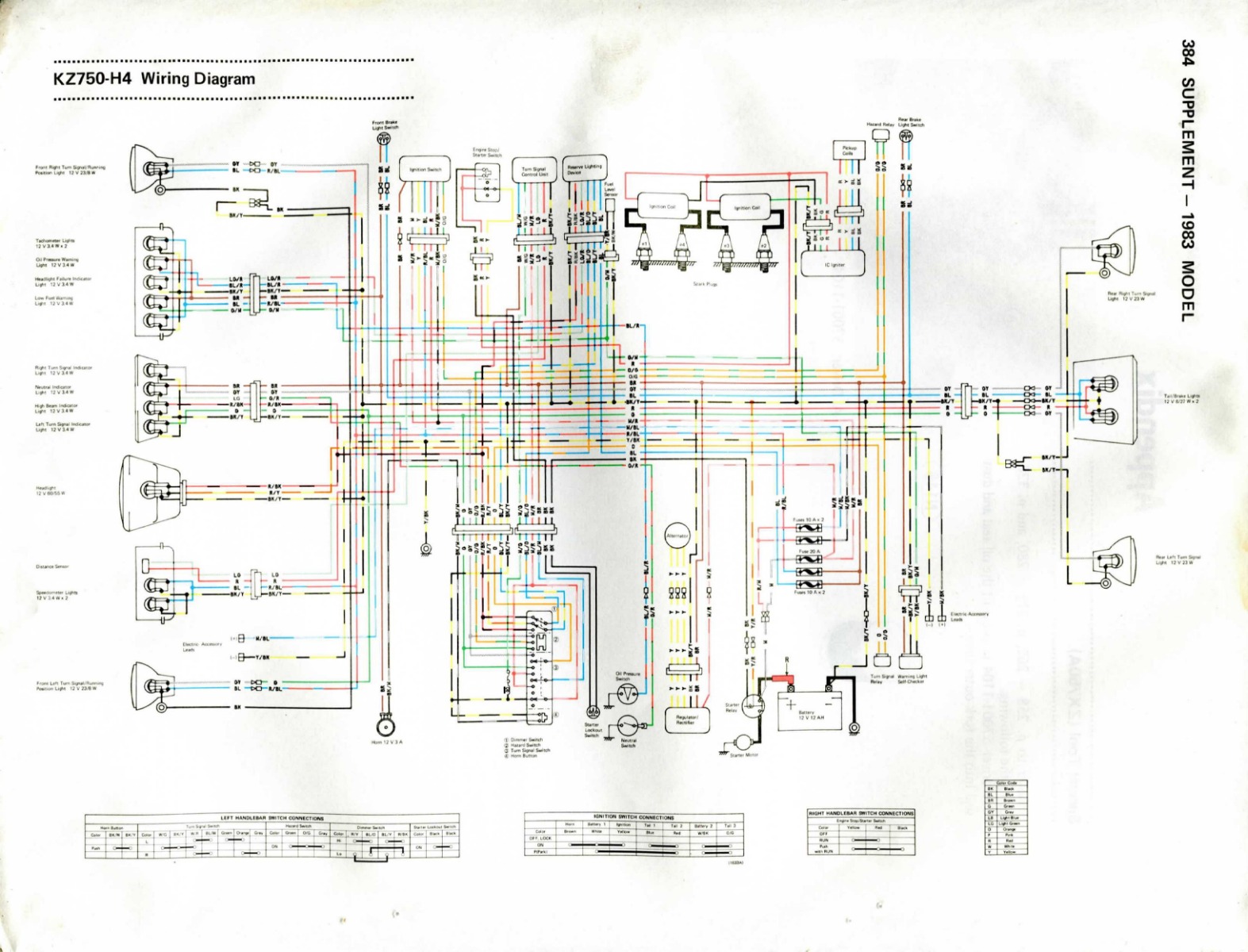

If you look closer into the wiring diagram, you will see that the white wire (20 Amp fuse) will power the brown and yellow wire in the ignition "ON" position.

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Last edit: 18 Jul 2022 15:35 by Scirocco.

Please Log in or Create an account to join the conversation.

Wookie58
Away
Moderator
Posts: 4482
Thanks: 2626

Re: 83 KZ 750 LTD neutral light brake light and horn

18 Jul 2022 15:43 - 18 Jul 2022 15:47

#870575

That is correct but in that case there would be no ignition circuit which isn't the fault that has been raised, this is also why I asked him to confirm no power at the RR and the 10amp fuses
The area I have highlighted would only show an obvious effect on the faults described (although it wouldn't charge the battery and some other lighting wouldn't work)

1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

Last edit: 18 Jul 2022 15:47 by Wookie58.

Please Log in or Create an account to join the conversation.

Keith23
Topic Author
Offline
User
Posts: 10
Thanks: 1

Re: 83 KZ 750 LTD neutral light brake light and horn

21 Jul 2022 18:48

#870817

Got the horn and brake light going but don’t get any fire to the spark plugs?confused.

Please Log in or Create an account to join the conversation.

Wookie58
Away
Moderator
Posts: 4482
Thanks: 2626

Re: 83 KZ 750 LTD neutral light brake light and horn

22 Jul 2022 00:13

#870827

When you first posted about the neutral light etc was it starting ok, what did you find for the horn and brake light ?

1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca

The following user(s) said Thank You: Keith23

Please Log in or Create an account to join the conversation.

Keith23
Topic Author
Offline
User
Posts: 10
Thanks: 1

Re: 83 KZ 750 LTD neutral light brake light and horn

22 Jul 2022 00:30

#870829

Thanks Wookie for your assistance. I had a blown fuse for the horn//ignition. Bad connection for neutral light. Now I’m not getting any spark to the plugs. Starter is turning but won’t crank. I have to check the coils I guess. Is there a chance that the points are causing it not not get fire? I’m at a loss. Any ideas?
thanks in advance

Please Log in or Create an account to join the conversation.

Wookie58
Away
Moderator
Posts: 4482
Thanks: 2626

Re: 83 KZ 750 LTD neutral light brake light and horn

22 Jul 2022 00:44

#870831

A couple of questions
Was it starting when you first posted your problem ?
Which fuse was blown ?
Where was the connection problem for the neutral light ?
Have you checked that you haven't disturbed something doing the work you have done ?

1982 KZ1000 Ltd
www.kzrider.com/forum/11-projects/617631...-82-begins?start=192
kzrider.com/filebase-alias?view=download...d-fault-diagnosis&ca
