83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 06:13 #870531

  • Keith23
  • Keith23's Avatar Topic Author
  • Offline
  • User
  • Posts: 10
  • Thank you received: 1
Brake light, neutral light and horn all stopped working at the same time. Can’t seem to find the cause. Any advise would be greatly appreciated. Thanks in advance

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 07:09 #870536

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
Where in the world are you Keith, I will look at a wiring diagram later if I get time but it would help to know if it a US or European build spec as the wiring isn't the same

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 07:51 #870541

  • Keith23
  • Keith23's Avatar Topic Author
  • Offline
  • User
  • Posts: 10
  • Thank you received: 1
I’m in Georgia the bike is US. THANKS!

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 08:36 #870547

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892
Check the 20 Amp fuse in the fuse holder.


Attachments:

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 09:32 #870551

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720

Brake light, neutral light and horn all stopped working at the same time. Can’t seem to find the cause. Any advise would be greatly appreciated. Thanks in advance



OK two questions

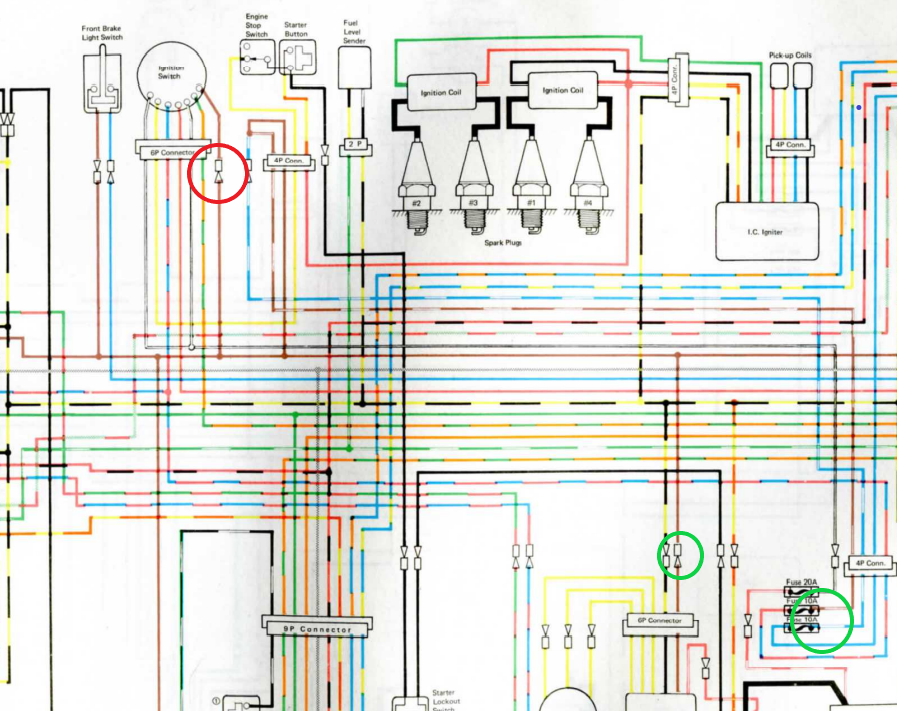

  • Do you have ignition voltage at the two 10amp fuses (green circle) if yes what is the voltage ?
  • Do you have ignition voltage at the Brown wire going into the regulator/rectifier (other green circle) if yes what is the voltage ?
If the answer to both the above questions is no check the connector on the standalone brown wire at the ign switch (red circle)

Attachments:
The following user(s) said Thank You: JR

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 10:43 #870557

  • JR
  • JR's Avatar
  • Offline
  • Sustaining Member
  • Posts: 2910
  • Thank you received: 429
You will find the bullet connector Wookie58 circled in the headlight bucket. Your bike wiring very similar to mine.


1980 kz750E1, Delkevic exhaust
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

Last edit: by JR.

83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 15:27 #870574

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Premium Member
  • Never change a running system
  • Posts: 3921
  • Thank you received: 1892

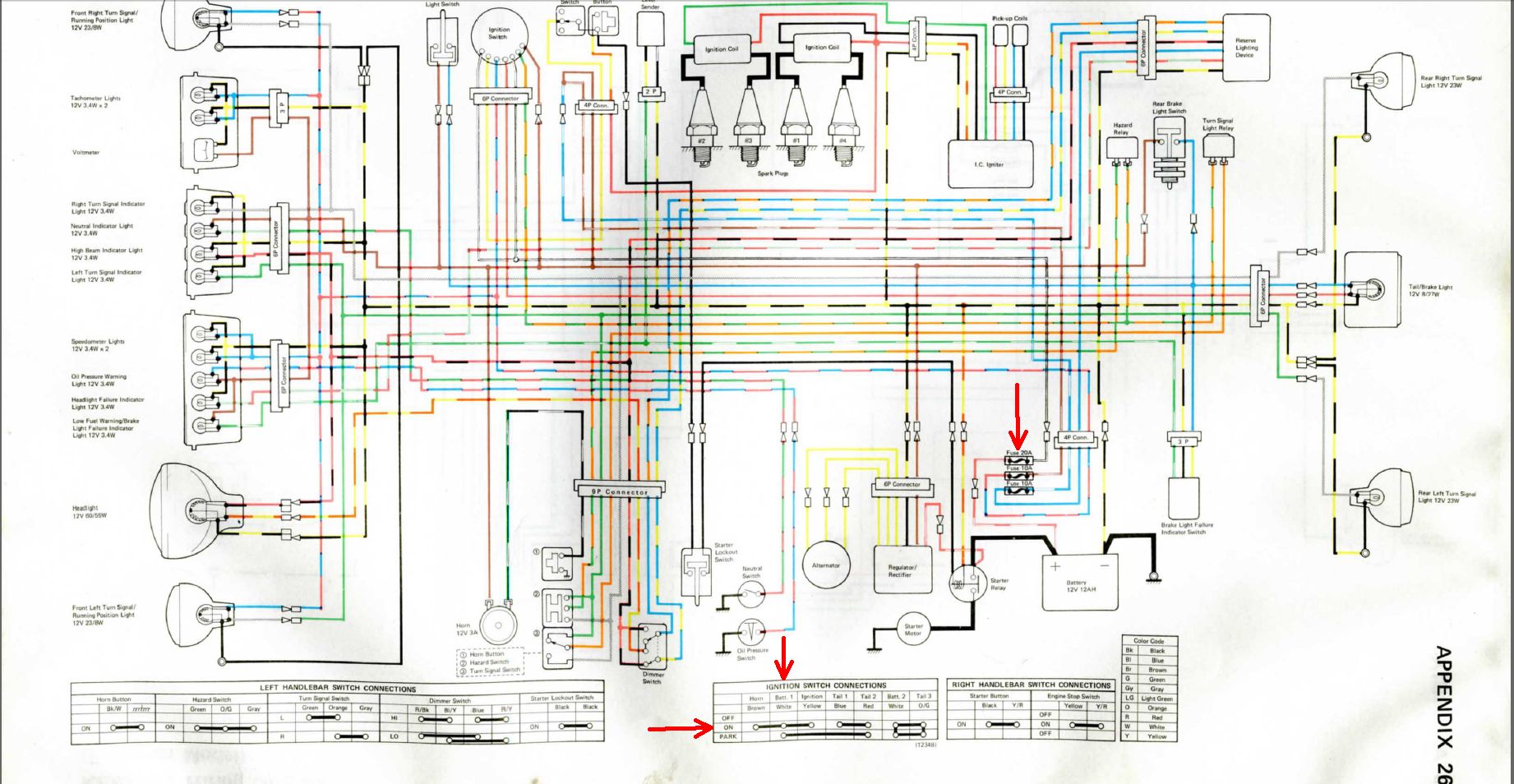

If you look closer into the wiring diagram, you will see that the white wire (20 Amp fuse) will power the brown and yellow wire in the ignition "ON" position.


Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

83 KZ 750 LTD neutral light brake light and horn 18 Jul 2022 15:43 #870575

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
That is correct but in that case there would be no ignition circuit which isn't the fault that has been raised, this is also why I asked him to confirm no power at the RR and the 10amp fuses
The area I have highlighted would only show an obvious effect on the faults described (although it wouldn't charge the battery and some other lighting wouldn't work)

Please Log in or Create an account to join the conversation.

Last edit: by Wookie58.

83 KZ 750 LTD neutral light brake light and horn 21 Jul 2022 18:48 #870817

  • Keith23
  • Keith23's Avatar Topic Author
  • Offline
  • User
  • Posts: 10
  • Thank you received: 1
Got the horn and brake light going but don’t get any fire to the spark plugs?confused.

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 22 Jul 2022 00:13 #870827

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
When you first posted about the neutral light etc was it starting ok, what did you find for the horn and brake light ?
The following user(s) said Thank You: Keith23

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 22 Jul 2022 00:30 #870829

  • Keith23
  • Keith23's Avatar Topic Author
  • Offline
  • User
  • Posts: 10
  • Thank you received: 1
Thanks Wookie for your assistance. I had a blown fuse for the horn//ignition. Bad connection for neutral light. Now I’m not getting any spark to the plugs. Starter is turning but won’t crank. I have to check the coils I guess. Is there a chance that the points are causing it not not get fire? I’m at a loss. Any ideas?
thanks in advance

Please Log in or Create an account to join the conversation.

83 KZ 750 LTD neutral light brake light and horn 22 Jul 2022 00:44 #870831

  • Wookie58
  • Wookie58's Avatar
  • Offline
  • Moderator
  • Posts: 3093
  • Thank you received: 1720
A couple of questions
Was it starting when you first posted your problem ?
Which fuse was blown ?
Where was the connection problem for the neutral light ?
Have you checked that you haven't disturbed something doing the work you have done ?

Please Log in or Create an account to join the conversation.
