1980 Z1R Low beam, high beam indicator, head lamp warning, hazard issues

More
13 Mar 2022 12:30 #863731 by Mikaw

I just scanned the FSM wiring diagram.  I should show up as an attachment to this post.
I saved it as a PDF so that this site would not reduce the image size (as it does with JPG files).  It was scanned at 600 dpi so all the detail should be there.
Thank you, now I know why photos I post are sharp in my tablet but fuzzy when posted…

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

  • DOHC
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
More
13 Mar 2022 12:47 #863736 by DOHC
For the hazard, it doesn't look like the hazard system and the headlight system have any link between them.  Other than both have signals that go through the left handlebar switch.
I would check to hazard flasher again.  If you disconnect the hazard flasher, you should see 12V (measuring wire to ground) on one of the two wires when the ignition is on.  If you short across the hazard flasher, that is directly connect the two wires for the flasher together, all four turn signal lights should come on when you activate the hazard switch on the left control block.

For the headlight, you mention that the headlight failure light is on, but the headlight is not on?  If the switch is in the low beam position and the headlight failure light is on, you should see the high beam filament on instead.
The intent is that if the low beam filament fails (open circuit), the Reserve Lighting Device is supposed to detect the fault and switch on the high beam filament instead, but dimmed somewhat by passing it through the resistor block under the tank.
The same thing happens for the tail light.  If the rear running light filament fails, the Reserve Lighting Device switches over to the brake light filament.  But the brake filament is dimmed by the other resistor in the resistor block, so when you actually engage the brakes the light still gets brighter like it's supposed to.

I would start by checking the connections and cleaning the contacts for the Reserve Lighting Device and the resistor block.  I had to zip tie the connectors together for the Reserve Lighting Device on my bike as they wanted to slide undone very easily.

You could also look at the contacts for the left hand switch block.  These are on the left side of the frame under the tank.



'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
The following user(s) said Thank You: 1980 Z1R D3, Wookie58

Please Log in or Create an account to join the conversation.

More
13 Mar 2022 12:54 #863737 by Wookie58
Am I right in thinking the turn signal control unit operates the front turn signals as “marker lights” I noticed there are three wires on the front turn signals ?

Please Log in or Create an account to join the conversation.

  • DOHC
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
More
13 Mar 2022 12:57 #863738 by DOHC

Mikaw post=863731
Thank you, now I know why photos I post are sharp in my tablet but fuzzy when posted…


I think I learned about this when trying to post a wiring diagram in the past.  All of the image files uploaded to KZRider as attachments are automatically downsized.  Looking back through my posts, it seems the magic number is a maximum of 1200 pixels for vertical resolution.

Most of the time you don't notice, but things like wiring diagrams really need to be hi-res.



'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
The following user(s) said Thank You: Mikaw

Please Log in or Create an account to join the conversation.

  • DOHC
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
More
13 Mar 2022 13:18 - 13 Mar 2022 13:22 #863745 by DOHC

Am I right in thinking the turn signal control unit operates the front turn signals as “marker lights” I noticed there are three wires on the front turn signals ?
I see what you're looking at....  The front turn signals have three wires, and use a 2-filament bulb.  The "marker light" wire is the blue wire, and these may be powered directly from the ignition switch, along with the gauge illumination.

I think it goes like this.  Battery to 20A fuse to white wire to ignition switch.  Ignition switch white wire to brown wire in "on" position.  Brown wire to 10A fuse to blue/red wire.  Blue/red wire to gauge illumination and front marker lights, and also blue/red wire to ignition switch.  Ignition switch blue/red to red that feeds into Reserve Lighting Device.

If that's right, the marker lights are powered directly from the ignition switch, but maybe the Reserve Lighting Device is powered from this same 10A fuse?

'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Last edit: 13 Mar 2022 13:22 by DOHC.
The following user(s) said Thank You: 1980 Z1R D3, Wookie58

Please Log in or Create an account to join the conversation.

  • DOHC
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
More

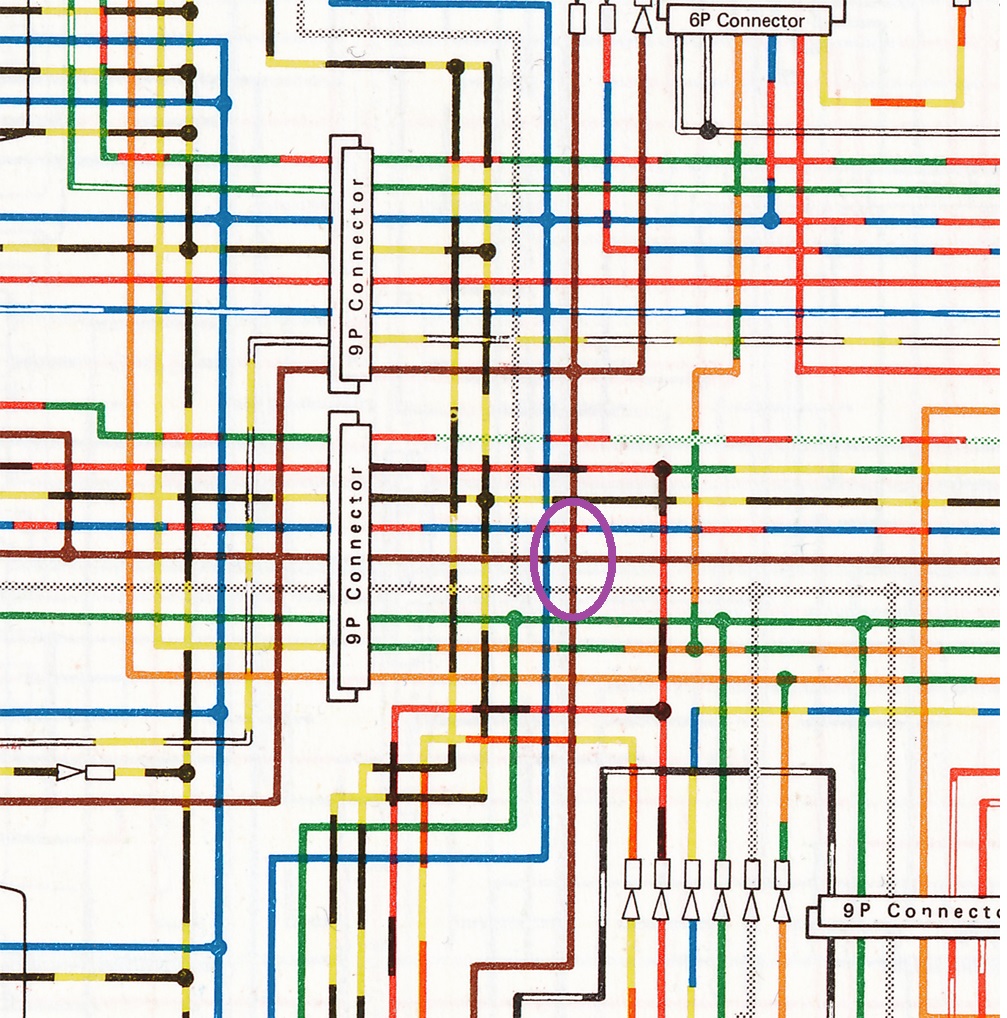

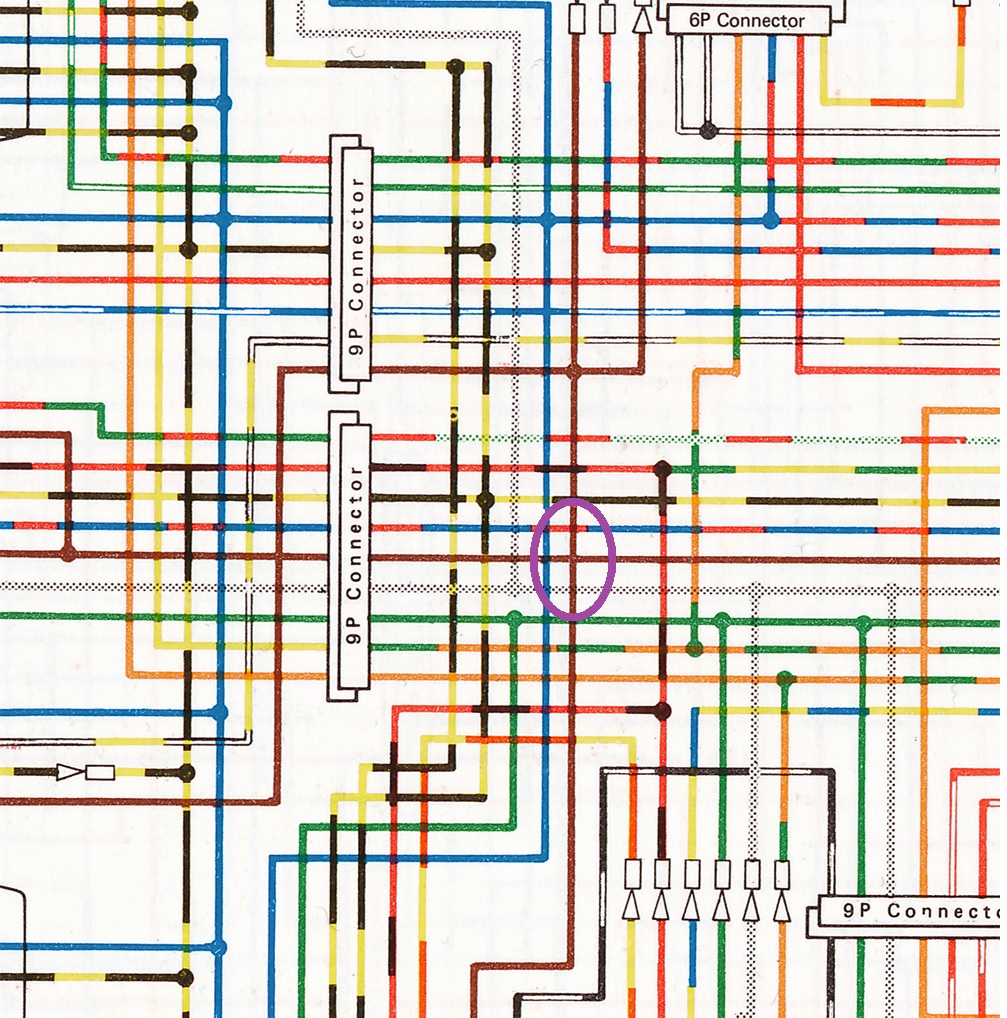

13 Mar 2022 13:23 - 13 Mar 2022 13:24 #863746 by DOHC
I think there is a missing junction dot on the brown wire that comes out of the ignition switch.  Maybe it's supposed to be here?



'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Last edit: 13 Mar 2022 13:24 by DOHC.
The following user(s) said Thank You: Wookie58

Please Log in or Create an account to join the conversation.

  • 1980 Z1R D3
  • Topic Author
  • Offline
  • User
  • A young gun with a taste for two-wheeled fun!
More
13 Mar 2022 16:11 #863760 by 1980 Z1R D3

For the hazard, it doesn't look like the hazard system and the headlight system have any link between them.  Other than both have signals that go through the left handlebar switch.
I would check to hazard flasher again.  If you disconnect the hazard flasher, you should see 12V (measuring wire to ground) on one of the two wires when the ignition is on.  If you short across the hazard flasher, that is directly connect the two wires for the flasher together, all four turn signal lights should come on when you activate the hazard switch on the left control block.

For the headlight, you mention that the headlight failure light is on, but the headlight is not on?  If the switch is in the low beam position and the headlight failure light is on, you should see the high beam filament on instead.
The intent is that if the low beam filament fails (open circuit), the Reserve Lighting Device is supposed to detect the fault and switch on the high beam filament instead, but dimmed somewhat by passing it through the resistor block under the tank.
The same thing happens for the tail light.  If the rear running light filament fails, the Reserve Lighting Device switches over to the brake light filament.  But the brake filament is dimmed by the other resistor in the resistor block, so when you actually engage the brakes the light still gets brighter like it's supposed to.

I would start by checking the connections and cleaning the contacts for the Reserve Lighting Device and the resistor block.  I had to zip tie the connectors together for the Reserve Lighting Device on my bike as they wanted to slide undone very easily.

You could also look at the contacts for the left hand switch block.  These are on the left side of the frame under the tank.


DOHC,
I will measure the voltage at the flasher to see if thats what has failed. In regards to the headlight, the headlight out light is on, and the low beam is not, but you have to flip the switch to high beam to get it to come on. The high beam is not coming on automatically. That makes me think there's an issue with the RLD. Where is that located on the bike? I've never seen it before. I will check all the connections for the Resistor and the RLD and go from there. Thank you for the very insightful post.






1980 Z1R D3

Please Log in or Create an account to join the conversation.

  • DOHC
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
More
13 Mar 2022 16:23 - 13 Mar 2022 16:23 #863761 by DOHC

Where is that located on the bike? I've never seen it before.


Here is an example of what it looks like:

ebay.com/itm/294805722951

I don't know where it is on the '80 Z1R.  On the '78 Z1R it's behind the right side cover, but there is a photo of this area for the '80 model in the manual and it's not there.  Maybe it's under the left side cover?  I know the harnesses are very different between the '78 and '80, and they removed a connector block under the left side cover for the '80.  Maybe they put the RLD where that was?  I can't find a picture in the manual.



'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Last edit: 13 Mar 2022 16:23 by DOHC.

Please Log in or Create an account to join the conversation.

More
13 Mar 2022 16:48 #863763 by Wookie58
That looks like a very reasonable price for such a rare part, I’d be inclined to buy it regardless as a spare (I would think you could always sell it on)

Please Log in or Create an account to join the conversation.

  • 1980 Z1R D3
  • Topic Author
  • Offline
  • User
  • A young gun with a taste for two-wheeled fun!
More
13 Mar 2022 16:53 - 13 Mar 2022 16:54 #863765 by 1980 Z1R D3

Where is that located on the bike? I've never seen it before.




Here is an example of what it looks like:

ebay.com/itm/294805722951

I don't know where it is on the '80 Z1R.  On the '78 Z1R it's behind the right side cover, but there is a photo of this area for the '80 model in the manual and it's not there.  Maybe it's under the left side cover?  I know the harnesses are very different between the '78 and '80, and they removed a connector block under the left side cover for the '80.  Maybe they put the RLD where that was?  I can't find a picture in the manual.

It is behind the right side cover. I cleaned the connections to the RLD and no change. I tested the connections for the hazard flasher, no power with ignition and hazard switch on. I’m going to inspect the switch connector next. Where is that resistor block located?







1980 Z1R D3
Last edit: 13 Mar 2022 16:54 by 1980 Z1R D3.

Please Log in or Create an account to join the conversation.

  • DOHC
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
More
13 Mar 2022 17:00 - 13 Mar 2022 17:03 #863766 by DOHC

Where is that resistor block located?
On the '78 the resistor block is mounted below the ignition coils, hanging down above the valve cover.

Edit: Another eBay link for pictures:
ebay.com/itm/353894409134

'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100
Last edit: 13 Mar 2022 17:03 by DOHC.

Please Log in or Create an account to join the conversation.

  • 1980 Z1R D3
  • Topic Author
  • Offline
  • User
  • A young gun with a taste for two-wheeled fun!
More
13 Mar 2022 17:03 #863767 by 1980 Z1R D3
Fixed the hazard problem by cleaning some connections from the handle switch to the main harness. Still dealing with the low beam issues, looking for that resistor now.



1980 Z1R D3

Please Log in or Create an account to join the conversation.
