TOPIC:

Lol, kz650 chopper wiring harness 1978 27 Dec 2021 09:55 #859661

  • Bobdudeman
  • Bobdudeman's Avatar Topic Author
  • Offline
  • User
  • Posts: 18
  • Thank you received: 0
Hi all, I know this is a topic much posted but I am looking for a basic wiring harness diagram for my 1978 kz650.  Going bare bones.  Headlight, taillight, no battery.  Very minimal.  Electric start doesn't work anyway.  I just kick and go but am going to transform this beauty a bit.   Iv done them in the past on other bikes but the diagrams seem east to find.  I'm having trouble with the kz 650.  Thanks again everyone!

Please Log in or Create an account to join the conversation.

Lol, kz650 chopper wiring harness 1978 27 Dec 2021 09:56 #859662

  • Bobdudeman
  • Bobdudeman's Avatar Topic Author
  • Offline
  • User
  • Posts: 18
  • Thank you received: 0
Attachments for reference
Attachments:

Please Log in or Create an account to join the conversation.

Lol, kz650 chopper wiring harness 1978 27 Dec 2021 10:15 #859665

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Posts: 7257
  • Thank you received: 2659
The search function is your friend.  This same topic has been posted dozens of times previously.

Please Log in or Create an account to join the conversation.

Lol, kz650 chopper wiring harness 1978 27 Dec 2021 11:06 #859667

  • Bobdudeman
  • Bobdudeman's Avatar Topic Author
  • Offline
  • User
  • Posts: 18
  • Thank you received: 0
True, I did some searching but only found other models, not a diagram for the kz650.  Especially the 1978.

Please Log in or Create an account to join the conversation.

Lol, kz650 chopper wiring harness 1978 27 Dec 2021 11:26 #859669

  • calum
  • calum's Avatar
  • Offline
  • User
  • Posts: 1101
  • Thank you received: 369
Google: "kz650 bare bones site:kzrider.com"
First page: kzrider.com/forum/4-electrical/172746-19...ght?start=420#783836

The site search can be tricky - google is usually better.

Please Log in or Create an account to join the conversation.

Last edit: by calum.

Lol, kz650 chopper wiring harness 1978 27 Dec 2021 11:43 #859670

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • Posts: 7976
  • Thank you received: 1620
What KZ650 is it?
Simplified wiring diagrams by loudhvx. KZR topic >> bare bones for mattylight >> Pg 1
a few of the diagrams may be missing. pages 11-on seem to have the most diagrams.
Pg 35 has diagrams for the 650-D1 SR w 3-phase charging system which might not be stock.

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

Lol, kz650 chopper wiring harness 1978 27 Dec 2021 20:40 #859700

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • Posts: 15344
  • Thank you received: 2828

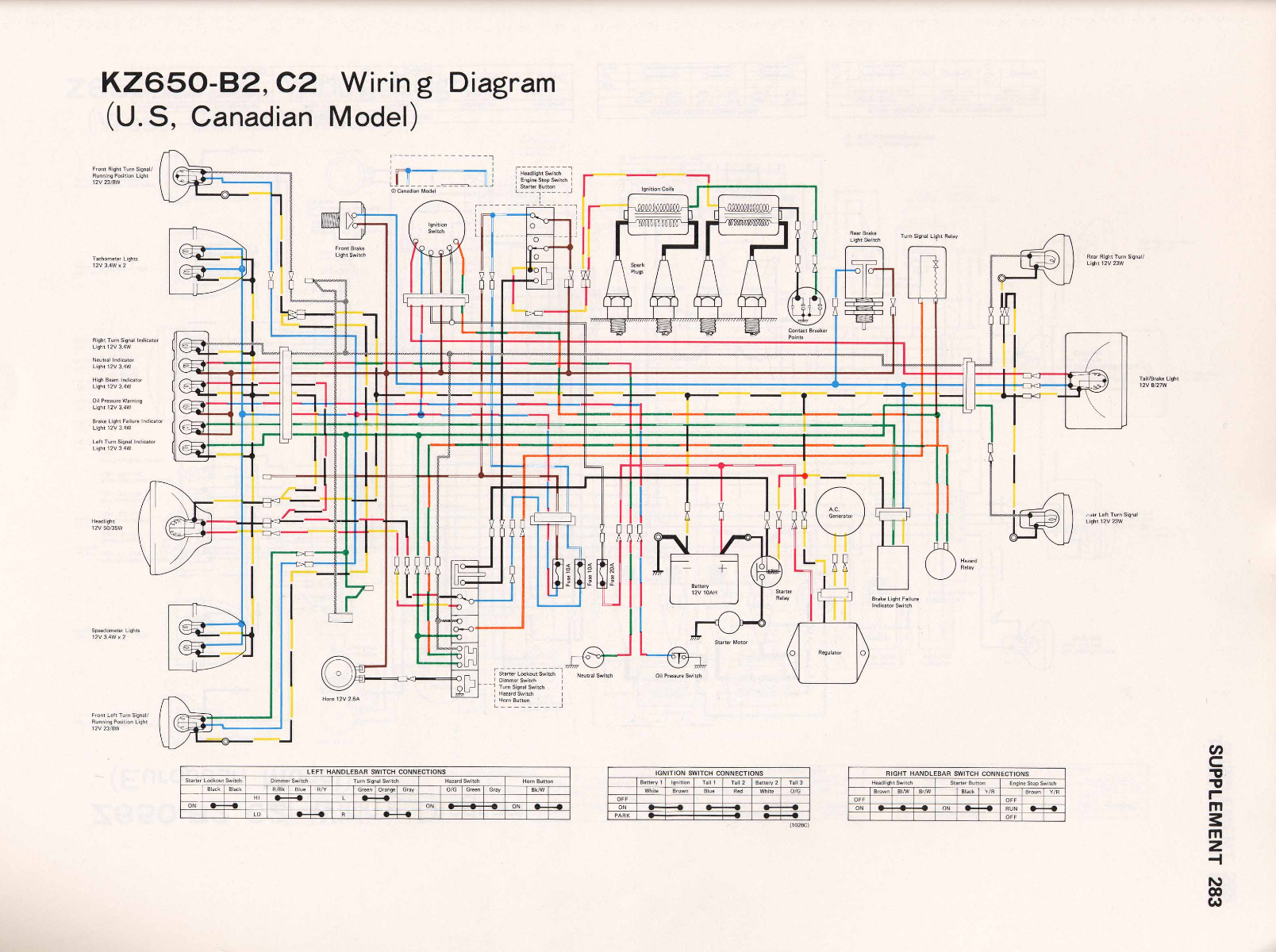

Here's the stock wiring diagram for the 1978 KZ650-B2.  Ed


1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Attachments:

Please Log in or Create an account to join the conversation.

Lol, kz650 chopper wiring harness 1978 28 Dec 2021 15:07 #859738

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • Denco where did you go?
  • Posts: 1245
  • Thank you received: 361

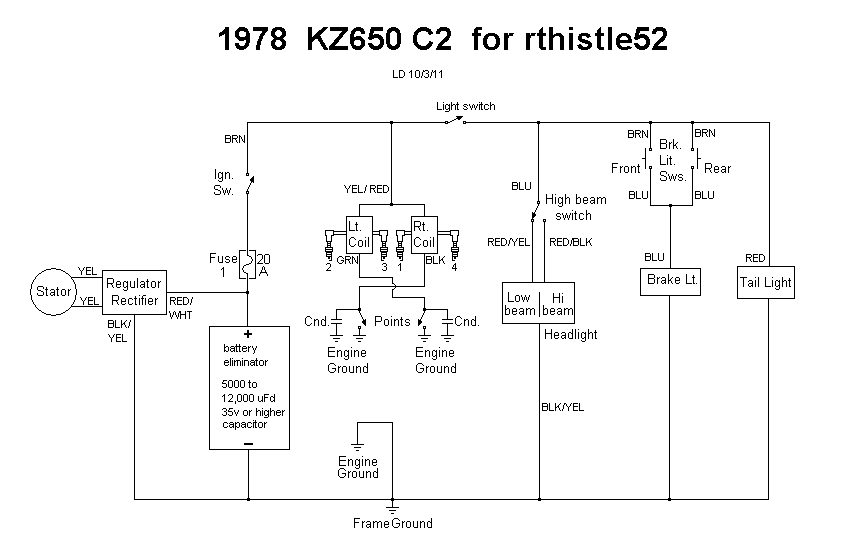

Here is one created by loudhvx for a 78 C2 that does replace the battery with a capacitor - not sure if it will help you or not.
1977 KZ650 B1
Pods and Denco header


This is my Z

OLD KAW OWNERS SMILE ALOT
Attachments:

Please Log in or Create an account to join the conversation.
