Trike Light Question 23 Nov 2021 10:48 #858246

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4545
  • Thank you received: 991
Hi Folks,
I'm getting back to finishing my trike project. You can see something about it here:

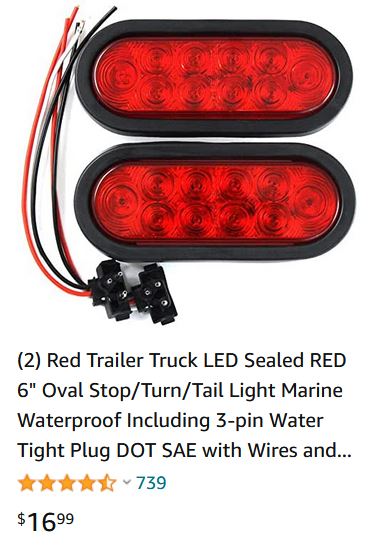

My problem is how do you wire a three wire tail/stop/turn light to do all three with only two filaments

I'm afraid I'll need two separate/additional lights for either my brake or my turn lights.
Am I missing something? How come I don't find four wire, three filament fixtures available?
Thanks
Bill
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 1987 Yamaha Trailway, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1947 Indian Chief, 1985 ZN1300
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Trike Light Question 23 Nov 2021 11:01 #858248

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Posts: 20496
  • Thank you received: 2103
It looks like the one pin is ground and the other two are for high/low.  No instructions?
LED?
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Trike Light Question 23 Nov 2021 11:11 #858249

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4545
  • Thank you received: 991
That's right Steve but: How do you manage to shut off the brake light to allow the turn signal to display? Or don't you really need a separate light to function as a turn signal? I'm doing this on a KZ 750 Twin that had separate turn signals.

It seems to me that either:
1) There is a way to wire a two filament light to do all three functions, OR
2) There would be three filament fixtures readily available.
Bill
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 1987 Yamaha Trailway, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1947 Indian Chief, 1985 ZN1300

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Trike Light Question 23 Nov 2021 11:22 #858250

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Posts: 20496
  • Thank you received: 2103
I would see if the intermittent pulses would override the the steady on function. I've seen them this way. If not you'll need two more.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Last edit: by SWest. Reason: sp

Trike Light Question 23 Nov 2021 11:29 #858251

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Posts: 20496
  • Thank you received: 2103
After thinking about it a pair of relays one on each might be your answer.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Trike Light Question 23 Nov 2021 11:35 #858252

  • slayer61
  • slayer61's Avatar
  • Offline
  • User
  • KZR FLAG RELAY CARRIER #62
  • Posts: 660
  • Thank you received: 120

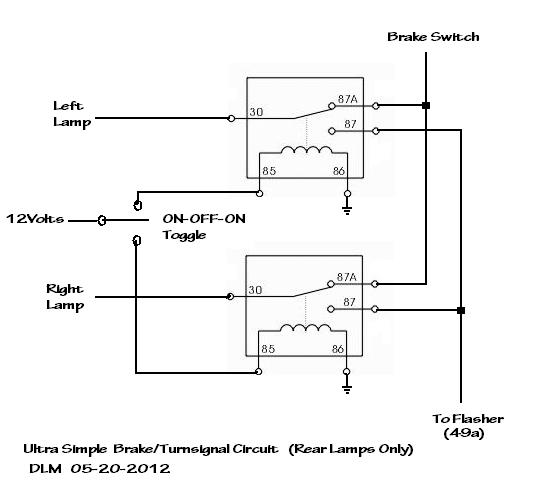

Easy peasey! The lights are connected to the "common of the relay, the brake switch connected to the NC and the signals connected to the NO

Don't be ridiculous! It's only a flesh wound!

Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit
Wife's BIG bike...... 1981 GPZ 1100 Kerker and factory FI Mikuni RS34s W/ K&N pods
Attachments:
The following user(s) said Thank You: SWest

Please Log in or Create an account to join the conversation.

Last edit: by slayer61.

Trike Light Question 23 Nov 2021 12:11 #858253

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4545
  • Thank you received: 991

Easy peasey! The lights are connected to the "common of the relay, the brake switch connected to the NC and the signals connected to the NO





OK ! I get it, I think! The 12 Volt source is the blue or the brown wires that previously connected to the turn signals. All I need to find is the intermittent signal from the flasher and connect it.
Do you know the part number for the relays?
Bill
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 1987 Yamaha Trailway, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1947 Indian Chief, 1985 ZN1300

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Trike Light Question 23 Nov 2021 14:21 #858261

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Posts: 20496
  • Thank you received: 2103
They're the common ones found at auto parts stores.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Trike Light Question 23 Nov 2021 15:23 #858264

  • slayer61
  • slayer61's Avatar
  • Offline
  • User
  • KZR FLAG RELAY CARRIER #62
  • Posts: 660
  • Thank you received: 120

Easy peasey! The lights are connected to the "common of the relay, the brake switch connected to the NC and the signals connected to the NO






OK ! I get it, I think! The 12 Volt source is the blue or the brown wires that previously connected to the turn signals. All I need to find is the intermittent signal from the flasher and connect it.
Do you know the part number for the relays?
Bill

Sorry I never paid any attention to the color of the wire     As an apprentice electrician, my journeyman reminded me that electricity doesn't care what color the insulation is!

And the relays are all the same. You can un plug a Bosch & plug in a Delco and it still works the same.


Don't be ridiculous! It's only a flesh wound!

Wife's little bike... 1984 GPZ 550 Kerker and DynaJet stage I kit
Wife's BIG bike...... 1981 GPZ 1100 Kerker and factory FI Mikuni RS34s W/ K&N pods
The following user(s) said Thank You: KZQ

Please Log in or Create an account to join the conversation.

Trike Light Question 23 Nov 2021 19:41 #858271

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Posts: 20496
  • Thank you received: 2103
My Chinese top box had a circuit board that switched the spoiler lights to brake, left/right turn and split but it didn't last very long.
Steve


File Attachment:

File Name: box2 004.MOV
File Size:5,011 KB
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:

Please Log in or Create an account to join the conversation.

Trike Light Question 23 Nov 2021 19:55 #858272

  • KZQ
  • KZQ's Avatar Topic Author
  • Offline
  • Administrator
  • Walking Behind the Corn May Not Be All That!
  • Posts: 4545
  • Thank you received: 991
Ok I see it, mostly, except for the part that says "To Flasher".
Seems to me that that wire must be continuously 12 V positive until a load is applied whereupon it remains 12 V positive but becomes intermittent.
I'm planning to understand all this just before my relays arrive next week.
Thanks for your help.
Bill
www.KZ1300.com
Riders:
1968 BSA 441 Shooting Star, 1970 BSA 650 Lightning, 1974 W3, 1976 KZ900, 1979 KZ750 Twin, 1979 KZ750 Twin Trike, 1981 KZ1300, 1982 KZ1100 Spectre, 1987 Yamaha Trailway, 2000 Valkyrie, 2009 Yamaha Roadliner S. 1983 GL 1100
Projects:
1947 Indian Chief, 1985 ZN1300

Please Log in or Create an account to join the conversation.

Last edit: by KZQ.

Trike Light Question 23 Nov 2021 21:01 #858274

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 3411
  • Thank you received: 878
Try the word “from” flasher, and “from” brake switch, makes more sense.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: KZQ

Please Log in or Create an account to join the conversation.
