Brake lights 07 Aug 2021 12:12 #853360

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4897
  • Thank you received: 1856
You mentioned you replace the bulbs. Did you get the correct bulb? It should be a dual element bulb similar to an 1157. Try removing one bulb at a time to see what the other does. Somehow you are getting power to the blue wire. Either through one of the brake light switches from the brown on that switch, Which is 12 V power or you are getting power from the red which is the tail/running light circuit. The red is energized through the ignition switch.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Brake lights 07 Aug 2021 12:19 #853361

  • Dareniles
  • Dareniles's Avatar Topic Author
  • Offline
  • User
  • Posts: 47
  • Thank you received: 2
Will get back to you on that .

Please Log in or Create an account to join the conversation.

Brake lights 07 Aug 2021 12:45 #853362

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4897
  • Thank you received: 1856
I missed your post that yes the brake light comes on with turning the ignition on. That means you running/tail light circuit (Red wire) is powering the brake light circuit (blue) wire. Check where the wire pass thru the tail light bracket.

1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Brake lights 07 Aug 2021 13:01 #853364

  • hugo
  • hugo's Avatar
  • Offline
  • Sustaining Member
  • '92 Zephyr 750
  • Posts: 276
  • Thank you received: 65
.....am still betting on the rear brake switch.......

Please Log in or Create an account to join the conversation.

Brake lights 08 Aug 2021 04:33 #853397

  • Dareniles
  • Dareniles's Avatar Topic Author
  • Offline
  • User
  • Posts: 47
  • Thank you received: 2
Hi, the brake light goes out when the rear switch is disconnected but it stays on when the front switch is disconnected.

Please Log in or Create an account to join the conversation.

Brake lights 08 Aug 2021 07:26 #853399

  • F64
  • F64's Avatar
  • Offline
  • User
  • 81-KZ440D2
  • Posts: 1029
  • Thank you received: 351
Yeah, you need to adjust the rear brake light switch.
81-KZ440-D2.
Louis Dudzik's GM HEI ignitor conversion installed 2015 s3.amazonaws.com/gpzweb/Ignition/GPZgmHEImod.html
Motogadget m-unit blue installed 2017.
LIC, NY

Please Log in or Create an account to join the conversation.

Brake lights 08 Aug 2021 08:08 #853400

  • Dareniles
  • Dareniles's Avatar Topic Author
  • Offline
  • User
  • Posts: 47
  • Thank you received: 2
Hi, there isn’t anywhere to adjust, it push  fits into a housing at the bottom and into a wiring terminal at the top, there isn’t an adjustment screw on the switch.

Please Log in or Create an account to join the conversation.

Brake lights 08 Aug 2021 08:58 #853403

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4897
  • Thank you received: 1856

Hi, there isn’t anywhere to adjust, it push  fits into a housing at the bottom and into a wiring terminal at the top, there isn’t an adjustment screw on the switch.
correct, so then there must be an adjustment in the rod connecting the pedal to the master cylinder or a stop bolt on the frame that adjusts the pedal


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

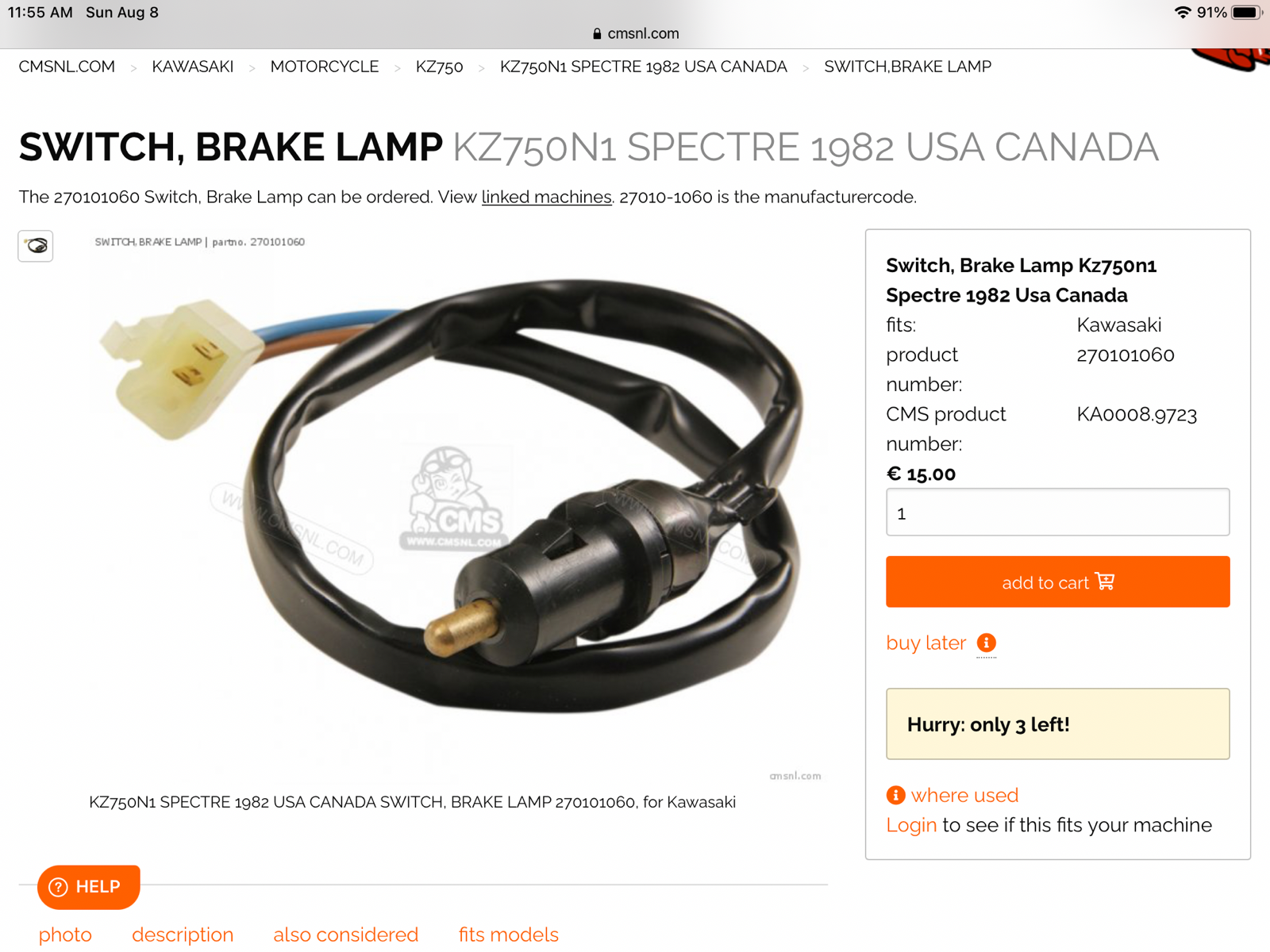

Attachments:

Please Log in or Create an account to join the conversation.

Brake lights 08 Aug 2021 09:02 #853404

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Posts: 4897
  • Thank you received: 1856

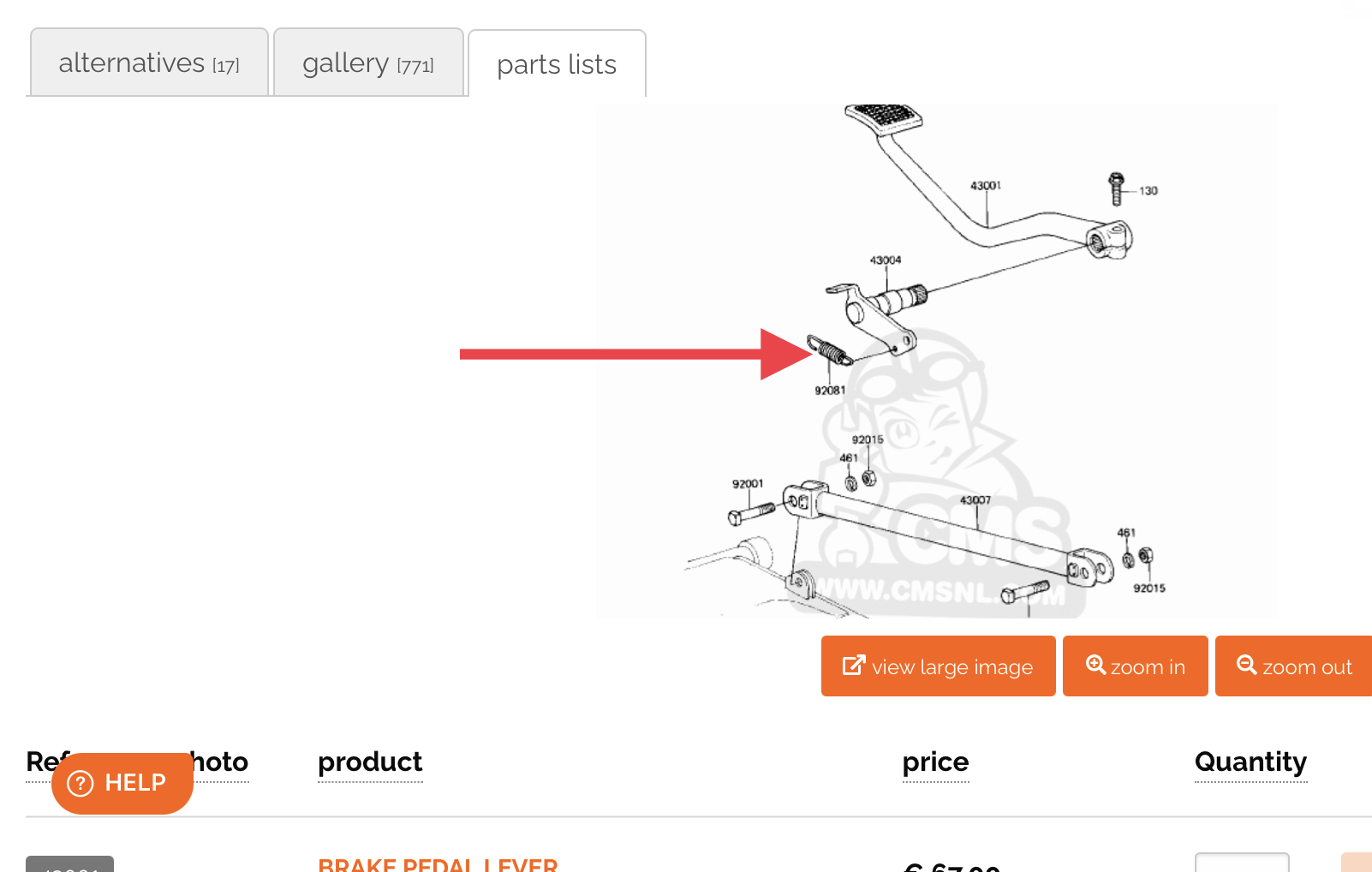

Is this spring in place. Looks like it returns the pedal to the up position. Maybe it broke and that’s what started your issue


1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Brake lights 08 Aug 2021 10:47 #853405

  • hugo
  • hugo's Avatar
  • Offline
  • Sustaining Member
  • '92 Zephyr 750
  • Posts: 276
  • Thank you received: 65
Doesn't the switch body screw/unscrew in the middle to change length???       Or could the mounting be displaced?



Please Log in or Create an account to join the conversation.

Last edit: by hugo.

Brake lights 08 Aug 2021 11:37 #853406

  • Dareniles
  • Dareniles's Avatar Topic Author
  • Offline
  • User
  • Posts: 47
  • Thank you received: 2
Thanks, there is definitely a locking nut under the rear brake cylinder but I was wary of undoing in case brake fluid escaped, I will also check the spring.

Please Log in or Create an account to join the conversation.

Brake lights 08 Aug 2021 11:38 #853407

  • Dareniles
  • Dareniles's Avatar Topic Author
  • Offline
  • User
  • Posts: 47
  • Thank you received: 2
Hi, no the switch is solid as is the metal housing it clips into.


Please Log in or Create an account to join the conversation.
