Kill Switch issue (76 kz400) 17 Oct 2020 17:27 #837100

  • F64
  • F64's Avatar
  • Offline
  • Member
  • Member
  • 81-KZ440D2
  • Posts: 348
  • Thank you received: 58
Do you have a volt meter?
81-KZ440-D2. Louis Dudzik's GM HEI ignition module converted 2015--no issues, Motogadget m-unit blue.

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 18 Oct 2020 07:03 #837130

  • shroomcore
  • shroomcore's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 17
  • Thank you received: 0

F64 wrote: Do you have a volt meter?


I don’t but I’m guna try to grab one today. I have no experience using one, so any tips on where/what I should be checking would be greatly appreciated!

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 18 Oct 2020 07:04 #837131

  • shroomcore
  • shroomcore's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 17
  • Thank you received: 0
Going to also pickup new fuses, which I’ve never replaced and I haven’t even located where the fuse box is yet.

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 18 Oct 2020 09:21 #837141

  • F64
  • F64's Avatar
  • Offline
  • Member
  • Member
  • 81-KZ440D2
  • Posts: 348
  • Thank you received: 58
You'll be fine. All of us had to start somewhere.
Let us know when you get the meter.
81-KZ440-D2. Louis Dudzik's GM HEI ignition module converted 2015--no issues, Motogadget m-unit blue.

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 18 Oct 2020 10:41 #837153

  • shroomcore
  • shroomcore's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 17
  • Thank you received: 0

F64 wrote: You'll be fine. All of us had to start somewhere.
Let us know when you get the meter.


The meter has been acquired...now what?
:side: :side: :side:

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 18 Oct 2020 11:20 #837161

  • F64
  • F64's Avatar
  • Offline
  • Member
  • Member
  • 81-KZ440D2
  • Posts: 348
  • Thank you received: 58
send a picture of the meter.
i have to tell you how to set it.

you need to set meter to read DC V

bike ignition on
engine off

Black probe on negative battery post(post being the metal part of battery the negative wire is attached to)
Red probe on positive battery post
note voltage

Move red probe to the brown wire you spliced to
note voltage

Turn off bike
81-KZ440-D2. Louis Dudzik's GM HEI ignition module converted 2015--no issues, Motogadget m-unit blue.

Please Log in or Create an account to join the conversation.

Last edit: by F64.

Kill Switch issue (76 kz400) 18 Oct 2020 13:09 #837174

  • shroomcore
  • shroomcore's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 17
  • Thank you received: 0

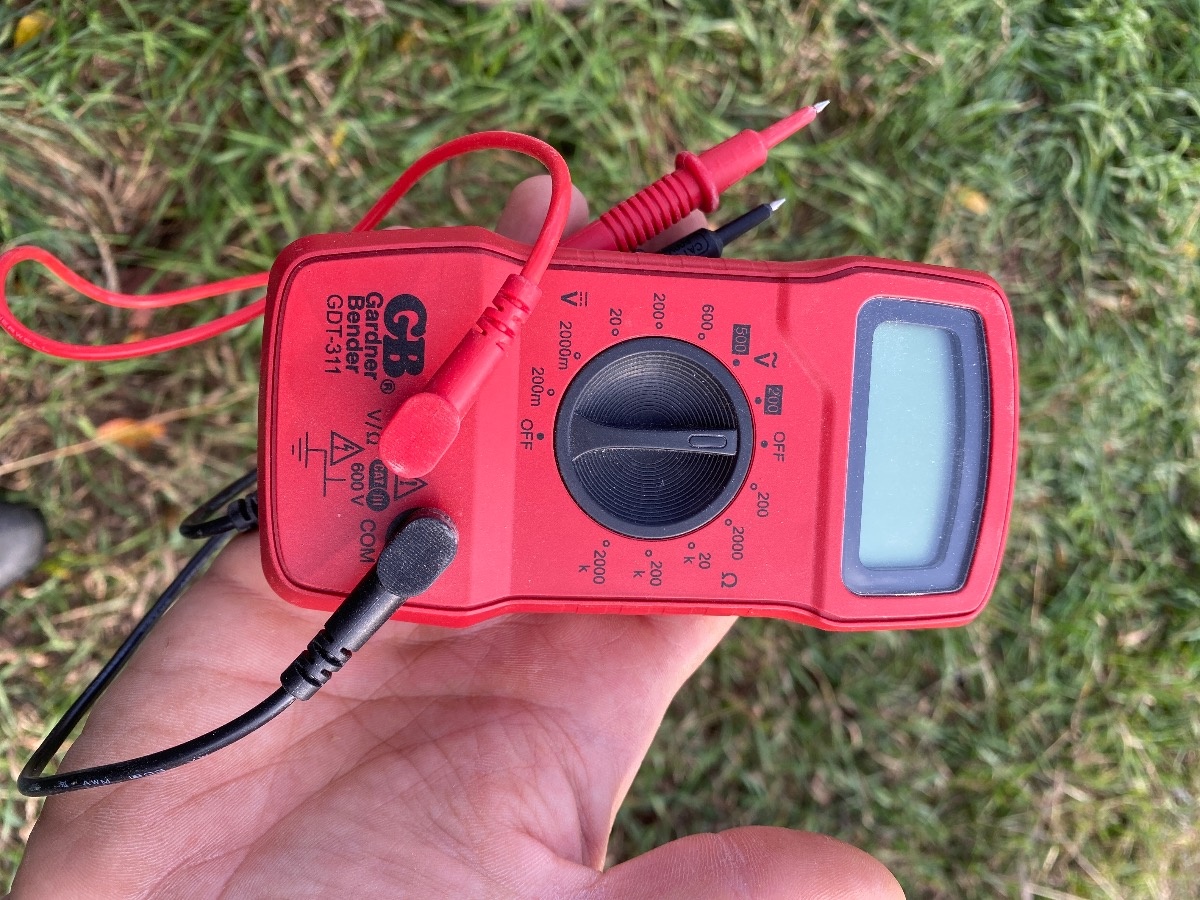

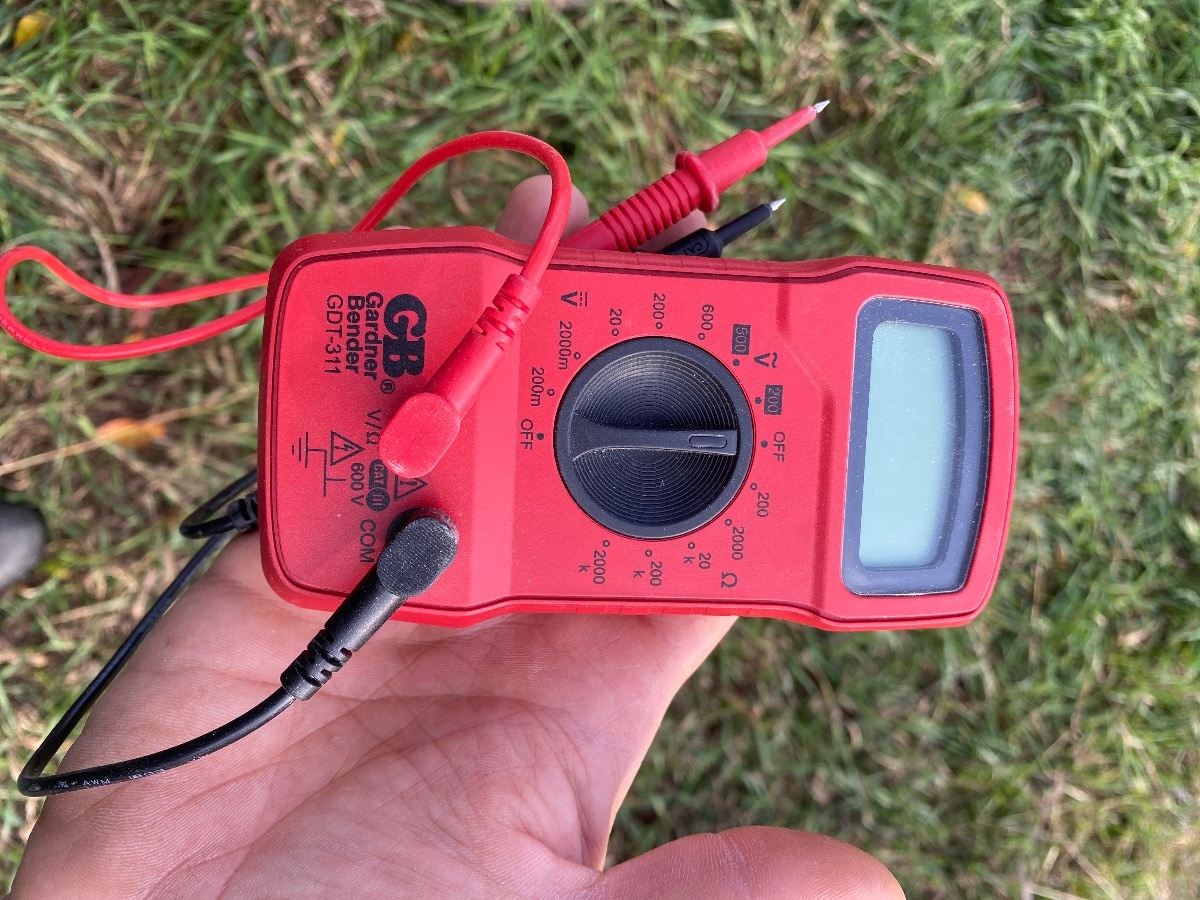

F64 wrote: send a picture of the meter.
i have to tell you how to set it.

you need to set meter to read DC V

bike ignition on
engine off

Black probe on negative battery post(post being the metal part of battery the negative wire is attached to)
Red probe on positive battery post
note voltage

Move red probe to the brown wire you spliced to
note voltage

Turn off bike


Attachments:

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 18 Oct 2020 20:01 #837210

  • F64
  • F64's Avatar
  • Offline
  • Member
  • Member
  • 81-KZ440D2
  • Posts: 348
  • Thank you received: 58

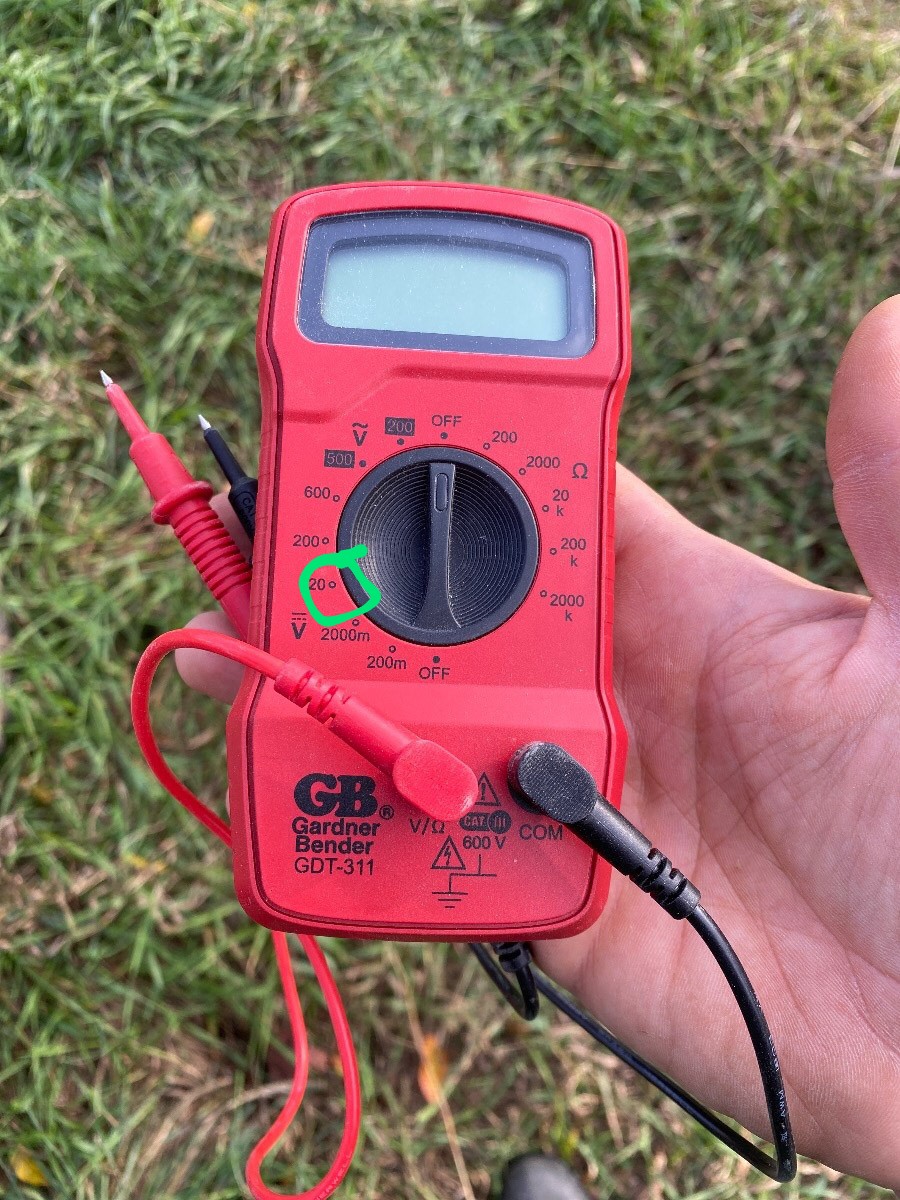

Put your meter dial on the green circle.
20v dc

81-KZ440-D2. Louis Dudzik's GM HEI ignition module converted 2015--no issues, Motogadget m-unit blue.
Attachments:

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 20 Oct 2020 15:23 #837324

  • shroomcore
  • shroomcore's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 17
  • Thank you received: 0

F64 wrote: Put your meter dial on the green circle.
20v dc


So when I put it on the battery terminals it reads 12.5 - then when I move it to the brown wire it reads 0.0

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 20 Oct 2020 15:27 #837326

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1853
  • Thank you received: 423
Brown wire i think is switched threw the ignition. Turn the ignition one position and put the run/stop switch in the stop so you don’t overheat the coils. Then you should have power to the brown wire.
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 20 Oct 2020 16:15 #837331

  • shroomcore
  • shroomcore's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 17
  • Thank you received: 0

Mikaw wrote: Brown wire i think is switched threw the ignition. Turn the ignition one position and put the run/stop switch in the stop so you don’t overheat the coils. Then you should have power to the brown wire.


My original photo didn’t post, but my run/off switch is busted and can’t be adjusted at this point. So I can’t put it in the stop position. I think it’s permanently in the stop position. By jumpering the brown wire to the yellow/red wire I thought I was bypassing the run/off switch entirely.

Please Log in or Create an account to join the conversation.

Kill Switch issue (76 kz400) 20 Oct 2020 16:50 #837334

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1853
  • Thank you received: 423
Try black from the meter on the battery negitive, and red of the meter on the brown. Make sure you are in contact with the copper wire of the brown.
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.

Please Log in or Create an account to join the conversation.
