TOPIC: Dynatek Dyna III kit issues? Upgrade or Revive???

Dynatek Dyna III kit issues? Upgrade or Revive??? 01 Aug 2020 19:10 #832058

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Those DOHCs really go!
  • Posts: 410
  • Thank you received: 126

hardrockminer wrote: But before you buy it why not try wiring your current pickup directly to the coils?


The Dyna III pickups can't be wired directly to the coils like the Dyna S. The pickup plate is just a trigger for the igniter box. It can't handle the full coil current.
'78 Z1-R in blue, '78 Z1-R in black, '78 Z1-R in pieces
'95 GPZ1100 (sold)
The following user(s) said Thank You: hardrockminer

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 02 Aug 2020 05:36 #832085

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5

hardrockminer wrote: You won't need that box with the DS2-1 pickup. But before you buy it why not try wiring your current pickup directly to the coils?


Haha funny you mention that because that’s exactly where my mind went too. I bypassed the box and followed a YouTube video on static timing to see if it would operate the same as the newer DS2-1. Seems like with this orientation (box removed) it’s sending a constant signal to the coils. The test light never turned off.
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 02 Aug 2020 15:10 #832118

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 10572
  • Thank you received: 1476
An ignition requires pickups and a "driver" for the coils. Both the III and S use Hall-effect pickups. The driver is a big transistor, usually a Darlington-pair BJT (bipolar junction transistor) or IGBT (insulated-gate bipolar junction transistor). In the Dyna III, the transistor is in the box. In a Dyna S, the transistor is on the pickup plate. So a Dyna III pickup plate, by itself cannot control the coil to make a spark (as DOHC said). The Dyna S pickup plate can.
The following user(s) said Thank You: DOHC, hardrockminer

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Dynatek Dyna III kit issues? Upgrade or Revive??? 08 Aug 2020 18:23 #832448

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5

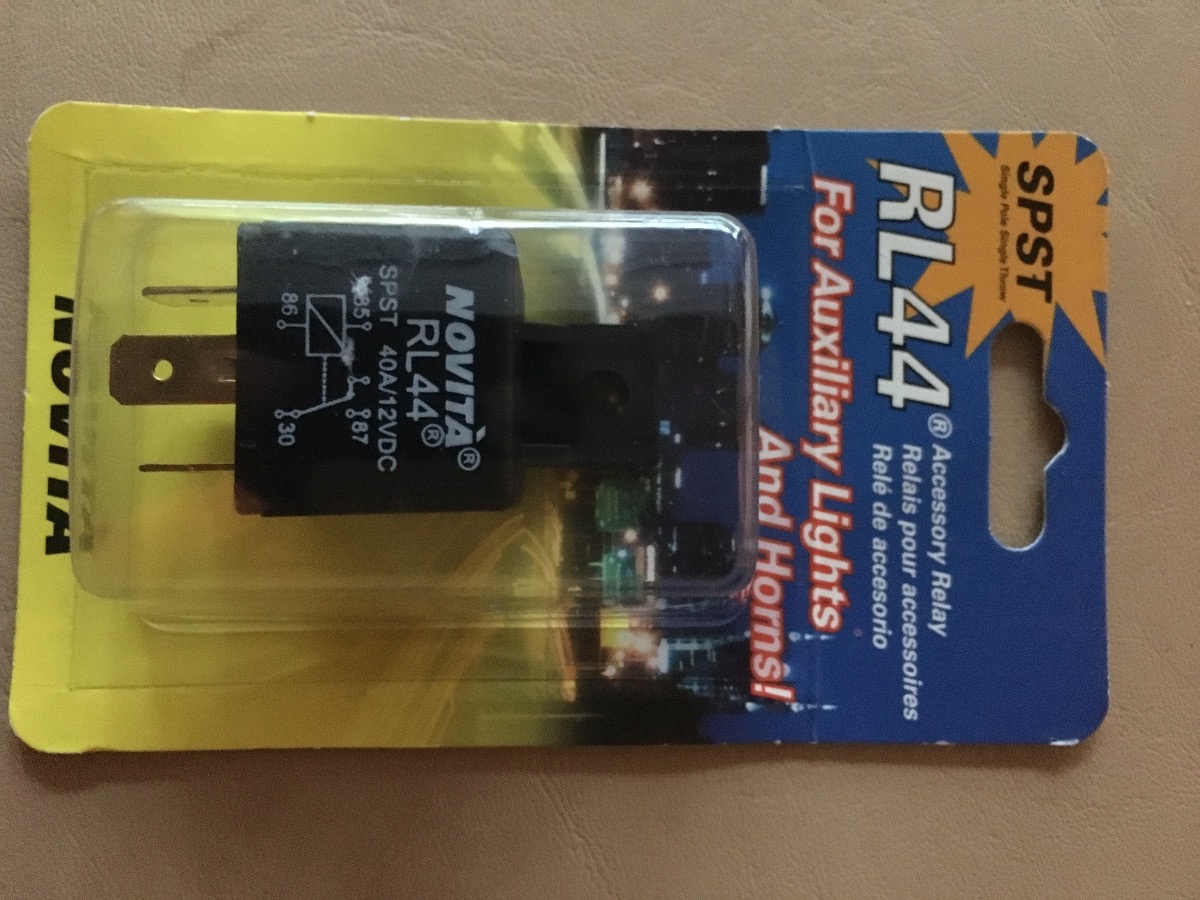

Will this relay work for the relay mod?

1977 KZ900A5
Attachments:

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 08 Aug 2020 18:28 #832450

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1424
  • Thank you received: 317
Yes it will work. Even the terminal numbers match the Schematic I posted.
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: BOOM_FIST

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 08 Aug 2020 18:28 #832451

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1162
  • Thank you received: 359
Looks OK
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: BOOM_FIST

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 08 Aug 2020 18:40 #832453

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5
Cool, I’ll be installing that tomorrow. The new Dyna pick-up didn’t show up today. Little bummed but should have it within the next couple of days.
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 08 Aug 2020 18:57 #832459

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1424
  • Thank you received: 317
I’d recommend a good OEM style connectors. The CK-1 is a good starter kit

vintageconnections.com/Products/Kits
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: DOHC

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 12 Aug 2020 04:32 #832695

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5
Alright guys, I got the new Dyna S installed last night and all put back together. She runs like a beast again! Didn’t take any pictures because I was too excited to get it back together to get a quick test ride in before it got dark. Will get some soon.

Did a plug chop test and the plugs were a dark golden brown with a hint of ash on the tip. Little more fuel needed maybe? Running a .030” gap. Fuel screws at 2 full turns out from lightly seated.

A couple of things came to mind as I was putting the bike away in the garage last night. As I was timing the Dyna S, it seemed as if there was a decent amount of play when trying to line up the timing markings. I couldn’t figure it out but I timed it to as close as it would let me. Would the play be from the advancer nut notches being old and worn out? My OCD is telling me to buy a new nut and bolt and re-time it for safe measures...

I then realized that I might need to bump up my pilot jet size. I’m running 17.5 pilot and 117.5 mains. I didn’t mess with the needles so I have no clue what they’re set at. I feel a 20 pilot would help after researching some others jetting combos with similar pods and exhaust set-up.

Thoughts??
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 12 Aug 2020 05:08 #832697

  • zed1015
  • zed1015's Avatar
  • Online
  • Member
  • Member
  • Posts: 1865
  • Thank you received: 716
With pods you should just fit air corrector jets and go up on the mains.
Leave the pilots stock and also the needle position.
www.kzrider.com/forum/23-for-sale/611992...-round-slide-mikunis
With the Dyna you can run up to 0 .40" (1mm) plug gap.
The following user(s) said Thank You: BOOM_FIST

Please Log in or Create an account to join the conversation.

Last edit: by zed1015.

Dynatek Dyna III kit issues? Upgrade or Revive??? 12 Aug 2020 07:31 #832704

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5

zed1015 wrote: With pods you should just fit air corrector jets and go up on the mains.
Leave the pilots stock and also the needle position.
www.kzrider.com/forum/23-for-sale/611992...-round-slide-mikunis
With the Dyna you can run up to 0 .40" (1mm) plug gap.


I did see others running up to a .040” gap. I might play with it to see what gap it likes.

PM’ed you about ordering some air corrector jets.

Any thoughts on the slight play in the spark adjuster nut?
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 12 Aug 2020 07:37 #832706

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1424
  • Thank you received: 317
Once you static set timing then fine tune with a timing light.

The advancer is indexed to the crank with a pin. Slack in the 17 mm nut won’t affect timing
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: BOOM_FIST

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.
