I think Mikaw meant to test the voltage at the coils.

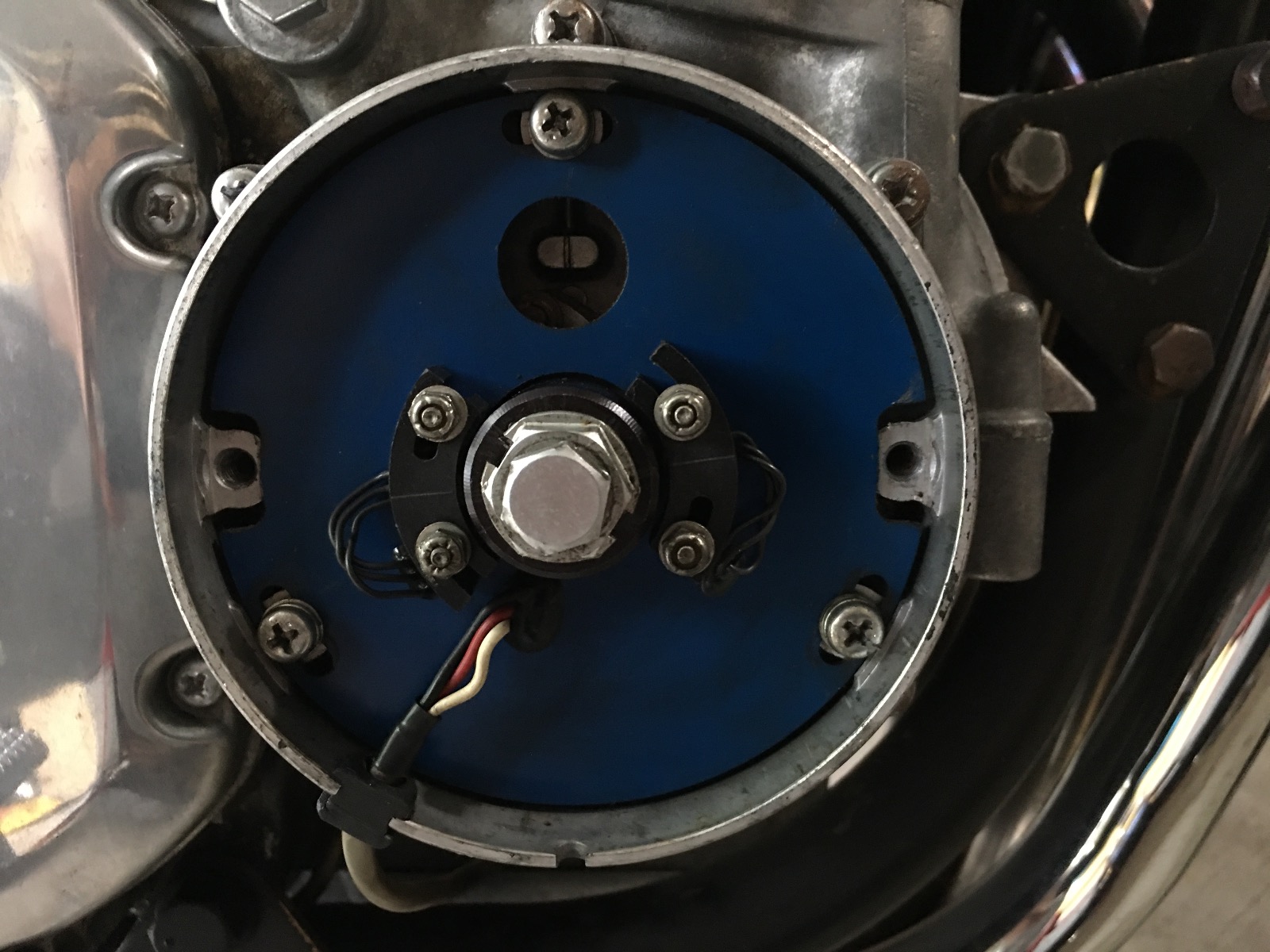

To answer one of your other questions, if your coils test out properly you can simply replace the pickup with a Dyna DS2-1. I just finished doing that with my KZ1000.

One thing I've discovered in the past (I have three Dyna DS2-1 setups) is that their power wire connection is questionable. Instead of using their design I simply connected to the brown double female connector near the headlight. It should be a vacant extra wire in your loom.
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: BOOM_FIST

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 08:50 #831937

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1424
  • Thank you received: 317
HRM, correct.

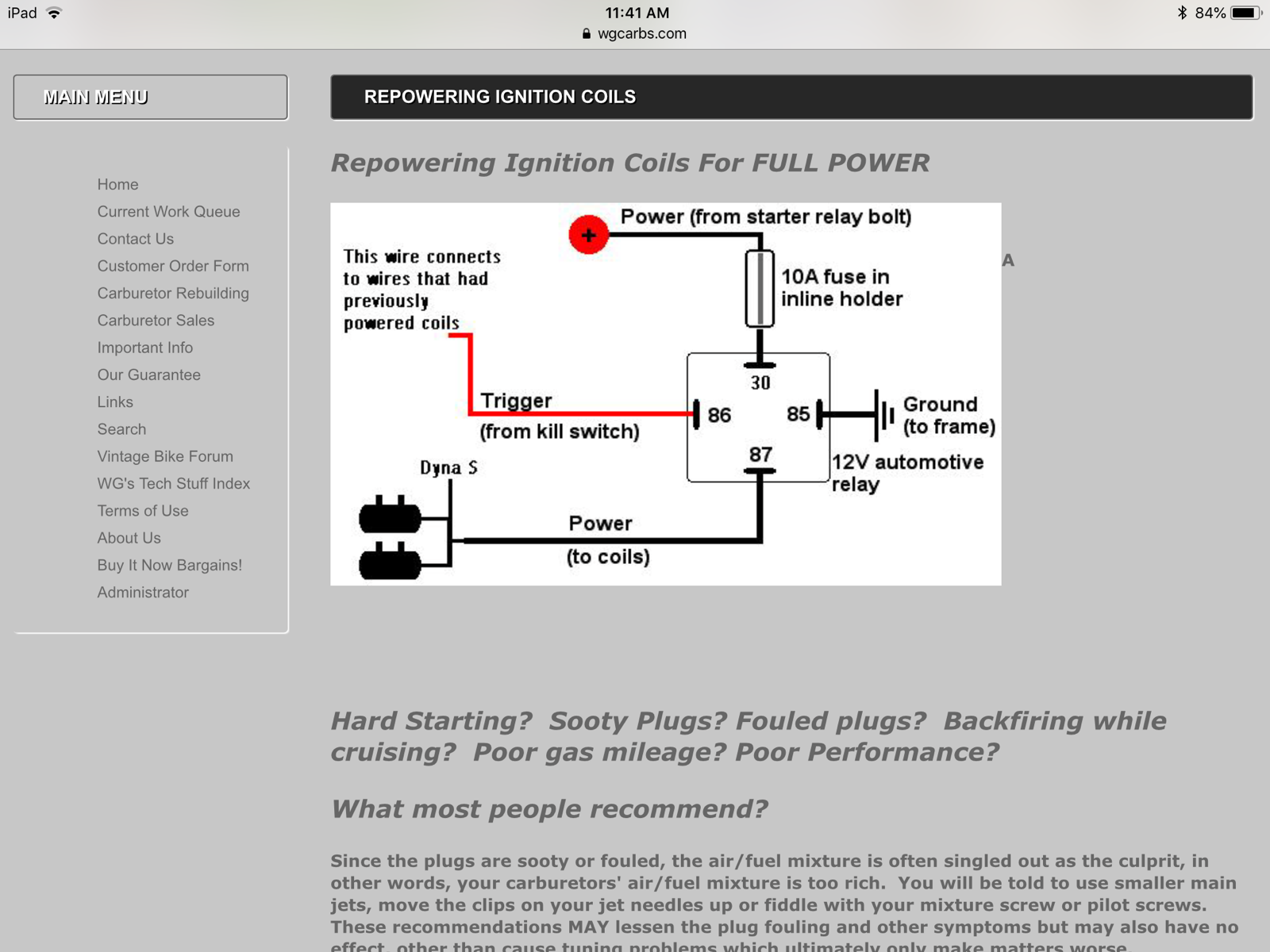

BOOM_FIST, I mean the battery voltage to the positive post of the coils. Anything less the 1volt of battery voltage will cause issues... here’s a screen shot of the relay mod... do an internet search for Wired George coil repower.

1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:
The following user(s) said Thank You: BOOM_FIST

Please Log in or Create an account to join the conversation.

Last edit: by Mikaw.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 08:57 #831938

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1424
  • Thank you received: 317

hardrockminer wrote: One thing I've discovered in the past (I have three Dyna DS2-1 setups) is that their power wire connection is questionable. Instead of using their design I simply connected to the brown double female connector near the headlight. It should be a vacant extra wire in your loom.

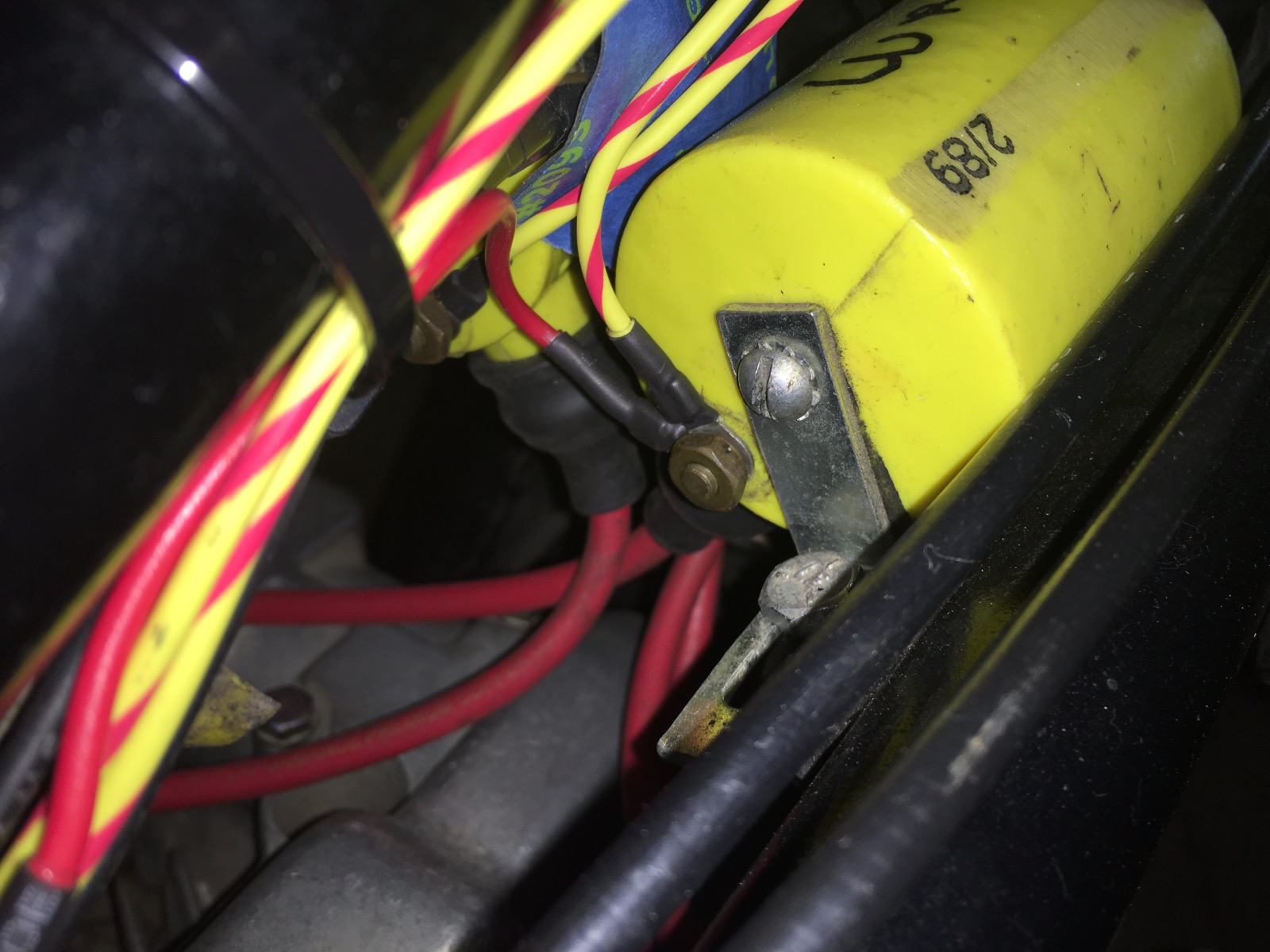

100% agree. That scotch lock is junk... I just added a small ring connection to the pickup power wire(red) and attached it to the positive on one coil

1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Attachments:

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 09:03 #831939

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5
I really appreciate it! I'll do some more troubleshooting tonight with the info you guys gave me and will report back.

I'll pick up one of those relays and rewire it while I'm at it too. Thanks guys!
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 13:18 #831958

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5

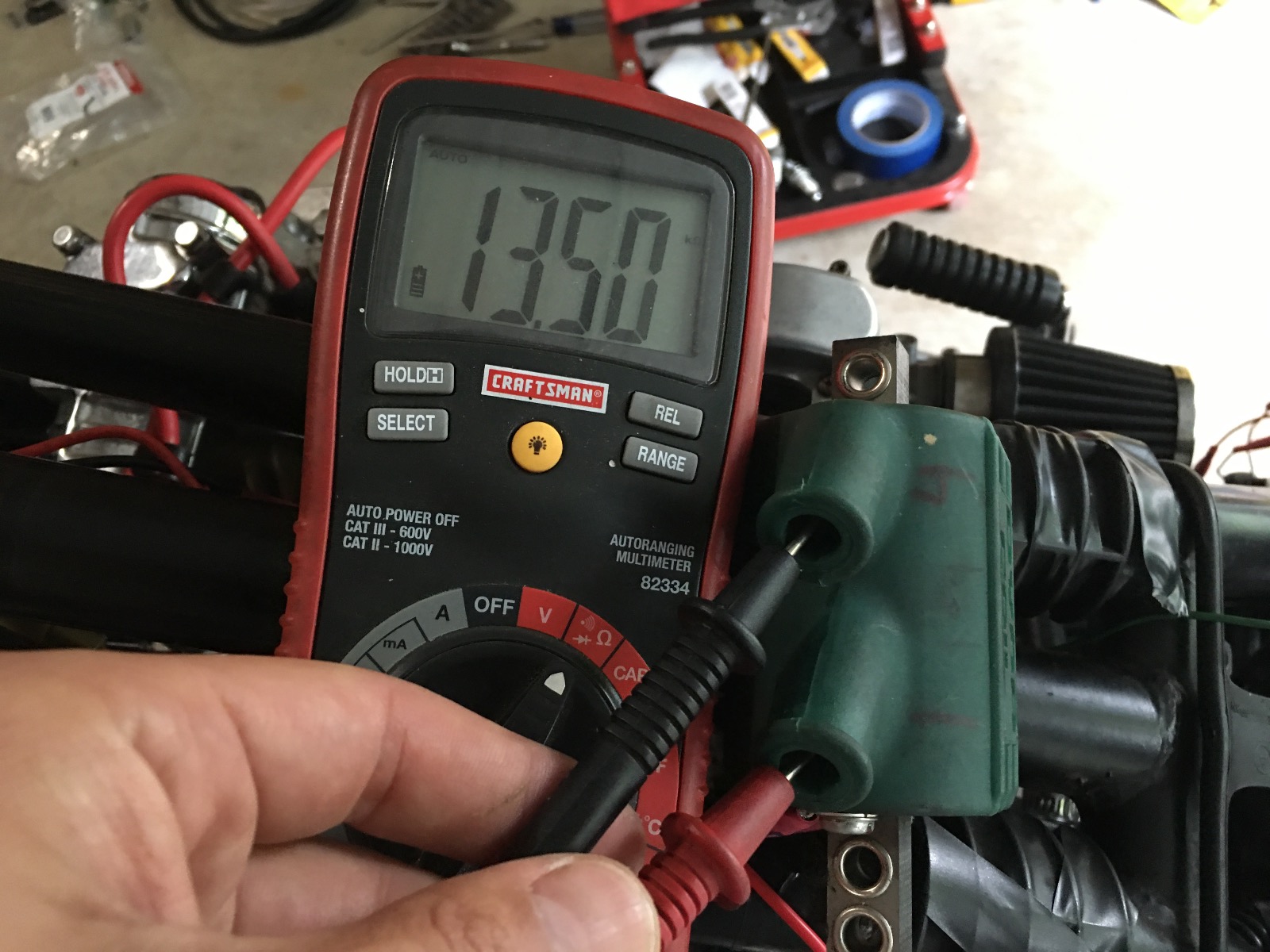

Voltage at battery is 12.51V

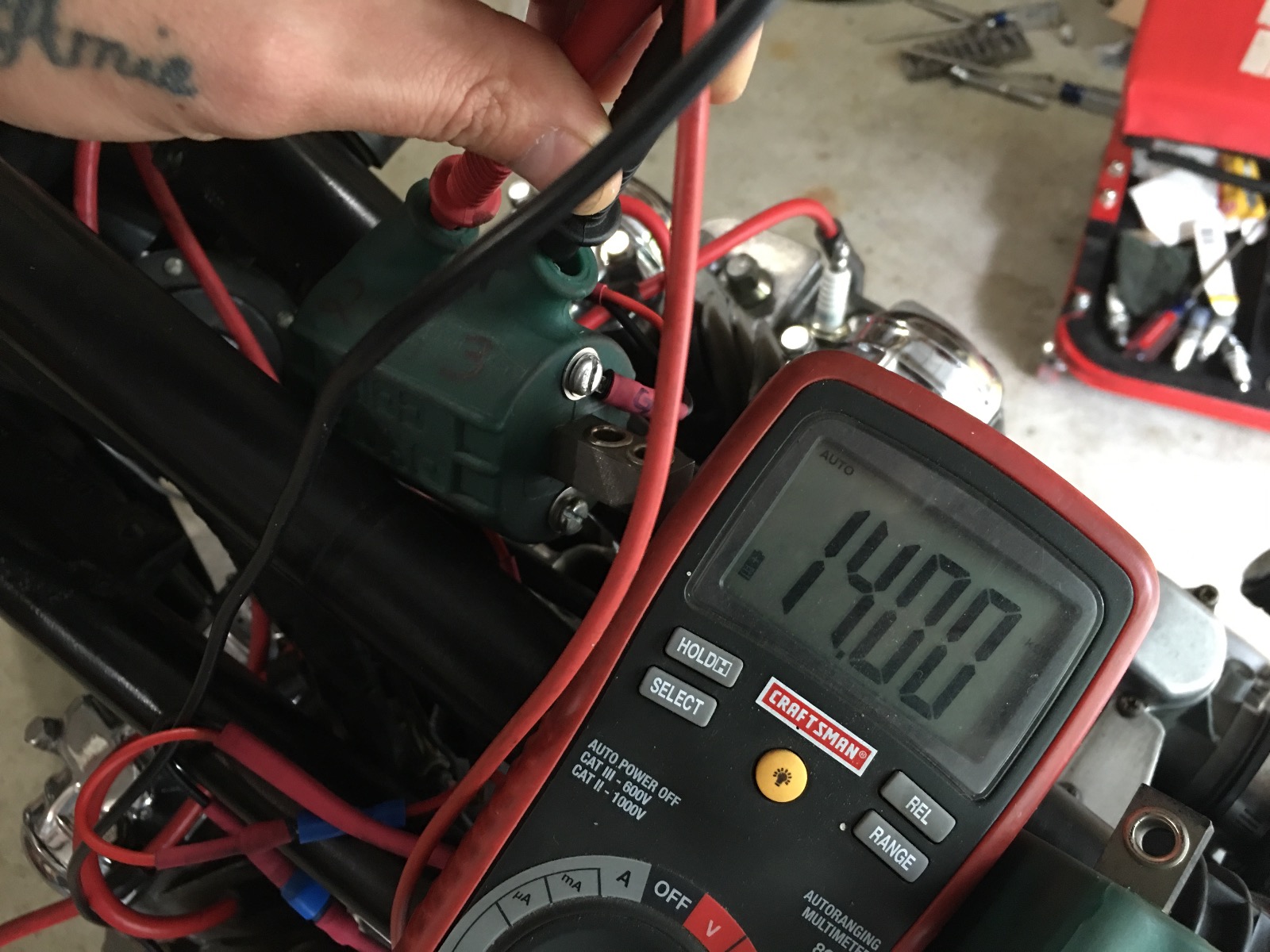

Voltage at coil primary 9.86V

Secondary coil test, I only got a reading when I put the multimeter leads from one coil output to the other output. Is this right? This is done with no power applied, correct?







1977 KZ900A5
Attachments:

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 13:54 #831961

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1162
  • Thank you received: 359
Yes...it looks like your coils are good. The problem is likely in the pickup or in the DS3 box. You might check for continuity in your pickup wire going to the coil for 1 and 4 cylinders.

You should also clean all of your connections and re-check your coil voltage to see if it helps.

A couple of months ago I had an intermittent problem with my KZ1000 that I was unable to source. Changed the plug wires and checked the coils. All was good. Rather than go any deeper I simply bought a Dyna pickup and installed it. No more problems.
I have a couple of Z1B's restored, an '80 KZ1000LTD restored, a 1981 KZ550 restored and a 2008 KLR 650 for off road fun. My wife has a 2019 Suzuki DR 650 for on and off road.
The following user(s) said Thank You: BOOM_FIST

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 15:54 #831972

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5
Went ahead and ordered a new DS2-1 pickup. I figure it’ll replace the pickup if it’s bad and eliminate the DS3 box if that’s the issue. 2 birds with 1 stone. If the coils end up being the problem I’ll order them later.

Guys, I really appreciate all the input! I’ll let you know how things go when I get them in next week.
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 17:07 #831976

  • Mikaw
  • Mikaw's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1424
  • Thank you received: 317
The coil positive (primary) is really low. I know you mentioned your going to do the coil repower modification. So we can wait till you get you new parts installed... don’t toss out the pickups... loudhvx is the resident ignition guru, might want to check with him if he’d be interested in them, he’s always testing, experimenting and building.
1976 KZ 900 A4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
The following user(s) said Thank You: loudhvx, BOOM_FIST

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 31 Jul 2020 19:03 #831982

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 10572
  • Thank you received: 1476
Thanks Mikaw. I am actually fully stocked on Dyna S and Dyna III ignitions for testing. People tend to give away partially broken ones. :)
The following user(s) said Thank You: Mikaw, BOOM_FIST

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 01 Aug 2020 04:48 #831992

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5

loudhvx wrote: Thanks Mikaw. I am actually fully stocked on Dyna S and Dyna III ignitions for testing. People tend to give away partially broken ones. :)


Haha, well I have no problem donating to the cause! I will have zero use for them once my new one comes in. Just let me know where to send them.
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 01 Aug 2020 16:44 #832052

  • BOOM_FIST
  • BOOM_FIST's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 106
  • Thank you received: 5

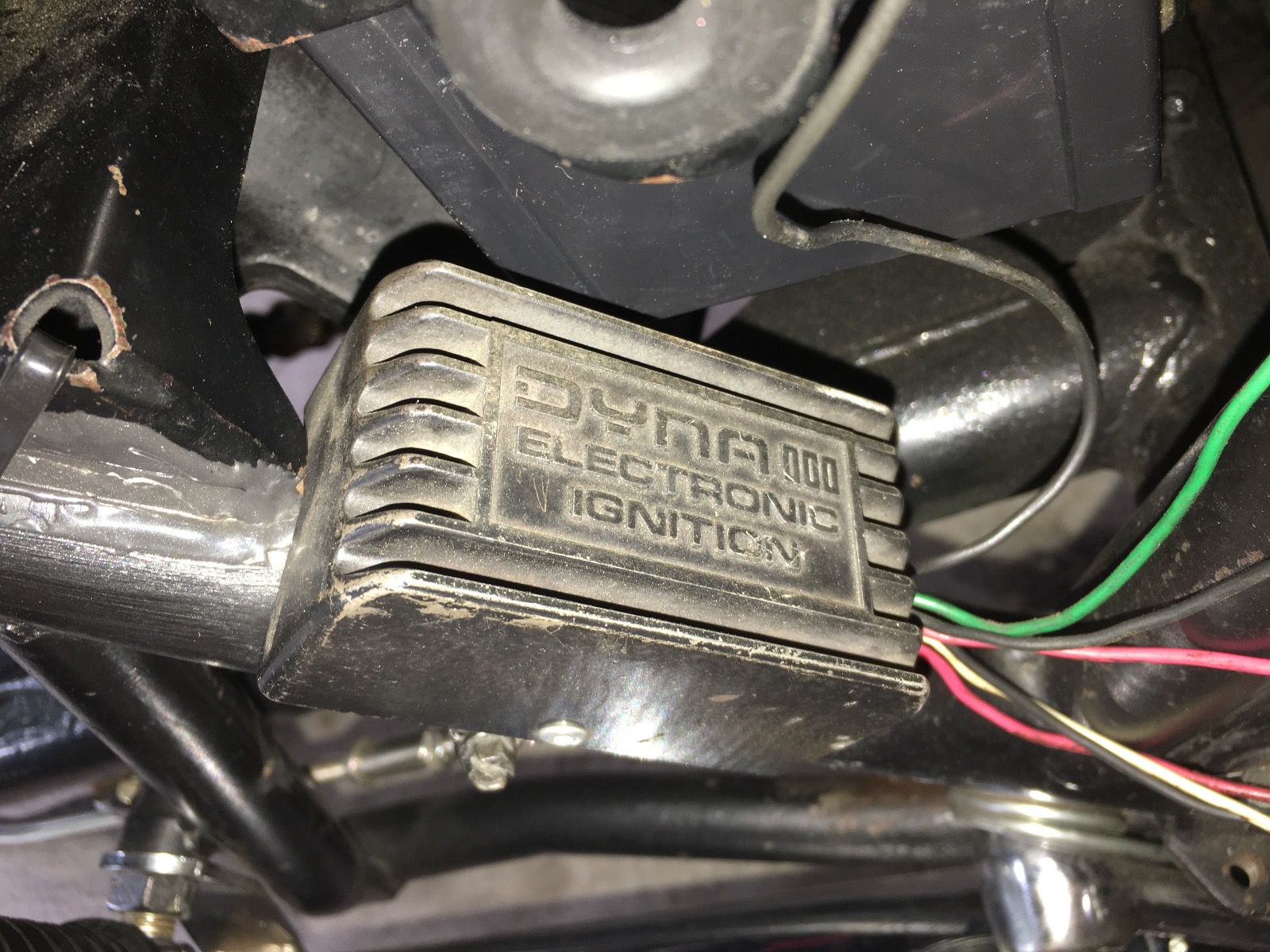

Messed around some today. Did some continuity checks as was suggested and I think I narrowed it down to be a bad DS3 (I think that’s what someone called it) box. The little black box that is in between the pickups and the coils.
1977 KZ900A5

Please Log in or Create an account to join the conversation.

Dynatek Dyna III kit issues? Upgrade or Revive??? 01 Aug 2020 18:32 #832057

  • hardrockminer
  • hardrockminer's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 1162
  • Thank you received: 359
You won't need that box with the DS2-1 pickup. But before you buy it why not try wiring your current pickup directly to the coils?
