TOPIC: Ground ... Where is the Ground? Also. Women.

Ground ... Where is the Ground? Also. Women. 12 Jun 2019 14:41 #805591

  • chopper1963
  • chopper1963's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 59
  • Thank you received: 2
1981 GPz550.

I think I might have screwed up by powder coating the frame ... where are the grounds for the wiring harness?

I can read women's moods pretty well but I can't read a wiring diagram to SAVE MY LIFE.

Where should I look with my eyes to make sure the system is grounded?

thanks

Please Log in or Create an account to join the conversation.

Ground ... Where is the Ground? Also. Women. 12 Jun 2019 14:59 #805592

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 18530
  • Thank you received: 1713
On the case Right lower side. 10mm hex head bolt. Battery negative and harness ground.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Ground ... Where is the Ground? Also. Women. 12 Jun 2019 15:20 #805595

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1926
  • Thank you received: 912
If the engine case is bolt in rubber damper into the frame you need an extra negative (ground) terminal wire to the frame.

Please Log in or Create an account to join the conversation.

Ground ... Where is the Ground? Also. Women. 12 Jun 2019 16:24 #805599

  • chopper1963
  • chopper1963's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 59
  • Thank you received: 2
In right side do you mean front brake lever side or?

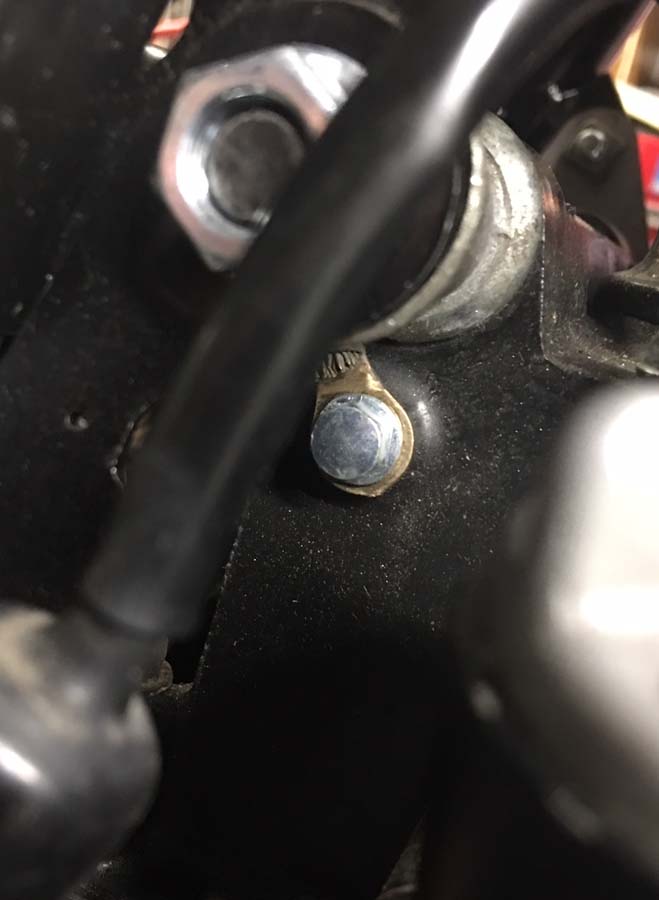

I see this ground on the back of the engine case. Is this what you are referring to?
