TOPIC: How to wire aftermarket speedometer tachometer.

How to wire aftermarket speedometer tachometer. 21 Dec 2018 21:04 #795528

  • JohnLuke
  • JohnLuke's Avatar Topic Author
  • Offline
  • Member
  • Member
  • 1982 KZ750N Spectre
  • Posts: 231
  • Thank you received: 1
Y’all have been so helpful this past year. Omw y’all are awesome. I bought an aftermarket speedometer tachometer. It has its wiring labeled but I’m not positive how the original connectors connect to it. I could probably take way to long to figure it out but y’all seem to know what y’all are doing. So here’s the photo

Also not sure what GR-1 means.
Thanks!
Attachments:

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 21 Dec 2018 22:04 #795529

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1918
  • Thank you received: 911
Some more infomation about the speedometer/tachometer manufacturer and pics would be helpful.

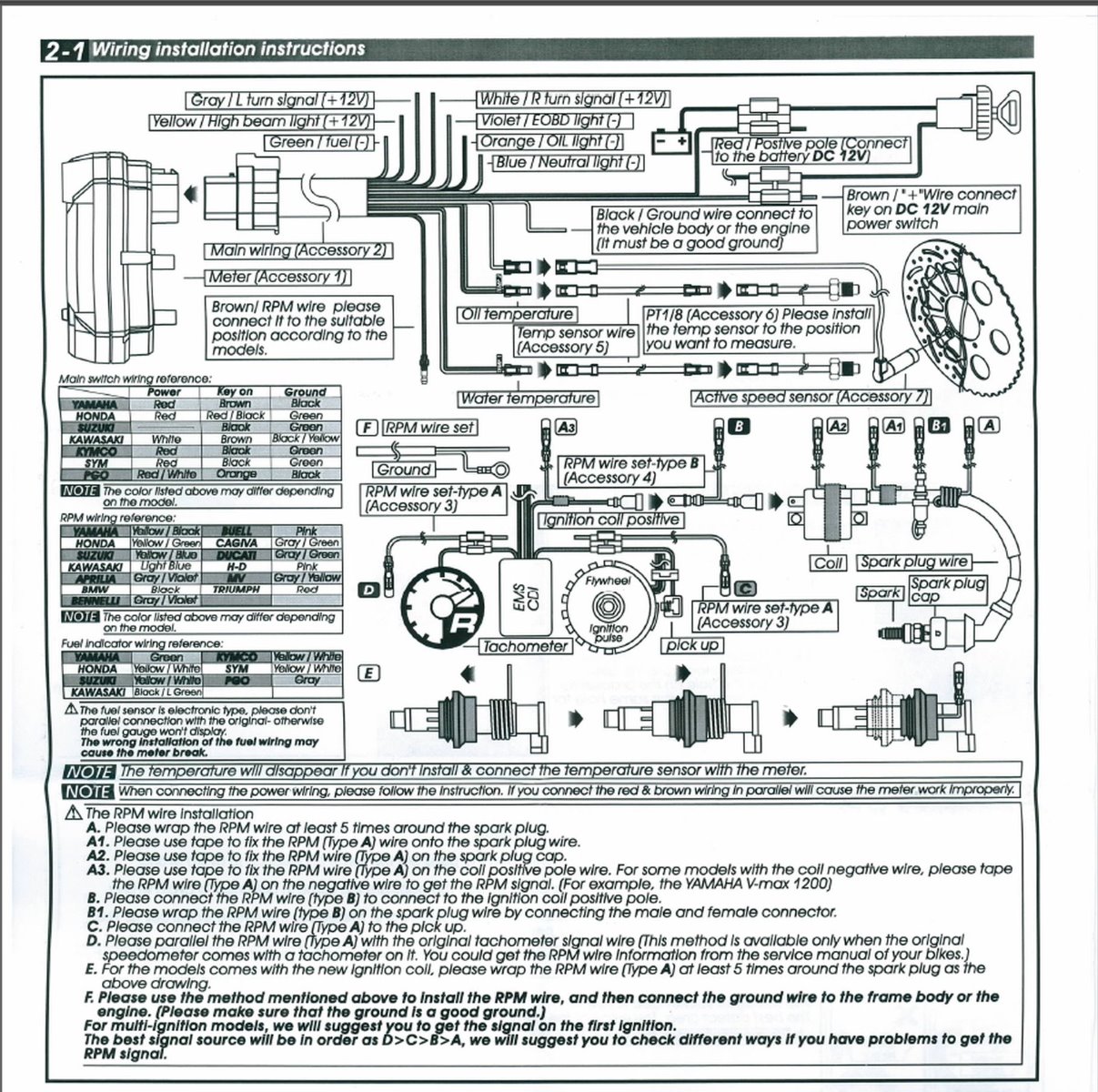

Her are the wiring installation instuctions of my KOSO RX2N+

Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by Scirocco.

How to wire aftermarket speedometer tachometer. 21 Dec 2018 22:23 #795530

  • JohnLuke
  • JohnLuke's Avatar Topic Author
  • Offline
  • Member
  • Member
  • 1982 KZ750N Spectre
  • Posts: 231
  • Thank you received: 1
rover.ebay.com/rover/0/0/0?mpre=https%3A...2Fitm%2F263087620579

The only information I have in it to this link. The photos I took in the last post is the supposed wiring diagram. I’m cust curious to know which wire goes where.

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 22 Dec 2018 03:07 #795531

  • Wozza
  • Wozza's Avatar
  • Offline
  • Member
  • Member
  • Posts: 136
  • Thank you received: 30
What crap translation/instructions, is that all you got
It looks like the gauge has a lcd display that tells you what gear the bike is in, so i imagine the 6 and 2 pin plugs are the gear position inputs.
So what ever wire gets a negative signal the corresponding gear is supposed to be displayed .
As our bikes only have a wire for neutral its the only one you can hook up.
Cant help with the door lock? but all the others look straight forward
good luck
1982 KZ550H1

Please Log in or Create an account to join the conversation.

Last edit: by Wozza.

How to wire aftermarket speedometer tachometer. 22 Dec 2018 04:20 #795533

  • Scirocco
  • Scirocco's Avatar
  • Offline
  • Expert Boarder
  • Expert Boarder
  • Never change a running system
  • Posts: 1918
  • Thank you received: 911
The biggest problem is how to calbrate the Speedo without any speed sensor setup instructions/ Input push bottons.
You have to Input the wheel size/scope, number of speed sensor magnets/impulses per wheel turn to get correct speed values!!!

Buy cheap buy twice.

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 22 Dec 2018 06:54 #795535

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • Member
  • Member
  • Posts: 6300
  • Thank you received: 1022
Since they're all negative connections, the GR stuff probably means ground. guessing. I would search youtube to see if there's a video of how to wire that one. I did a quick search & found some how-tos for some different cheap chinese meters.

Edit: found this video. appears to be the same as yours. there are other videos for it.

...

Please Log in or Create an account to join the conversation.

Last edit: by martin_csr.

How to wire aftermarket speedometer tachometer. 22 Dec 2018 07:14 #795537

  • CoreyClough
  • CoreyClough's Avatar
  • Offline
  • Member
  • Member
  • GPz550 Addiction
  • Posts: 1096
  • Thank you received: 72
No offense, but I agree with the guys above. $27.00 for a speedo/tach, for me, is way too cheap, and the fact that the instructions are not easy to follow, amplifies this. I see it does have a 30 day buyer return, you just have to pay for return shipping.

You also do not need a speedometer, as you can figure out how fast you are going at a certain rpm, as long as the tach is accurate. Lou has marks on his tach for this I believe?

I was planning on using that same Koso Gauge that Scirocco mentioned, but it didn't pan out. Check their line up of gauges:
kosonorthamerica.com/


Edit:
There are speedometers that use GPS, to see how fast you are going. Check this:
legendary-motorcycles.com/newmiscparts.html

This one looks similar to the Legendary Motorcycle GPS Unit, and has an 8k or 12k tach option.
cognitomoto.com/collections/gauges/produ...h?variant=1332926657
'85 GPz550(ZX550-A2)

GPz550 Base Manual --> tinyurl.com/ze5b3qo
GPz550 Supplement Manual --> tinyurl.com/h34d2o6
GPz550.com --> www.nwsca.com/scripts/gpz_forum_2005/default.asp
First Race Win GPz550 --> tinyurl.com/o5y3ftp

Please Log in or Create an account to join the conversation.

Last edit: by CoreyClough.

How to wire aftermarket speedometer tachometer. 22 Dec 2018 12:37 #795550

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9674
  • Thank you received: 1130
What's so confusing? Simple.
Connect the door lock wire to the door lock. Every bike tach connects to the doors.

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 23 Dec 2018 21:24 #795600

  • AtLarge
  • AtLarge's Avatar
  • Offline
  • Member
  • Member
  • Posts: 181
  • Thank you received: 21

loudhvx wrote: What's so confusing? Simple.
Connect the door lock wire to the door lock. Every bike tach connects to the doors.


:lol: :laugh: :evil: And roll the windows up before exiting the vehicle.
1973 Honda CL70-K3
1975 Kawasaki 350 F9-C
1983 Kawasaki KZ750-K1
1993 BMW K1100RS
2008 Suzuki GSX1300-BKK8 #1120

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 04 Jan 2019 16:20 #796170

  • JohnLuke
  • JohnLuke's Avatar Topic Author
  • Offline
  • Member
  • Member
  • 1982 KZ750N Spectre
  • Posts: 231
  • Thank you received: 1
Again, any help would be appreciated.

Here is a little bit of information. It’s not exactly the same. But here it is.

www.ex-500.com/12-modifications-upgrades...er-ebay-special.html

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 10 Jan 2019 07:33 #796483

  • 80kzer
  • 80kzer's Avatar
  • Offline
  • Member
  • Member
  • Posts: 2
  • Thank you received: 0
I just wired this up last week, wasn’t the easiest thing to do but nothing you can’t handle. I cut my old kz gauge wiring harness so it’s just plug and play now. I do still need to set up the speedo magnet but I can’t test it until the spring so that can wait. When I get home I can send you a diagram for the wiring.

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 10 Jan 2019 07:48 #796485

  • JohnLuke
  • JohnLuke's Avatar Topic Author
  • Offline
  • Member
  • Member
  • 1982 KZ750N Spectre
  • Posts: 231
  • Thank you received: 1
Thanks bro! That would be great !

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 10 Jan 2019 16:29 #796498

  • 80kzer
  • 80kzer's Avatar
  • Offline
  • Member
  • Member
  • Posts: 2
  • Thank you received: 0
Here is the wiring diagram I made to make it plug and play, please excuse the sloppy writing. I have noticed those speedos sometimes have different coloring wiring, hopefully yours is the same.
Attachments:

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 11 Jan 2019 02:15 #796513

  • Kidkawie
  • Kidkawie's Avatar
  • Offline
  • Member
  • Member
  • I bleed premix
  • Posts: 1650
  • Thank you received: 145
For the 9 pin connector looks like this:

right directional
high beam
lights
left directional
tach
negative
fuel sender if equipped
acc ON positive
???

GR harness if for a gear indicator
1975 Z1 900
1994 KX250 Showroom Resto
2004 KX125

Please Log in or Create an account to join the conversation.

Last edit: by Kidkawie.

How to wire aftermarket speedometer tachometer. 11 Jan 2019 07:09 #796518

  • JohnLuke
  • JohnLuke's Avatar Topic Author
  • Offline
  • Member
  • Member
  • 1982 KZ750N Spectre
  • Posts: 231
  • Thank you received: 1
Thanks man! That looks great.

Actually I have everything working well on the speedometer side. I’m just having little trouble getting the tachometer to work. I’ll do another look through to see what’s up.

Thanks!

Please Log in or Create an account to join the conversation.

How to wire aftermarket speedometer tachometer. 17 Jan 2019 06:51 #796930

  • sdk_spider
  • sdk_spider's Avatar
  • Offline
  • Member
  • Member
  • Posts: 7
  • Thank you received: 1
any luck with the tacho, I am having the same issue getting it to work on my 84 GPZ550
