TOPIC: Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 20:25 #794750

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16
I ordered a reg./rec from Ricks Motorsport because mine failed. Ive never even looked at the thing and its so cold in NY I havent looked under the side cover to see where it is.

But I did look at the manual.

It seems the OEM set up (correct me if Im wrong) is a separate rectifier and separate regulator. I bought a regulator/rectifier combo from ricks. How the heck do I wire this thing if this is s solid unit and OEM are two separate units?

Im just learning this stuff.
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 20:39 #794751

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 17698
  • Thank you received: 1519
Pics would help.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 20:42 #794752

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 14030
  • Thank you received: 2316
It is impossible to successfully order parts without knowing exactly which parts you need.

Over the few years of production the KZ650 models used 3 or 4 totally different charging systems. So before you place an order for replacement parts it is imperative that you know exactly which system your bike came with. It would help if you would put the exact year and model of your motorcycle in your signature line. Doing that might enable someone on this site to provide accurate advice regarding parts for your bike. Ed
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 20:45 #794753

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16

SWest wrote: Pics would help.
Steve


its pretty simple and Im not sure why pics are necessary. The original setup was a separate regulator and a separate rectifier, at least thats what the original manual shows.

Im not sure whats on the bike now. its 30 something degrees out and I have a wife and multiple kids. Cant run to the garage and take pics at nearly midnight.

It COULD have the same reg/rec pictured below, and then again it may be OEM separate as the manual states.

This is what I got from Ricks:

1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 650Dude.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 20:49 #794754

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16

650ed wrote: It is impossible to successfully order parts without knowing exactly which parts you need.

Over the few years of production the KZ650 models used 3 or 4 totally different charging systems. So before you place an order for replacement parts it is imperative that you know exactly which system your bike came with. It would help if you would put the exact year and model of your motorcycle in your signature line. Doing that might enable someone on this site to provide accurate advice regarding parts for your bike. Ed


Ed, its a 1977 Kawasaki KZ650B

When I researched I looked at OEM used reg/recs on ebay for my model bike. They looked the same as the new OEM style reg/rec combo on Ricks so I bought it. If its not right or whatever, I guess I will have to return it, but its advertised as a direct OEM fit for my year bike.

1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin
Attachments:

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 21:07 #794755

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 17698
  • Thank you received: 1519
Pics of your current system can help us to tell what kind you have.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
The following user(s) said Thank You: 650Dude

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 21:13 #794756

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16

SWest wrote: Pics of your current system can help us to tell what kind you have.
Steve


Right. Only thing is, when I take that cover off, if the regulator looks the same, its plug and play and I will be done in 10 min and wont need further advice.

What I was looking for is advice on how to wire if it IS in fact a SEPARATE rectifier and SEPARATE regulator thats on the bike now.

Or to clarify, I was looking for how to wire the OEM style I got from Ricks, which is a combined Rec/Reg unit if the ORIGINAL unit is two separate things.
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 06 Dec 2018 21:33 #794757

  • SWest
  • SWest's Avatar
  • Offline
  • Moderator
  • Moderator
  • Posts: 17698
  • Thank you received: 1519

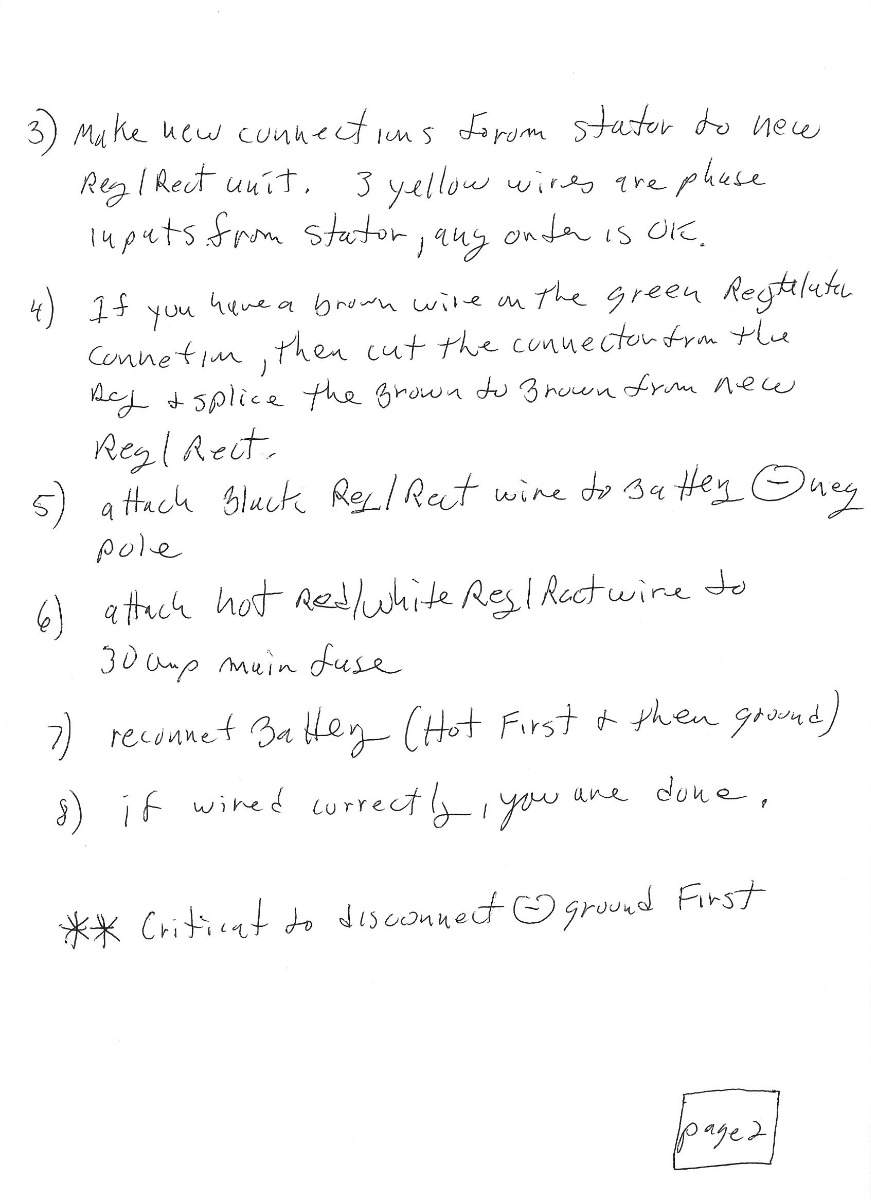

If it's a single phase system it might not work or it could be as simple as this.
Steve
Z1b1000 1975 Z1b
Opinions expressed by me do not reflect those of the the staff or members
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
Attachments:

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 05:01 #794761

  • TexasKZ
  • TexasKZ's Avatar
  • Away
  • Platinum Boarder
  • Platinum Boarder
  • Posts: 3756
  • Thank you received: 713
If you have a B2, then you shoul have Numbers 4 and 32 in the diagram. If you have a B1, then it should have 13 and 4. Either way, they are separate.

www.partzilla.com/catalog/kawasaki/motor...-regulator-rectifier
1982 KZ1000 LTD parts donor
1981 KZ1000 LTD awaiting resurrection
2000 ZRX1100 not ridden enough

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 05:46 #794762

  • martin_csr
  • martin_csr's Avatar
  • Online
  • Member
  • Member
  • Posts: 5891
  • Thank you received: 897
Check to see how many yellow wires there are coming from the alternator & also check if there's a green wire from the alternator. Report back.





...

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 06:31 #794765

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16

martin_csr wrote: Check to see how many yellow wires there are coming from the alternator & also check if there's a green wire from the alternator. Report back.

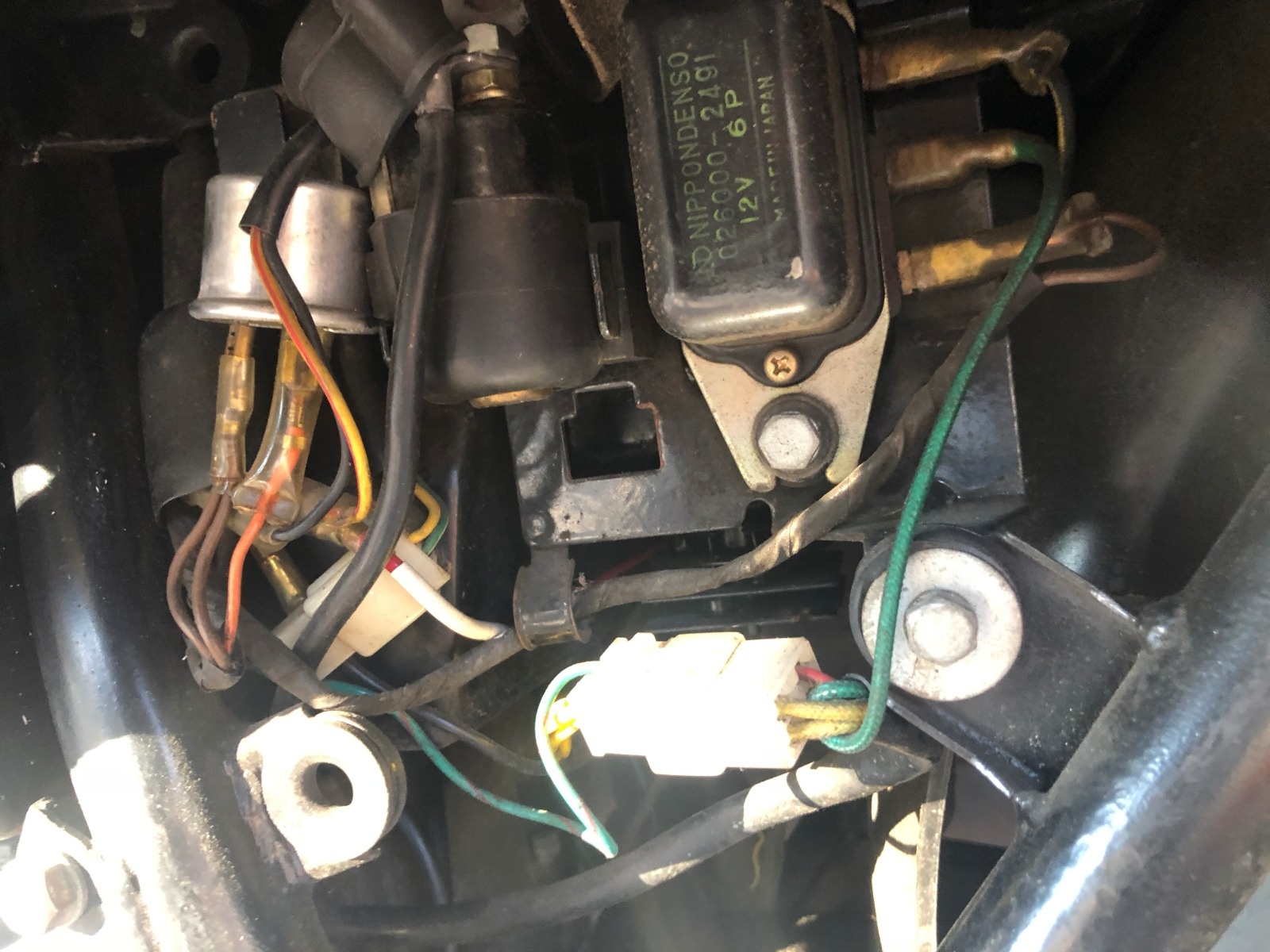

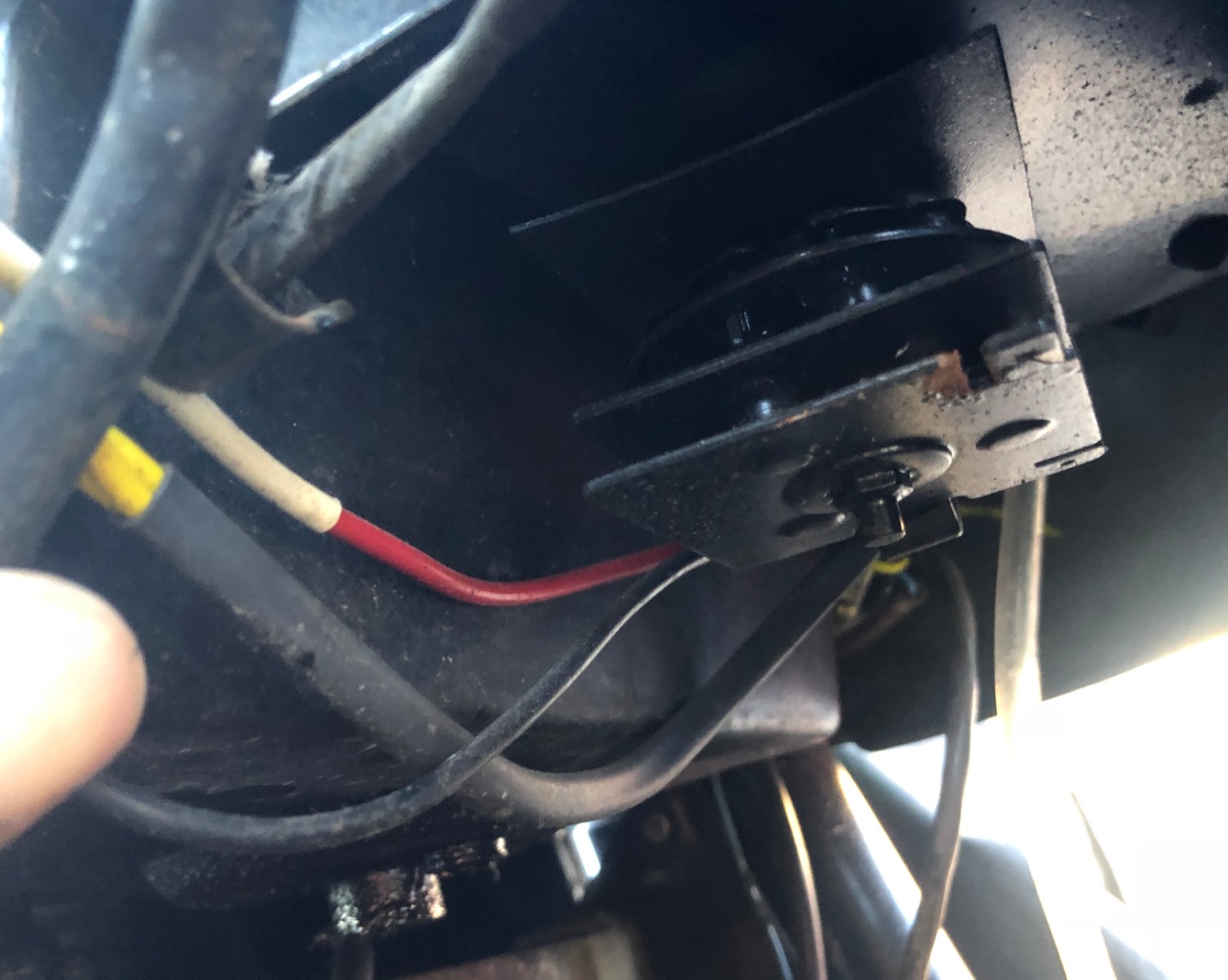

This is my setup. the thing that LOOKS like a rectifier, well, I have NEVER seen anything like it in my life. Ihas the yellow wires going to the stator, and a red wire pin connection, but its TINY.

As you can see, there is a voltage regulator as well.

What Im getting at is, what if the voltage regulator went bad? and if so, does this reg/rec unit I have make the voltage regulator obsolete, and if so, how do I wire? Very confusing. Ive got a new one piece system and it looks like the bike has two charging components that could have failed. On top of that, I have NEVER seen a rectifier like this:





...

1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin
Attachments:

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 06:52 #794766

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9207
  • Thank you received: 961

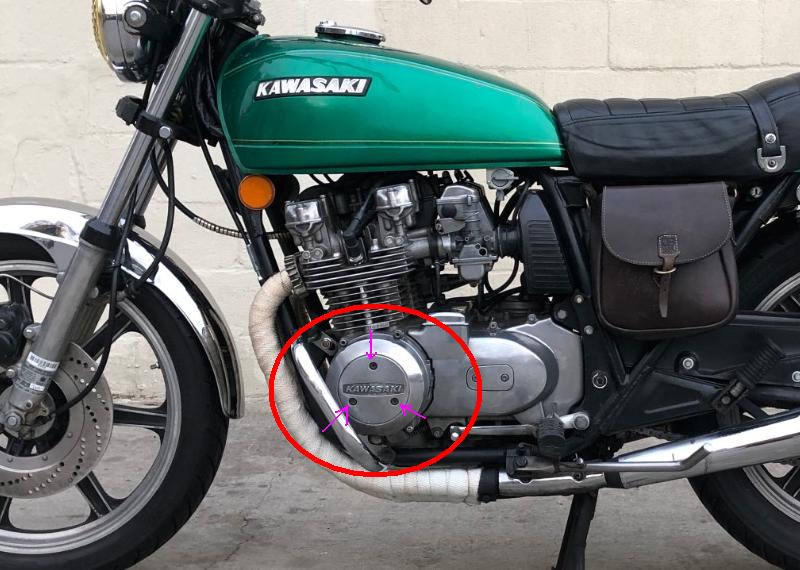

This is what matters on your Kz650 ... these three screws.



Those screws mean it's a 1977 model and you have an excited-field type alternator.
This means your bike is different from all other years of Kz650. The downside is that you can't use regulators from other years. The upside is that you have the best of all of the charging systems when it is in working order.

You need a very rudimentary rectifier, any off-the-shelf 50 amp 3-phase rectifier from ebay should work, but you also need a special regulator. You can buy them separately if you want, or you can get combo units which are really just the two pieces packaged together.

The regulator regulates power to the field coil on your alternator in order to regulate the output of the alternator, much like a car alternator,

OregonMotorcycleParts.com makes a reg/rec combo for your bike and they have proven to be a good source for reg/recs.

Heres a link to what you need. You want model "VRREM7-KZ".
www.oregonmotorcycleparts.com/Reg_rec_units.html
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 06:56 #794767

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9207
  • Thank you received: 961

650Dude wrote: On top of that, I have NEVER seen a rectifier like this:


That is how all old rectifiers used to look. They are typically selenium rectifiers within the cooling fins. Even industrial rectifiers looked like that (which is probably what Japanese bike manufacturers originally used). You can find rectifiers like that in a lot of old Japanese electronics from the 60's and early 70's.

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 06:59 #794768

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16

loudhvx wrote: This is what matters on your Kz650. These three screws.

Those screws mean you have an excited-field type alternator.


Thanks for this info. Its good to know I have the best charging system of the lot. That was valuable info you passed along.

However, I have a VERY specific question which has yet to be answered.:

Given the pics I have posted, my question is will the rectifier regulator combo I have ALREADY purchased below, work with my system, and WILL IT MAKE the voltage regulator obsolete, and if so what do I do with the wires coming out of the Voltage Regulator pictured below

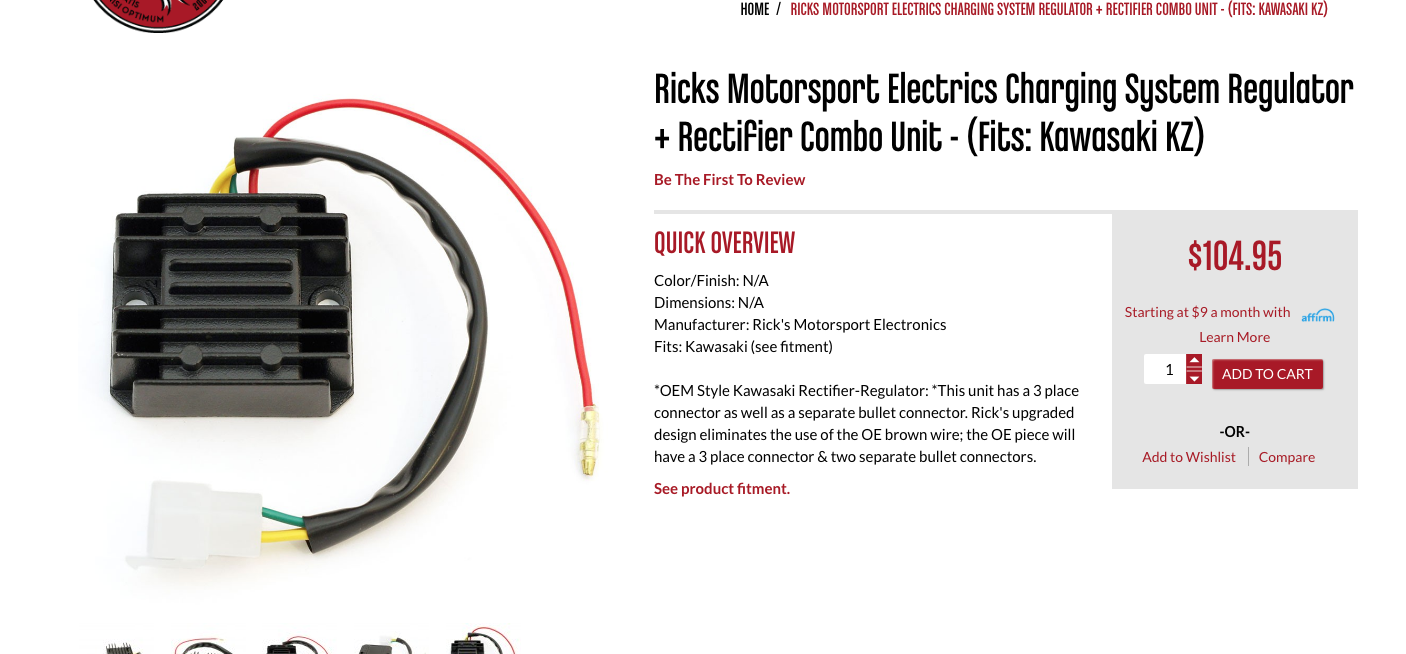

This is what I bought:



Im concerned about what to do with this if the NEW unit I have has made this obsolete

:
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin
Attachments:

Please Log in or Create an account to join the conversation.

Last edit: by 650Dude.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 07:00 #794769

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9207
  • Thank you received: 961

...will the rectifier regulator combo I have ALREADY purchased below, work with my system...


No.

Notice it only has two yellow wires.
The green wire makes it likely for Honda applications.

Yes, your regulator has a green wire. That green wire is very different from the green wire on the reg/rec you purchased. Honda uses that green wire as a ground. Your bike uses the green wire as a regulated positive-power for the field coil.

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 07:03 #794770

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16

loudhvx wrote: No.


When you say "no" I dont know which post your referring to because you didnt "quote" the post.

So, I will assume youre saying the reg/rec combo I have WILL NOT make the voltage regulator obsolete.

In that case, then I may ALSO have to buy a VOLTAGE regulator to replace the old one right? Correct me if Im wrong.
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 07:06 #794771

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9207
  • Thank you received: 961
I was answering the "very specific question" you had. But I edited my post to elaborate.

Return it if you can. If not, you may be able to sell it to someone with a 78 or 79 Kz650.

You may want to read up on excited-field type alternators as implemented by Kawasaki because I see you also have a 77 Kz750 twin. It uses a fully electronic version similar to your 650, but the difference is that your 650 uses a mechanical regulator.

It is essentially a car-type alternator, but it doesn't use brushes or slip rings which often fail on car alternators. Kawasaki's system is quite ingenious, but also quite expensive, which is probably why they eventually got rid of it. Some hondas use a similar system, but their field-coils fail miserably (I know you may have some Hondas sitting around in the garage).

There are many pages on Kzrider that elaborate the differences and similarities between your two charging systems. Hopefully they have not been deleted.

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 07:12 #794772

  • 650Dude
  • 650Dude's Avatar Topic Author
  • Offline
  • Member
  • Member
  • Posts: 371
  • Thank you received: 16

loudhvx wrote: I was answering the "very specific question" you had. But I edited my post to elaborate.

Return it if you can. If not, you may be able to sell it to someone with a 78 or 79 Kz650.


I had a very detailed conversation with a tech at Ricks before ordering this. Its advertised on their page as fitting Kawas specifically. I will give them a call and let you know what they say, based on your info. Also, I am able to return it.
1977 Kawasaki KZ650B
1977 Kawasaki KZ750 Twin

Please Log in or Create an account to join the conversation.

Last edit: by 650Dude.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 07:17 #794773

  • 650ed
  • 650ed's Avatar
  • Offline
  • Member
  • Member
  • Posts: 14030
  • Thank you received: 2316
OK. Your bike is a 1977 KZ650-B1. Given that, its voltage regulator and rectifier are two separate units. The charging system in a 3 phase excited filed system. My opinion is that it is the best of the various KZ650 charging systems. It is very likely that only one of the two components is faulty, so I would urge you to perform some simple tests to determine which unit is faulty. The tests are described in the Kawasaki Service Manual. If you do not own the manual see the first link below for an electronic copy. My 1977 KZ650-C1 uses the exact same charging system. Several years ago the rectifier in my system failed, and the tests described in the manual pinpointed the failure. I replaced the rectifier with one from Oregon Motorcycle Parts (second link below), and the new unit still works perfectly. If you have questions regarding the parts the folks at Oregon Motorcycle Parts are happy and very qualified to answer them. Ed

www.kzrider.com/modules/ServiceManuals/K...Service%20Manual.pdf

www.oregonmotorcycleparts.com/Products.html
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

Confused. Regulato/Rectifier combo vs. OEM separate Reg/Rec on a KZ650 07 Dec 2018 07:19 #794774

  • loudhvx
  • loudhvx's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
  • Posts: 9207
  • Thank you received: 961
I added some info on my last post.

Ed, based on his other topic, I assume his regulator may be getting long-in-the-tooth if not outright damaged by water etc.

And I wouldn't trust any tech lines, unless they are answered by the owner or main engineer of the company. That is likely the case at OregonMotorcycleParts.

Please Log in or Create an account to join the conversation.

Last edit: by loudhvx.
