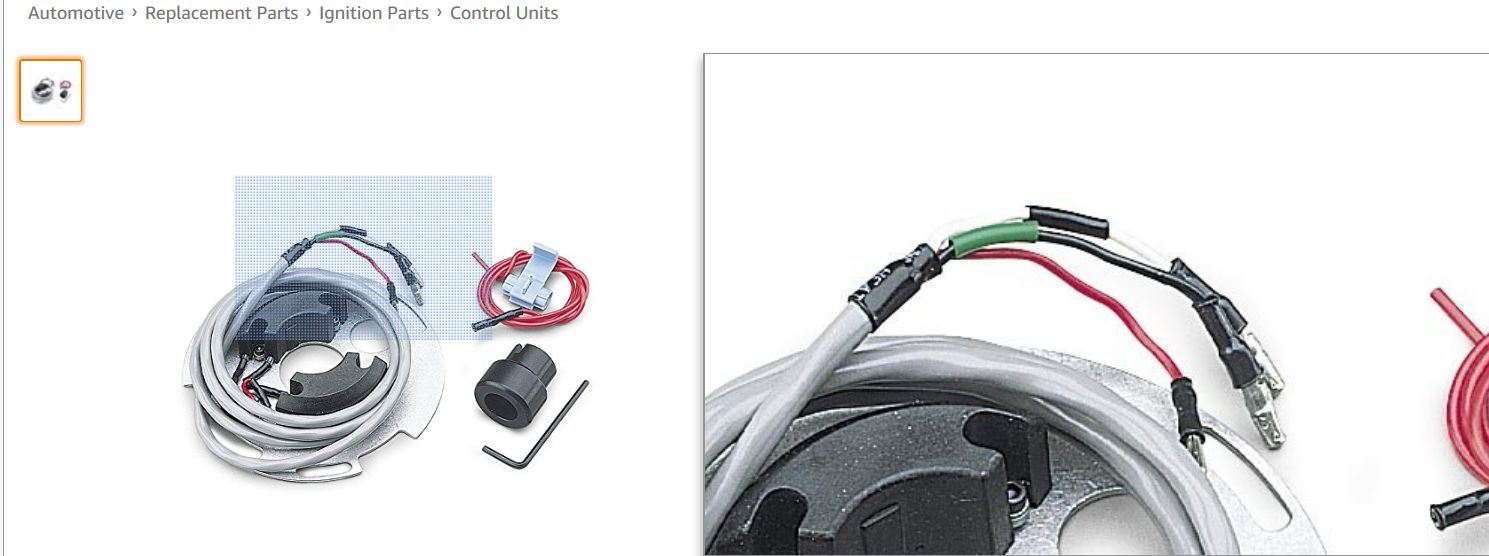

Are the two pickups on a Dyna S identical?
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Please Log in or Create an account to join the conversation.
- aenikolopov
- Topic Author
- Offline
- User
- Posts: 117
- Thank you received: 3

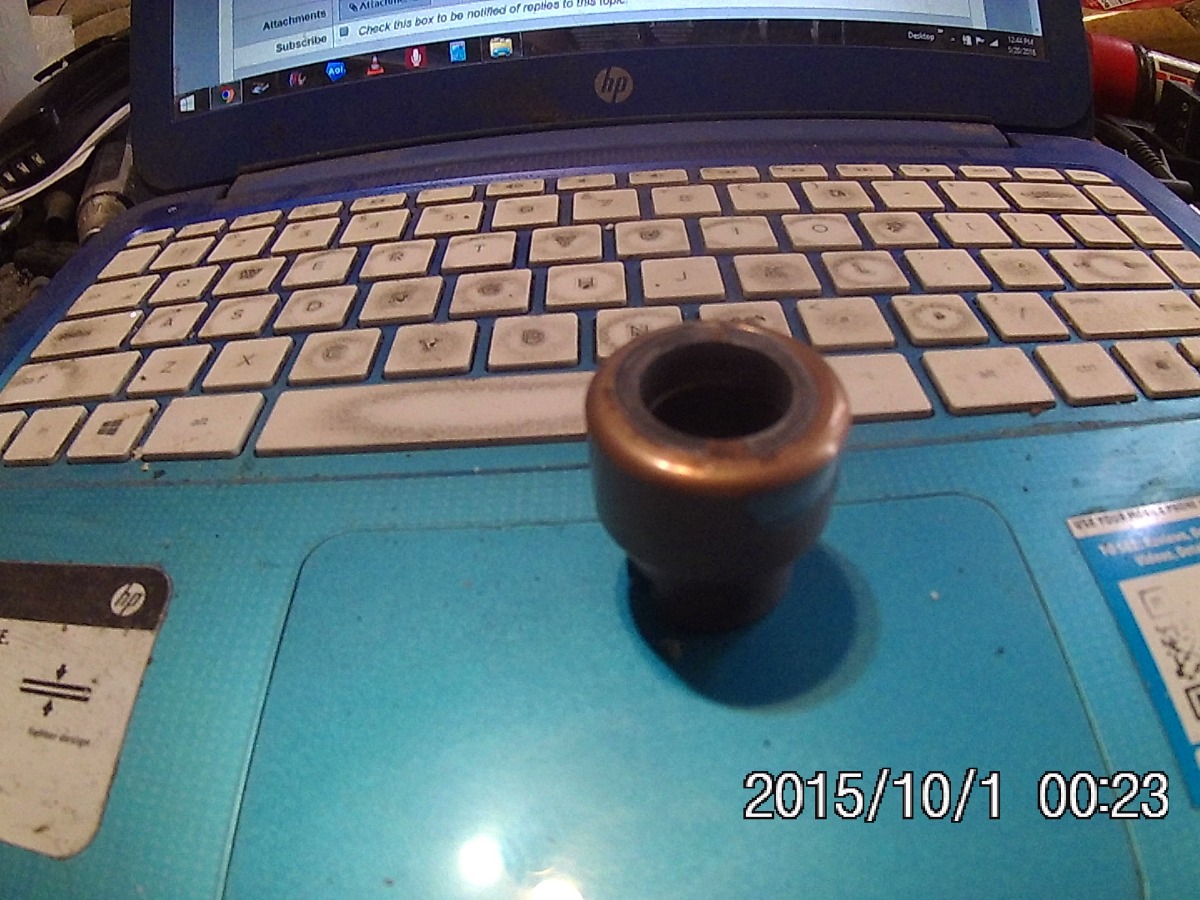

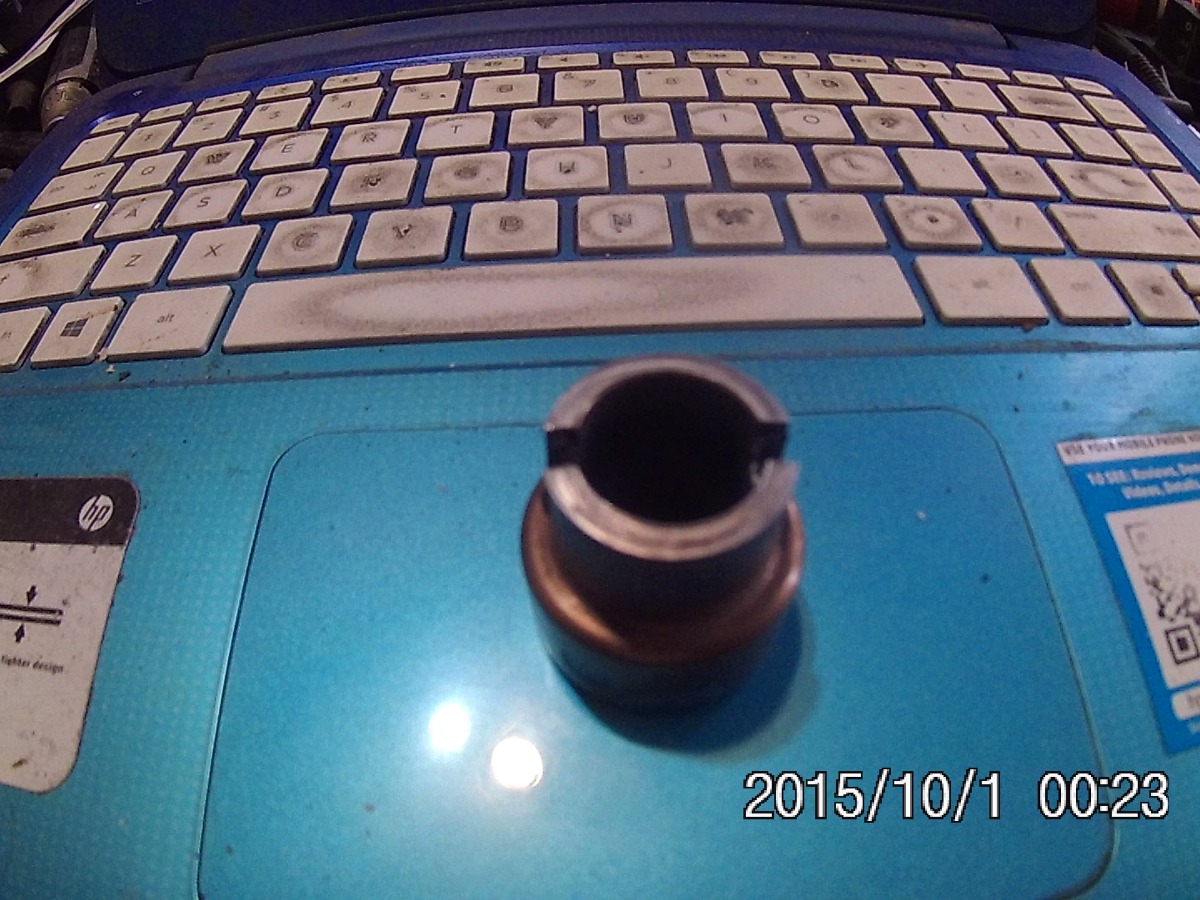

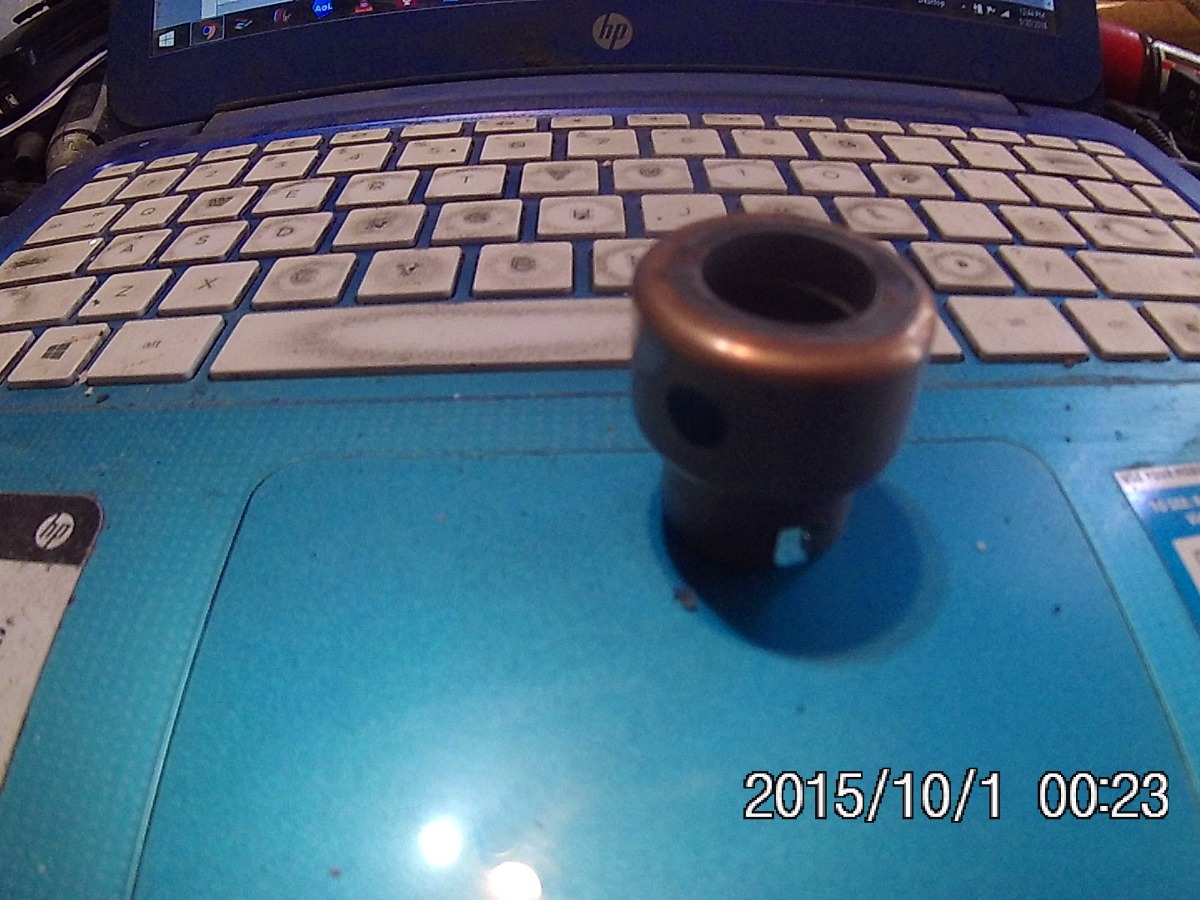

Oh, that certainly makes things easier. Will give this a try. Thanks all for your help, I'm constantly amazed by the community here.SWest wrote: No, the rotor can fit both ways on the shaft. Take off the bolt and turn it around.
Steve
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4198
- Thank you received: 2068
PS:
I had to modify my pickup plate to add an extra wire on one pickup for my new signal converter to get an clear square-wave signal corresponding to my KOSO rev counter.
The signal output should be between 0,5 - 0,8 Volt DC on the black/white wire.
Michael
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- aenikolopov
- Topic Author
- Offline
- User
- Posts: 117
- Thank you received: 3
Scirocco wrote: Or simply swap the black and white wire on the connectors plugs, no tools needed.
I don't think that's quite right. I have to switch both I think - rotate the rotor 180, so that the (working, currently 1/4) working pickup is triggered on the 2/3 beat, and then switch the black/white connectors you're talking about, so that that signal goes to the 2/3 coil, which is hooked up to the 2/3 plugs/cylinders.
If I only switched the wires as you said, I'd have the 2/3 plugs firing, but out of sync - they'd be firing when the 1/4 plugs should be. Please correct me if I'm wrong .
PS - could you expand on what you're talking about with the extra wire? 1) this isn't directly relevant to me, correct? Somewhat confused by your comment though - what does the signal between ground black/white look like? or are you just saying you spliced on an extra output from one of the pickups that you route to a tach? Assuming the latter, does the tach have it's own signal conditioner/signal converter, or is that a filter you've built yourself - if it's something you've built, I'd be interested in seeing the schematics.
Please Log in or Create an account to join the conversation.
- zed1015
- Away
- User
- Posts: 3023
- Thank you received: 1554
aenikolopov wrote: If I only switched the wires as you said, I'd have the 2/3 plugs firing, but out of sync - they'd be firing when the 1/4 plugs should be. Please correct me if I'm wrong .
Yes! correct.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
kzrider.com/forum/23-for-sale/611992-air-corrector-jets-
Please Log in or Create an account to join the conversation.
- Scirocco
- Offline
- Premium Member
- Never change a running system
- Posts: 4198
- Thank you received: 2068
The extra wire isn't directly relevant to you, correct.
I had test my output signal voltage and square-wave signal with an oscilloscope and a multimeter. The signal output should be between 0,5 - 0,8 Volt DC on the black/white wire if everything is right.

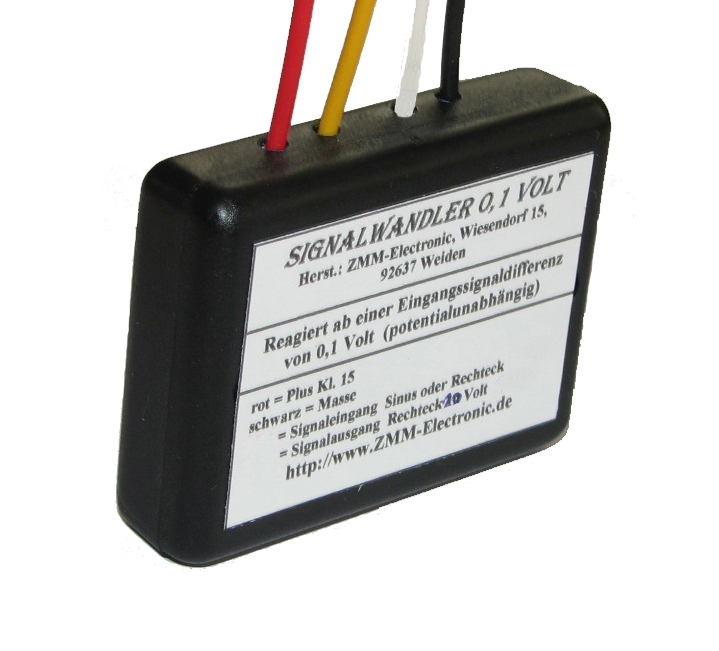

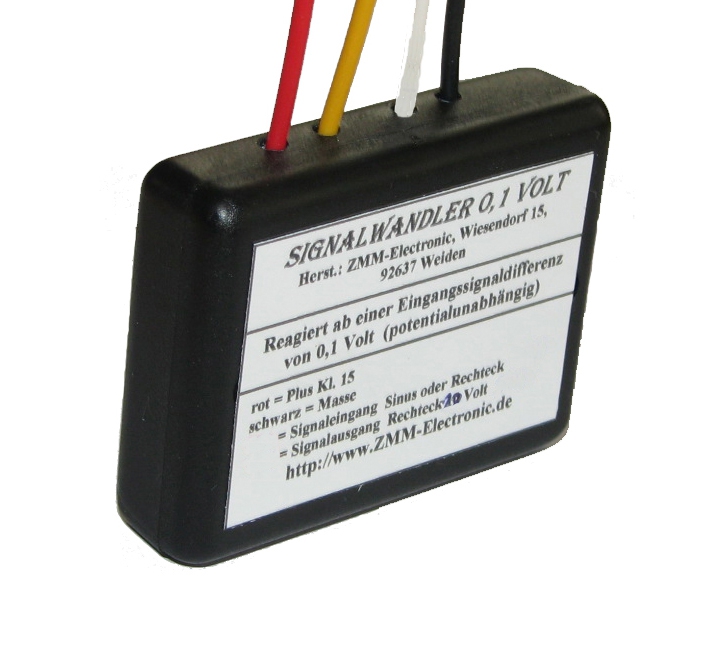

I need this signal converter to convert the 0,5 - 0,8 Volts square-wave signal to an 12 Volts square-wave signal to get a steady reading on my rev counter
So i have to add an extra wire to one pickup output for the signal converter input.
I have a twitching/bouncing rev counter problem @ 4000 and above.
My 1975 Z 1 B 900 Project
www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode
Please Log in or Create an account to join the conversation.
- aenikolopov
- Topic Author
- Offline
- User
- Posts: 117
- Thank you received: 3
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
