Wiring in a MOSFET R/R
- diego092409
- Topic Author
- Offline
- User
1982 KZ1100 B2 - 'Old Red' kzrider.com/forum/11-projects/601185-gpz-1100-resto-mod-old-red
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22977
- Thank you received: 2749
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thank you received: 2824
Please Log in or Create an account to join the conversation.
- martin_csr
- Offline
- User
- Posts: 8068
- Thank you received: 1656
Nessism has mentioned a Triumph mosfet harness that you can get for pretty cheap. Triumph P/N T2500676.
I would get a mosfet harness, then connect it to the motorcycle's wire harness the same as the stock reg-rec, using a new stock type 6-pin connector. Z1Enterprises.com or CycleTerminal.com. etc.
Please Log in or Create an account to join the conversation.
- diego092409
- Topic Author
- Offline
- User
- Posts: 110
- Thank you received: 4
Just to make sure I get this right. Is the brown wire serving as a positive or a grond to the various bits that it is running out to on the bike (e.g. horn, voltmeter in the dash etc. And should I connect this line to the positive or negative on the rectifier?
1982 KZ1100 B2 - 'Old Red' kzrider.com/forum/11-projects/601185-gpz-1100-resto-mod-old-red
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
- Posts: 22977
- Thank you received: 2749
Steve
Please Log in or Create an account to join the conversation.
- Nessism
- Offline
- Sustaining Member
- Posts: 7507
- Thank you received: 2824

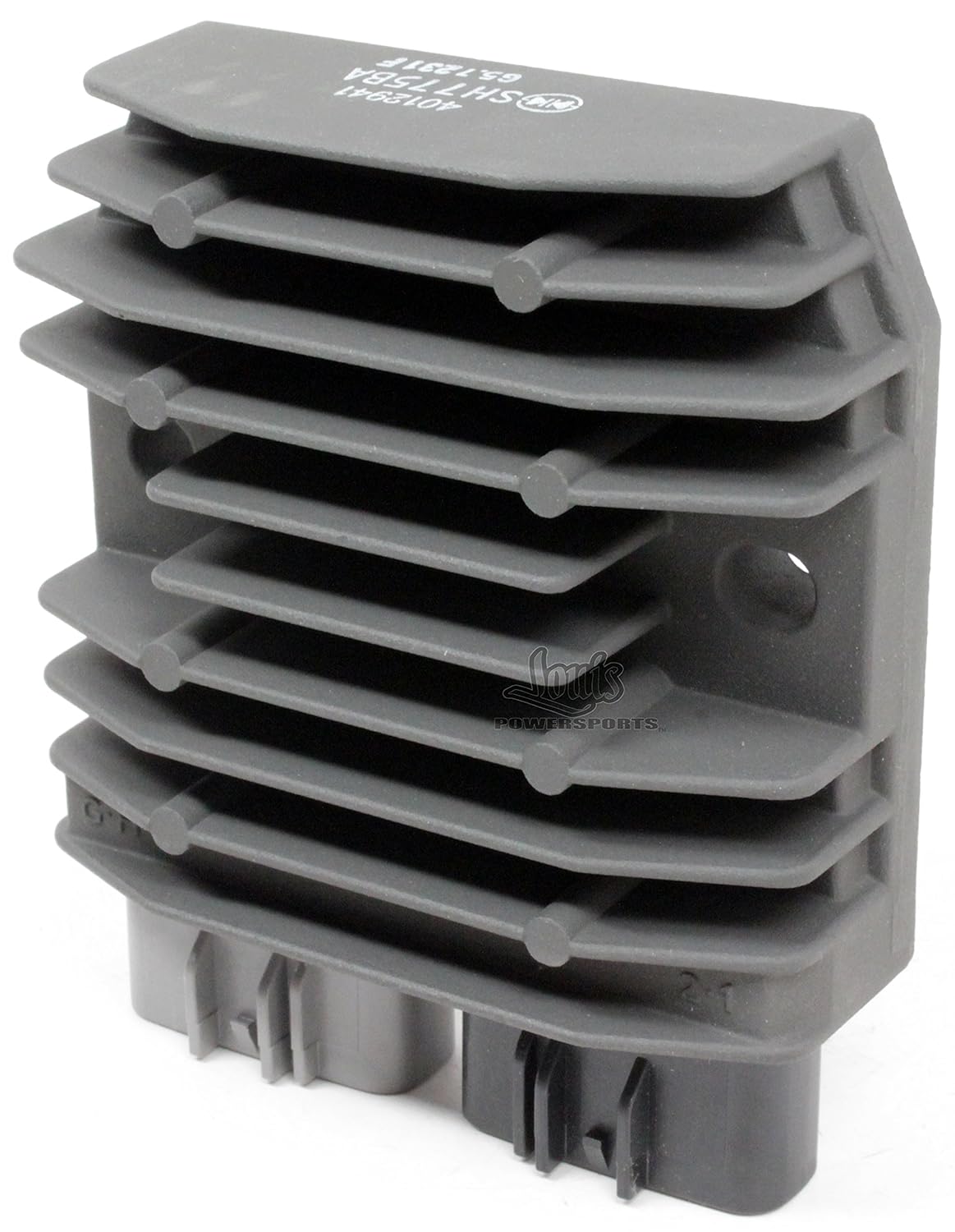

Back in the day Shindengen made a couple series of R/R's that used those sense wires. Honda used a lot of that type, and Kawasaki (obviously). By modern times they are old tech though. Again, the SH775 Series type R/R's are where it's at now since they protect your stator. Polaris used these R/R's on their RZR and Ranger vehicles and you could get a brand new one for about $70 as of a year or so back. Word got out how good they are though and now they are $150+. Sucks. Search on SH775 and you will find tons of info about them. They are the motorcycle forum darlings for bikes that burn stators.
Please Log in or Create an account to join the conversation.
- diego092409
- Topic Author
- Offline
- User
- Posts: 110
- Thank you received: 4
1982 KZ1100 B2 - 'Old Red' kzrider.com/forum/11-projects/601185-gpz-1100-resto-mod-old-red
2015 BMW K1600GT
2017 KTM 690 Enduro R
2018 Kymco Spade (wife's)
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616

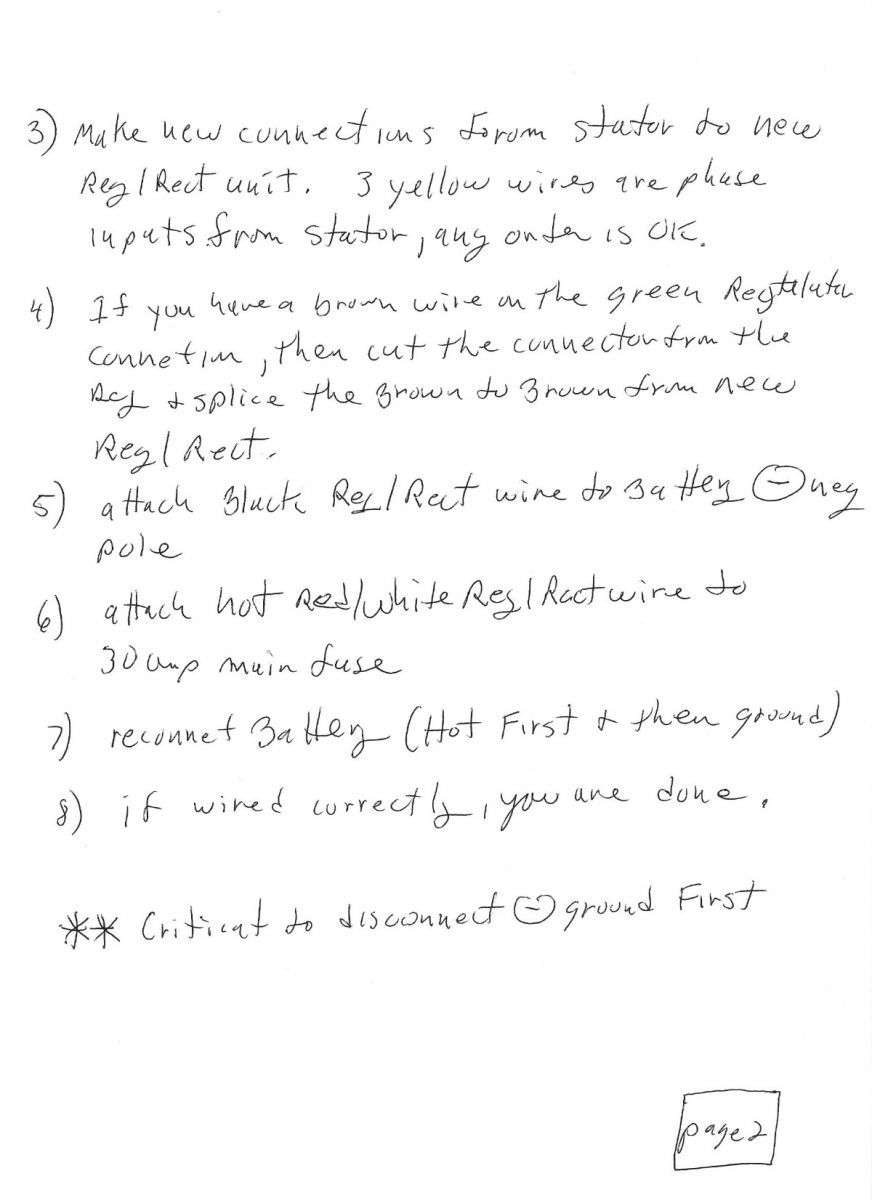

diego092409 wrote: So, in order to keep the horn and light's etc. that were fed or grounded by the brown wire, do I ground it or put it to hot (not necessarily on the r/r)
Repeating what others have said...
the brown wire is positive battery voltage when the ignition switch is on. It is NOT ground. Connecting it to ground will blow fuses. Don't do that.
Leave it unconnected and taped up Or you can leave it in the connector as long as it does not connect to any wire on the mating connector.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
