Wiring ?????

Markovich
Topic Author
Offline
User
Posts: 178
Thanks: 5

Wiring ?????

29 Sep 2017 15:42

#772000

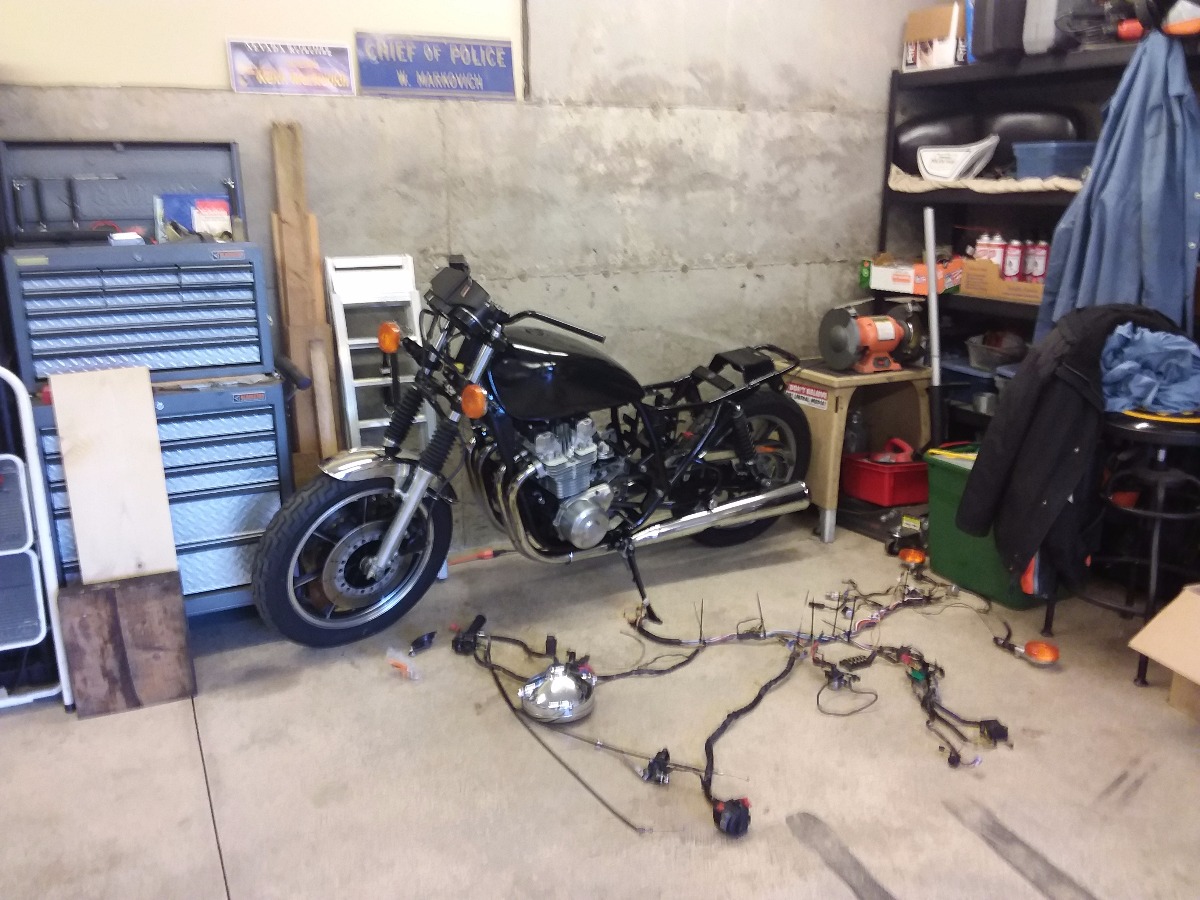

Hey guys, still at it on the 1990 KZP. Right now I'm trying to figure out what I can delete without messing up something else. Working with the wiring diagram but don't know best way to isolate each thing. So, any help on how to get rid of the turn signal self cancelling control unit would be great. Also, I will try to show a component I can't seem to identify. Anyway, all advice and guidance would be appreciated. Thanks, Keith

1990 KZ1000P, 72k miles, 10 years in storage, new, bars, tires, chain and sprockets, seat, carbs cleaned, police equipement removed.

Please Log in or Create an account to join the conversation.

Markovich
Topic Author
Offline
User
Posts: 178
Thanks: 5

Re: Wiring ?????

29 Sep 2017 15:47

#772001

Couldn't get pictures up. Trying again.☺️

1990 KZ1000P, 72k miles, 10 years in storage, new, bars, tires, chain and sprockets, seat, carbs cleaned, police equipement removed.

Attachments:

Please Log in or Create an account to join the conversation.

Markovich
Topic Author
Offline
User
Posts: 178
Thanks: 5

Re: Wiring ?????

29 Sep 2017 15:49

#772002

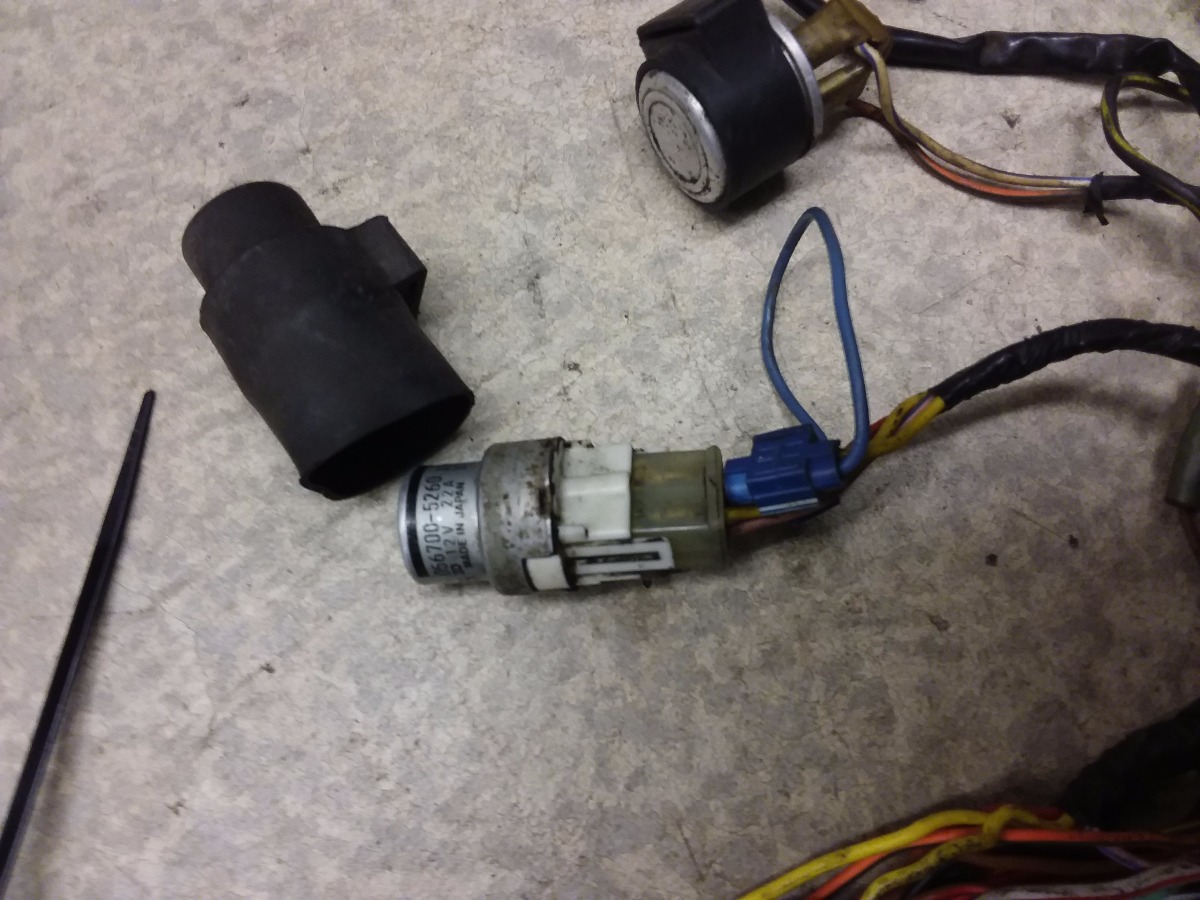

Couple more pics maybe...

1990 KZ1000P, 72k miles, 10 years in storage, new, bars, tires, chain and sprockets, seat, carbs cleaned, police equipement removed.

Attachments:

Please Log in or Create an account to join the conversation.

martin_csr
Offline
User
Posts: 8019
Thanks: 1645

Re: Wiring ?????

29 Sep 2017 18:25 - 29 Sep 2017 18:29

#772010

From the Electrical equipment diagram at Partzilla that appears to be a relay of some sort. #45 in the drawing. there's a photo of it. I'm not 100% sure, though.

1981 KZ650 Competition Sports and Road

Last edit: 29 Sep 2017 18:29 by martin_csr.

The following user(s) said Thank You: Markovich

Please Log in or Create an account to join the conversation.

loudhvx
Offline
KZr Legend
Posts: 10864
Thanks: 1618

Re: Wiring ?????

29 Sep 2017 20:03 - 29 Sep 2017 20:05

#772016

The blue splice is some later add-on by a user probably.

Can you tell what the other wire colors are? That might help narrow it down.

Because of the yellow wires, I first thought siren related. But not sure.

1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.

Last edit: 29 Sep 2017 20:05 by loudhvx.

Please Log in or Create an account to join the conversation.

Scirocco
Offline
Premium Member
Never change a running system
Posts: 4397
Thanks: 2242

Re: Wiring ?????

29 Sep 2017 21:59 - 30 Sep 2017 00:09

#772019

It is a kind of power relay for police pursuit light or siren equipment (purple/yellow wires)

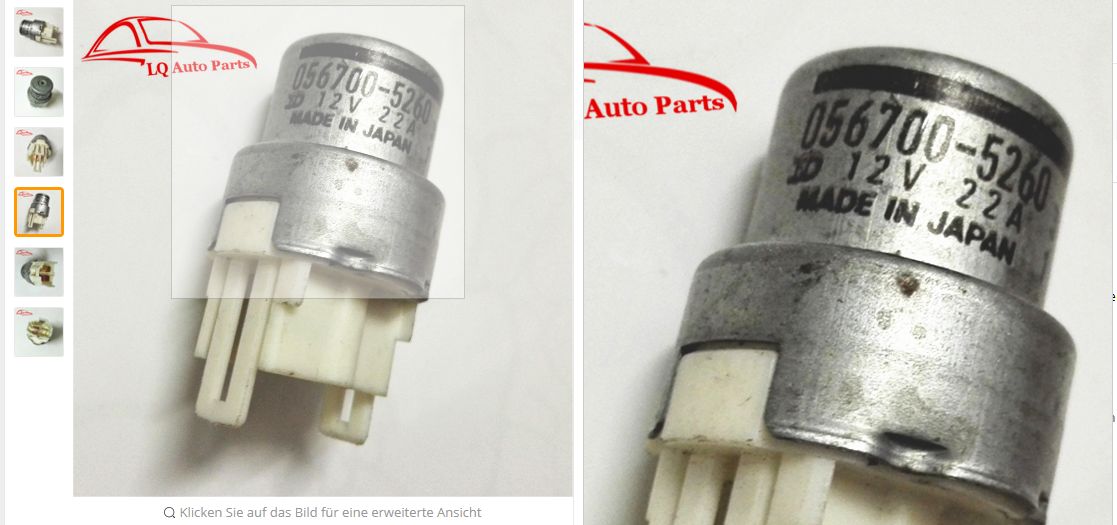

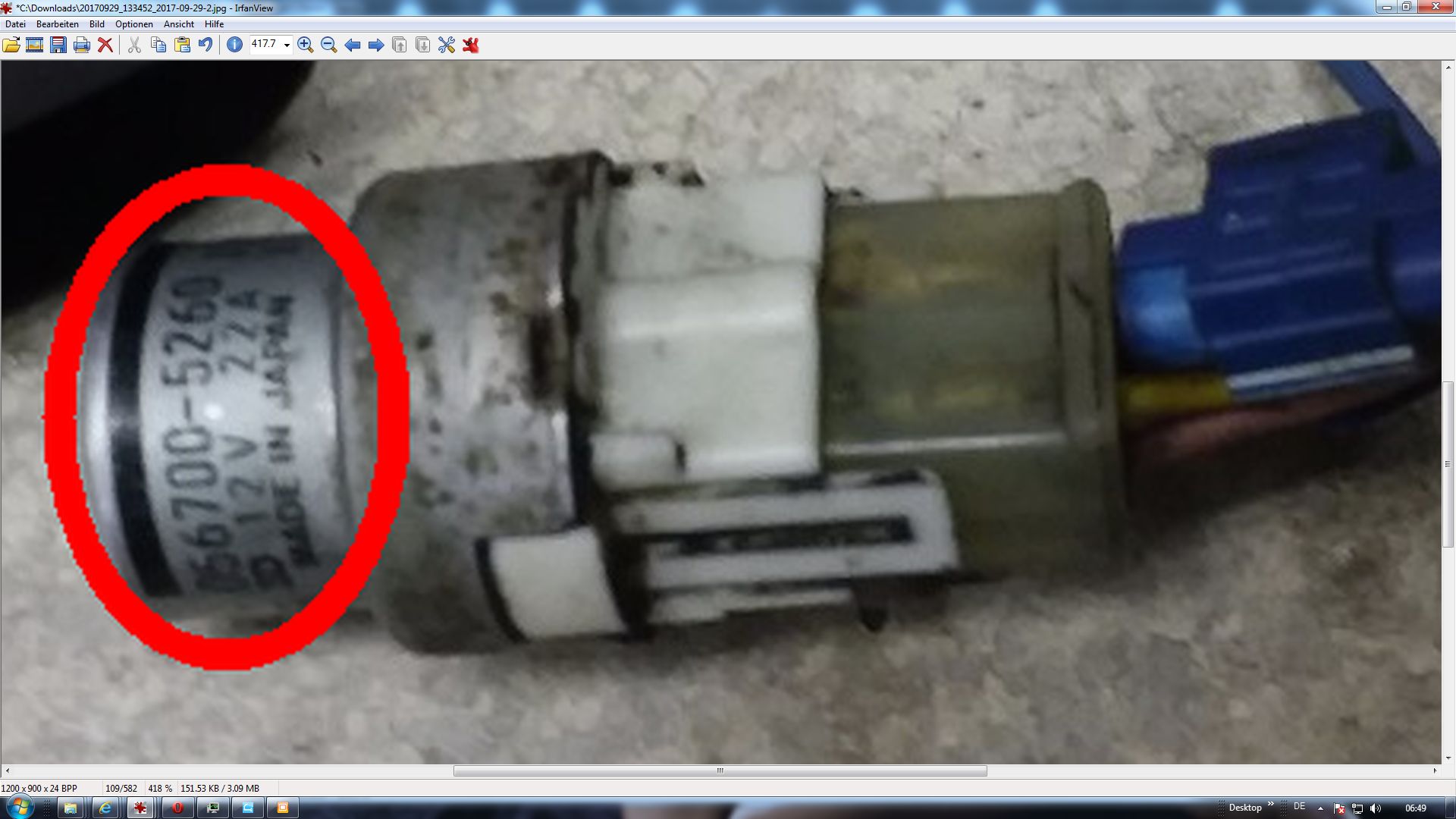

ND Nippon Denso 056700-3611 Relay
056700 5260 Relay 12V 22A For Toyota MR2 Hilux 4Runner-in Switches from Automobiles & Motorcycles

It is a power relay only, not a flasher relay

www.alibaba.com/product-detail/Auto-part...22A_60454663821.html

Can your upload your wiring diagram?

My 1975 Z 1 B 900 Project

www.kzrider.com/forum/11-projects/605133...ears-deep-sleep-mode

Attachments:

Last edit: 30 Sep 2017 00:09 by Scirocco.

Please Log in or Create an account to join the conversation.

martin_csr
Offline
User
Posts: 8019
Thanks: 1645

Re: Wiring ?????

30 Sep 2017 04:13 - 30 Sep 2017 04:19

#772023

In the parts diagram there is a pursuit relay listed, so it's probably for the siren stuff. see electrical & siren diagrams.

1981 KZ650 Competition Sports and Road

Last edit: 30 Sep 2017 04:19 by martin_csr.

The following user(s) said Thank You: Markovich

Please Log in or Create an account to join the conversation.

old_kaw
Offline
User
Posts: 929
Thanks: 270

Re: Wiring ?????

30 Sep 2017 07:39 - 30 Sep 2017 07:40

#772030

Scirocco wrote: It is a kind of power relay for police pursuit light or siren equipment (purple/yellow wires)
ND Nippon Denso 056700-3611 Relay
056700 5260 Relay 12V 22A For Toyota MR2 Hilux 4Runner-in Switches from Automobiles & Motorcycles

It is a power relay only, not a flasher relay

www.alibaba.com/product-detail/Auto-part...22A_60454663821.html

Can your upload your wiring diagram?

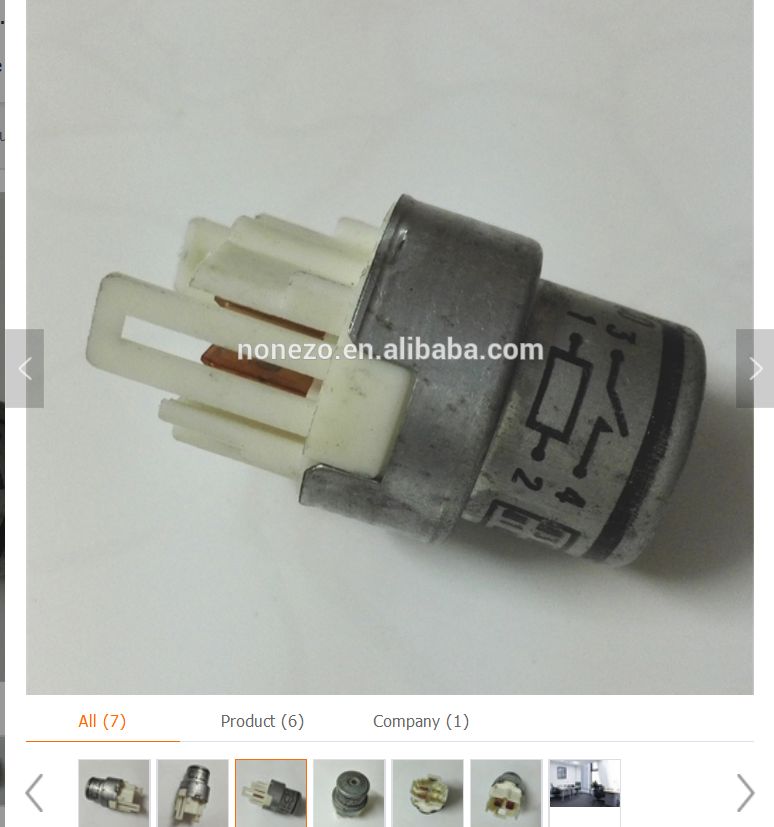

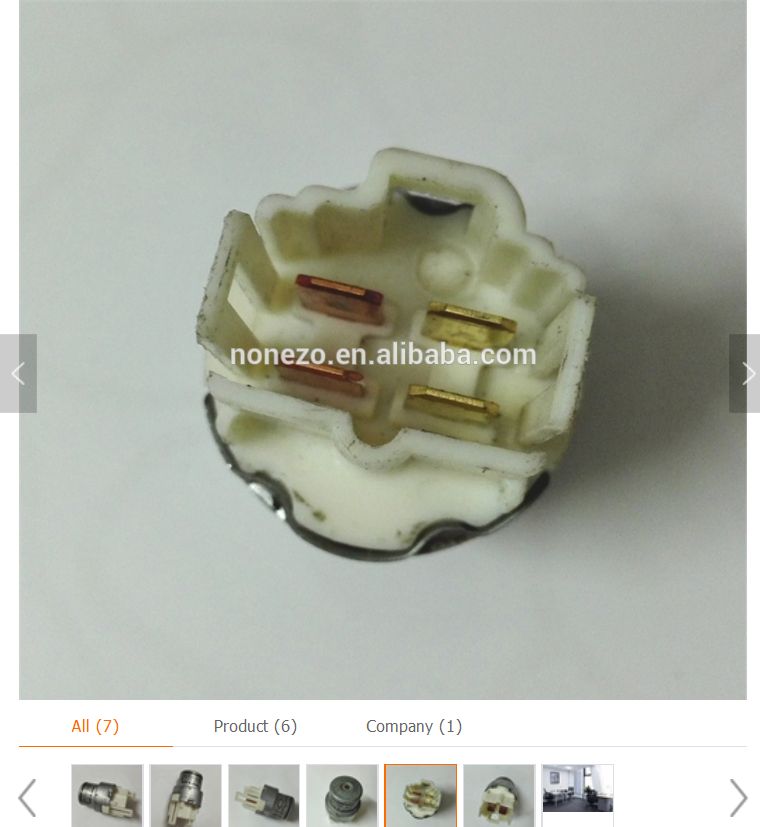

Yep! In looking at the electrical markings, that's just a normally open (NO) relay. Pin 1 &2 are the coil, and pin 3&4 are the switched terminals.

1981 Kawasaki Kz1000K1
Located in the Saint Louis, Missouri Area.

Last edit: 30 Sep 2017 07:40 by old_kaw.

The following user(s) said Thank You: Markovich

Please Log in or Create an account to join the conversation.

Markovich
Topic Author
Offline
User
Posts: 178
Thanks: 5

Re: Wiring ?????

30 Sep 2017 11:24

#772039

There are 2 yellow wires a red one and a grey with a blue stripe. The jumper is on the red and one yellow. I know when the cops sometimes sell them they strip the siren, and pursuit stuff but who knows if that jumper was to bypass something else. Harder to figure out when it's chopped up like that.

1990 KZ1000P, 72k miles, 10 years in storage, new, bars, tires, chain and sprockets, seat, carbs cleaned, police equipement removed.

Please Log in or Create an account to join the conversation.

Markovich
Topic Author
Offline
User
Posts: 178
Thanks: 5

Re: Wiring ?????

30 Sep 2017 11:31

#772040

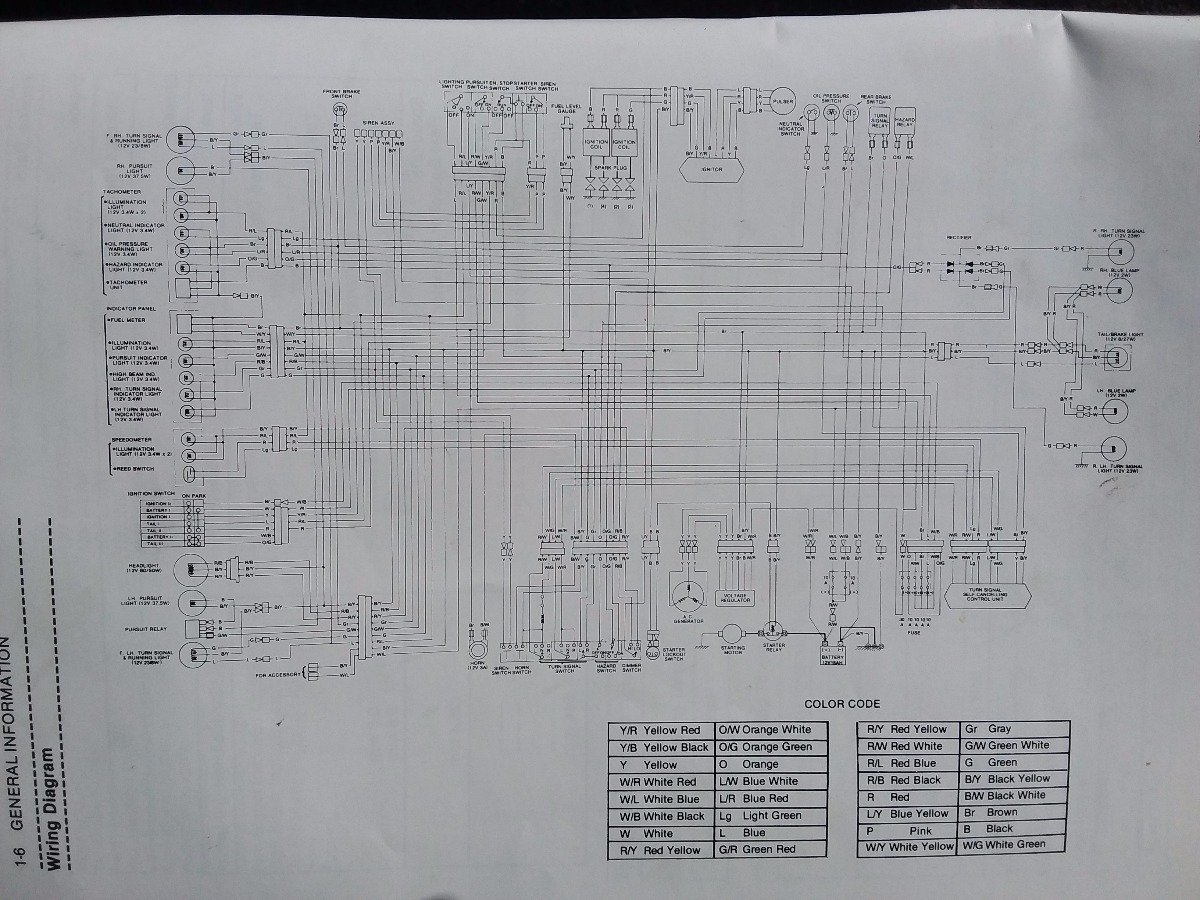

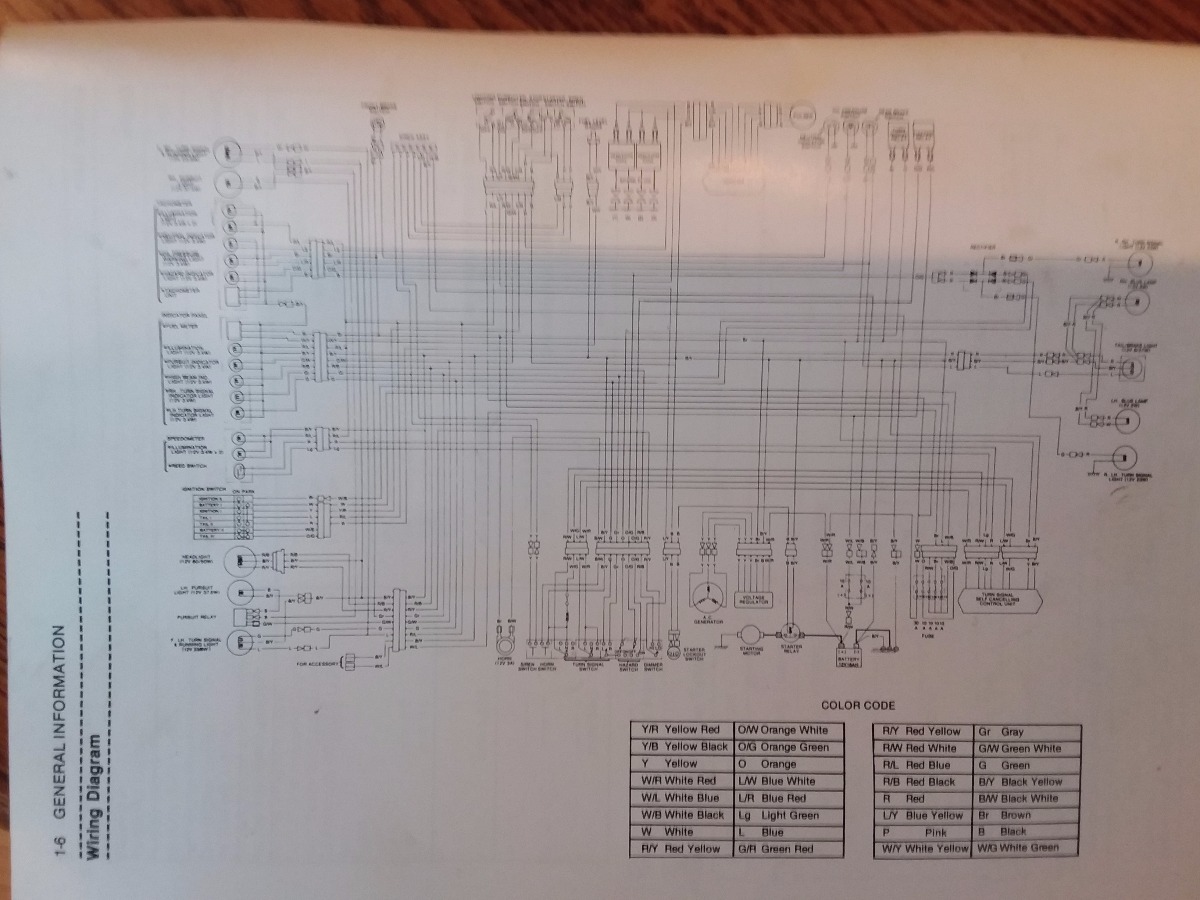

Here is the wiring diagram I'm using and the book it's in.

1990 KZ1000P, 72k miles, 10 years in storage, new, bars, tires, chain and sprockets, seat, carbs cleaned, police equipement removed.

Attachments:

Please Log in or Create an account to join the conversation.

Markovich
Topic Author
Offline
User
Posts: 178
Thanks: 5

Re: Wiring ?????

30 Sep 2017 11:34

#772041

I'm using a tablet so pictures are not the greatest. Also, note all the wires going to the turn signal self cancelling controller. Never worked since I got it. Ugh!

1990 KZ1000P, 72k miles, 10 years in storage, new, bars, tires, chain and sprockets, seat, carbs cleaned, police equipement removed.

Please Log in or Create an account to join the conversation.

Markovich
Topic Author
Offline
User
Posts: 178
Thanks: 5

Re: Wiring ?????

30 Sep 2017 11:43

#772042

This might be better

1990 KZ1000P, 72k miles, 10 years in storage, new, bars, tires, chain and sprockets, seat, carbs cleaned, police equipement removed.

Attachments:
