'79 B3 Wiring Schematic
- Mikaw
- Topic Author
- Offline
- Sustaining Member
Less
More
15 Jul 2017 20:40 #767050
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
'79 B3 Wiring Schematic was created by Mikaw
Looking for a 79 LTD Wiring Diagram.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
16 Jul 2017 06:21 #767066
by TwoCam
Replied by TwoCam on topic '79 B3 Wiring Schematic
Kz1000?
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
Less
More
- Posts: 10868
- Thank you received: 1616
16 Jul 2017 10:15 #767079
by loudhvx
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Replied by loudhvx on topic '79 B3 Wiring Schematic
There are several diagrams for a 1000 B3 in the filebase. Hover over "Filebase" and click on "Kz Documents". Follow the links till you get to Kz1000 electrical. There are 3 pages of diagrams. Page 1 has a colorized version.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- Mikaw
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
16 Jul 2017 14:32 #767101
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic '79 B3 Wiring Schematic
Yes a 1000.....1979 LTD "B3". I have looked thru the file-base and not the schematics i need. The only 79 in there is for a bike with breaker points, mine has pickup coils. Maybe its identified wrong or its an "A" and not a "B". The 1980 B4 in Chinese has the turn signal control unit which I don't have
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
16 Jul 2017 14:59 #767102
by TwoCam
Replied by TwoCam on topic '79 B3 Wiring Schematic
Your correct.....'78 and up had factory electronics ignition.... voltage Reg and rectifier were one unit and no more head light switch unless euro..... after '78. I'm sure I have a diagram at the shop. I'll check tomorrow when I get to work. Most of the wiring is the same as the older bikes. The '78/79 had the MKII engine. Had a bigger crankshaft and different alternator. Still a 3 phase but totally different design.
Please Log in or Create an account to join the conversation.
- Mikaw
- Topic Author
- Offline
- Sustaining Member
Less
More
- Posts: 5007
- Thank you received: 1918
16 Jul 2017 16:12 #767114
by Mikaw
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Replied by Mikaw on topic '79 B3 Wiring Schematic
TwoCam.... Thank you but it needs to be a 79-80, My 78 LTD has points and separate regulator and rectifier. JUst found out I do need a reserve lighting unit.
1976 KZ 900 A4 kzrider.com/forum/11-projects/613548-1976-kz-900-a4
1976 KZ 900 B1 LTD
1978 KZ 1000 B2 LTD
1980 KZ 750 E1
Kowledge Speaks, But Wisdom Listens.
Jimi Hendrix.
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
16 Jul 2017 16:49 #767119
by TwoCam
Replied by TwoCam on topic '79 B3 Wiring Schematic
Let me see what I have...... I'm going from memory...... i have 2 factory manuals. One for 77, other for 81-83 and an aftermarket manual......I know for a fact that '78/9 are mK II engines.... all by themselves for a lot of stuff...... stay tuned buddy......
The following user(s) said Thank You: GPz550D1
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
17 Jul 2017 04:47 #767143
by TwoCam

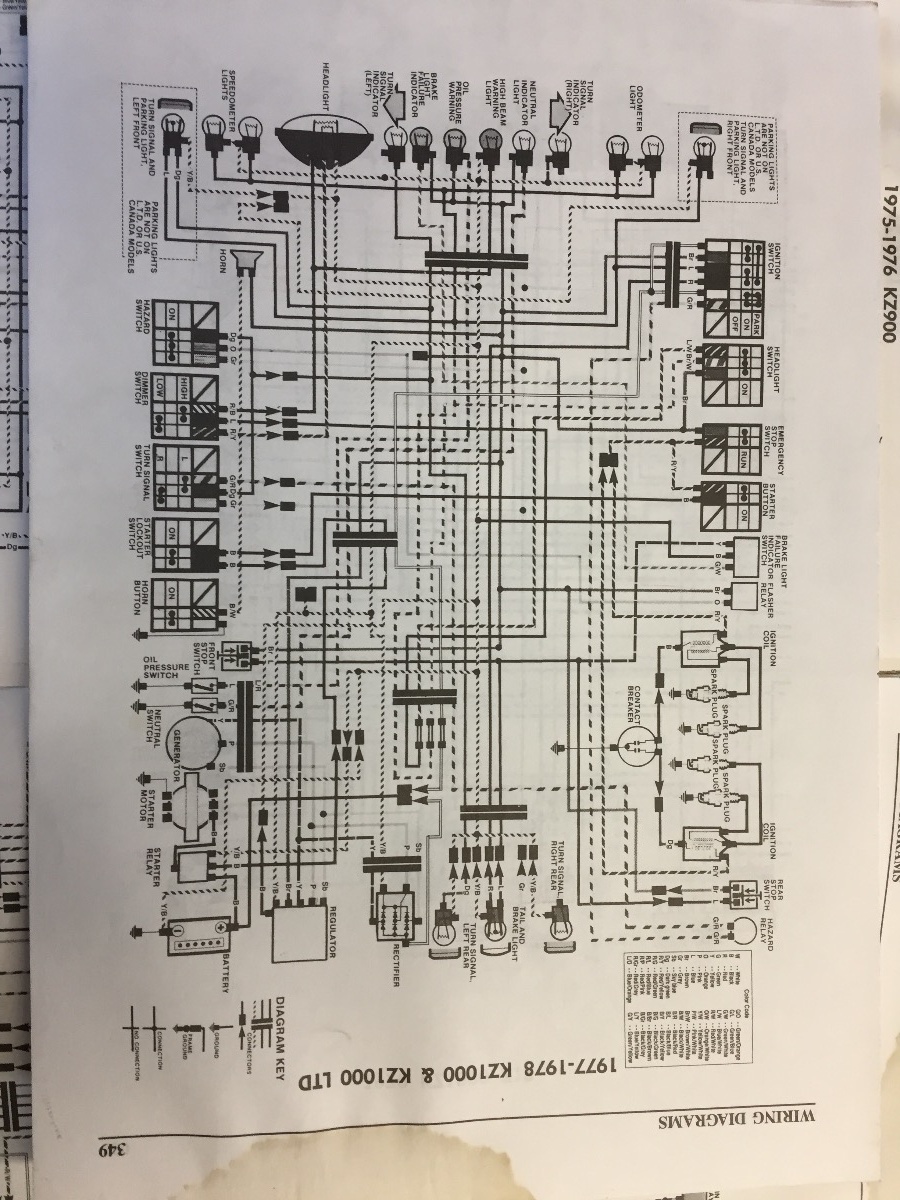

Replied by TwoCam on topic '79 B3 Wiring Schematic
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
17 Jul 2017 04:48 #767144
by TwoCam
Replied by TwoCam on topic '79 B3 Wiring Schematic
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
17 Jul 2017 04:50 #767145
by TwoCam
Replied by TwoCam on topic '79 B3 Wiring Schematic
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
17 Jul 2017 04:50 #767146
by TwoCam
Replied by TwoCam on topic '79 B3 Wiring Schematic
Please Log in or Create an account to join the conversation.
- TwoCam
- Offline
- User
Less
More
- Posts: 133
- Thank you received: 57
17 Jul 2017 04:51 #767147
by TwoCam
Replied by TwoCam on topic '79 B3 Wiring Schematic
Please Log in or Create an account to join the conversation.
