Plug wire connect

03 Oct 2016 09:18
#744331
Do the plug wires "screw" onto the coils as they do on the plug caps? 1980 Kz1000b Ltd
1980 KZ1000B Ltd

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 8018
  • Thanks: 1645

Re: Plug wire connect

03 Oct 2016 10:08 - 04 Oct 2016 05:17
#744334
Do your coils have the ribbed compression boots or do the plug wires appear to go straight into the coil body? If they have the ribbed boots, then yes, the wires unscrew from the coils. unscrew the ribbed boots first. there should be o-rings n stuff to make the wires waterproof. If yours have fittings or boots at the coils without the ribs, then I don't know about those.
1981 KZ650 Competition Sports and Road
Last edit: 04 Oct 2016 05:17 by martin_csr.

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7728
  • Thanks: 3113

Re: Plug wire connect

03 Oct 2016 10:20
#744335
Look at the spike. Is it threaded or smooth?
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

  • stokes
  • stokes's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 155
  • Thanks: 8

Re: Plug wire connect

03 Oct 2016 11:13
#744340
Nessism wrote: Look at the spike. Is it threaded or smooth?
If I could see that the wires would be off and I wouldnt be asking.There is a boot that pulls off and the wire goes into the coil.I tried twisting but it doesnt seem to be comming off,I'm afraid I may break the wire.Is it possible that the wires dont come off the coils?
1980 KZ1000B Ltd

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7728
  • Thanks: 3113

Re: Plug wire connect

03 Oct 2016 11:30
#744344
Most likely the wire is pushed down over a spike, but I'm not positive on those particular coils. If you decide to try to pull the wire out and it tears instead, you can dig the wire out using a pick tool with a hook bent into one end.

Here are some photos of a TEC coil from a GS Suzuki...

[img


[img
Ed
Carb O-ring Kits : www.kzrider.com/forum/3-carburetor/61807...-o-ring-kits?start=0

www.kzrider.com/forum/faq-wiki/618026-new-owner-things-to-know

1981 KZ750E2
www.kzrider.com/forum/11-projects/604901...z750e-project-thread

Please Log in or Create an account to join the conversation.

  • 650ed
  • 650ed's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 15333
  • Thanks: 2833

Re: Plug wire connect

03 Oct 2016 11:37
#744345
For sure the wires on my stock 1977 KZ650 coils cannot be removed from the coils without causing damage. If yours cannot be removed you may want to consider using NGK splicers. Ed

www.dimecitycycles.com/vintage-cafe-race...nnector-207-120.html
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23368
  • Thanks: 2902

Re: Plug wire connect

03 Oct 2016 13:44
#744356
You can replace the wires but new coils would be better. You can dig out the old wires and slip in new ones with epoxy.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • KZB2 650
  • KZB2 650's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 1475
  • Thanks: 265

Re: Plug wire connect

03 Oct 2016 13:59
#744358
I dug out mine and epoxied a new set of Andrews wires in mine the very first year I got the bike (1980)..... worked great till 84 when I bought the new Dyna's. I measured the depth carefully and marked em so I was sure they bottomed out good on the spike.
1978 KZ650 b-2
700cc Wiseco kit 10 to 1.
1980 KZ750 cam, ape springs, stock clutch/ Barnett springs.
Vance and Hines Header w/ comp baffle and Ape pods, Dyna S and green coils, copper wires.
29MM smooth bores W/ 17.5 pilots, 0-6s and 117.5 main
16/42 gearing X ring chain and alum rear JT sprocket.
The following user(s) said Thank You: Nessism

Please Log in or Create an account to join the conversation.

  • stokes
  • stokes's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 155
  • Thanks: 8

Re: Plug wire connect

03 Oct 2016 14:51
#744360
What exactly do you mean by dig them out or dug them out?
1980 KZ1000B Ltd

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23368
  • Thanks: 2902

Re: Plug wire connect

03 Oct 2016 15:50
#744365
If they won't pull out you'll have to dig the insulation out being careful not to break the spike in the center. I'm uploading a clip now.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • Nessism
  • Nessism's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • Posts: 7728
  • Thanks: 3113

Re: Plug wire connect

03 Oct 2016 15:54
#744367

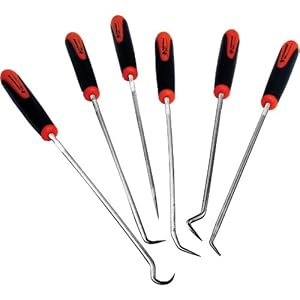

Use tools like these. You may need to custom bend the tip to help you break apart and rip out the chunks of old wire stuck inside the coil tunnel.
