Simplified wiring on a 1980 kz750g twin, w/2 carbs
- Wolfgang666
-
Topic Author
- Offline
- User
-
Registered
- Posts: 3
- Thanks: 0
Simplified wiring on a 1980 kz750g twin, w/2 carbs
29 Jun 2016 17:53
hey there kzriders new to the club, new to bikes, not new to wiring. Im an automation electrician here in the pnw of the united states,
first off i know this topic has been covered and belive me ive dug through it all and cant find a good diagram with what i want or awnser my questions. Just procured myself a 1980kz 750 G at least i belive it is a g being that the vin on the frame starts with "kz750g" so i started out trying to find a wiring diagram for the G just to realize there isnt one? can anyone clear that up for me? i can find all other trim diagrams
Im trying to run my bike bare bones but with blinkers on the Rear and an electric start which from most bare bones digrams i can find people do not prefer to do. (got my bike half bobber with no wiring harness so working with stock relays/ignition isnt an option)
last do any of you bobber/ chopper builders have a go to universal wiring kit with key switch and relays included you'd recommend?
many thanks -reid
pic is of how i recived the bike
first off i know this topic has been covered and belive me ive dug through it all and cant find a good diagram with what i want or awnser my questions. Just procured myself a 1980kz 750 G at least i belive it is a g being that the vin on the frame starts with "kz750g" so i started out trying to find a wiring diagram for the G just to realize there isnt one? can anyone clear that up for me? i can find all other trim diagrams
Im trying to run my bike bare bones but with blinkers on the Rear and an electric start which from most bare bones digrams i can find people do not prefer to do. (got my bike half bobber with no wiring harness so working with stock relays/ignition isnt an option)
last do any of you bobber/ chopper builders have a go to universal wiring kit with key switch and relays included you'd recommend?
many thanks -reid
pic is of how i recived the bike
Attachments:
Please Log in or Create an account to join the conversation.
- DoctoRot
-
- Offline
- Sustaining Member
-
Registered
- Oh, the usual... I bowl, I drive around...
- Posts: 2586
- Thanks: 736
Re: Simplified wiring on a 1980 kz750g twin, w/2 carbs
29 Jun 2016 23:29 - 29 Jun 2016 23:55
HI there, welcome to the forum. Did you pick that bike up in Mt Vernon? I think that is this bike. Guy was keeping a thread here if that interests you.
kzrider.com/forum/11-projects/597190-197...rection?limitstart=0
kzrider.com/forum/11-projects/597190-197...rection?limitstart=0
Attachments:
Last edit: 29 Jun 2016 23:55 by DoctoRot.
Please Log in or Create an account to join the conversation.
- martin_csr
-
- Offline
- User
-
Registered
- Posts: 8018
- Thanks: 1645
Re: Simplified wiring on a 1980 kz750g twin, w/2 carbs
30 Jun 2016 05:02 - 30 Jun 2016 13:02
Search kzrider for bare bones for mattylight. it's a topic by loudhvx in which he provides a large number of simplified wiring diagrams. AAA+++
Last edit: 30 Jun 2016 13:02 by martin_csr.
Please Log in or Create an account to join the conversation.
- loudhvx
-
- Offline
- KZr Legend
-
Registered
- Posts: 10864
- Thanks: 1619
Re: Simplified wiring on a 1980 kz750g twin, w/2 carbs
30 Jun 2016 07:11 - 30 Jun 2016 07:19

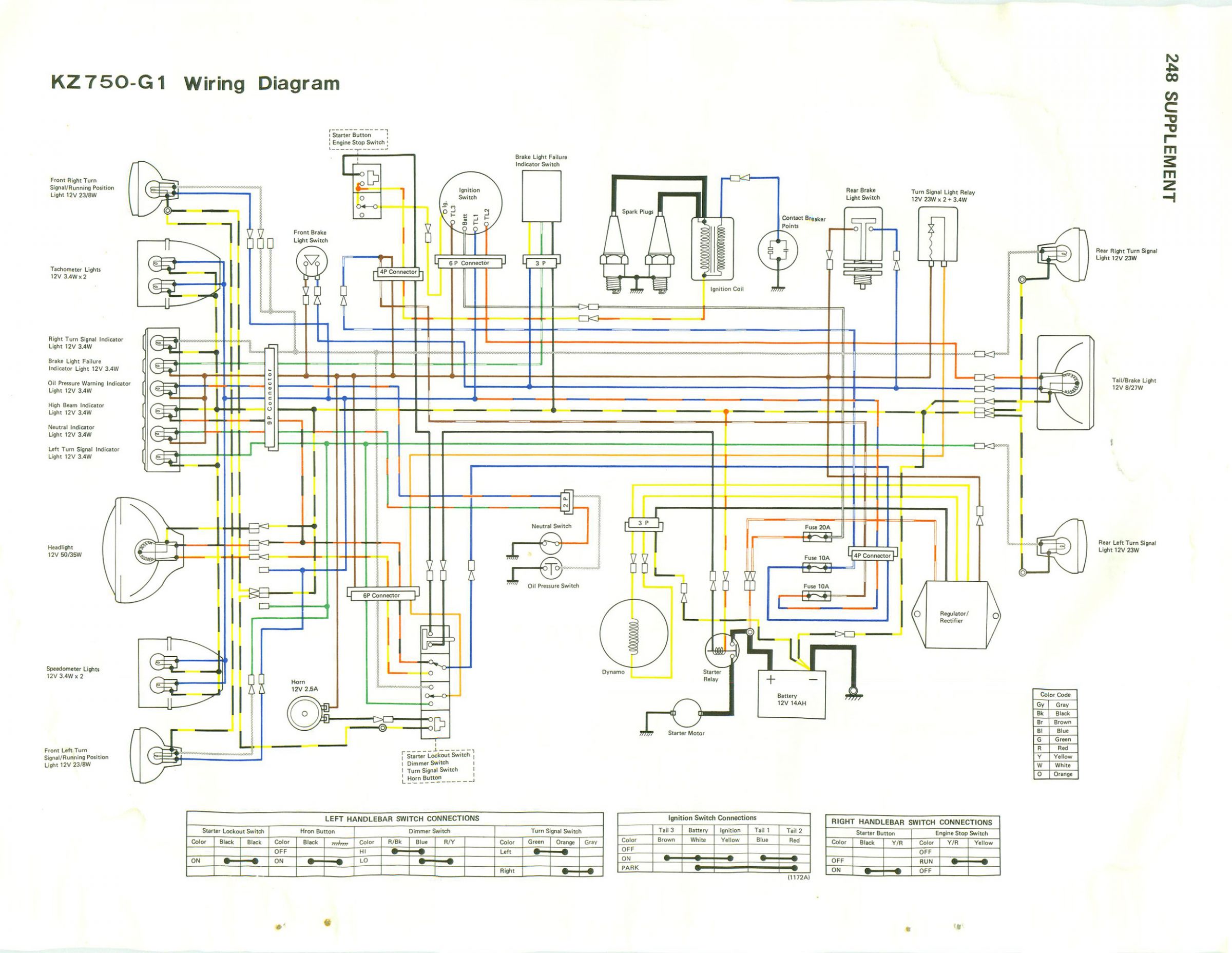

There's a couple of G1 twins. One was in Jan 2011, the other was Jan 2012. But one has electronic ignition, and the other was kick only. I'll post a points version with electric start. (Last page of Mattylight.)
