19 Mar 2016 13:04 #716183
by GPzEric
My wife asked me if I still loved her - I said "Honey, I love you more than new carburetor boots ! "
1982 KZ1100B2 (GPz)
1982 KZ750R1 (GPz)
(2) 1981 KZ550D1 (GPz) 1 mint, 1 under construction
1983 GS1100E
GPz1100 experts - was created by GPzEric
My rectifier is weak and going intermittent .
I have a new one, so my question is this - can I get in there above the swingarm and change it from the bottom, or do I have to gut-out my motorcycle to get at it?
I have a new one, so my question is this - can I get in there above the swingarm and change it from the bottom, or do I have to gut-out my motorcycle to get at it?
My wife asked me if I still loved her - I said "Honey, I love you more than new carburetor boots ! "
1982 KZ1100B2 (GPz)
1982 KZ750R1 (GPz)
(2) 1981 KZ550D1 (GPz) 1 mint, 1 under construction
1983 GS1100E
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
19 Mar 2016 16:48 #716224
by SWest
Replied by SWest on topic GPz1100 experts -
I have to take out my battery box to get to it easily. I just put my new R/R under a side cover.
Steve
Steve
Please Log in or Create an account to join the conversation.
- Tyrell Corp
- Offline
- User
- "You were made as well as we could make you"
Less
More
- Posts: 1650
- Thank you received: 261
19 Mar 2016 16:53 #716226
by Tyrell Corp
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Replied by Tyrell Corp on topic GPz1100 experts -
You can maybe get to the two m6 fasteners underneath if you unbolt the battery frame and lift it out just a touch - without removing it or diconnecting too much..
I would rubber mount any new replacement and clean up the exisitng wiring loom male blade connector.
First check the problem isn't a defective stator wiring / connector issue, the 'intermittent' part makes me think that. A blown rectifier diode I'd expect to be a permanent unchanging issue.
Dump the digi multimeter when doing running voltage tests, the meter picks up ignition interference and the readings will be all over the place. usxe an analouge insted, only really looking for about 0.5 volt accuracy anyway.
I would rubber mount any new replacement and clean up the exisitng wiring loom male blade connector.
First check the problem isn't a defective stator wiring / connector issue, the 'intermittent' part makes me think that. A blown rectifier diode I'd expect to be a permanent unchanging issue.
Dump the digi multimeter when doing running voltage tests, the meter picks up ignition interference and the readings will be all over the place. usxe an analouge insted, only really looking for about 0.5 volt accuracy anyway.
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
The following user(s) said Thank You: GPzEric
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
19 Mar 2016 19:02 - 19 Mar 2016 19:04 #716248
by Patton
1973 Z1
KZ900 LTD
Replied by Patton on topic GPz1100 experts -

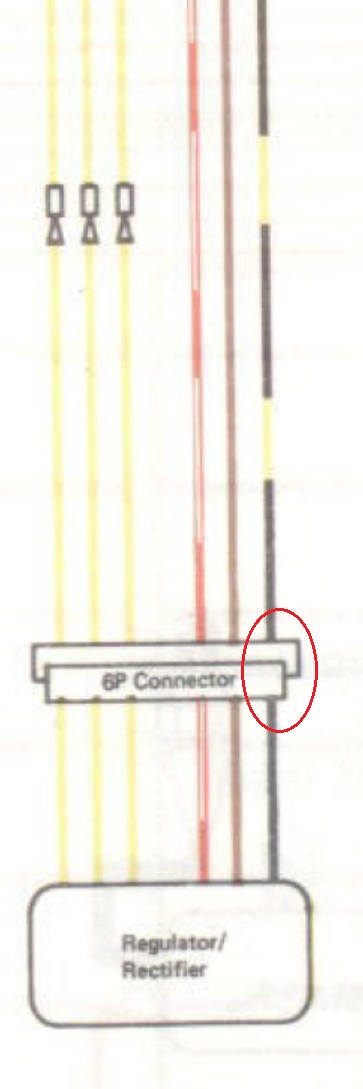

For reference, here's an excerpt from the 1982 KZ1100B2 GPZ wiring diagram in KZr's FILEBASE.
If not already done, would assure integrity of the 3 bullet connectors (yellow wires), and connections through the 6-wire connector, especially the ground (black yellow).
Link to diagram if needed: www.kzrider.com/filebase/download/108-kz...ctrical/242-kz1100b2
(Opened with Adobe Acrobat)
Good Fortune!
If not already done, would assure integrity of the 3 bullet connectors (yellow wires), and connections through the 6-wire connector, especially the ground (black yellow).
Link to diagram if needed: www.kzrider.com/filebase/download/108-kz...ctrical/242-kz1100b2
(Opened with Adobe Acrobat)
Good Fortune!
1973 Z1
KZ900 LTD
Last edit: 19 Mar 2016 19:04 by Patton.
Please Log in or Create an account to join the conversation.
- Tyrell Corp
- Offline
- User
- "You were made as well as we could make you"
Less
More
- Posts: 1650
- Thank you received: 261
20 Mar 2016 09:56 - 20 Mar 2016 10:03 #716341
by Tyrell Corp
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Replied by Tyrell Corp on topic GPz1100 experts -
Disconnect the block connector and get a ohm meter and probe all the three yellow wires, check the resistance between both wires, should be roughly equal on all three legs of the three phase stator.
this is the sort of fault i had on mine that would easily be misdiagnosed as a duff RR box:
www.kzrider.com/forum/4-electrical/59810...ging-problems#671299
then a few months later the rotor mashed the stator wiring - I hadn't tampered with it and assumed it was still factory tight :ohmy:
www.kzrider.com/forum/2-engine/599018-75...tor-goes-awol#682156
this is the sort of fault i had on mine that would easily be misdiagnosed as a duff RR box:
www.kzrider.com/forum/4-electrical/59810...ging-problems#671299
then a few months later the rotor mashed the stator wiring - I hadn't tampered with it and assumed it was still factory tight :ohmy:
www.kzrider.com/forum/2-engine/599018-75...tor-goes-awol#682156
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Last edit: 20 Mar 2016 10:03 by Tyrell Corp.
Please Log in or Create an account to join the conversation.
- GPzEric
- Topic Author
- Offline
- User
Less
More
- Posts: 169
- Thank you received: 31
20 Mar 2016 20:14 - 20 Mar 2016 20:15 #716435
by GPzEric
My wife asked me if I still loved her - I said "Honey, I love you more than new carburetor boots ! "
1982 KZ1100B2 (GPz)
1982 KZ750R1 (GPz)
(2) 1981 KZ550D1 (GPz) 1 mint, 1 under construction
1983 GS1100E
Replied by GPzEric on topic GPz1100 experts -
Thanks for the advice guys - I got it charging.
First, I put away my digital multimeter and dug out one of my Dad's analog ones from his TV repair shop.
My digital one showed the voltage going up/down as it 'tracked' but the old one held a rock steady 12.6 volts not running, and 12.3 volts running, as it powered the bike. Not charging at all.
I did the stator checks out of the manual, and it looked fine.
So I took it down as far as the fuel pump, so I could get at the connector to the rectifier, and I plugged in the new Electrosport rectifier I had bought - and still no charging.
So I got into my box of parts, where I had bought the whole fuel/pump fuel injection setup off another low-mileage GPz, took the rectifier off of it and plugged it into the harness, and Bingo - a nice steady 14 volts. I then looked at the wiring harness out of the new rectifier, and discovered only 5 wires going into the 6 pin harness - so I guess it's not for mu model and I'll have to return it.
For the time being, I put the rectifier under the right leg sidecover, and I'll fab up a nice bracket and keep it there. For the time being it's snug against the airbox with tie-wraps. The next time I have to pull the tank, and get down below the fuel pump I'll move it to the correct spot.
First, I put away my digital multimeter and dug out one of my Dad's analog ones from his TV repair shop.
My digital one showed the voltage going up/down as it 'tracked' but the old one held a rock steady 12.6 volts not running, and 12.3 volts running, as it powered the bike. Not charging at all.
I did the stator checks out of the manual, and it looked fine.
So I took it down as far as the fuel pump, so I could get at the connector to the rectifier, and I plugged in the new Electrosport rectifier I had bought - and still no charging.
So I got into my box of parts, where I had bought the whole fuel/pump fuel injection setup off another low-mileage GPz, took the rectifier off of it and plugged it into the harness, and Bingo - a nice steady 14 volts. I then looked at the wiring harness out of the new rectifier, and discovered only 5 wires going into the 6 pin harness - so I guess it's not for mu model and I'll have to return it.
For the time being, I put the rectifier under the right leg sidecover, and I'll fab up a nice bracket and keep it there. For the time being it's snug against the airbox with tie-wraps. The next time I have to pull the tank, and get down below the fuel pump I'll move it to the correct spot.
My wife asked me if I still loved her - I said "Honey, I love you more than new carburetor boots ! "
1982 KZ1100B2 (GPz)
1982 KZ750R1 (GPz)
(2) 1981 KZ550D1 (GPz) 1 mint, 1 under construction
1983 GS1100E
Last edit: 20 Mar 2016 20:15 by GPzEric.
Please Log in or Create an account to join the conversation.
- Tyrell Corp
- Offline
- User
- "You were made as well as we could make you"
Less
More
- Posts: 1650
- Thank you received: 261
20 Mar 2016 21:08 #716451
by Tyrell Corp
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces
Replied by Tyrell Corp on topic GPz1100 experts -
Glad you sorted it, this 5/6 wire RR wiring isn't a big deal: the 5 wires are 3 yellow form the 3 phase stator, a ground and a battery +ve.
The 6 th wire detects a volt drop at the ignition switch rather than the battery (although I think it makes little difference as volt drop will be a function of the load on the system anyway. )
The 6 th wire detects a volt drop at the ignition switch rather than the battery (although I think it makes little difference as volt drop will be a function of the load on the system anyway. )
