Ignition Switch

21 Jul 2015 14:48
#682056
So I bout a complete kit. The switch that came with the kit has a 6 pin connector and the original has 4.
Bike is a 76 kz900A4...has someone adapt the 6 pin to the 4 pin.
If so how did you do it....
Thx
1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23375
  • Thanks: 2902

Re: Ignition Switch

21 Jul 2015 15:02
#682059
One size fits all. Take a paperclip and pry the little tangs so the connector slips out and put them in your block.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • spdygon
  • spdygon's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 1010
  • Thanks: 117

Re: Ignition Switch

21 Jul 2015 16:22 - 21 Jul 2015 16:22
#682068
Ok but what about the two extra wires?
Do I cap them?
1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project
Last edit: 21 Jul 2015 16:22 by spdygon.

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23375
  • Thanks: 2902

Re: Ignition Switch

21 Jul 2015 17:28
#682076
I would, might be good for accessories.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • bountyhunter
  • bountyhunter's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 7245
  • Thanks: 338

Re: Ignition Switch

21 Jul 2015 22:48 - 21 Jul 2015 22:48
#682117
Take a paperclip and pry the little tangs so the connector slips out and put them in your block.

Make sure the new switch makes the connections you need.

On mine, I unsoldered the original wire set from the old switch and attached it to the new switch because my original had more wires in my harness than the new switch had.
1979 KZ-750 Twin
Last edit: 21 Jul 2015 22:48 by bountyhunter.

Please Log in or Create an account to join the conversation.

  • gd4now
  • gd4now's Avatar
  • Offline
  • User
  • User
    Registered
  • Denco where did you go?
  • Posts: 1535
  • Thanks: 567

Re: Ignition Switch

21 Jul 2015 22:52
#682118
Either the documents that came with the switch will indicate what each lead on it does, or you can test them with a VOM to see what each does when the key is on and when it is off. Then make sue just which ones you need and do the splice that is called for. If either of the 2 left over are hot with the key on then yes you need to either attache them to some load or cap them.
1977 KZ650 B1
Pods and Denco header

OLD KAW OWNERS SMILE ALOT

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23375
  • Thanks: 2902

Re: Ignition Switch

22 Jul 2015 05:45
#682134
Where did you get the switch?
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • Tyrell Corp
  • Tyrell Corp's Avatar
  • Offline
  • User
  • User
    Registered
  • "You were made as well as we could make you"
  • Posts: 1650
  • Thanks: 261

Re: Ignition Switch

22 Jul 2015 09:49 - 22 Jul 2015 09:50
#682167
All my bikes have a block connector and a couple of loose bullet connectors for the ignition keyswitch.

If you look on the factory wiring diagram there is a truth table at the bottom which shows which circuits connect in which keyswitch position. The bold line linking the three boxes mean that is a connection.

This sort of thing:

Attachment 3tvuh.gif not found



this is just an example, Kawasaki ex500
1980 Gpz550 D1, 1981 GPz550 D1. 1982 GPz750R1. 1983 z1000R R2. all four aces

Attachments:

Last edit: 22 Jul 2015 09:50 by Tyrell Corp.

Please Log in or Create an account to join the conversation.

  • spdygon
  • spdygon's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 1010
  • Thanks: 117

Re: Ignition Switch

22 Jul 2015 15:16 - 22 Jul 2015 15:17
#682201
I see thx everyone....now I can't find the old switch so I can use the original block.
Got the complete kit from z1parts.
1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project
Last edit: 22 Jul 2015 15:17 by spdygon.

Please Log in or Create an account to join the conversation.

  • spdygon
  • spdygon's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 1010
  • Thanks: 117

Re: Ignition Switch

22 Jul 2015 18:42
#682224

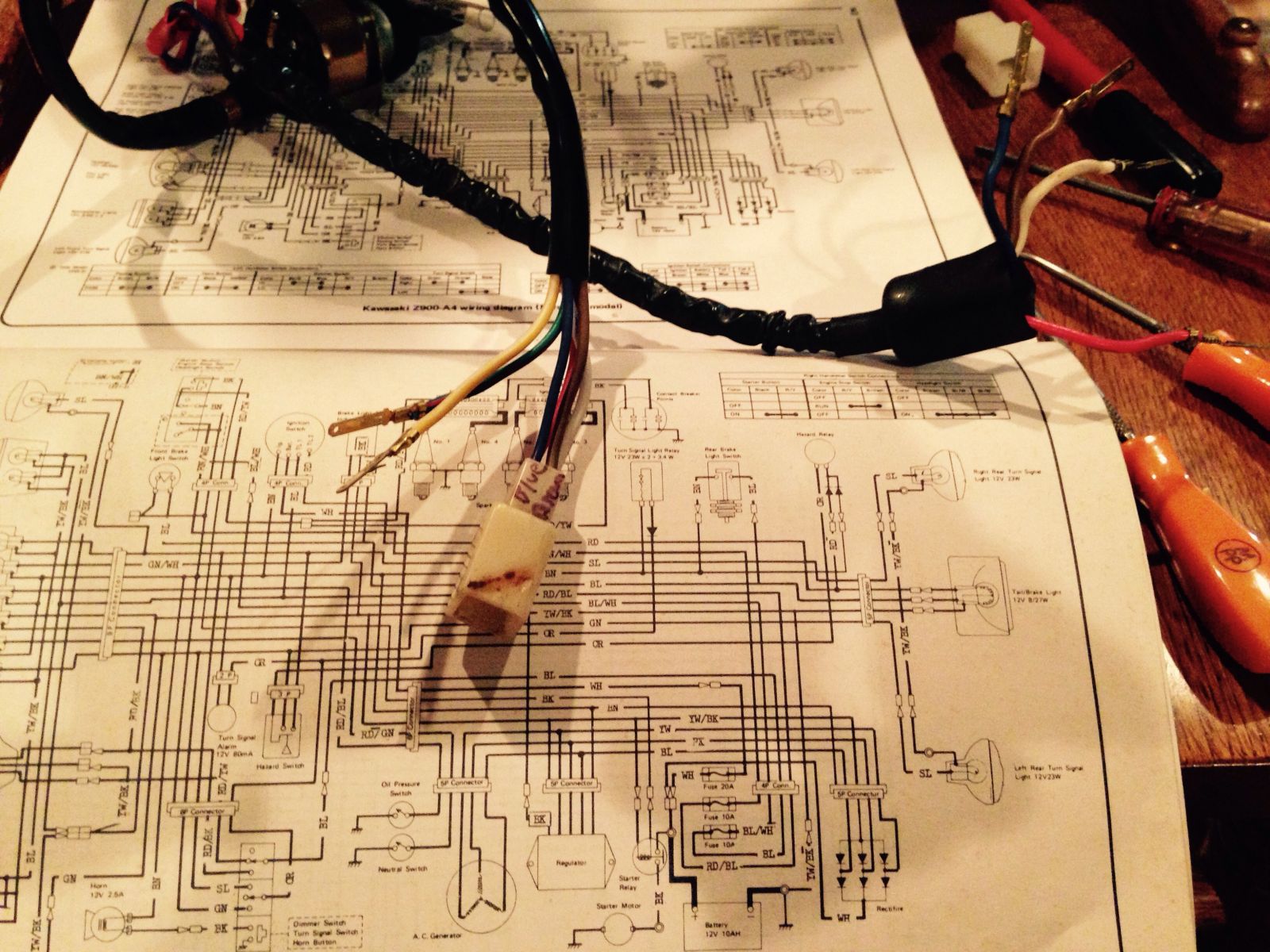

Alright guys.....took me a while but found the old switch. Also study the electrical diagram for both the 76 900a4 and kz1000.
So all it is ...is that extra two wires on the 6 pin connector is to power the tail light and hazards when u have the switch on park.
And the old switch... those two wires are already in head light bucket.
So those two extra wires will be cap...not needed.

1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Attachments:

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23375
  • Thanks: 2902

Re: Ignition Switch

22 Jul 2015 19:26
#682230
Looks good. Don't forget the boot.
