28 May 2015 08:47 #674177
by mitchelldaughtry
Wiring a Reg/rec combo unit to 76 kz900 was created by mitchelldaughtry
Ok guys when I bought this bike the dude I got it from thought the motor was a z1 so he bought a reg/rec combo (one piece) unit for a z1. So my question is will the z1 reg/rec work on the kz? And could someone tell me how to wire it in? its going on an amen savior chopper frame so there is now wiring or plugins at this point. Also could someone tell me how to ohm the stator out to test it and see if its good. Thanks alot for your time and help in advance.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
28 May 2015 09:06 #674178
by SWest
Replied by SWest on topic Wiring a Reg/rec combo unit to 76 kz900
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
28 May 2015 09:09 #674179
by SWest
Replied by SWest on topic Wiring a Reg/rec combo unit to 76 kz900

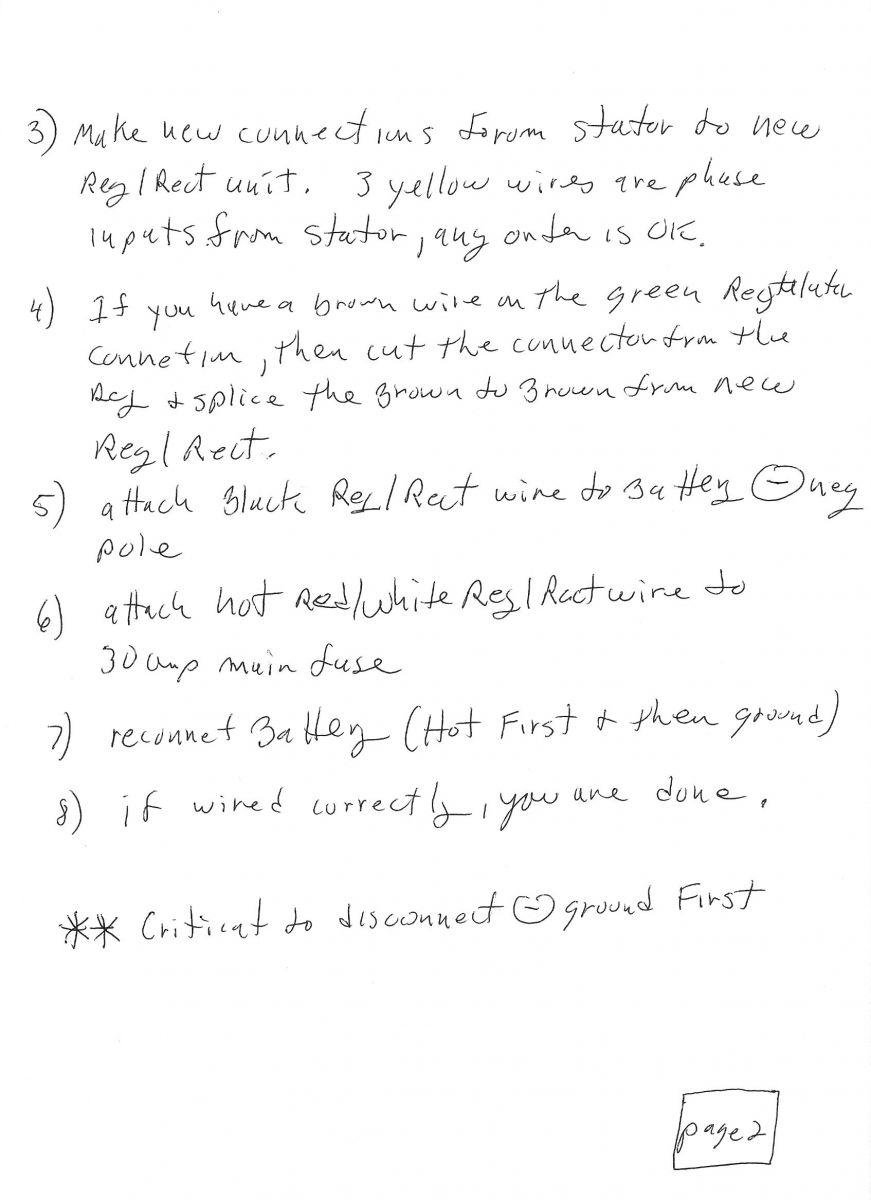

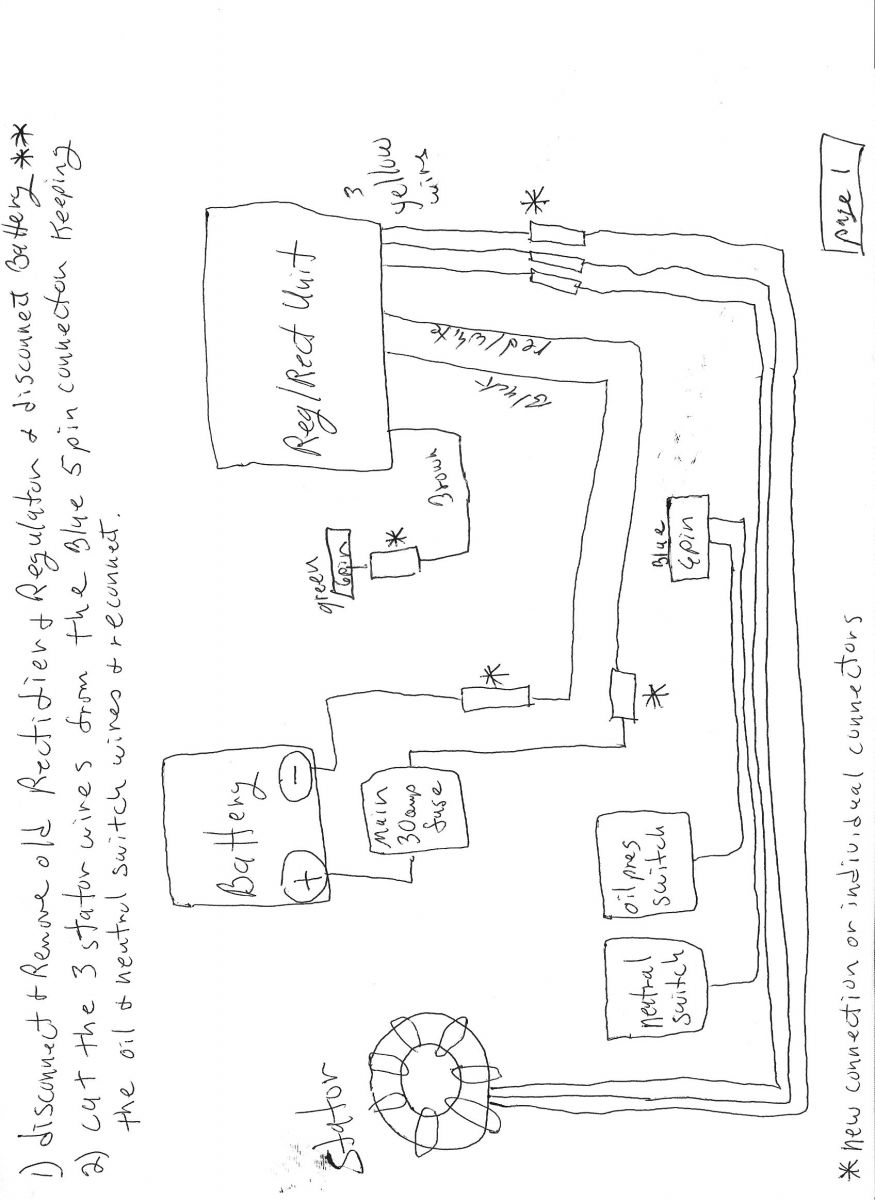

That's not my drawing. I got it from the Old Kaw Man two years ago when I got a used one from him.
Steve
Steve
Please Log in or Create an account to join the conversation.
- mitchelldaughtry
- Topic Author
- Offline
- User
Less
More
- Posts: 15
- Thank you received: 1
28 May 2015 10:06 #674189
by mitchelldaughtry
Replied by mitchelldaughtry on topic Wiring a Reg/rec combo unit to 76 kz900
Thanks thats just what i needed. on the drawing what does the brown wire hook to? the drawing shows a 6 pin connector I dont have any wiring on this bike Im going to build it all. so does the brown wire go to a ground?
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
28 May 2015 10:22 #674193
by SWest
Replied by SWest on topic Wiring a Reg/rec combo unit to 76 kz900
No, black to ground. Brown to the Ign. switch. You need a manual.
Steve
Steve
Please Log in or Create an account to join the conversation.
- mitchelldaughtry
- Topic Author
- Offline
- User
Less
More
- Posts: 15
- Thank you received: 1
28 May 2015 11:39 #674201
by mitchelldaughtry
Replied by mitchelldaughtry on topic Wiring a Reg/rec combo unit to 76 kz900
Thanks!! that makes since. I was thinking ground because it goes to green.
Please Log in or Create an account to join the conversation.
- mitchelldaughtry
- Topic Author
- Offline
- User
Less
More
- Posts: 15
- Thank you received: 1
29 May 2015 07:27 #674340
by mitchelldaughtry
Replied by mitchelldaughtry on topic Wiring a Reg/rec combo unit to 76 kz900
Ok so I went home and pulled out the regulator and it has 3 yellow wires, 2 green, and 2 red. Does this sound right? did the dude buy the wrong one?
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
29 May 2015 08:07 #674344
by SWest
Replied by SWest on topic Wiring a Reg/rec combo unit to 76 kz900
That sounds like a one size fits all kind of unit. I'll have to defer to others here that has experience using these things. There are other threads talking about using cheap CHINESE ones for testing but only temporarily. You might check other builds AKA Chopper builds to see how they did it. I'm not a fan of hacked up Brat/Bobber builds and have seen only a few Choppers I like. That's just me. :whistle: There are however some naked modern HP builds here with modern suspension that have really impressed me. :evil: If I had the money and time, I'd be building one of those too. There's one KZ 1000 build I'd love to dive into the tight twisties on and ride it like a 20 year old. :woohoo:
As things are, I'm just happy with what I got.
Steve
As things are, I'm just happy with what I got.
Steve
Please Log in or Create an account to join the conversation.
- mitchelldaughtry
- Topic Author
- Offline
- User
Less
More
- Posts: 15
- Thank you received: 1
29 May 2015 10:17 #674359
by mitchelldaughtry
Replied by mitchelldaughtry on topic Wiring a Reg/rec combo unit to 76 kz900
I agree on the hack choppers I would much rather see a super clean stocker than a chopper. But I got the whole bike for a song so im putting it together. I've got a cb750 that im planning on putting modern suspension and brakes on from a sport bike I got most the parts just got to get started building it.
could you share some links to where I could buy the right regulator from? A good one not some cheap ebay Chinese junk. Thanks for all your help and thats a good looking 1000 by the way I like those hard bags and trunk.
could you share some links to where I could buy the right regulator from? A good one not some cheap ebay Chinese junk. Thanks for all your help and thats a good looking 1000 by the way I like those hard bags and trunk.
Please Log in or Create an account to join the conversation.
- SWest
- Offline
- Sustaining Member
- 10 22 2014
Less
More
- Posts: 22972
- Thank you received: 2749
29 May 2015 10:50 #674363
by SWest
Replied by SWest on topic Wiring a Reg/rec combo unit to 76 kz900
Thanks. I bought another used KZ 1000 Reg/Rect off eBay. $39 Being a semi retired Grandpa, money's tight now days. I'd rather have bought a new one. The old style Regulators and Rectifiers are old tech. The regulators were notorious for failing and cooking batteries. The combo is the only way to go. You can find the on eBay and other motorcycle sites. One that comes to mind is the Mosfet. It's talked about here.
Steve
Steve
