Stator Wire New Grommet Reinstall

04 Mar 2015 19:55
#663506

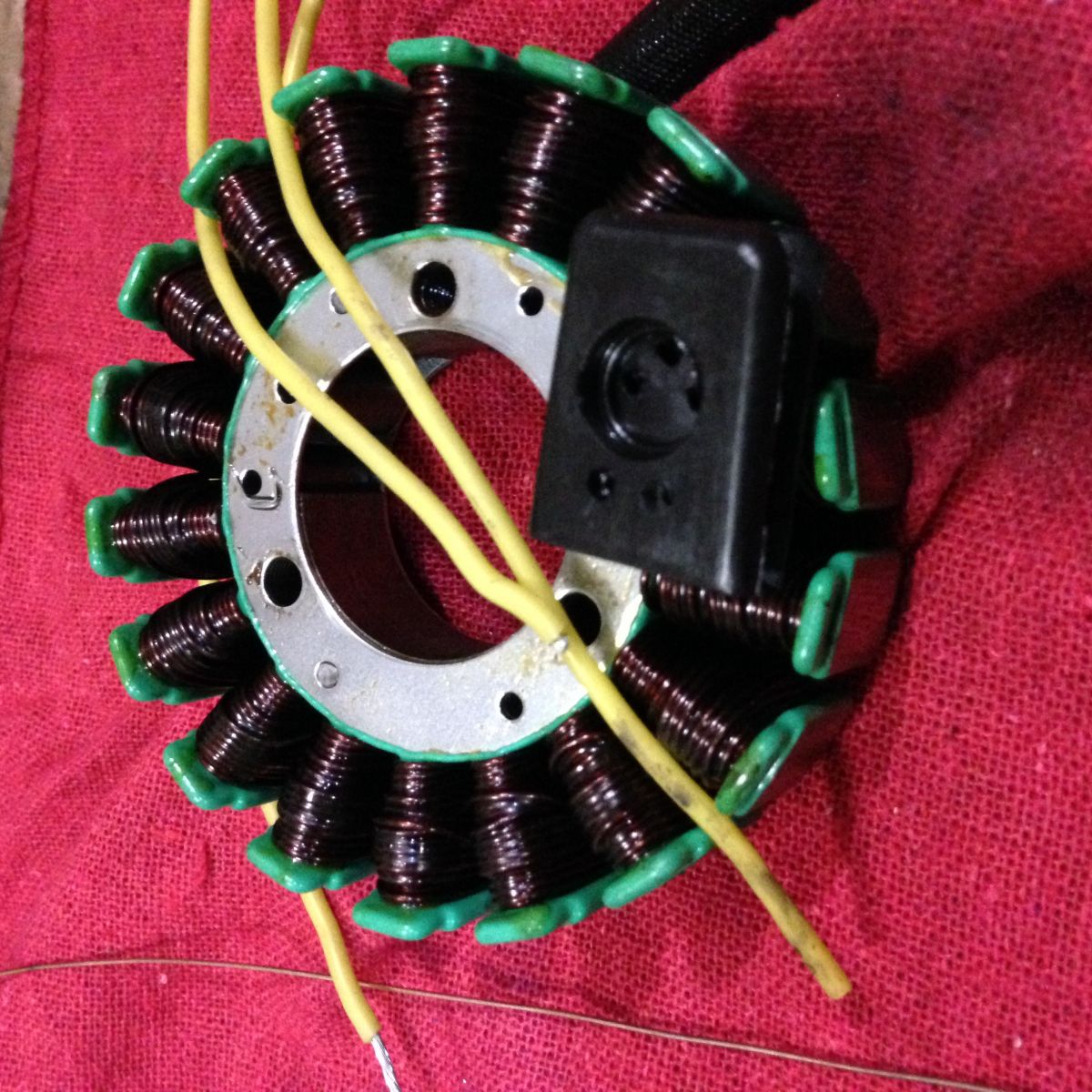

Have someone change one of this lately?
If so how did you go about reinstalling the three wires through the new grommet?
1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Attachments:

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 8018
  • Thanks: 1645

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 06:08 - 05 Mar 2015 06:31
#663521
I've never replaced the stator or the grommet, but you'll probably have to cut the wires &
feed them thru the little grommet holes. If a tight fit, use silicone spray. Then depending
upon what's appropriate for your bike, either splice the wires back together, or re-crimp some
new terminals (the 77 A & 79 B are different). I would get new w open barrel type terminals
& crimp w an open barrel crimper --- the crimps are very strong & the same as stock.

CycleTerminal.com

CycleTerminal.com --- crimping help
1981 KZ650 Competition Sports and Road
Last edit: 05 Mar 2015 06:31 by martin_csr.

Please Log in or Create an account to join the conversation.

  • spdygon
  • spdygon's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 1010
  • Thanks: 117

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 06:20
#663523
Martin.....

splicing not a problem....jacket on wire slips backwards ( on the wire ) as i try to push it through the grommet.
some how i need to keep the jacket from slipping.
1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23376
  • Thanks: 2902

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 06:23
#663526
Spdygon. I just posted my fix for the grommet. Is that a new stator you have there? How long are the wires?
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • martin_csr
  • martin_csr's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 8018
  • Thanks: 1645

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 06:29
#663527
I would try silicone spray --- spray it on the grommet & wires and twist/spin the wires while pushing them thru the grommet holes.
1981 KZ650 Competition Sports and Road

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23376
  • Thanks: 2902

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 07:06
#663531
spdygon wrote: Martin.....

splicing not a problem....jacket on wire slips backwards ( on the wire ) as i try to push it through the grommet.
some how i need to keep the jacket from slipping.

Clean the wire and jacket with carb spray then use crazy glue to keep it from sliding. It will seal the jacket and keep it from sliding.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • spdygon
  • spdygon's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 1010
  • Thanks: 117

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 12:50 - 05 Mar 2015 12:50
#663566
Stator is original.....I will try the glue.....wires are plenty long.
1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project
Last edit: 05 Mar 2015 12:50 by spdygon.

Please Log in or Create an account to join the conversation.

  • spdygon
  • spdygon's Avatar Topic Author
  • Offline
  • Platinum Member
  • Platinum Member
    Registered
  • Posts: 1010
  • Thanks: 117

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 17:06
#663589

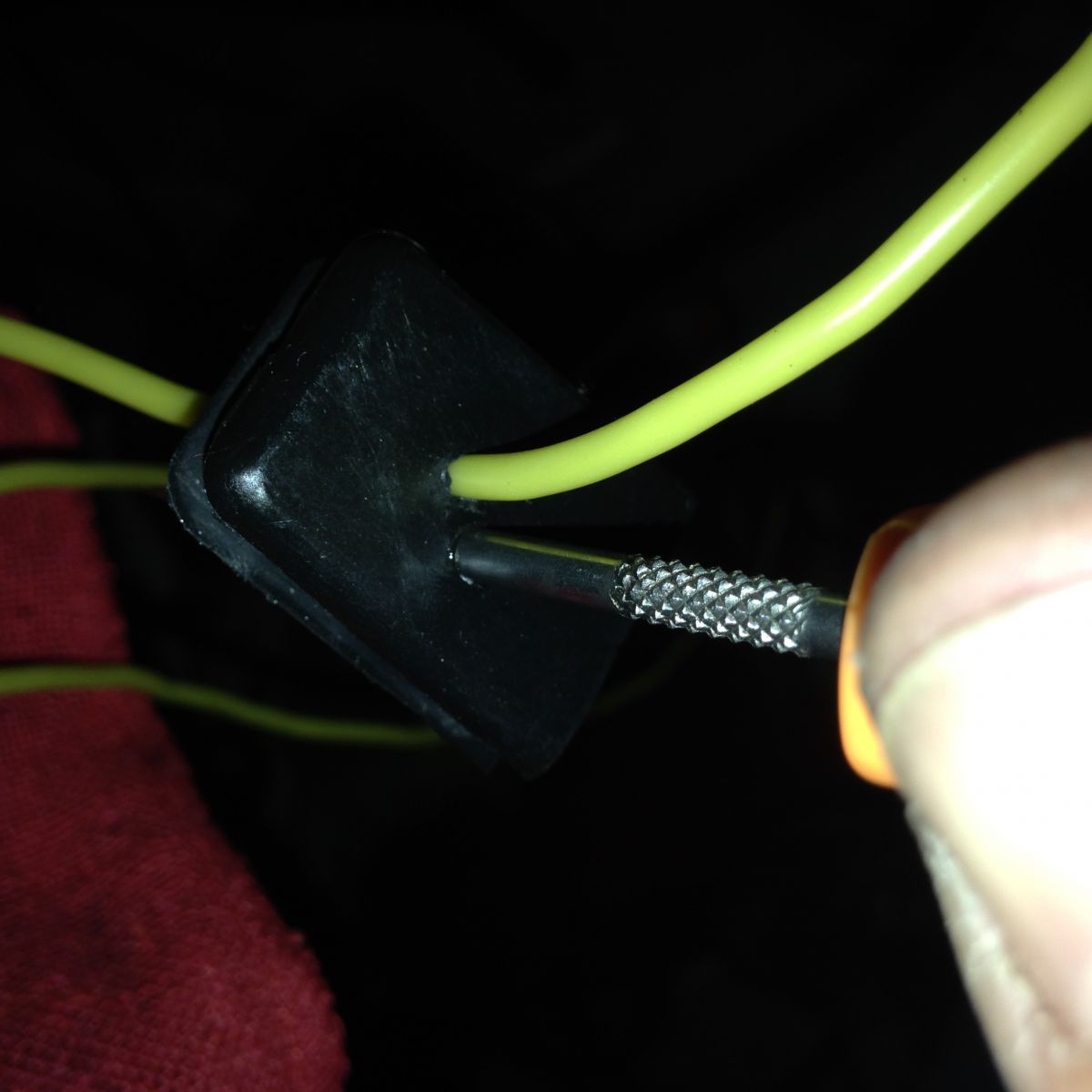

alrighty....after hours of trying to insert the wires without any progress....finally found a way.
figured i needed some kind of sleeve....this is what i came up with.

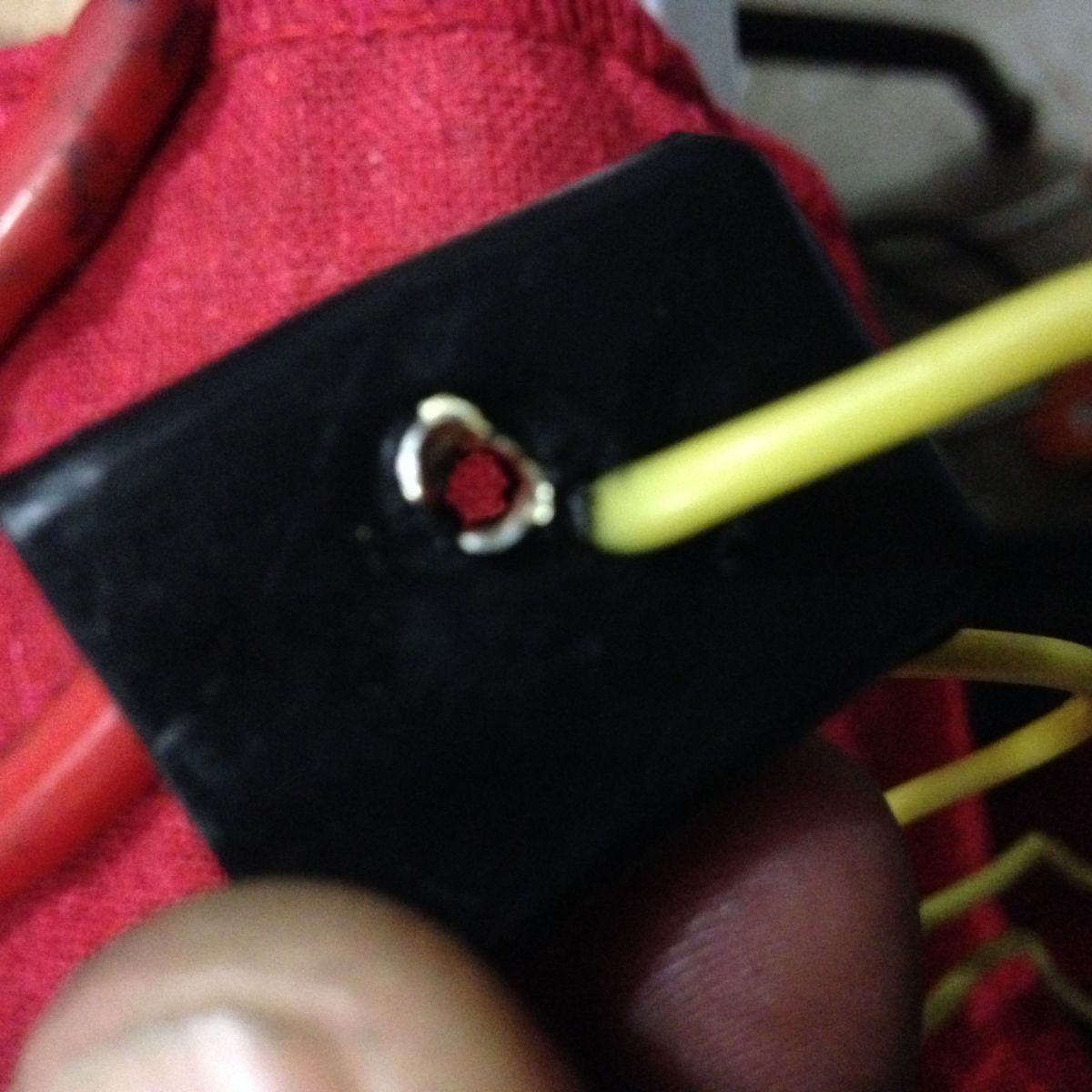

took the end of a bullet connector and open the tip and used it as a sleeve.
was able to do all three in about 10min.



1982 GS1000sz Katana ( #15...17K Miles)
1982 GS1000sz Katana ( # 297....7100k Miles)
1978 Kz1000 Z1R. 10K Miles1
1978 kz1000 z1r 27k miles
1977 KZ 1000 A ( Project ) 54K Miles
1976 Kz900A4 (Red)21K miles
1976 Kz900A4 ( Red)7500 miles
1974 Z1 900 project

Attachments:

Please Log in or Create an account to join the conversation.

  • daveo
  • daveo's Avatar
  • Offline
  • Premium Member
  • Premium Member
    Registered
  • Posts: 2924
  • Thanks: 750

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 19:43
#663603
martin_csr wrote: I would try silicone spray --- spray it on the grommet & wires and twist/spin the wires while pushing them thru the grommet holes.

:huh: Wouldn't the application of silicone spray prevent a bond/seal from forming when installing the grommet in the cover?
1982 KZ1100-A2

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23376
  • Thanks: 2902

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 20:15
#663610
The holes in the grommets are supposed to be tight.It is slightly taller so when compressed, it will squeeze down and form a seal. It's best for it to be clean so it can bond to the insulators. With heat and time, it will be bonded to the plastic and woven material.
Question; Was it easy to pull the wires out of the old grommet? No? That's why.
Relaxing the holes will only make the bond weaker.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

  • HBKwaka
  • HBKwaka's Avatar
  • User
  • User
    Public
  • Thanks: 0

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 21:00
#663615
When I replaced my stator, the grommet was already installed on the wires.

Please Log in or Create an account to join the conversation.

  • SWest
  • SWest's Avatar
  • Offline
  • Sustaining Member
  • Sustaining Member
    Registered
  • 10 22 2014
  • Posts: 23376
  • Thanks: 2902

Re: Stator Wire New Grommet Reinstall

05 Mar 2015 21:36
#663618
I had to carefully cut mine off. The grommets weren't available back in the day. I tried everything to seal the old ones. People would look at my foot and know I rode a bike. That's how I came up with crazy glue. It sealed the woven part but still had a small leak.
Steve
Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229
