Open up Tach and Spedo on 77 KZ1000

undiablo
Offline
User
Posts: 436
Thanks: 64

Re: Open up Tach and Spedo on 77 KZ1000

24 Mar 2014 14:35

#626400

I got the pucture now haha. Thanks!

Kawasaki KZ 750/4 LTD 1981
Kawasaki KLR 650 2011
Argentina - Buenos Aires

Please Log in or Create an account to join the conversation.

bikerguy
Offline
User
Posts: 14
Thanks: 0

Re: Open up Tach and Spedo on 77 KZ1000

28 May 2018 04:47

#784215

I too have a need to restore my gages on 79 kz1000. Too bad they are in the US. Anyone know of a really good gauge restorer in Canada?

1979 KZ1000 LTD
——— Previous Rides: Seca 550, GS400, GS750, RZ350, XL 250, Hurricane 1000, ZX900, ZX-10, Shadow Spirit 750

Please Log in or Create an account to join the conversation.

martin_csr
Offline
User
Posts: 8019
Thanks: 1645

Re: Open up Tach and Spedo on 77 KZ1000

28 May 2018 07:24 - 28 May 2018 07:25

#784226

Not Canada, but there's a guy in the UK who has been mentioned here on KZR & who supposedly does top notch work, but I don't recall his name. I tried a ggooogle search & found a name that seems familiar, but I don't know if it's the same guy or not.

guagerepairs.com --- Peter Bond

1981 KZ650 Competition Sports and Road

Last edit: 28 May 2018 07:25 by martin_csr.

Please Log in or Create an account to join the conversation.

wiredgeorge
Offline
User
Posts: 5310
Thanks: 45

Re: Open up Tach and Spedo on 77 KZ1000

28 May 2018 07:52

#784228

Bob Harrington of Z-Resto does a superior job but if you want to do it yourself and basically just clean the glass, here is a link to my tech library on my website:

wgcarbs.com/index.php/using-joomla/exten...ories/90-gauge-clean

wiredgeorge Motorcycle Carburetors
Mico TX
www.wgcarbs.com
Too many bikes to list!

Please Log in or Create an account to join the conversation.

davido
Offline
User
Posts: 1582
Thanks: 291

Re: Open up Tach and Spedo on 77 KZ1000

28 May 2018 10:38 - 28 May 2018 10:40

#784240

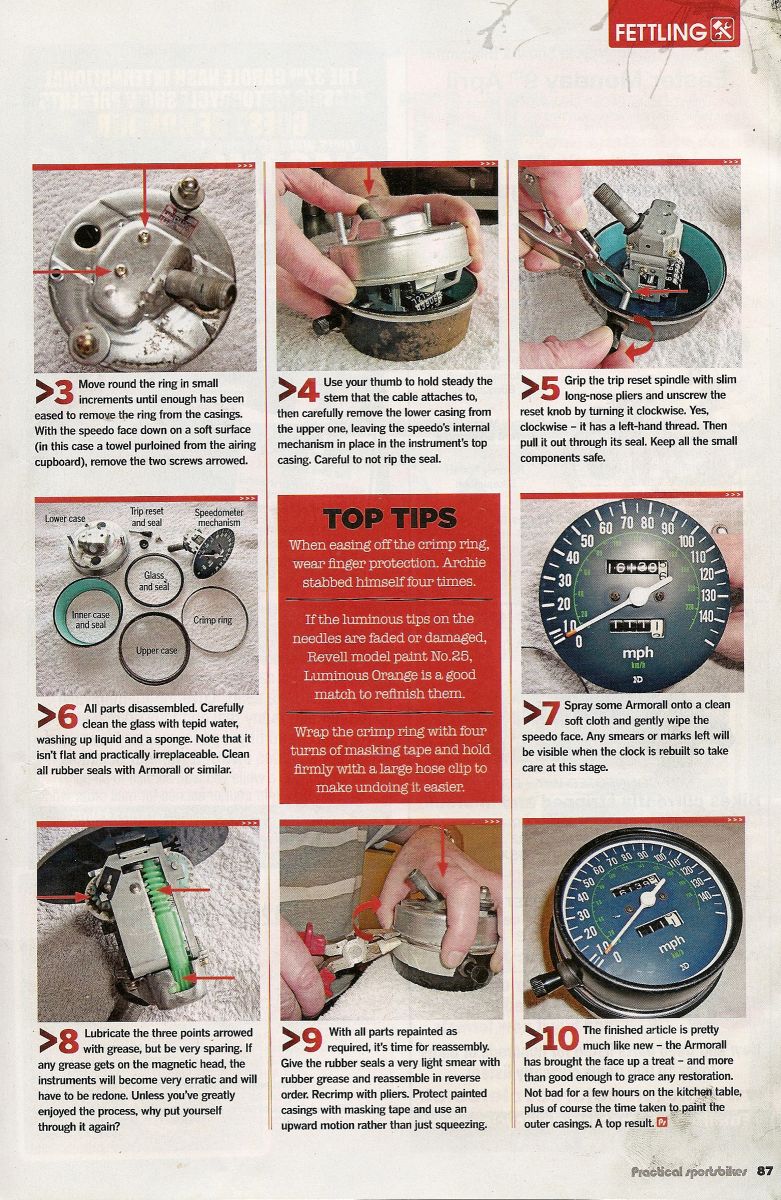

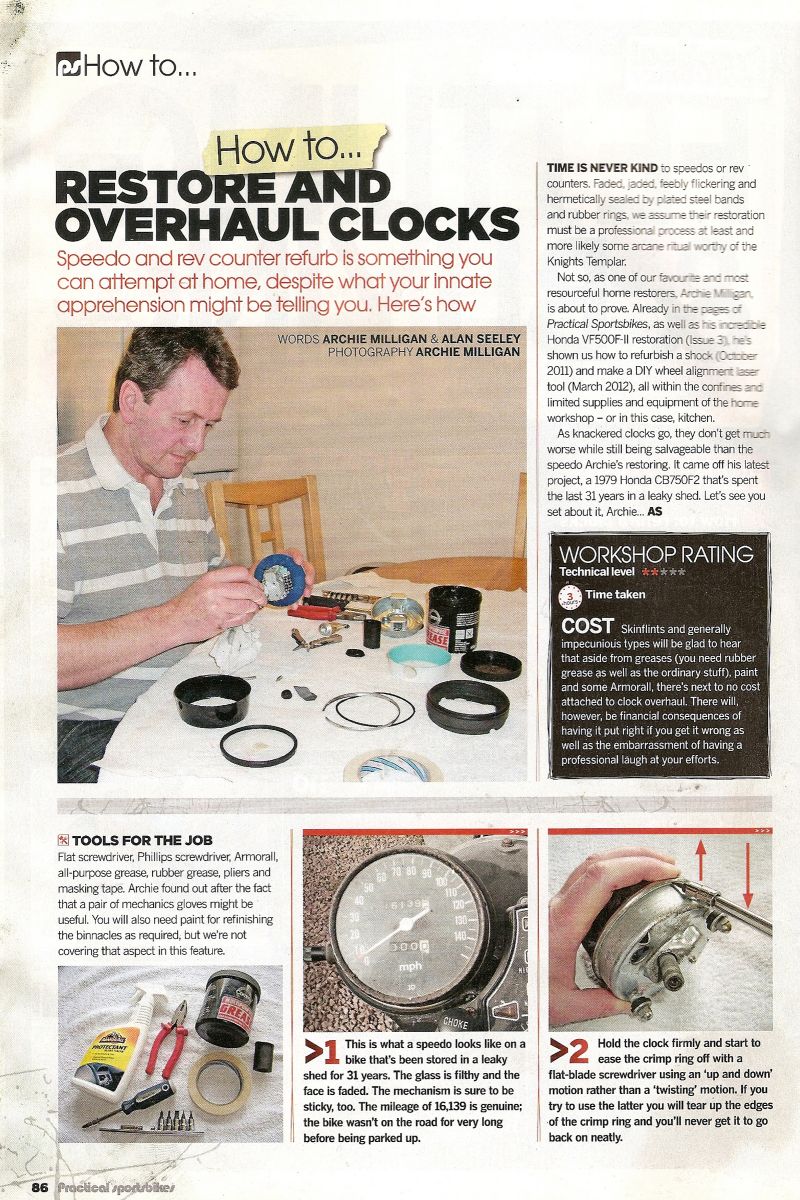

From 'Practical Sportsbike', a fantastic british bike mag. I followed this method and it worked out just peachy

www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)

Attachments:

Last edit: 28 May 2018 10:40 by davido.

The following user(s) said Thank You: bikerguy

Please Log in or Create an account to join the conversation.

bikerguy
Offline
User
Posts: 14
Thanks: 0

Re: Open up Tach and Spedo on 77 KZ1000

28 May 2018 15:13

#784267

These are great suggestions. Unfortunately, the previous owner stuck a cell phone holder or something on the tach. I tried to remove it and the most horrible sound - the glass shattered.

Anyone know where I can get just the glass replacement?

1979 KZ1000 LTD
——— Previous Rides: Seca 550, GS400, GS750, RZ350, XL 250, Hurricane 1000, ZX900, ZX-10, Shadow Spirit 750

Please Log in or Create an account to join the conversation.

SWest
Offline
Sustaining Member
10 22 2014
Posts: 23357
Thanks: 2889

Re: Open up Tach and Spedo on 77 KZ1000

28 May 2018 15:22

#784270

I have a couple if it will fit.
Steve
kzrider.com/forum/5-chassis/599906-new-tach-speedo?limitstart=0

Z1b1000 1975 Z1b
kzrider.com/forum/11-projects/598262-kz-...-will-it-live#672882
kzrider.com/forum/2-engine/597654-poser?start=240#704229

Please Log in or Create an account to join the conversation.

davido
Offline
User
Posts: 1582
Thanks: 291

Re: Open up Tach and Spedo on 77 KZ1000

29 May 2018 08:01

#784303

I just had a couple of new glasses cut from a glass shop.Works fine.

www.kzrider.com/forum/11-projects/594313-csr1000-project-build
CB550 (1978)
CB500/4 (1972)*
KZ1000CSR (1981)
XT 600E (1999)
TDM900 (2003)

Please Log in or Create an account to join the conversation.

blackzx14
Offline
User
Posts: 2
Thanks: 0

Re: Open up Tach and Spedo on 77 KZ1000

30 May 2018 03:12

#784340

I have a couple of spare ones....where are you ?
