I thought it didn't matter which (male) yellow attached to which (female), and they could be mixed up without a problem. Otherwise, why make them all yellow and not individually color-coded? :blink:
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- MFolks
- Offline
- User
- Posts: 6650
- Thank you received: 540
1982 GPZ1100 B2
General Dynamics/Convair 1983-1993
GLCM BGM-109 Tomahawk, AGM-129A Advanced Cruise Missile (ACM)
Please Log in or Create an account to join the conversation.
- daveo
- Topic Author
- Offline
- Premium Member
- Posts: 2802
- Thank you received: 654
:huh: I'm no expert by any stretch, but it makes sense to me that it wouldn't make a difference, especially since they are the same yellow color. Now, why would Kawasaki do something like that, and not have a note or warning in the service manual? :side:
That mechanic was quite determined to sell me that it did...explaining that the whole process of installating the stator was a very complex process.
He's fired!
1982 KZ1100-A2
Please Log in or Create an account to join the conversation.
- Old Man Rock
- Offline
- User
- Posts: 6224
- Thank you received: 225
Three identical circuits for Vac -> Vdc (rectification/Regulation)...
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
daveo wrote: :huh: Ok...took the bike to a mechanic who supposedly knows something about motorcycle charging systems. He cautioned me about the three yellow wires off the stator as needing a specific attachment order, to avoid damaging the regulator/rectifier.
I thought it didn't matter which (male) yellow attached to which (female), and they could be mixed up without a problem. Otherwise, why make them all yellow and not individually color-coded? :blink:
Yes, he's fired. Does not matter on systems using 3-yellows.

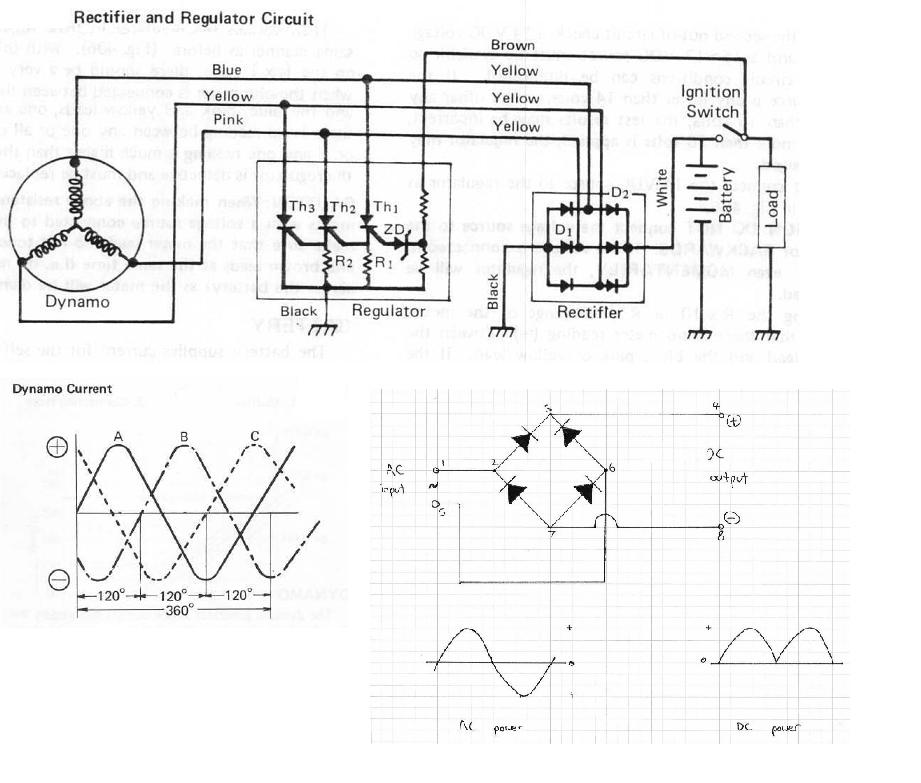

It may matter on the systems using yellow, pink, and blue (older, and only matters on some of them). As you can see on OldManRock's diagram, the regulator has a sequence to it, where the blue wire is the master phase. It has the voltage detecting Zener diode. The pink and yellow phases are the next two in sequence. If they are not in correct order, they will not shunt at the right time, so the voltage on the battery will vary a lot more than it should.
