Help Please - Simple Wiring Diagrahm
- odl666
- Topic Author
- Offline
- User
Less
More
09 Feb 2013 22:49 #571668
by odl666
Hello!
Please see the attached picture, can you please help me conect the dots? I completed the wirng on the bike but it is not working right????? i think I musunderstod the ingnition switch since it has 6 wires.
CAn some one help me connect the dots on the attached file?
1978 Kawasaki kz650b2
Thank you1
Mark
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Help Please - Simple Wiring Diagrahm was created by odl666
Attachment NewWiringDiagrahm-2-9-13.png not found
Hello!
Please see the attached picture, can you please help me conect the dots? I completed the wirng on the bike but it is not working right????? i think I musunderstod the ingnition switch since it has 6 wires.
CAn some one help me connect the dots on the attached file?
1978 Kawasaki kz650b2
Thank you1
Mark
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Please Log in or Create an account to join the conversation.
- 4TheKZ1000
- Visitor
09 Feb 2013 22:57 - 09 Feb 2013 23:04 #571670
by 4TheKZ1000
Replied by 4TheKZ1000 on topic Help Please - Simple Wiring Diagrahm
red ignition switch goes to red tail light.
Blue wire from ignition switch goes to red/blue 10 amp fuse wire.
Orange/Green from ignition switch is your hazzard switch from bar control.
Blue wire from ignition switch goes to red/blue 10 amp fuse wire.
Orange/Green from ignition switch is your hazzard switch from bar control.
Last edit: 09 Feb 2013 23:04 by 4TheKZ1000.
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
09 Feb 2013 23:06 - 09 Feb 2013 23:16 #571673
by odl666
Thank you, Please see the above update: I do not have hazards, blinkers, horn, or signals.
Brake light
Taillight
Headlight
Dyna Ignition
Dyna Shift Light
Dyna Coils
Ballistic 8 cell battery
4 prong switch (wanting to use for lights)
Kill Switch on Bars (2 wires)
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment NewWiringDiagrahm-2-9-13step2.png not found
Thank you, Please see the above update: I do not have hazards, blinkers, horn, or signals.
Brake light
Taillight
Headlight
Dyna Ignition
Dyna Shift Light
Dyna Coils
Ballistic 8 cell battery
4 prong switch (wanting to use for lights)
Kill Switch on Bars (2 wires)
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Last edit: 09 Feb 2013 23:16 by odl666.
Please Log in or Create an account to join the conversation.
- 4TheKZ1000
- Visitor
09 Feb 2013 23:38 - 09 Feb 2013 23:44 #571676
by 4TheKZ1000
Replied by 4TheKZ1000 on topic Help Please - Simple Wiring Diagrahm
OK, Im going to get you to wire diagram.
Go to upper right of page. Find (Filebase) click on it
Goto 1978 and click on 1978. Go down list and find your model / bike and open.
You will see wiring diagram....open file and your in business.
Are you using factory right and left hand contols and head light?
Go to upper right of page. Find (Filebase) click on it
Goto 1978 and click on 1978. Go down list and find your model / bike and open.
You will see wiring diagram....open file and your in business.
Are you using factory right and left hand contols and head light?
Attachment NewWiringDiagrahm-2-9-13.png not found
Attachments:
Last edit: 09 Feb 2013 23:44 by 4TheKZ1000.
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 01:19 #571690
by odl666
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Thank you! That is the wiring diagrahm I have been using. but it still feels like I am having issues. let me look it over again.
Thank you!!!
Thank you!!!
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Please Log in or Create an account to join the conversation.
- wireman
-
- Offline
- User
- The most interesting prick in the world
Less
More
- Posts: 4761
- Thank you received: 299
10 Feb 2013 01:48 #571692
by wireman
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.
Replied by wireman on topic Help Please - Simple Wiring Diagrahm
What is not working?need a general idea what the problem is
posting from deep under a non-descript barn in an undisclosed location southwest of Omaha.
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 02:31 #571693
by odl666
I dont feel like it is getting proper spark, I couldnt see a blue arch when testing.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment NewWiringDiagrahm-2-10-13.png not found
I dont feel like it is getting proper spark, I couldnt see a blue arch when testing.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Please Log in or Create an account to join the conversation.
- Old Man Rock
-
- Offline
- User
Less
More
- Posts: 6224
- Thank you received: 225
10 Feb 2013 10:16 - 10 Feb 2013 10:31 #571721
by Old Man Rock
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Replied by Old Man Rock on topic Help Please - Simple Wiring Diagrahm

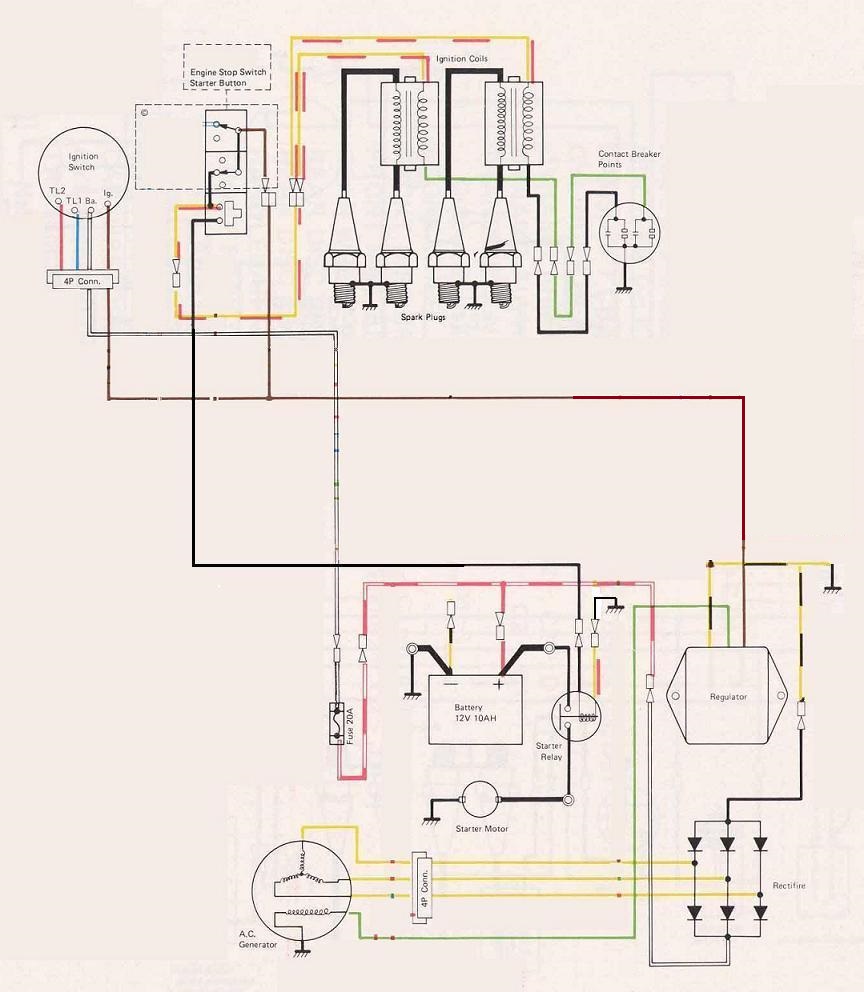

Maybe this will help for bare minimum to start the engine/charging ckt...
TL 1 & 2 are for your other electrical needs for lights, turn signals, horn, tail/brake lights, indicator panel etc...
KZ-650-B1: 1977
TL 1 & 2 are for your other electrical needs for lights, turn signals, horn, tail/brake lights, indicator panel etc...
KZ-650-B1: 1977
1976 KZ900-A4
MTC 1075cc.
Camshafts: Kawi GPZ-1100 .375 lift
Head: P&P via Larry Cavanaugh
ZX636 suspension
MIKUNI, RS-34'S...
Kerker 4-1, 1.5" comp baffle.
Dyna-S E.I.
Earls 10 row Oil Cooler
Acewell 2802 Series Speedo/Tach
Innovate LC1 Wideband 02 AFR meter
Phoenix, Az
Last edit: 10 Feb 2013 10:31 by Old Man Rock.
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 12:30 - 10 Feb 2013 12:35 #571727
by odl666
I do not have a starter, I am confused as to if I can hook the coil and ingition power to the white wires that are coming from the switch.
Also do I hook up the coils power wire before the fuse or after?
Please see attached.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment NewWiringDiagrahm-2-10-13.png not found
I do not have a starter, I am confused as to if I can hook the coil and ingition power to the white wires that are coming from the switch.
Also do I hook up the coils power wire before the fuse or after?
Please see attached.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Last edit: 10 Feb 2013 12:35 by odl666.
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 12:37 #571728
by odl666
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment NewWiringDiagrahm-2-10-13.png not found
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 13:28 #571734
by odl666
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment KZ650-B2C2-wiringdiagrahm-edited2-10-13.jpg not found
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 13:46 #571736
by odl666
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
I am confused because since I am NOT using a starter where do I get the power for coils?
The Starter relay appears to have a power wire which goes to the handle bar switches and then goes to coils.
The Starter relay appears to have a power wire which goes to the handle bar switches and then goes to coils.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
