Help Please - Simple Wiring Diagrahm
- Patton
- Offline
- KZr Legend
Less
More
10 Feb 2013 14:21 #571744
by Patton

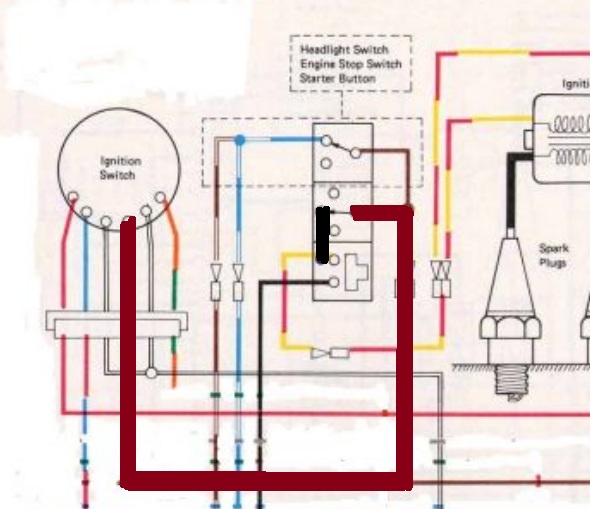

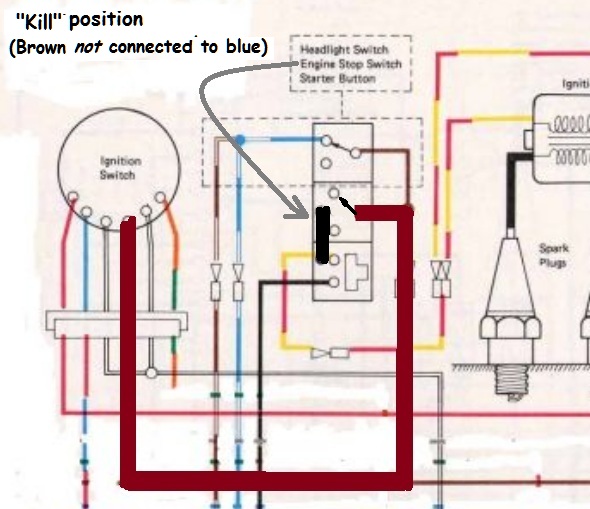

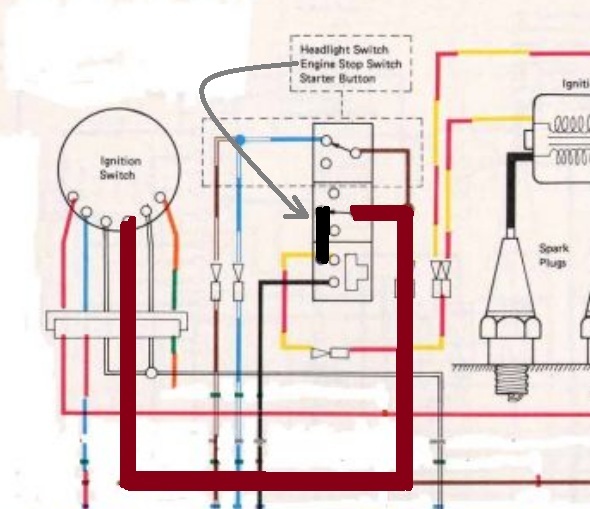

Brown from ignition switch, through Engine Stop Switch (aka kill switch), to red/yellow wire providing switched batt+ to each coil primary terminal.
Good Fortune!
1973 Z1
KZ900 LTD
Replied by Patton on topic Help Please - Simple Wiring Diagrahm
Brown from ignition switch, through Engine Stop Switch (aka kill switch), to red/yellow wire providing switched batt+ to each coil primary terminal.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
- Patton
- Offline
- KZr Legend
Less
More
- Posts: 18640
- Thank you received: 2098
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 16:25 #571754
by odl666
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment KZ650-B2C2-wiringdiagrahm-edited2-10-13-revised.jpg not found
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Please Log in or Create an account to join the conversation.
- donthaveakawman
- Visitor
10 Feb 2013 17:01 #571758
by donthaveakawman
Replied by donthaveakawman on topic Help Please - Simple Wiring Diagrahm
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 17:03 #571759
by odl666
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Thank you for your help, I am going out to garage now. I hope I can start her tonight.
I have no instruments, only shift light.
I have no instruments, only shift light.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 17:28 #571762
by odl666
This is what I am going with....let me know what you think.
Question:
look at brake light, I have it wired to the red wire from the ignition.Same wire powers tail light.
Issue:
Seams the bike only runs when the key switch is turned to second position (First position everythign is off). lose brake lights at turn of final position.
Switch: Emgo 78 KZ 650b2 key switch.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment NewWiringDiagrahm-2-10-13.png not found
This is what I am going with....let me know what you think.
Question:
look at brake light, I have it wired to the red wire from the ignition.Same wire powers tail light.
Issue:
Seams the bike only runs when the key switch is turned to second position (First position everythign is off). lose brake lights at turn of final position.
Switch: Emgo 78 KZ 650b2 key switch.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
10 Feb 2013 17:29 #571763
by odl666
This is what I am going with....let me know what you think.
Question:
look at brake light, I have it wired to the red wire from the ignition.Same wire powers tail light.
Issue:
Seams the bike only runs when the key switch is turned to second position (First position everythign is off). lose brake lights at turn of final position.
Switch: Emgo 78 KZ 650b2 key switch.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Help Please - Simple Wiring Diagrahm
Attachment NewWiringDiagrahm.png not found
This is what I am going with....let me know what you think.
Question:
look at brake light, I have it wired to the red wire from the ignition.Same wire powers tail light.
Issue:
Seams the bike only runs when the key switch is turned to second position (First position everythign is off). lose brake lights at turn of final position.
Switch: Emgo 78 KZ 650b2 key switch.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Attachments:
Please Log in or Create an account to join the conversation.
- donthaveakawman
- Visitor
12 Feb 2013 21:22 #572158
by donthaveakawman
Replied by donthaveakawman on topic Help Please - Simple Wiring Diagrahm
so the power goes to the coils and the points ground them, is that what I am seeing here?
Please Log in or Create an account to join the conversation.
- odl666
- Topic Author
- Offline
- User
Less
More
- Posts: 149
- Thank you received: 0
20 Feb 2013 21:42 #573379
by odl666
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
Replied by odl666 on topic Update: Help Please - Simple Wiring Diagrahm
The bike is all wired.
I only used the Brown (straight to Coils/shift light) and Red wire (Lights) from the ignition switch.
Issues:
The coils only work at half position on key switch.
Lights work only on full on position.
Wires left:
Green and Orange
Blue and Red
I want to be able to have the lights work on any position and the ignition to only work when Key is in full ON position.
I only used the Brown (straight to Coils/shift light) and Red wire (Lights) from the ignition switch.
Issues:
The coils only work at half position on key switch.
Lights work only on full on position.
Wires left:
Green and Orange
Blue and Red
I want to be able to have the lights work on any position and the ignition to only work when Key is in full ON position.
1978 kz 650b with gpz faq mods cams carbs polished and ported
1979 gs750e
1972 bsa lightning under construction
