I now have NO SPARK!
- badrhino
- Topic Author
- Offline
- User
1980 KZ1000 with a 1982 KZ1000J motor with 1100 pistons and heads, Vance & Hines, 29MM Smooth Bores, Work in Progress
Franken Z!
Please Log in or Create an account to join the conversation.
- badrhino
- Topic Author
- Offline
- User
- Posts: 554
- Thank you received: 6
1980 KZ1000 with a 1982 KZ1000J motor with 1100 pistons and heads, Vance & Hines, 29MM Smooth Bores, Work in Progress
Franken Z!
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391

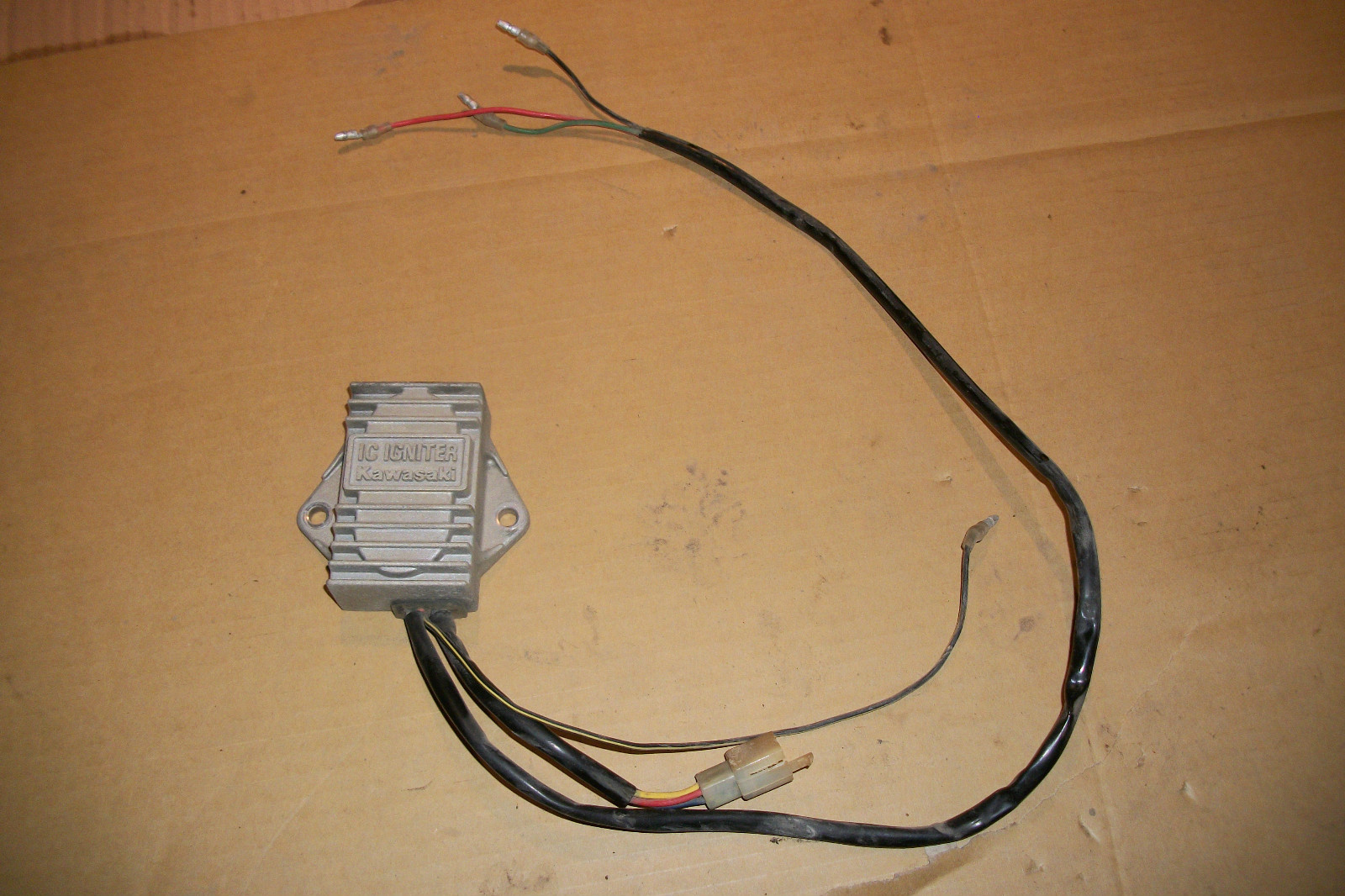

badrhino wrote: Not that I have one,mine is just wires coming off of it. But why is the wires coming off of the igniter going to the coils called a 6-pin connector when it looks as there are only 4 wires?
Don't know, maybe a Typo? 2 plugs 4 wires each in the diagrams.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- badrhino
- Topic Author
- Offline
- User
- Posts: 554
- Thank you received: 6

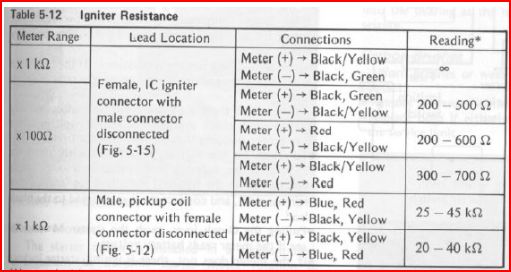

From top to Bottom:
No Reading or Infinity
No Reading (and there should be one)
700 ohms
710 ohms

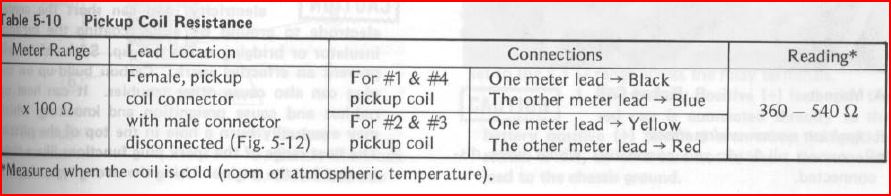

And as for the section just below for the male connector for pickup coils are those reading supposed to be 25-45k and 20-40k as stated in the manual because I was not getting those readings. There was another test the checked the pick-up coils and they were only supposed to read at 360-540 ohms and mine were with in spec. see insert below.
Can someone please explain to me the difference in these two test of the pick-up coils?
One says the male end and the other says the female end going to the pick-up coils. The only end that goes to the pick-up coils is the Male end. The Female connection goes to the igniter. :S
1980 KZ1000 with a 1982 KZ1000J motor with 1100 pistons and heads, Vance & Hines, 29MM Smooth Bores, Work in Progress
Franken Z!
Please Log in or Create an account to join the conversation.
- badrhino
- Topic Author
- Offline
- User
- Posts: 554
- Thank you received: 6
1980 KZ1000 with a 1982 KZ1000J motor with 1100 pistons and heads, Vance & Hines, 29MM Smooth Bores, Work in Progress
Franken Z!
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- badrhino
- Topic Author
- Offline
- User
- Posts: 554
- Thank you received: 6
Are the readings I posted good? I wasn't getting any or infinity on the one reading.
1980 KZ1000 with a 1982 KZ1000J motor with 1100 pistons and heads, Vance & Hines, 29MM Smooth Bores, Work in Progress
Franken Z!
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
badrhino wrote: Ok I tested my igniter as per manual and her is what I got.
From top to Bottom:
No Reading or Infinity
No Reading (and there should be one)
700 ohms
710 ohms
And as for the section just below for the male connector for pickup coils are those reading supposed to be 25-45k and 20-40k as stated in the manual because I was not getting those readings. There was another test the checked the pick-up coils and they were only supposed to read at 360-540 ohms and mine were with in spec. see insert below.
Can someone please explain to me the difference in these two test of the pick-up coils?
One says the male end and the other says the female end going to the pick-up coils. The only end that goes to the pick-up coils is the Male end. The Female connection goes to the igniter. :S
Looks to me the Ignitor is open at the trigger circuit.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- badrhino
- Topic Author
- Offline
- User
- Posts: 554
- Thank you received: 6
1980 KZ1000 with a 1982 KZ1000J motor with 1100 pistons and heads, Vance & Hines, 29MM Smooth Bores, Work in Progress
Franken Z!
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
