What potential harm can come from the WG relay mod

11 Jan 2012 16:03 - 11 Jan 2012 16:05
#497559
Just wondering. I noticed (previous owner had done it I guess) a relay mod on the bike I have intermittent cylinder firing problems with. I have yet to rule out fuel system but I'm working on it. I've run into this same issue on two different bikes with four different pairs of coils. Could I be burning out my coils because of the relay mod?
78 KZ650-D1
K&N pods + 4-1 Pipe
Mikuni VM24 - 7.5/115/#4 Clip
Dyna-S
Dyna 3-Ohm Coils
Vancouver BC
Last edit: 11 Jan 2012 16:05 by alexnelson.

Please Log in or Create an account to join the conversation.

  • Patton
  • Patton's Avatar
  • Offline
  • KZr Legend
  • KZr Legend
    Registered
  • Posts: 18568
  • Thanks: 2101

Re: What potential harm can come from the WG relay mod

11 Jan 2012 16:18 - 11 Jan 2012 16:59
#497561
alexnelson wrote: Just wondering. I noticed (previous owner had done it I guess) a relay mod on the bike I have intermittent cylinder firing problems with. I have yet to rule out fuel system but I'm working on it. I've run into this same issue on two different bikes with four different pairs of coils. Could I be burning out my coils because of the relay mod?

As known, intermittent cylinder firing may result from other conditions besides insufficient voltage being received at the ignition coils.

If the relay mod is incorrectly wired so that the ignition coils continuously receive battery voltage regardless of whether the ignition is switched OFF, then Yes, could be burning out coils because of the relay mod.

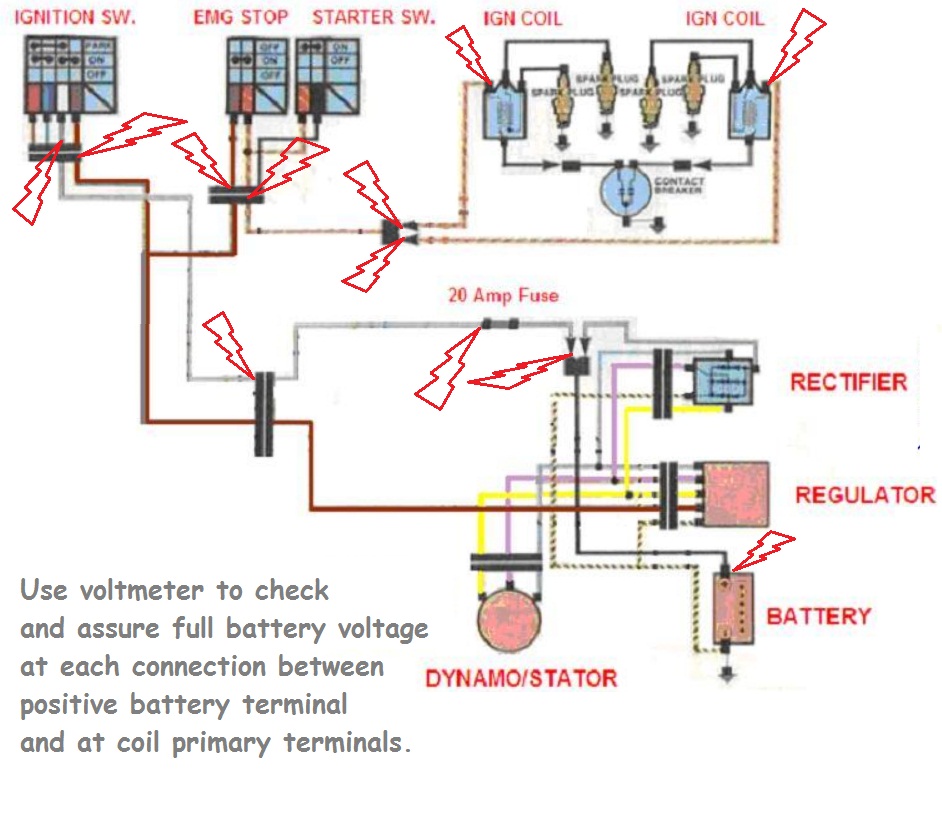

The main longer term problem about using the coil mod is that whatever oem wiring and/or connector issues are causing the drop in voltage between the battery and coil will only get worse.





Good Fortune! :)
1973 Z1
KZ900 LTD

Attachments:

Last edit: 11 Jan 2012 16:59 by Patton.

Please Log in or Create an account to join the conversation.

  • DoubleDub
  • DoubleDub's Avatar
  • User
  • User
    Public
  • Thanks: 0

Re: What potential harm can come from the WG relay mod

11 Jan 2012 16:24
#497563
Patton wrote: The main longer term problem about using the coil mod is that whatever oem wiring and/or connector issues are causing the drop in voltage between the battery and coil will only get worse.

THANK YOU! ;)

Please Log in or Create an account to join the conversation.

  • alexnelson
  • alexnelson's Avatar Topic Author
  • Offline
  • User
  • User
    Registered
  • Posts: 67
  • Thanks: 0

Re: What potential harm can come from the WG relay mod

11 Jan 2012 17:03
#497575
Thanks, Patton. Fast and informative, as usual.
78 KZ650-D1
K&N pods + 4-1 Pipe
Mikuni VM24 - 7.5/115/#4 Clip
Dyna-S
Dyna 3-Ohm Coils
Vancouver BC

Please Log in or Create an account to join the conversation.

  • bountyhunter
  • bountyhunter's Avatar
  • Offline
  • User
  • User
    Registered
  • Posts: 7245
  • Thanks: 338

Re: What potential harm can come from the WG relay mod

11 Jan 2012 17:13
#497578
alexnelson wrote: Just wondering. I noticed (previous owner had done it I guess) a relay mod on the bike I have intermittent cylinder firing problems with. I have yet to rule out fuel system but I'm working on it. I've run into this same issue on two different bikes with four different pairs of coils. Could I be burning out my coils because of the relay mod?
No, but your coils may be failing and the mod is simply masking the real problem for a brief period of time.
1979 KZ-750 Twin
