minimum wiring
- wcrider62
- Topic Author
- Offline
- User
Attachment Custom_Motorcycle_Wiring_Diagram_by_Evan_Fell-499x253.png not found

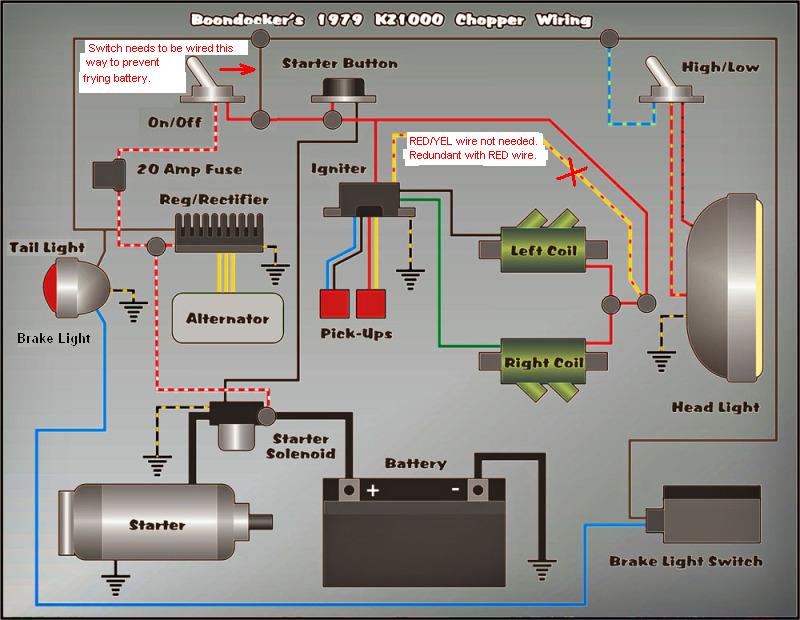

ok I copied the diagram that was sent to me and went all the way out to where my bike was feeling good. then when I got there and looked at both diagram and bike, well some thing was missing THE IGNIGHTER , needless to say that was another wasted day and 75 miles of gas in a ford 460 gas $$$$ get my point ?? anyway can any one decribe which wirers to conect in what order and or a diagram showing and explaining.. as for a coment I seen -- as a car machanic I dont belive I ever seen a ignighter in the wiring loop hey this has been 7 days now and I am having extreem riding withdrawls-- as I ride year round here in spokane wa.cold or snow dont bother or stop me :huh:
Attachment Picture052.jpg not found
Attachment dumdog.jpg not found
1982 kz1100 spectre D1
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
- Posts: 7447
- Thank you received: 797
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
- Posts: 7447
- Thank you received: 797
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Please Log in or Create an account to join the conversation.
- wcrider62
- Topic Author
- Offline
- User
- Posts: 73
- Thank you received: 1
1982 kz1100 spectre D1
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
- Posts: 7447
- Thank you received: 797
we all have loudhvx to thank for making the one and making sure the other one was correct.
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Please Log in or Create an account to join the conversation.
- wcrider62
- Topic Author
- Offline
- User
- Posts: 73
- Thank you received: 1
1982 kz1100 spectre D1
Please Log in or Create an account to join the conversation.
- wcrider62
- Topic Author
- Offline
- User
- Posts: 73
- Thank you received: 1
1982 kz1100 spectre D1
Please Log in or Create an account to join the conversation.
- 531blackbanshee
- Offline
- Vendor
- Posts: 7447
- Thank you received: 797
leon
skiatook,oklahoma 1980 z1r,1978 kz 1000 z1r x 3,
1976 kz 900 x 3
i make what i can,and save the rest!
billybiltit.blogspot.com/
www.kzrider.com/forum/5-chassis/325862-triple-tree-custom-work
kzrider.com/forum/5-chassis/294594-frame-bracing?limitstart=0
Please Log in or Create an account to join the conversation.
- ezrider714
- Offline
- User
- Posts: 256
- Thank you received: 38
78 KZ650SR Mine since 79
4-1 Mac Jet Hot coated since mid 80's
Dyna Coils
Saddlebags (I ain't skeered of going nowhere)
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616

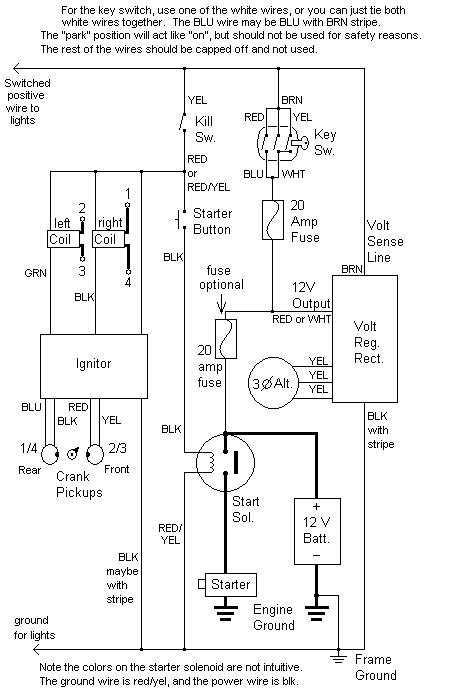

ezrider714 wrote: Hell it's in the very first diagram,Labeled as "points or pickups" as in the pickups shown in the second diagram,with the IGNITOR! :silly:
