Measuring secondary winding resistance
- Topper
- Topic Author
- Offline
- Platinum Member
The accompanying picture shows them doing this with the spark plug caps in place.
The manual then says I should get a reading of 10.4-15.6.
My reading is more like 23.7.
My question is: Is this due to the resistors in the plug caps or is my coil bad?
Did these bikes come with resistors in the plug caps in 1979 or is that a more modern thing?
Permanent and perpetual noob.
1979 KZ750 Twin
2009 Kawasaki Versys
Please Log in or Create an account to join the conversation.
- bountyhunter
- Offline
- User
- Posts: 7246
- Thank you received: 337
As to question:
"My question is: Is this due to the resistors in the plug caps or is my coil bad?"
If it's the original coil, the answer is likely YES.
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
Topper wrote: When measuring the secondary winding resistance of the ignition coil, my manual says to connect one ohmmeter lead to each spark plug lead.
The accompanying picture shows them doing this with the spark plug caps in place.
The manual then says I should get a reading of 10.4-15.6.
My reading is more like 23.7.
My question is: Is this due to the resistors in the plug caps or is my coil bad?
Did these bikes come with resistors in the plug caps in 1979 or is that a more modern thing?
Resistor Caps would be 500 Ohms each, no where near the 10,000 ohms difference in your measurement.
Post a picture of coil and wires/ caps.
Sounds like Coil is Fubar to me.
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- Topper
- Topic Author
- Offline
- Platinum Member
- Posts: 1611
- Thank you received: 133
Motor Head wrote: Resistor Caps would be 500 Ohms each, no where near the 10,000 ohms difference in your measurement.
Post a picture of coil and wires/ caps.
Sounds like Coil is Fubar to me.
DOH! That's right, for some reason I was thinking 5k ohms each for the plug caps.
Well at least I know what to do next. Many thanks to both Motor Head and Bounty Hunter for the help!
Permanent and perpetual noob.
1979 KZ750 Twin
2009 Kawasaki Versys
Please Log in or Create an account to join the conversation.
- 650ed
- Offline
- User
- Posts: 15344
- Thank you received: 2829
1977 KZ650-C1 Original Owner - Stock (with additional invisible FIAMM horn)
Please Log in or Create an account to join the conversation.
- Motor Head
- Offline
- User
- FIX UP YOUR BIKE RIGHT AND CHEAP
- Posts: 5138
- Thank you received: 391
Topper wrote:
Motor Head wrote: Resistor Caps would be 500 Ohms each, no where near the 10,000 ohms difference in your measurement.
Post a picture of coil and wires/ caps.
Sounds like Coil is Fubar to me.
DOH! That's right, for some reason I was thinking 5k ohms each for the plug caps.
Well at least I know what to do next. Many thanks to both Motor Head and Bounty Hunter for the help!

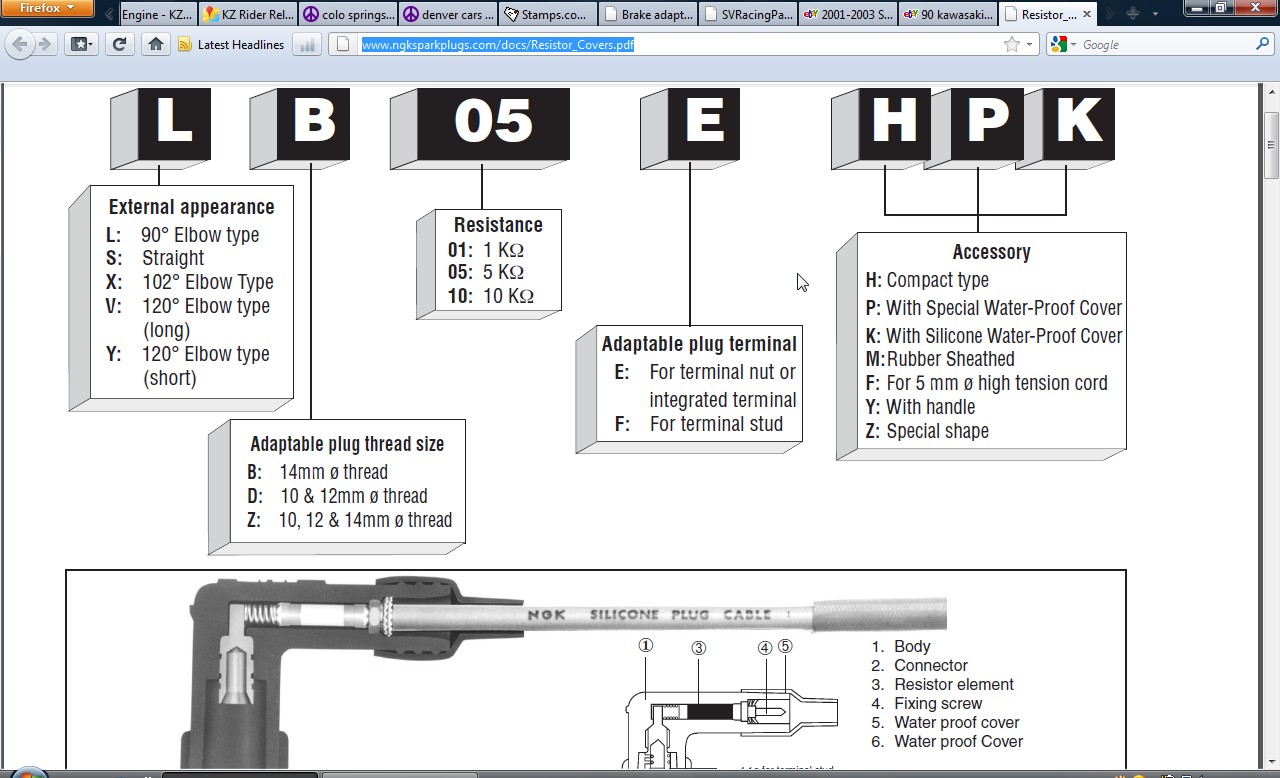

:blush: Well i was wrong on the resistance of the plug caps, went and posted in your other thread too. Here is the correct info from NGK: www.ngksparkplugs.com/docs/Resistor_Covers.pdf
1982 KZ1000LTD K2 Vance & Hines 4-1 ACCEL COILS Added Vetter fairing & Bags. FOX Racing rear Shocks, Braced Swing-arm, Fork Brace, Progressive Fork Springs RT Gold Emulators, APE Valve Springs, 1166 Big Bore kit, RS34's, GPZ cams.
1980 KZ550LTD C1 Stock SOLD Miss it
1979 MAZDA RX7 in the works, 13B...
Please Log in or Create an account to join the conversation.
- Topper
- Topic Author
- Offline
- Platinum Member
- Posts: 1611
- Thank you received: 133
So the specs in the manual assume no resistor in the caps.
I had time to do more testing today and sure enough, with no caps I'm getting 13k ohms and with them I get about 24k ohms.
Got an EMGO from Z1 and measured it with essentially the same results.
Only problem is this EMGO doesn't fit my bike. The mounting studs are too close together. I must have picked the wrong one. I guess I'll be returning it.
Thanks for helping to answer this question for me.
