Just waded through it all and sounds interesting but I have some questions bouncing around in my head after digesting this;
Isn't there a fairly large lag between vacuum increases and what output you'll get from the TPS? Wouldn't that give you a meaningless TPS reference on the graph until RPM and TPS are stable in correlation to one another? Also if you are going to use an O2, how do you correlate that output to mixture and wouldn't there need to be one for each cylinders header pipe?
As far as a inductive sensor and magnet goes I'm a little confused, are you talking something like a linear transducer? I wouldn't think a hall effect would be that reliable with all of the vibration and heat potential compared to some sort of potentiometer signal. We rep a large sensor company and I'd be hard pressed to come up with a better solution to determining the CV slides position without going overboard in expense.
Wasn't this a problem back when automakers tried fuel injectors in a throttle body set up with a TPS, O2 & vacuum potentiometer tied to an ECM that also adjusted timing? The result was that they couldn't guarantee proper fuel mixture until these things became stable to one another. Seems like a carb would always have a flat, lean or rich spot or spots in various rpm's at least temporarily if not consistently at certain spots due to jet/needle transition.
I guess it would be a superior empirical data collector for tuning compared to the dead reckoning of plug reading so I'm sure it is worth the time and effort but it seems to be getting very close to the next step which would be to convert it completely over to a squirter.
Again, very good read even if you are pushing my understanding of your data collection method, I'll be watching this one to see how it works.
1979 KZ1000E1 SOLD!
1984 KZ550F2 SOLD!
2006 ZG1000A6F (Totaled)
2001 ZRX1200R (Sold)
2001 Sprint 955i ST (daily rider)
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25
The madnet sensors I was talking about are Honeywell units, not sure how they work, but they sense the magnetic field intensity and you can use them for linear position. The PN for these is HMC1501. The array you would need for sensing position with a magnet would be quite costly I think.
These days the automakers can avail of faster processors, better sensors, etc to provide better fuel injection. By looking at the differentials of the sensor inputs the programs can anticipate what to do in advance.
1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25

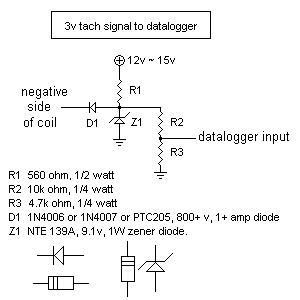

loudhvx wrote: Actually, I think your voltage divider idea will work, but the other components have to be changed a little. The zener will clamp to 9v, the diode will pull down to 1.7v, then the divider will divide by 3... so 3v high, and .6v low. As long as the micro's input is high enough impedance, it should work. No pullup needed on the micro.
The 560 ohm R1 may have to be 1 watt or even higher, if the ignition is turned on while the crank is not turning. If the minimum high voltage is low enough, you can make R2 higher (3.9K) to reduce the low .6 even lower.
(Also, I had to edit the spec on the first diagram. It should be 1 watt, not 1 amp on the zener spec.)
Is that divider right? Seems to me like if the voltage across the zener is 9V then the Vout will be something like 6.7. Since I've already got components coming, I think if R3 is 4.3k and R2 is 10k, I'll get something like 2.7V high and 0.5V low. Is that right?
1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Yes the 10K should be above the other resistor, and the other resistor would be better to be 5k. 4.7k is more easily available, though so may be better. 4.3k may be a little low. Radio Shack should have the 4.7k in stock if the 4.3 is too low.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25
1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25

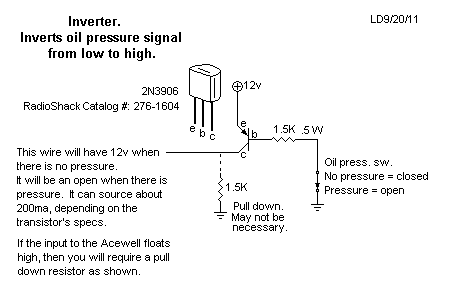

My question today is, how do I turn a negative into a positive? On my acewell speedo dealie, there is a neutral light and a high beam indicator. I want to use the high beam one for my oil pressure switch, since I'm frankly more concerned about my oil pressure than whether my high beams are on or not. But the switch just pulls to ground, and the high beam thing calls for a positive 12V input. Is there a simple way of rigging this up in hardware? Keep in mind I've got components coming for the circuits you already designed in this thread, and there's doubles, so if I can use that crap it'd be great.
