Here's some info regarding manifold vacuum and port size etc, and why to use restrictors. I've posted it before. It's for manometers, but the info applies to reading MAP as well.
home.comcast.net/~loudgpz/GPZweb/Manomet.../ManometerNotes.html
RE: 3.3v microcontroller system.
I don't think that schematic I gave will work. The signal won't go much below about 1.7v. That may be too high for the input to register as low. The reason it's so high is that igniter's don't bring the coil signal all the way to ground. It's always somewhere between .5 and 1v depending on the system and how much current is flowing (which changes with time during the dwell period).
Let me see if I can think of an easy transistor circuit to work around it.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
For a mechanical carb, you really only need TP and RPM to make a determination for the jetting based on AFR.
With a CV carb, the MAP would help, but a slide height sensor is what you'd really want, in order to know where to set the needle. That's a tough gadjet to make... unless you can just set up the video camera with a time code. That would be cool.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25
loudhvx wrote: RE: 3.3v microcontroller system.
I don't think that schematic I gave will work. The signal won't go much below about 1.7v. That may be too high for the input to register as low. The reason it's so high is that igniter's don't bring the coil signal all the way to ground. It's always somewhere between .5 and 1v depending on the system and how much current is flowing (which changes with time during the dwell period).
Let me see if I can think of an easy transistor circuit to work around it.
But if I split the voltages after that circuit, lets say 5 goes to 3.3, that means 1.7 will go to 1.2. That might work, no?
I found an ultrasonic sensor that would be ideal for measuring slide height, but I suspect it'd be out of my price range.
1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler
Please Log in or Create an account to join the conversation.
- testarossa
- Offline
- User
- Attack life, it's only trying to kill you.
- Posts: 3678
- Thank you received: 82
1978 KZ1000 A2 Click--->Build Thread
2004 ZX-10R
2007 Harley Sportster 1200
2020 Harley Street Glide Special
Angola, IN
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25
As for my idea of splitting those voltages, wont work, the max low voltage for this board is 0.8.
1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616

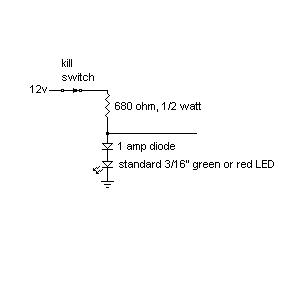

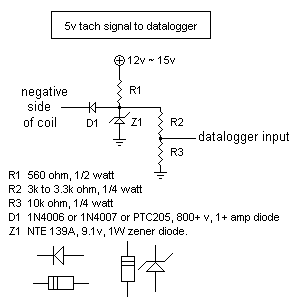

EDIT: The above diagram is wrong, as pointed out by T_Dub.

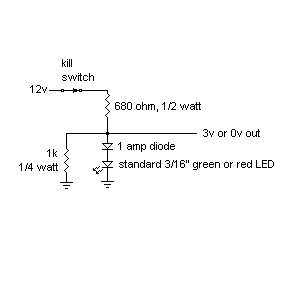

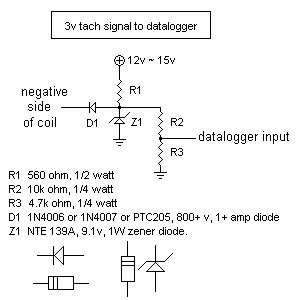

The corrected one is below.
The 560 ohm R1 may have to be 1 watt or even higher, if the ignition is turned on while the crank is not turning.
(Also, I had to edit the spec on the first diagram. It should be 1 watt, not 1 amp on the zener spec.)
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25
I searched for some stuff about getting a magnet to sense linear position, and I found these cool honeywell sensors that would work, but I can't find anywhere to get them. The sensor is called the HMC1501. You need an array, but they're very accurate and could really do the job of sensing slide position.
Edit: Well I found somewhere to buy them, $20 each and I'd need 5 to do it. Screw that.
1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25
1977 KZ650B1
-810cc
-Cavanaugh Racing Head
-Mikuni RS34's
-GPR Muffler
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- T_Dub
- Topic Author
- Offline
- User
- Posts: 1454
- Thank you received: 25
I was thinking, it might take a modded carb cap for my BS34, but what if I stuck a slide pot above the slide, with a linkage up to it? I think that'd do nicely. If I could get a slide pot with low friction it could work I think.
Anyways, off camping now, I'll talk to you guys when I get back!
