dyna booster ?
- bountyhunter
- Offline
- User
1979 KZ-750 Twin
Please Log in or Create an account to join the conversation.
- otakar
- Offline
- User
74 Z1-A stock
76 KZ-900 Totaly stock vice MAC pipe
77 KZ-1000A stock
78 Z1-R 100%MINT 500 original Mi.
78 Z1-R Yoshi 1103 kit stage 1 cams Yoshi pipe. Etc
79 KZ-1300 (1400)
80 KZ-1300
81 Scratch built GPz1150R
82 KZ1000
Please Log in or Create an account to join the conversation.
- cobura
- Offline
- User
- forever 2 wheels
- Posts: 261
- Thank you received: 3
1979 KZ650B3
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
cobura wrote: I have been looking into an ignition for my 650 using that gm ignition writeup I found here. I think I understand it, but I dont understand what to use to replace the point pickups. What do we use for pickups?

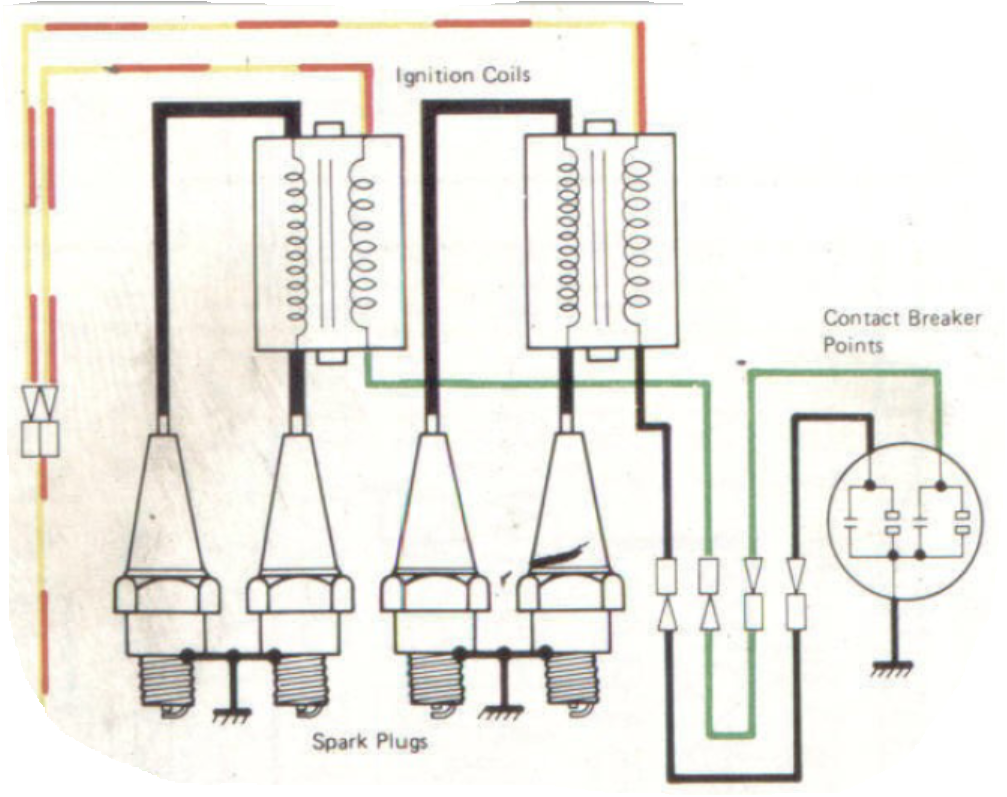

As known, points ignition system doesn't use an igniter (or diy substitute for igniter).
Signal wires from points are routed directly to coil primary terminals.

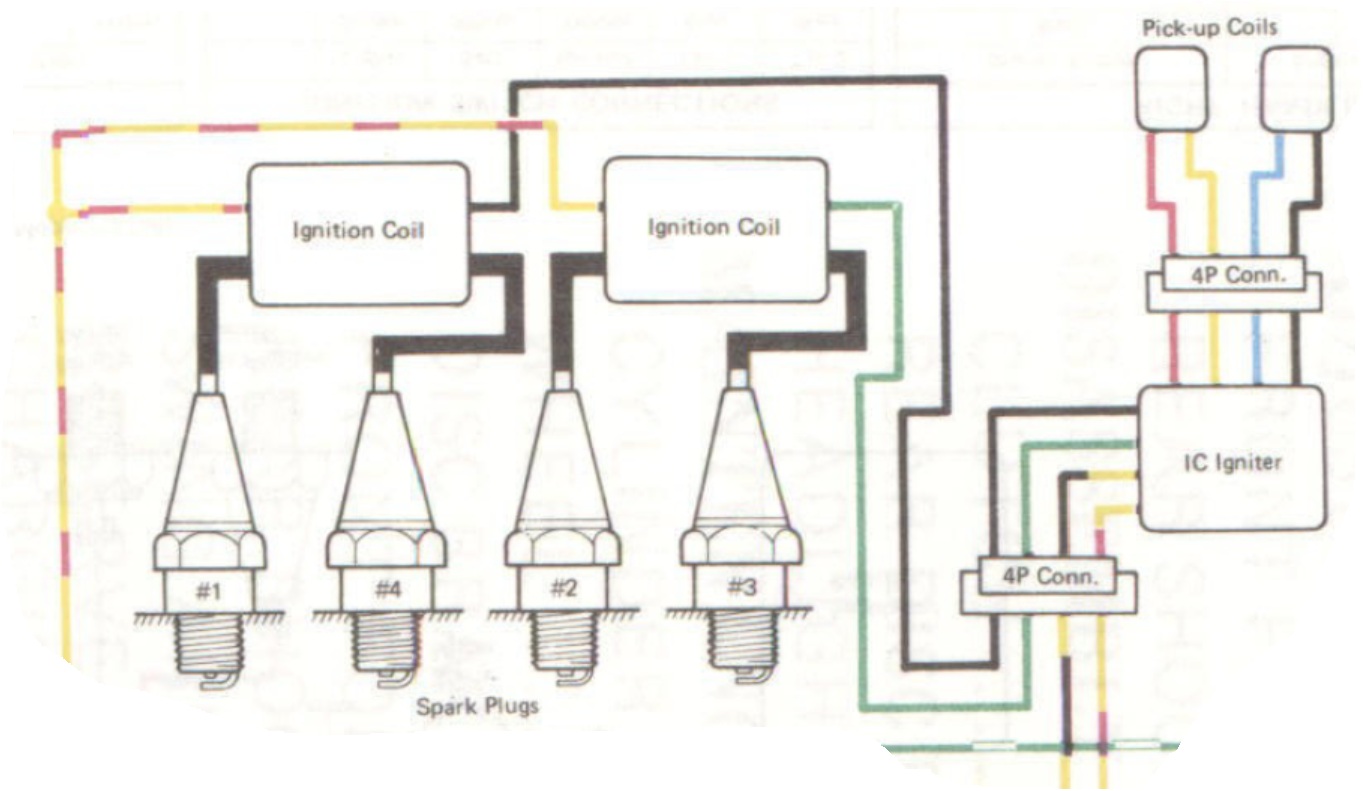

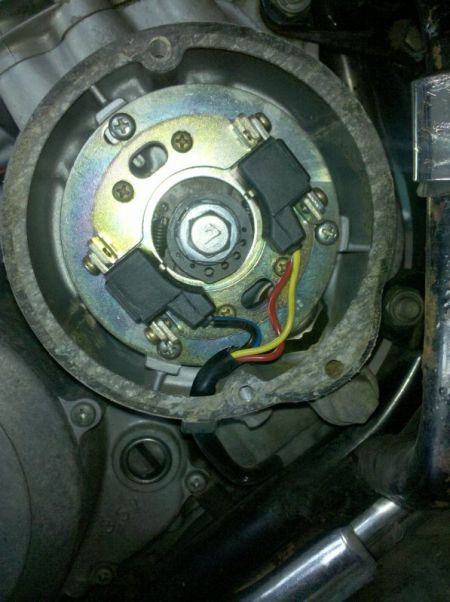

Oem Kawasaki electronic ignition uses pick-ups (1st pic below) with an I.C. Igniter (2nd pic below). Signal wires from pick-ups are routed through the igniter to coil primary terminals.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- cobura
- Offline
- User
- forever 2 wheels
- Posts: 261
- Thank you received: 3
1979 KZ650B3
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
You then also need the rotor.
I think the rotor will fit onto a points advancer, so I think you can use your original timing advancer.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
Patton wrote:

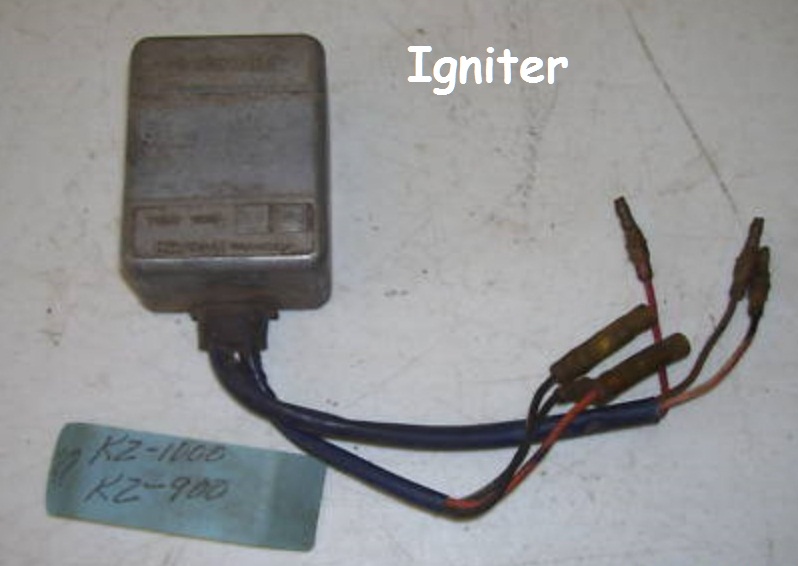

I'm not sure that's an igniter. There are simply not enough wires for it to be an igniter for the early KZ electronic ignitions.
You need pos. and ground.
Plus 2 coil wires.
Plus 4 pickup wires.
It's not impossible to combine some wires and use the case as ground, but I've never seen Kaw do that.
I'm not sure what that thing is.
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
cobura wrote: ...So then I should use the factory pickups from another kawasaki? Which one do u think is best for my kz650?
Am thinking the mounting plate with pickups and rotor-pointer from most any later model KZ650, and retain the existing advancer, but would await more confident advice.
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- cobura
- Offline
- User
- forever 2 wheels
- Posts: 261
- Thank you received: 3
That is very helpful information.
1979 KZ650B3
Please Log in or Create an account to join the conversation.
- Patton
- Offline
- KZr Legend
- Posts: 18640
- Thank you received: 2098
loudhvx wrote:
Patton wrote:
I'm not sure that's an igniter. There are simply not enough wires for it to be an igniter for the early KZ electronic ignitions.
You need pos. and ground.
Plus 2 coil wires.
Plus 4 pickup wires.
It's not impossible to combine some wires and use the case as ground, but I've never seen Kaw do that.
I'm not sure what that thing is.
Thanks, Lou! I grabbed the wrong pic. :blush:

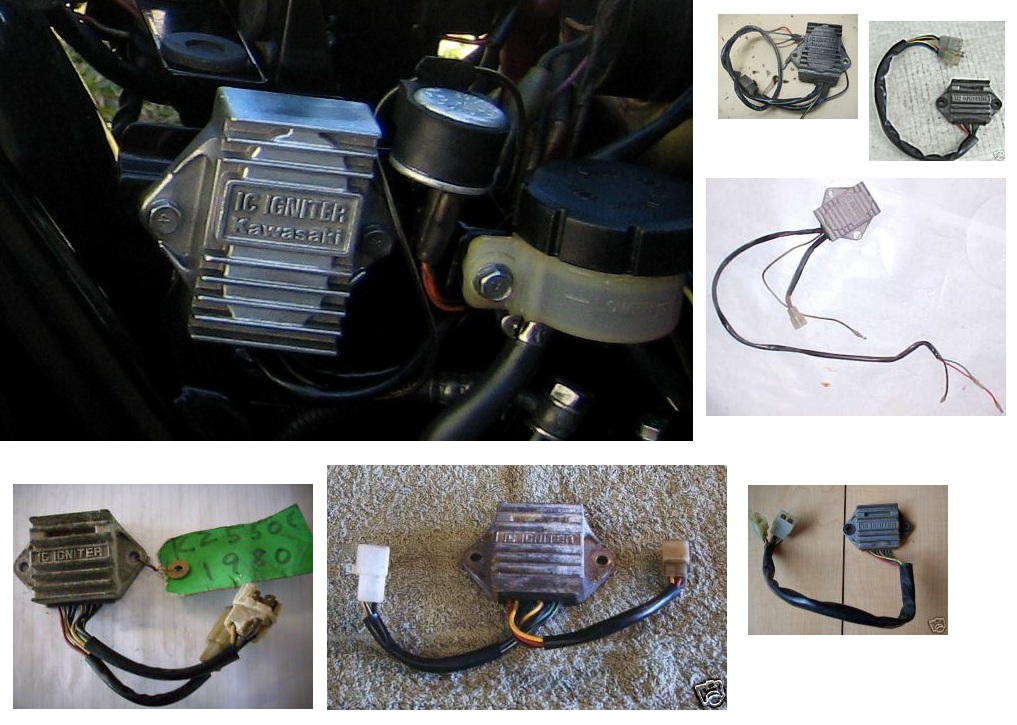

Will atone by offering this smorgasbord of I.C. Igniters. :lol:
Good Fortune!
1973 Z1
KZ900 LTD
Please Log in or Create an account to join the conversation.
- loudhvx
- Offline
- KZr Legend
- Posts: 10868
- Thank you received: 1616
1981 KZ550 D1 gpz.
Kz550 valve train warning.
Other links.
