KZ900 carburetor parts wanted to buy … Where?

  • increasing
  • increasing's Avatar Topic Author
  • Offline
  • User
  • curious to know
  • Posts: 38
  • Thanks: 10

KZ900 carburetor parts wanted to buy … Where?

24 Mar 2025 11:05
#910457

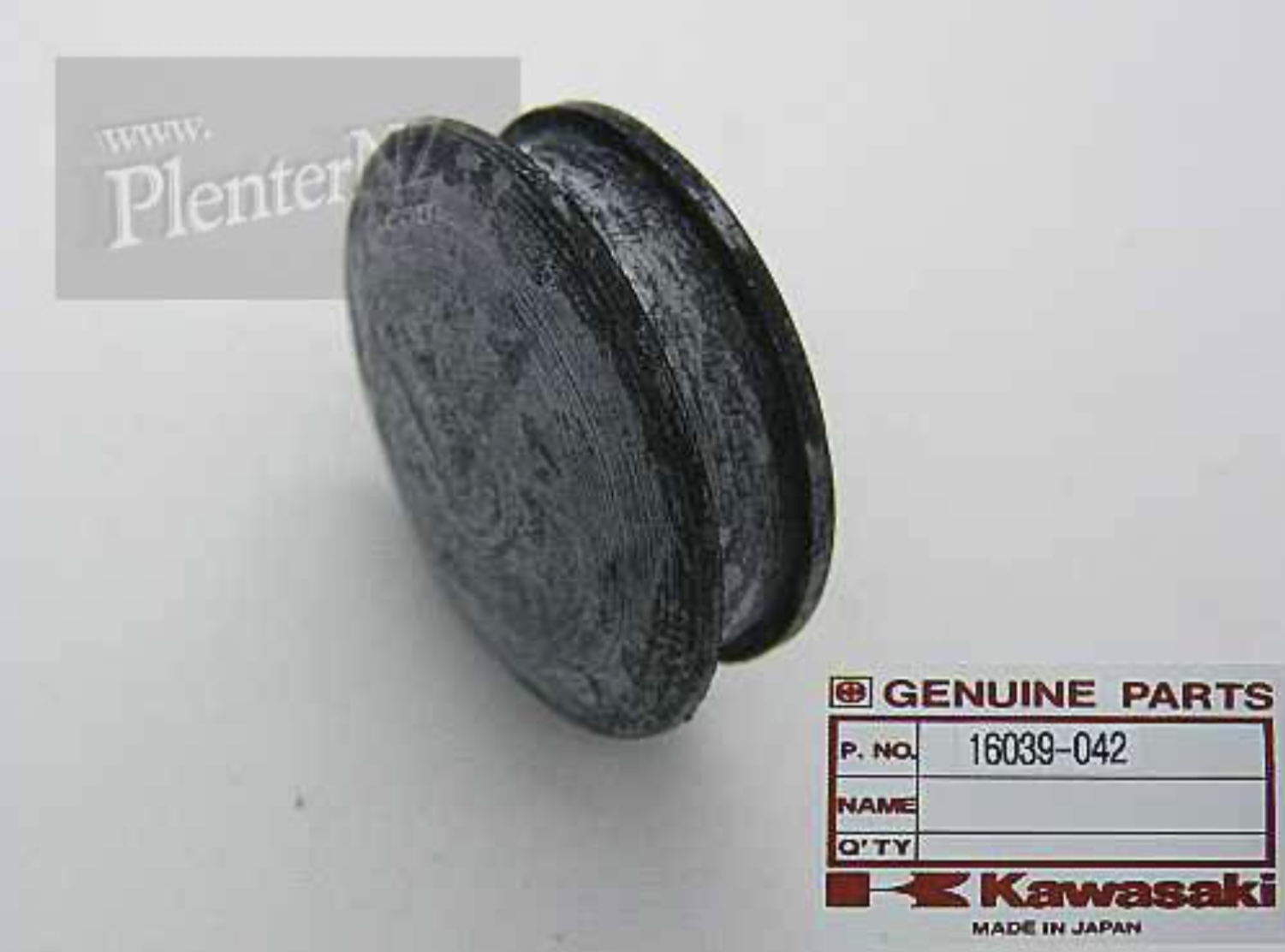

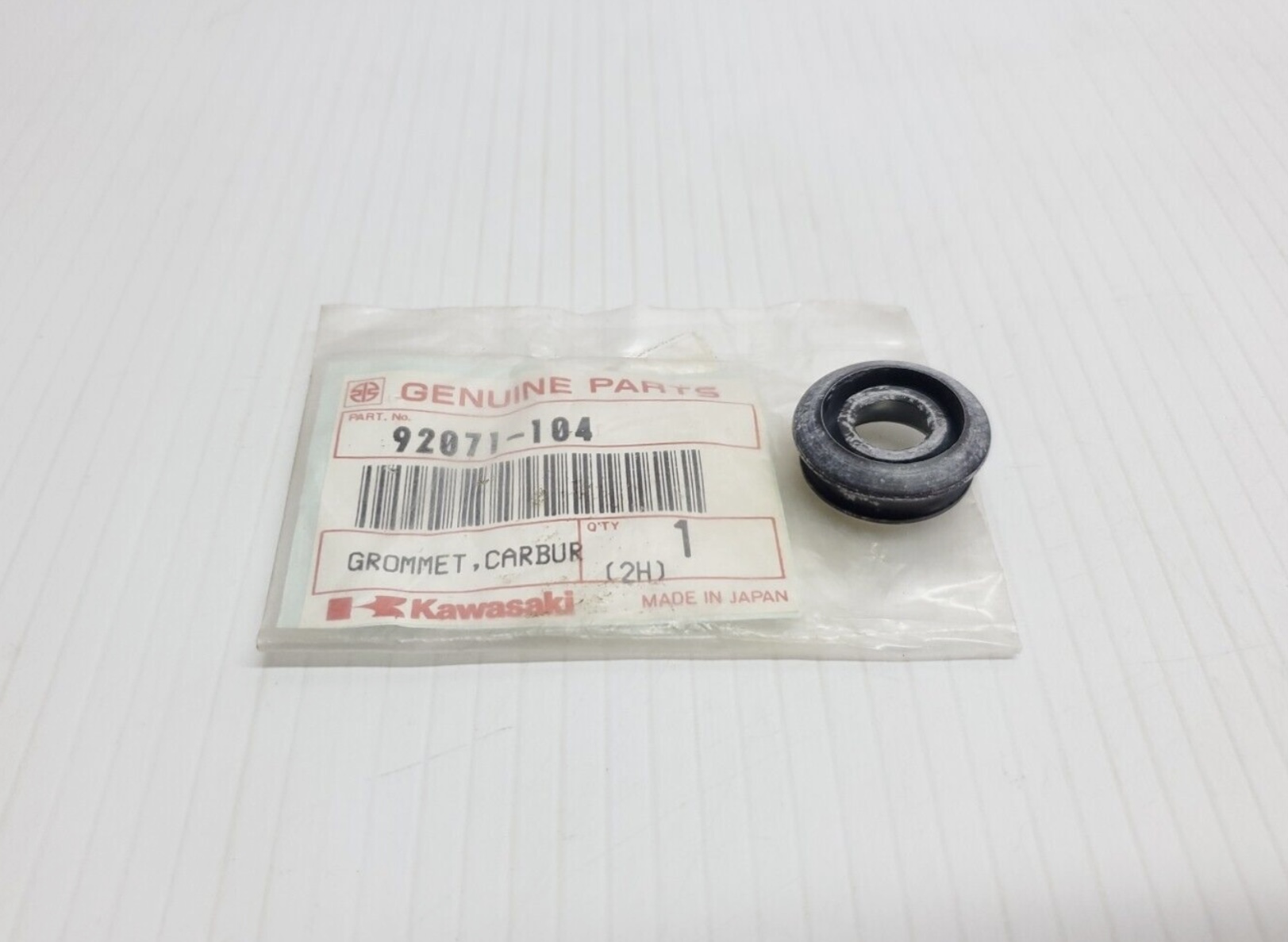

Is there anyone selling carburetor parts for the KZ900, the parts I want to buy are 6 pc "92071-102 grommet carburetor body linkage" as shown in the pictures. It may also be interesting to buy blind plugs 2 pc "16039-042 cap rubber" as in the picture.




increasing :)
1976 Kawasaki KZ900-A4, 1974 Kawasaki Z1A 900, 1987 Kawasaki GPX750R

Please Log in or Create an account to join the conversation.

  • Injected
  • Injected's Avatar
  • Offline
  • User
  • Posts: 1176
  • Thanks: 657

Re: KZ900 carburetor parts wanted to buy … Where?

24 Mar 2025 11:36 - 24 Mar 2025 11:40
#910463
Both are NLA from Kawasaki but was able to find them easily by typing "Kawasaki" then the part number on Ebay.

Items # 176241207230 and 286285904258.
1978 KZ650B2 w 1197cc Z1 engine
1977 KZ650B1 w 750cc Spectre engine
1979 KZ650C3 w 831cc Hot Rod engine
1978 KZ650C2 w 762cc DFI project
1977 KZ650C1 stock restoration project
1978 KZ650B2 modified project
1978 KZ650B2 Injected Drag 831cc
1980 Z1 Custom Frame Drag 1327cc
1981 Z50R Honda tow bike
Last edit: 24 Mar 2025 11:40 by Injected. Reason: info
The following user(s) said Thank You: increasing, Rolf1976_KZ900

Please Log in or Create an account to join the conversation.

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar
  • Offline
  • Sustaining Member
  • Posts: 464
  • Thanks: 227

Re: KZ900 carburetor parts wanted to buy … Where?

24 Mar 2025 11:42 - 24 Mar 2025 11:46
#910464
No eBay APP ID and/or Cert ID defined in Kunena configurationMaybe try search for suzuki gs carb parts ? i think some of them use same carbs

just did a quick search and found these maybe they fit?
Last edit: 24 Mar 2025 11:46 by Rolf1976_KZ900. Reason: adding link ebay
The following user(s) said Thank You: increasing

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 978
  • Thanks: 468

Re: KZ900 carburetor parts wanted to buy … Where?

24 Mar 2025 11:44
#910465

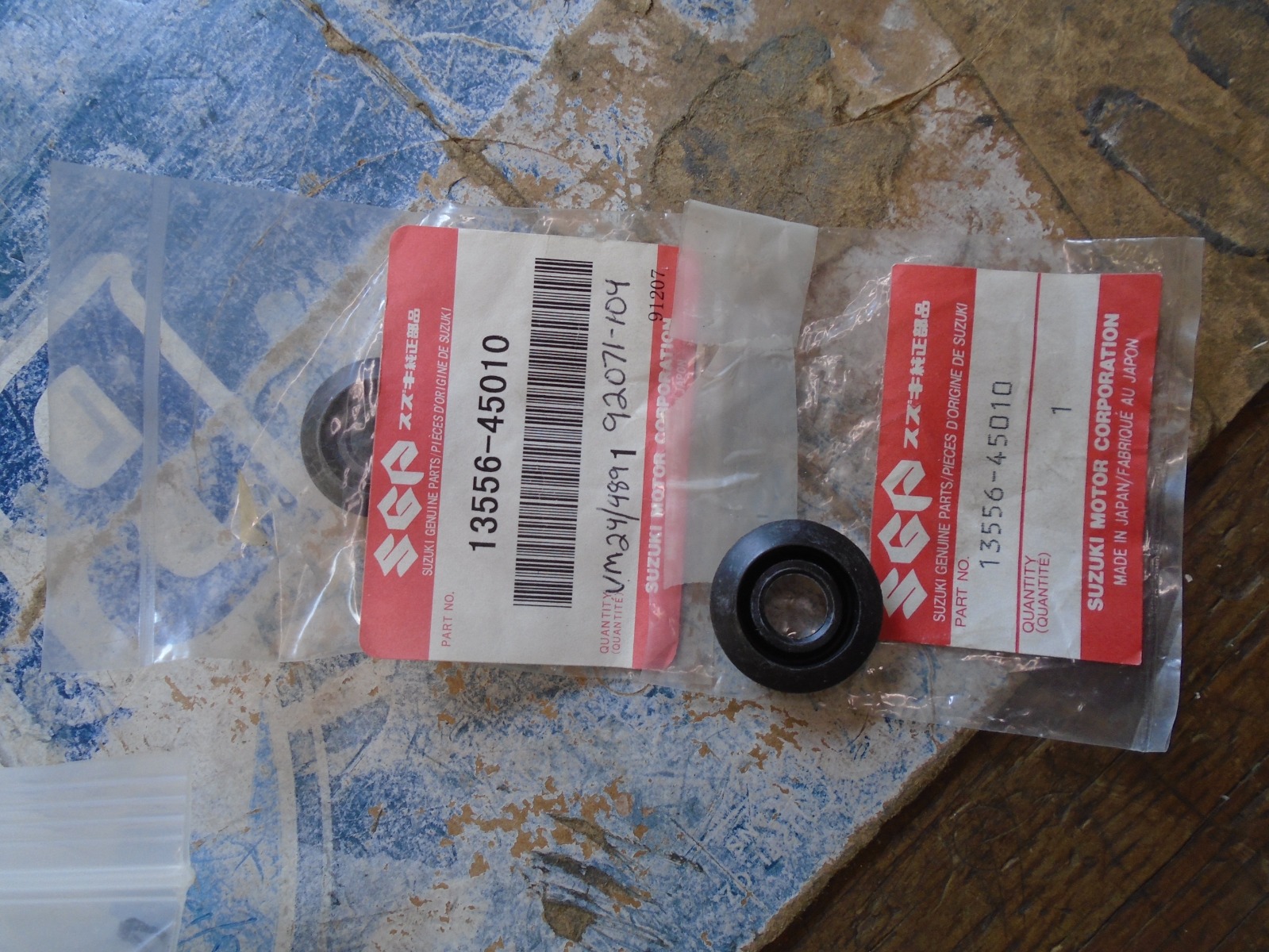

I have some but in the Suzuki variation. Some Kawasaki ones had a "skin/teflon" inner sticker where the rubber meets the shaft. But non-essential. Kawasaki nor Suzuki made these, generic Mikuni issue. But this Suzuki part number will give you "increasing" availability for bits needed, same stuff and function. Suzuki # 13556-45010 for the inner 6. You're Far-F  ar away from me so wouldn't be cost effective to send unfortunately. Mailing shite abroad is increasingly expensive these days!!
The following user(s) said Thank You: increasing

Please Log in or Create an account to join the conversation.

  • Rolf1976_KZ900
  • Rolf1976_KZ900's Avatar
  • Offline
  • Sustaining Member
  • Posts: 464
  • Thanks: 227

Re: KZ900 carburetor parts wanted to buy … Where?

24 Mar 2025 11:50
#910466
By the way.... are these grommets just for dust or do they also seal air so a vacuum leak will inpact carburetion?
The following user(s) said Thank You: increasing

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 978
  • Thanks: 468

Re: KZ900 carburetor parts wanted to buy … Where?

24 Mar 2025 11:58
#910468
More so for diverting crud but may have some impact on the slide hole at lower RPMs? Have to remember when syncing, caps are off to perform that maintenance.
The following user(s) said Thank You: increasing

Please Log in or Create an account to join the conversation.

  • zed1015
  • zed1015's Avatar
  • Offline
  • User
  • Posts: 3099
  • Thanks: 1670

Re: KZ900 carburetor parts wanted to buy … Where?

24 Mar 2025 13:29
#910476
Rolf1976_KZ900 wrote:
By the way.... are these grommets just for dust or do they also seal air so a vacuum leak will inpact carburetion?
Yes! Just dust seals.
AIR CORRECTOR JETS FOR VM CARBS AND ETHANOL RESISTANT VITON CHOKE PLUNGER SEAL REPLACMENT FOR ALL CLASSIC AND MODERN MOTORCYCLE CARBURETTORS
www.kzrider.com/23-for-sale/611992-air-c...lide-mikunis?start=0





The following user(s) said Thank You: Gdizard, increasing

Please Log in or Create an account to join the conversation.

  • increasing
  • increasing's Avatar Topic Author
  • Offline
  • User
  • curious to know
  • Posts: 38
  • Thanks: 10

Re: KZ900 carburetor parts wanted to buy … Where?

Yesterday 04:10
#910502
Thanks for good and clarifying answers 👍
increasing :)
1976 Kawasaki KZ900-A4, 1974 Kawasaki Z1A 900, 1987 Kawasaki GPX750R

Please Log in or Create an account to join the conversation.

  • increasing
  • increasing's Avatar Topic Author
  • Offline
  • User
  • curious to know
  • Posts: 38
  • Thanks: 10

Re: KZ900 carburetor parts wanted to buy … Where?

Yesterday 04:16 - Yesterday 04:17
#910503
post=910465 userid=19828I have some but in the Suzuki variation. Some Kawasaki ones had a "skin/teflon" inner sticker where the rubber meets the shaft. But non-essential. Kawasaki nor Suzuki made these, generic Mikuni issue. But this Suzuki part number will give you "increasing" availability for bits needed, same stuff and function. Suzuki # 13556-45010 for the inner 6. You're Far-Far away from me so wouldn't be cost effective to send unfortunately. Mailing
shite abroad is increasingly expensive these days!!


Do you have 6 of these?

increasing :)
1976 Kawasaki KZ900-A4, 1974 Kawasaki Z1A 900, 1987 Kawasaki GPX750R
Last edit: Yesterday 04:17 by increasing.

Please Log in or Create an account to join the conversation.

  • asphalt900
  • asphalt900's Avatar
  • Offline
  • User
  • Posts: 978
  • Thanks: 468

Re: KZ900 carburetor parts wanted to buy … Where?

Yesterday 04:57
#910504
Unfortunately no, just the two shown. But there's a cat on ebay "motomantra" that has a set for something like 20USD.

Please Log in or Create an account to join the conversation.

  • DOHC
  • DOHC's Avatar
  • Offline
  • Sustaining Member
  • Those Doe-Hawks really go!
  • Posts: 1253
  • Thanks: 564

Re: KZ900 carburetor parts wanted to buy … Where?

Yesterday 05:34
#910509
Here is another source:   www.siriusconinc.com/m/products-detail.php?product_id=123335

I have used a few sets of these and they work well.

I also found a bunch of similar VM replacement parts at JetsRUs.com, but it looks the number of available parts they carry has dropped.  I wonder if some of their supply dried up when Sudco closed.
'78 Z1-R in blue , '78 Z1-R in black, '78 Z1-R in pieces
My dad's '74 Z1
'00 ZRX1100

Please Log in or Create an account to join the conversation.
